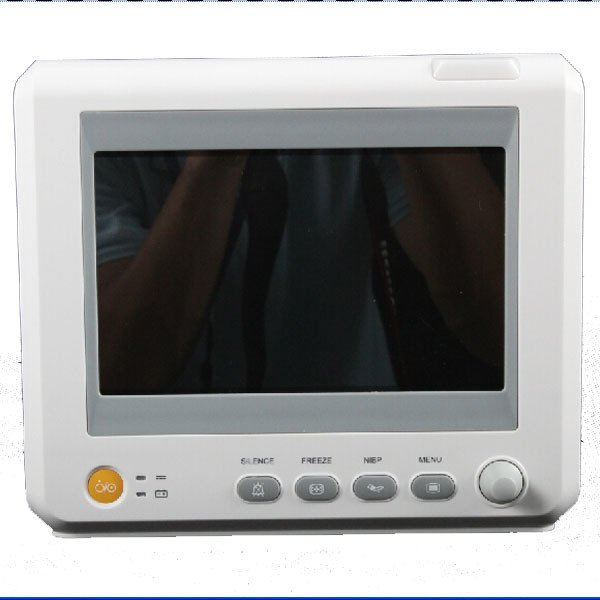

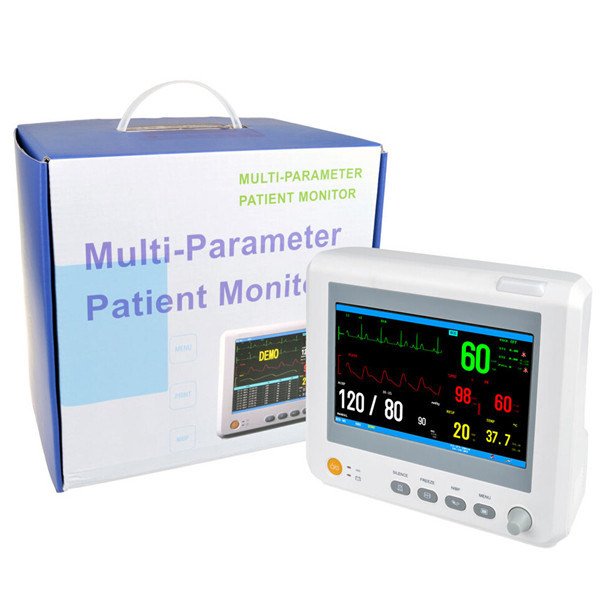

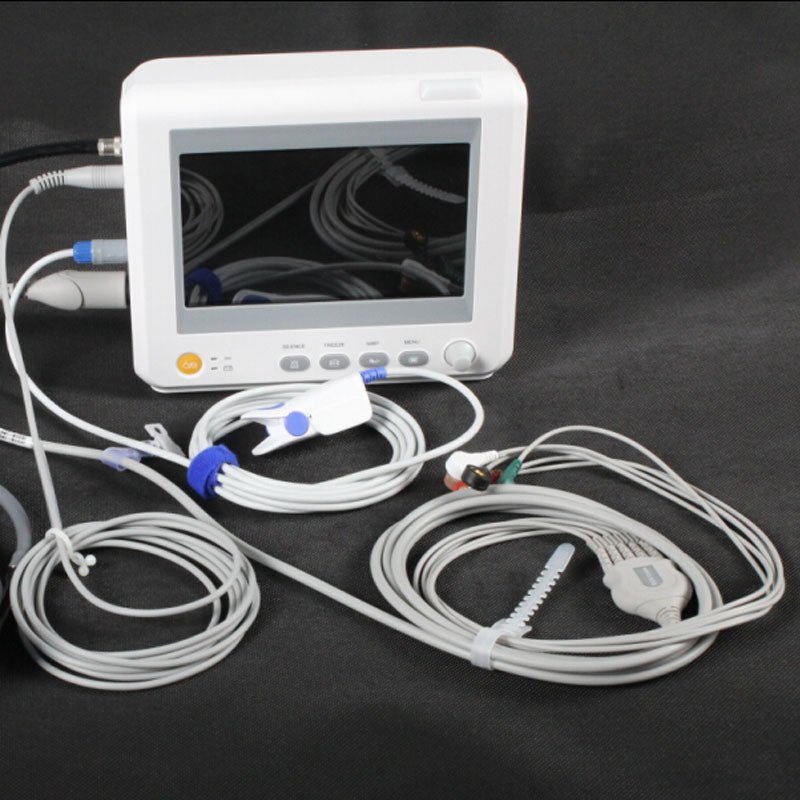

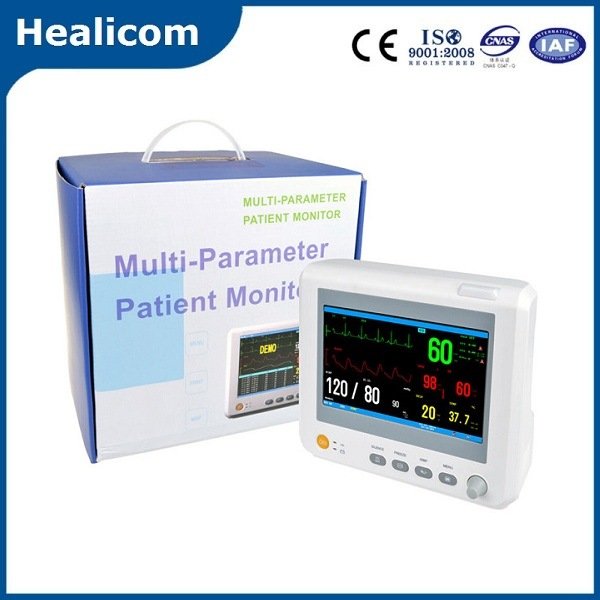

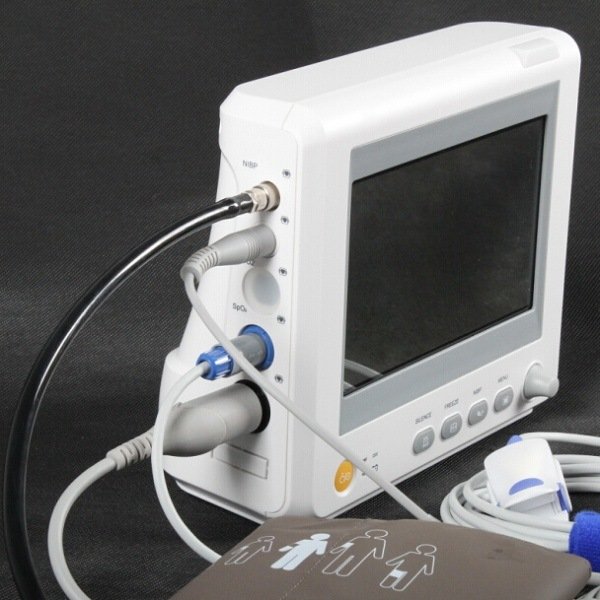

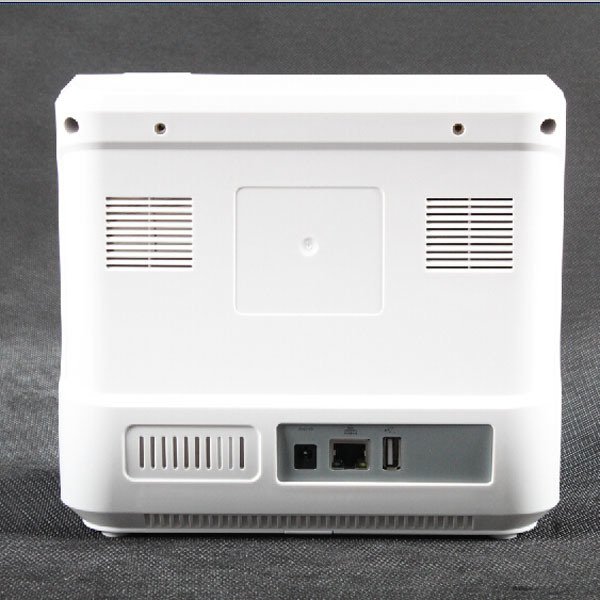

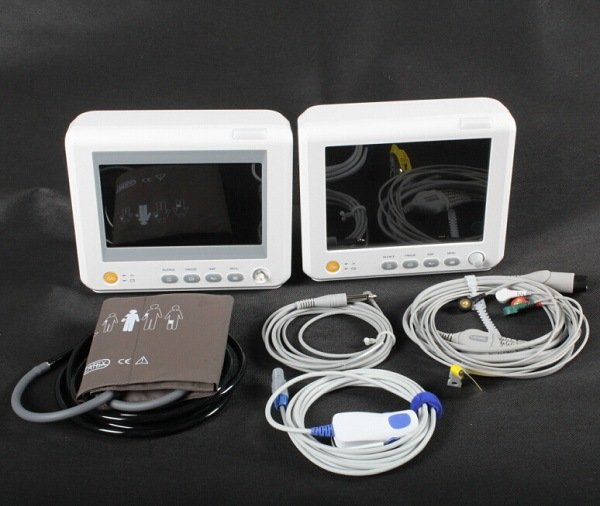

HM-8
Patient/Fetal/Maternal Monitor
All
12months
SpO2, Pr, NIBP, ECG, Resp, Temp
Built-in Lithuim Battery
1.35kg
White
Carton
Jiangsu, China
Physiological Functions of Diagnosis and Monitoring Equipment
CE, ISO13485
ISO, CE
8 Inch Color LCD Screen
210*185*100mm
Adult, Pediatric, and Neonate
Wall Mounting, Mobile Trolley,Touch Screen
Healicom
CE, ISO
9018909090
Product Description
| ECG | *lead mode;I,II,III,AVR,AVL,AVF,V *Gain:X0.25,X0.5,X1,X2 *Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal) Resolution:1 BPM Accuracy:+-1% * ST measurement Range:-2.0-+2.0mV Accuracy:+-10% *Pacemaker:Yes *Sweep Speed:12.5 mm/s,25mm/s,50mm/s *Bandwidth:Diagnostic:0.05--130Hz Monitor: 0.5--40Hz Surgery: 1-20Hz |
| Spo2 | *Measure Range:0-100% *Resolution:1% *Accuracy:2%(70-100%) *Pulse Rate:20-250BPM *Resolution:1BPM *Accuracy:+-3BPM |
| NIBP | *Work mode:Manual,Automatic,Continuous *Unit:mmHg,Kpa *Measure Range: Adult: SYS: 40-280mmHg DIA: 10-225mmHg MEAN:20-240mmHg Pediatric: SYS:40-220mmHg DIA: 10-160mmHg MEAN:20-170mmHg Neonatal: SYS:40-135mmHg DIA:10-100mmHg MEAN:20-110mmHg *Resolution:1mmHg *Accuracy:+-5mmHg |
| RESP | *Measure Range:0-150BrPM *Resolution:1BrPM *Accuracy:+-2% |
