Medical Equipment Multi-Parameter Patient Monitor
You are here: Home » Products » Surgical&ICU Equipments » Patient Monitor » Medical Equipment Multi-Parameter Patient Monitor

Category List

Medical Equipment Multi-Parameter Patient Monitor

Quantity:

PDF Export

  • HM-8000B
  • Patient/Fetal/Maternal Monitor
  • All People
  • CE ISO
  • Manual/Auto/Continuous
  • 0-500
  • 20-254bpm
  • 1 Year
  • Carton
  • Jiangsu, China
  • Physiological Functions of Diagnosis and Monitoring Equipment
  • CE, ISO13485
  • 12.1 Inch LCD Display
  • Oscillometry
  • 3-Lead or 5-Lead
  • 0-100%
  • Ra-Ll Impedance
  • healicom
  • CE ISO
  • 9018193000

Product Description

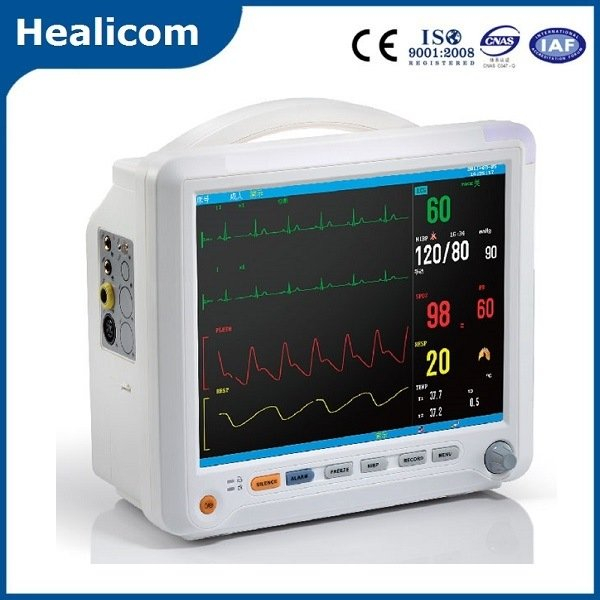

HM-8000B Hot Sale Multi-Parameter Patient Monitor

Brief introduction:
Patient monitor is a kind of instrument or system which is used to measure and control patients physiological parameters, which can be compared with known settings, if they are higher than know settings, the system will alarm.

Features:
6 Standard parameters: ECG, 2-TEMP, NIBP, SpO2, RESP, PR/HR
12.1 inch high resolution color TFT LCD display
Real time S-T segment analysis, pace-maker detection
Indication of incorrect manipulation and malfunction analysis
Patient info input management function
Muti-lead ECG waveforms display in phase
Large volume of tabular and praphic trends information storage and easy to recall
Capture dynamic waveforms
Up to 2 hours working capacity of built-in rechargeable lithium battery
Unique accessory management cabinet
Networking capacity
ETCO2,  thermal printer ,built-in recorder, cart, wall shelf

Parameters:

NIBP
Method: Oscillometry
Modes: Manual/Auto/Continuous
Auto measure time: Adjustable
Measurement range:10-270mmHg

ECG





Lead mode: 3-lead or 5-lead
Lead selection: I;II;III,avR;avF;V
Heart rate range: Adult:15-300bpm;Pediatric/Neonatal:15-300bpm
ECG waveform: 2 channels
Accuracy: ±1 bpm or ±1%,which is greater
S-T segment detection; measurement range:- 2.0mv~+2.0mv
Alarm: Yes, audible and  visual alarm, alarm events review
 SPO2 Measurement range:0-100%
Accuracy:70-100%,±2%,0-69%,upspecified
Auto measure time: Adjustable

Pulse Rate
Range:20-254bpm
Accuracy: ±3bpm

Respiration
Method: RA-LL impedance
Range: Adult:0-120rpm;pediatric/neonatal:0-150rpm
 Apnea alarm: Yes
 Temperature   Range:0-500
Accuracy: ± 0.10
Channel: Dual-channel
 Main unit  ECG cable
Spo2 probe
TEM Probe
NIBP Tube
Adult cuff
Power cable
Battery
User manual
ECG Electrodes
Warranty Period 1year
MOQ 2pc
Delivery time  Within 7 working days upon receipt the payment
Terms of payment T/T, L/C, western union
Shipping terms By sea, by air or by express

Medical Equipment Multi-Parameter Patient Monitor Medical Equipment Multi-Parameter Patient Monitor Medical Equipment Multi-Parameter Patient Monitor Medical Equipment Multi-Parameter Patient Monitor Medical Equipment Multi-Parameter Patient Monitor Medical Equipment Multi-Parameter Patient Monitor
