7 Inch Multi-Parameter Patient Monitor (HM-8000A)

Availability:
Quantity:

PDF Export

  • HM-8000A

Product Description

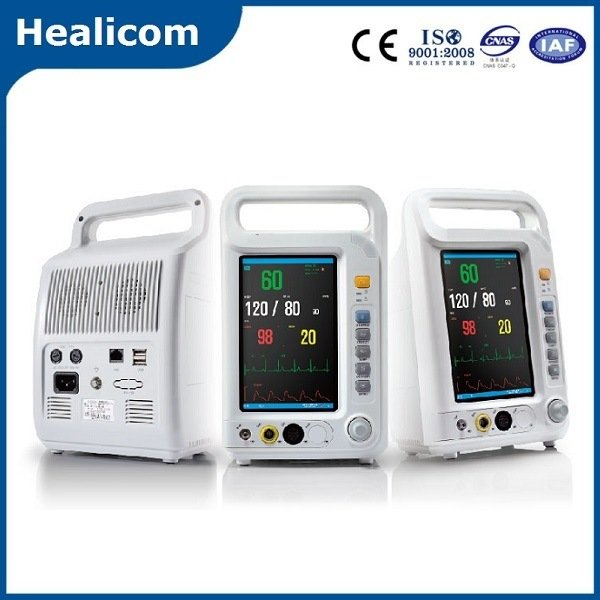

HM-8000A multi-parameter patient monitor is our newest product. The display is 7 inch high resolution color TFT. It is equipped with 4 parameters including ECG, NIBP, SpO2, RESP. These four parameters can be flexible. You can choose different combinations as you need. This monitor is built-in rechargeable lithium battery. The working capacity is 5 hours. IBP is optional.

Features & Benefits
1. 4 Standard parameters: ECG, NIBP, SpO2, RESP.
2. 7 inch high resolution color TFT LCD display.
3. Real time S-T segment analysis, pace-maker detection.
4. Indication of Incorrect manipulation and malfunction analysis.
5. Patient info input management function
6. Multi-lead ECG waveforms display in phase.
7. Large volume of tabular and graphic trends information storage and easy to recall.
8. Capture dynamic waveforms.
9. Efficient resistance to interference of defibrillator and HF knife.
10. UP to 4 hours working capacity of built-in rechargeable lithium battery.
11. Unique accessory management cabinet.
12. Networking capacity.
13. Option: IBP

Technical parameters:
RESP

Measuring Method
RA-LL impedance
RESP Impedance Measuring Range 0.3~3Ω
Base Impedance Range 200~4000Ω
Bandwidth 0.1~2.5Hz RESP
NIBP
Measuring Method Pulse wave oscillometry
Work Mode Manual/Automatic/STAT
Measuring Interval of Automatic Measuring Mode
1,2,3,4,5,10,15,30,60,90,120,180,240,480 minute(s)
Measuring Time of STAT Mode 5 minutes
PR range 40 - 240 bpm
SpO2
Range 0~100%
Resolution 1%
Precision 70~100%:2 DIGIT 0%~69%:no definition given
PR
Range 20~300bpm
Resolution 1bpm
Precision 3bpm
ECG
Lead configuration
Standard 3-lead or 5-lead
3-lead RA,LA,LL,Lead method:I,II,III
5-lead RA,LA,LL,RL,V,Lead method:I,II,III,aVR,aVL,aVF,
HR
Adult 15 ~ 300bpm (beat/minute)
Neonatal baby/children 15 ~ 350 bpm (beat/minute)
Precision ±1% or ±1bpm, the larger prevails
Resolution 1 bpm (beat/minute)
Sensitivity > 200 uV (Peak-to-peak value)
Input Impedance > 5 (megohm)
