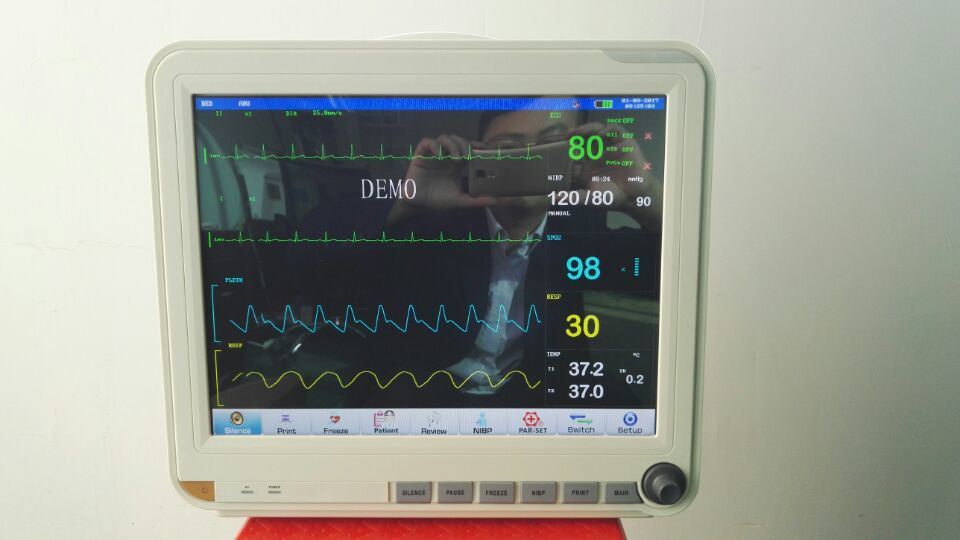

HM-2000E Medical Equipment 15 Inch Portable ECG Multi-parameter Patient Monitor
Patient monitor is a kind of instrument or system which is used to measure and control patients physiological parameters, which can be compared with known settings, if they are higher than known settings, the system will alarm.
1. Standard parameters:ECG,RESP,NIBP,SPO2,PR/HR,TEMP.
2.13 types Arrhythmic Analysis, Multi-lead ECG waveforms display in Phase, 15 types Drug calculation and titration table.
3.Anti-ESU, anti-defibrillator; RA-LL impedance.
4.SPO2 can testing for 0.1% weak,high accuracy.
5.Unique breathing measurement technology, real-time monitoring, intelligent filter design, eliminate interference, measuring respiratory accurately.
6.Trend Coexist interface for all parameter to observe easily.
7.OxyCRG Dynamic View display, More intultive with all parameters.
8.Platform scalable with cable or wireless connecting to central monitoring.
9.Printer /Recorder is optional for real-time printing.
10.Brief operation interface, Touchscreen is optional.
Up to 2-5 hours working capacity of built-in rechargeable Li-ion battery.
11.15inch high resolution color TFT LCD display.
12.Holographic waveform trends playback for 2 weeks and 12 hours off electricity saving.
13.Built-in networking to realize central monitoring function.
14.Optional: Touchscreen, VGA, 2-IBP, HDMI, ETCO2.
15.System start up only need 10 seconds with ARM-A5 Nuclear technology.
|5-lead ECG cable||1pc|
|Surface temp probe||1pc|
|Adult NIBP cuff||1pc|
|Adult SpO2 sensor||1pc|
|Adapter ||Input||AC 90 V~240V, 50/60Hz|
|Built-in Battery||Type||14.8V, 2200mAH Li-ion rechargeable battery|
|Operating time||3.5-4 hours working time under full power|
|Charging time||2 hours|
