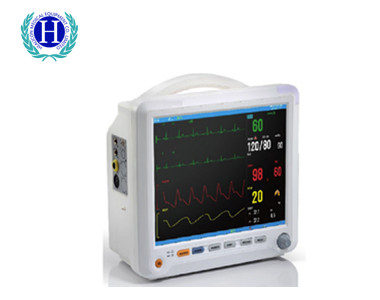

HM-8000B 12.1 Inch Medical Equipments Multi-Parameter Patient Monitor

Patient monitor is a kind of instrument or system which is used to measure and control patients physiological parameters, which can be compared with known settings, if they are higher than known settings, the system will alarm.
Availability:
Quantity:

PDF Export

  • HM-8000B
  • Healicom

Product Description

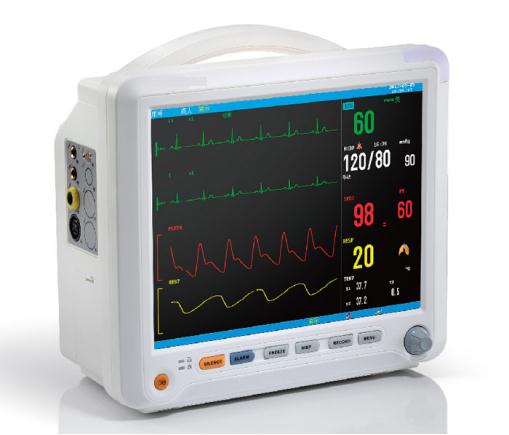

HM-8000B 12.1 Inch Medical Equipments Multi-Parameter Patient Monitor


1


Product Introuction
Patient monitor is a kind of instrument or system which is used to measure and control patients physiological parameters, which can be compared with known settings, if they are higher than known settings, the system will alarm.

Features:
• 6 Standard parameters: ECG, 2-TEMP, NIBP, SpO2, RESP, PR/HR
• 12.1 inch high resolution color TFT LCD display
• Real time S-T segment analysis, pace-maker detection
• Indication of incorrect manipulation and malfunction analysis
• Patient info input management function
• Muti-lead ECG waveforms display in phase
• Large volume of tabular and praphic trends information storage and easy to recall
• Capture dynamic waveforms
• Up to 2 hours working capacity of built-in rechargeable lithium battery
• Unique accessory management cabinet
• Networking capacity
• ETCO2,  thermal printer ,built-in recorder, cart, wall shelf


Parameters

NIBP Method: Oscillometry
Modes: Manual/Auto/Continuous
Auto measure time: Adjustable
Measurement range:10-270mmHg



ECG




Lead mode: 3-lead or 5-lead
Lead selection: I;II;III,avR;avF;V
Heart rate range: Adult:15-300bpm;Pediatric/Neonatal:15-300bpm
ECG waveform: 2 channels
Accuracy: ±1 bpm or ±1%,which is greater
S-T segment detection; measurement range:- 2.0mv~+2.0mv
Alarm: Yes, audible and  visual alarm, alarm events review
SPO2 Measurement range:0-100%
Accuracy:70-100%,±2%,0-69%,upspecified
Auto measure time: Adjustable

Pulse Rate
Range:20-254bpm
Accuracy: ±3bpm

Respiration
Method: RA-LL impedance
Range: Adult:0-120rpm;pediatric/neonatal:0-150rpm
Apnea alarm: Yes
Temperature Range:0-500
Accuracy: ± 0.10
Channel: Dual-channel

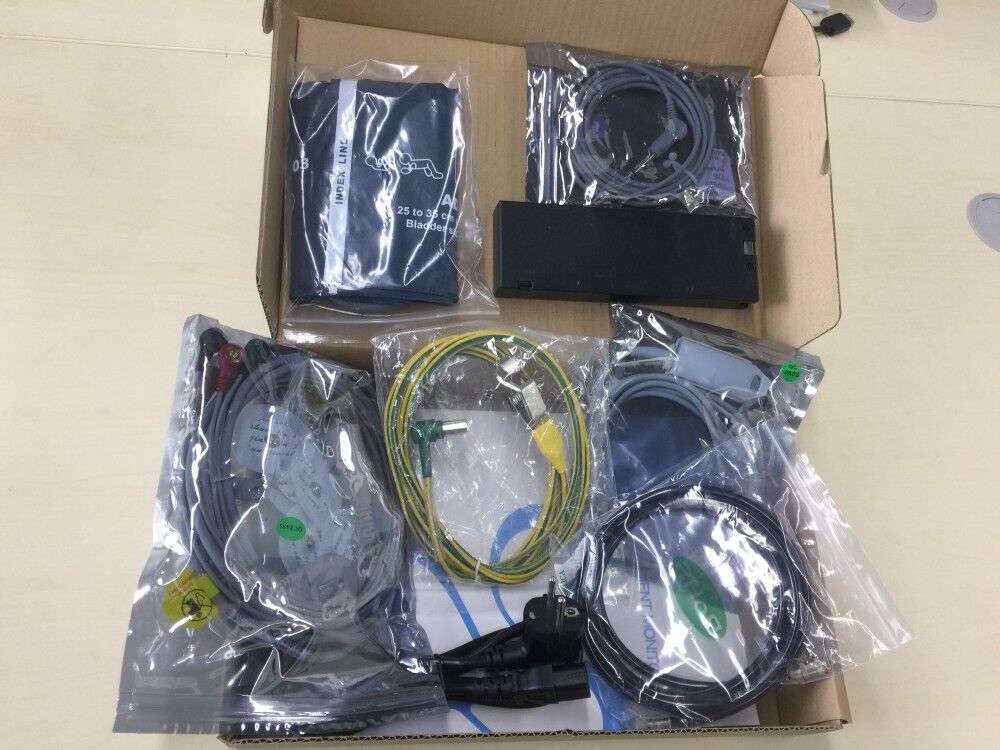

Main unit     Accessoreis  TIM图片20190415175927  ECG cable
Spo2 probe
TEM Probe
NIBP Tube
Adult cuff
Power cable
Battery
User manual
ECG Electrodes

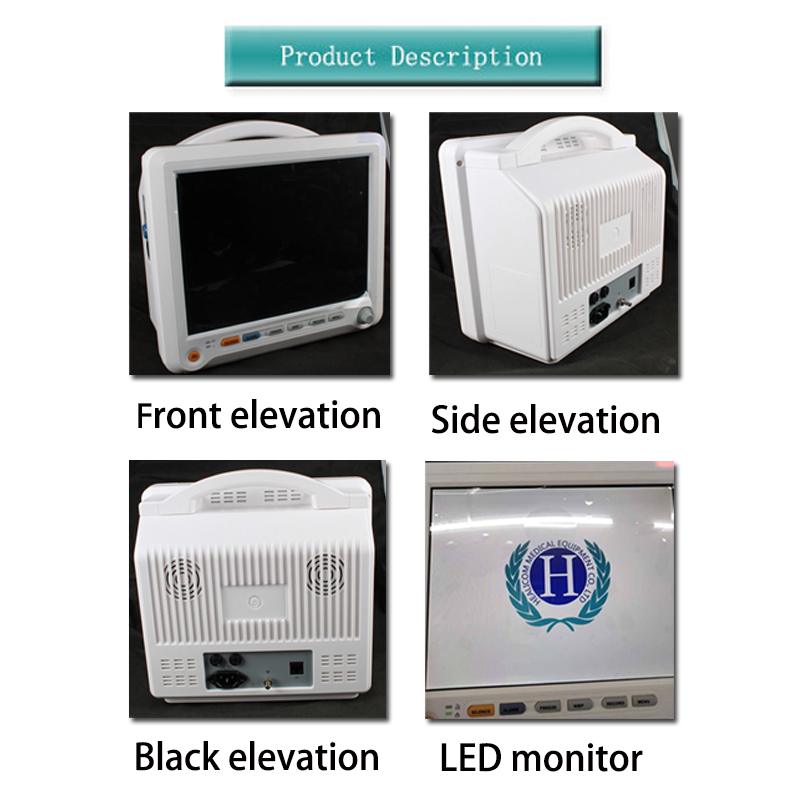

 xiangqing
