HM-A
Product Description

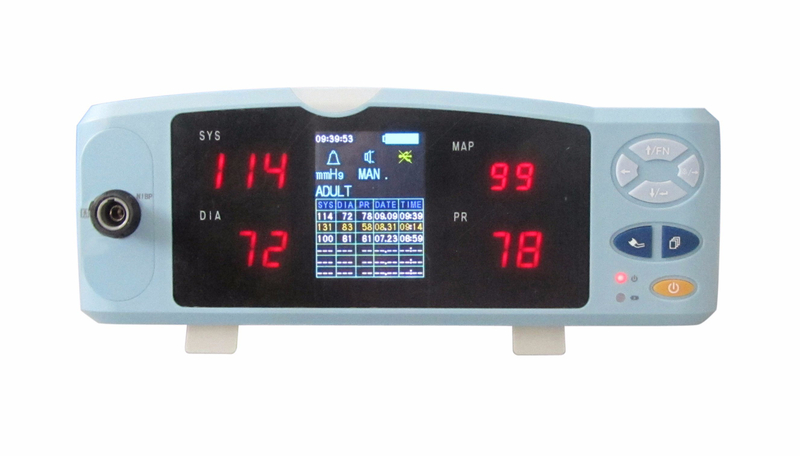

Best Quality Cheapest Hospital HM-A NIBP Patient Monitor with CE ISO
Two parameters: NIBP,Pulse Rate
* 2.8 inch color LCD with real time display
* Storage/Review trend data up to 3888 groups
* Audio and visual alarm when parameters exceeded and sensor-off
* Built-in rechargeable Li-ion battery, up to 4 hour running time
* Automatic shutdown for power saving
* Via USB to connect with the computer, unique software for telemonitoring
  by transmitting data synchronously via internet
* Battery capacity indicatior and prompt when battery low

Technical Specifications
 NIBP
Measure Method: Automatic oscillometric
Patient: Adult and Pediatric
Measurement unite: mmHg/kPa selectable
Measurement mode: Manual, Auto, STAT
Measurement Type: SYS, DIA, MAP
Measurement interval in AUTO mode:1,2,3,5,10,15,20,30,45,60 and 90Min
Measuring period in STAT mode: 5 Min
Measure range
Adult:30~280 mmHg; child: 30~160 mmHg
Accuracy: 1 mmHg

Alarm limits range
SYS : Upper limits70~250 mmHg,     Lower limits 60~180 mmHg
DIA : Upper limits 40~200 mmHg,     Lower limits35~150 mmHg
MAP : Upper limits 60~230 mmHg,      Lower limits 50~160 mmHg

Pulse Rate Range: 0~254 bpm
Pulse Rate Accuracy: 1 bpm

 System specifications
Alarm ON/OFF: controlled by general switch and parameter switch (two levels)
Display mode: LED and 2.8' color LCD screen
Trend data: 3888 groups of SYS, DIA  trend data
AC power adaptor
Input: AC 100~240V, 50/60Hz, 0.7A
Output: DC 5V,2.5A
Internal battery
Type: 2800mAh/3.7V Li-ion rechargeable battery
Operating Time: 8 hours of stand-by time with a full battery.
Recharge time: 8 hours
Dimension:280mm*190mm*100mm
Net Weight : 1000g
