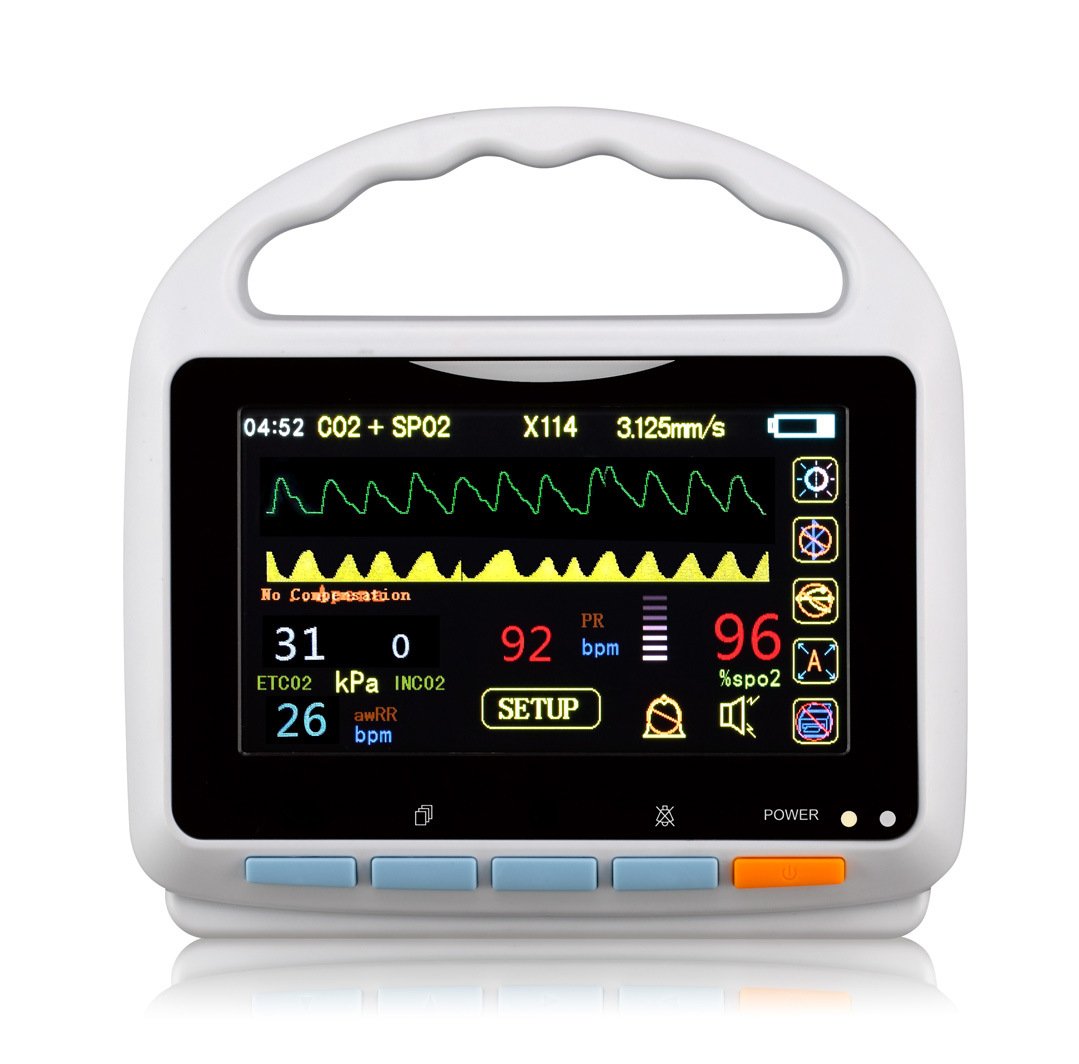

Hm-07 Vital Signs Patient Monitor (ETCO2+SpO2 patient monitor)

Availability:
Quantity:

PDF Export

  • Hm-07

Product Description

The Vital Signs Monitor is a compact user-friendly and portable device,measuring Oxygen Saturation(Spo2),Pulse Rate(PR),Respiration Rate(RR),ETCO2 and Inspired CO2(INCO2) in hospital and clinic environment,emergency center for adult,pediatric and neonatal patients use.


Features:
Ø  5 Inch Color TFT-LCD display with adjustable brightness
Ø  Build-in rechargeable Lithium battery for long-term monitoring
Ø  Adjustable audible and visual alarms, and sensor off alarm
Ø  Powerful data storage capacity,power-off data protection

Advantages:
Ø  Storage and review data up to 3888groups via Trend Graph and Trend List
Ø  USB and Bluetooth data upload functions for standard configuration
Ø  Big font screen interface is more easily to observe
Ø  Free advanced softwares:Mobile phone software

Specification:
1. General Specifications:
Size: 16cm(W )×10cm(T)×16CM(H)
Net Weight: 810g
Display Specification
Measurement Display: color TFT- LCD/touch screen
Power Supply Indicator: Dual-color LED (red/green)
Charging indicator: A green LED

2. Power Supply
AC Power Adaptor
Input: 100~240VAC, 50/60Hz, 0.7A
Output: DC 5V, 1.5A
Battery
Li-ion rechargeable battery, 3.7V/7200mAH
Operating Time: Up to 10 hours with full battery capacity.
Recharge Time: 10 hours.
3. Environment
Temperature
Working:0ºC~45ºC
Transport and Storage: -25ºC~85ºC
Humidity
Working:30% ~85 %
Transport and Storage: 30% ~95 % (no condensation)

4. Monitoring Parameter
SpO2
Measuring Range: 0 ~ 100 %
Alarm Range: 0 ~ 100 %
Resolution: 1 %
Accuracy       :
           70% ~ 100%   ±2 %
           0%  ~  69% unspecified
Actualization interval: about 1 Sec.
Alarm Delay: 10 Sec.
Pulse Rate
Measuring Range: 20bpm~350 bpm
Renew Time: 1 time per beat
Accuracy: ±1 bpm
Alarm Mode: Audible and visual alarm
ETCO2
Measuring and alarm range     0 ~ 150mmHg
Resolution                                 1mmHg
Accuracy                                          &plusmn;2mmHg@< 5.0% CO2
RR
Measuring and alarm range     0~120 rpm
Resolution                                 1rpm
Accuracy                                          &plusmn;1rpm

5. Storage and Review
Maximum Data Quantity: 3888 groups
Maximum Trend Time: Continuous 129.6 hours


                            PACKING  LIST


Standard Accessories
Spo2/Etco2 main unit1unit
Gas dryer1pc
Sampling pipe1pc
Adult Spo2 sensor1pc
AC charger1pc
User Manual1pc
Optional accessories
Neonate/Pediatric Spo2 sensor
