HM-8000D
Product Description
Product decripution:

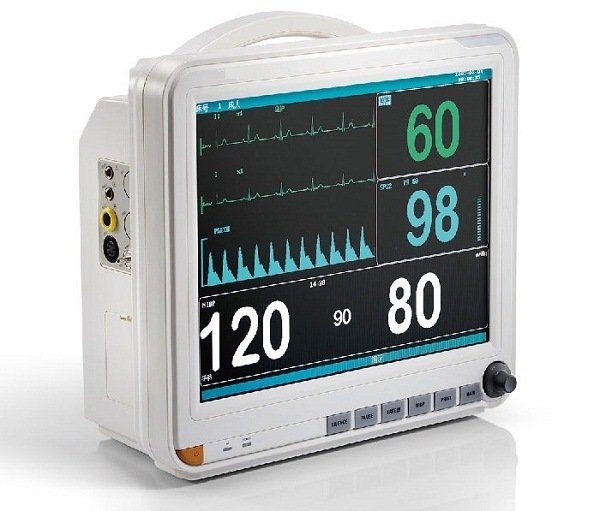

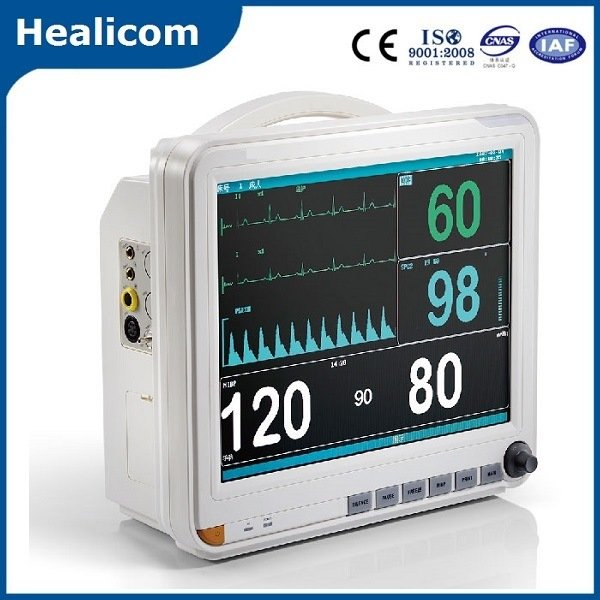

HM-8000D multi-parameter patient monitor is a robust patient monitor, small enough to move around, yet flexible enough to adapt to your particular needs. With a variety of optional extras, including arrhythmia and ST analysis, EtCO2 measurement and double IBP, HM-8000D multi-parameter patient monitor is configurable to suit your requirements.
Features for Patient Monitor:
Features for Patient Monitor:
(1) 6 Standard parameters: ECG, 2-TEMP, NIBP, SpO2, RESP, PR/HR
(2) 15 inch high resolution color TFT LCD display
(3) Real time S-T segment analysis, pace-maker detection
(4) Indication of incorrect manipulation and malfunction analysis
(5) Patient info input management function
(6) Muti-lead ECG waveforms display in phase
(7) 400 NIBP measurement data can be stored and recall
(8) 96 hours graphic and tabular trends of all parameters
(9) Large volume of tabular and praphic trends information storage and easy to recall
(10) Capture dynamic waveforms
(11) Up to 2 hours working capacity of built-in rechargeable lithium battery
(12) Unique accessory management cabinet
(13) Networking capacity
(14) Option: ETCO2, Built-in recorder, cart, wall shelf
Parameters for Patient Monitor:
| NIBP | Method: Oscillometry Modes: Manual/Auto/Continuous Auto measure time: Adjustable Measurement range:10-270mmHg |
| ECG | Lead mode: 3-lead or 5-lead Lead selection: I;II;III,avR;avF;avL Heart rate range: Adult:15-300bpm;Pediatric/ Neonatal:15-300bpm ECG waveform: 2 channels Accuracy: ±1 bpm or ±1%,which is greater S-T segment detection; measurement range: -2.0mv~+2.0mv Alarm: Yes, audible and visual alarm, alarm events review |
| SPO2 | Measurement range:0-100% Accuracy:70-100%,±2%,0-69%,upspecified Auto measure time: Adjustable |
| Pulse Rate | Range:20-254bpm Accuracy: ±3bpm |
| Respiration | Method: RA-LL impedance Range:Adult:0-120rpm;pediatric/neonatal:0-150rpm Apnea alarm: Yes |
| Temperature | Range:0-500 Accuracy: ± 0.10 Channel: Dual-channel |
| Main unit | ECG cable SPo2 probe TEM Probe NIBP Tube Adult cuff Power cable Battery User manual ECG Electrodes |
| Warranty Period: | 1year |
