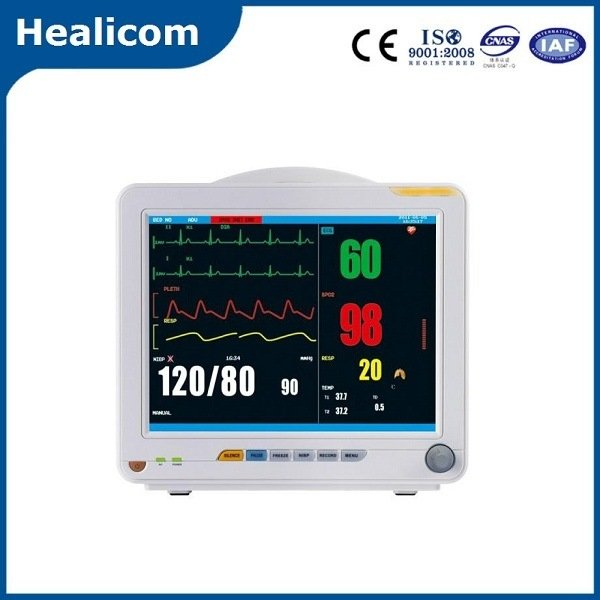

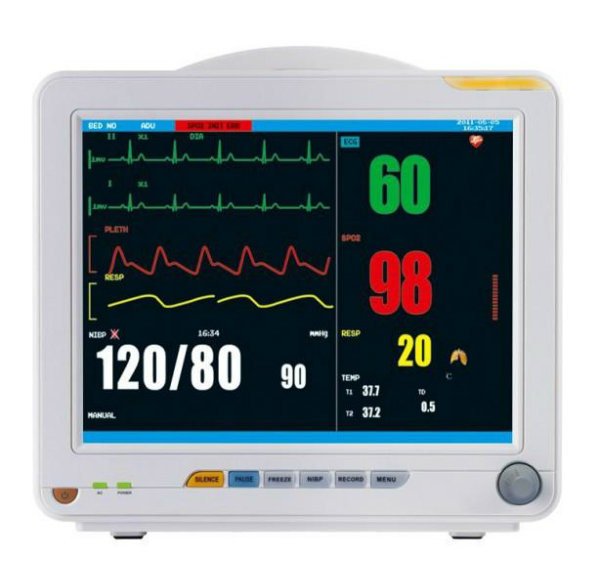

HM-8000G
Product Description
Features:
1.High resolution 12.1" color TFT display
2. Lightweight,compact and portable
3.ECG,SPO2,NIBP,TEMP,PR,ECG, RESP
4.Optional:2-IBP,ETCO2,and thermal printer
5.Built-in rechargeable lithium battery
6.ECG waveforms of 7-leads display on the same screen
7.72-hours graphic and tabular trends of all parameters
8.72 alarm events of all parameters recall
9.32 seconds all-sided waveform review
10.500 NIBP measurement data can be stored and recall
11.Data and waveform color be adjustable
12.Arrhythmia analysis and S-T segment analysis
13.Suitable for adult,pediatric and neonatal patient
Specification:
ECG | *lead mode;I,II,III,AVR,AVL,AVF,V *Gain:X0.25,X0.5,X1,X2 *Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal) Resolution:1 BPM Accuracy:+-1% * ST measurement Range:-2.0-+2.0mV Accuracy:+-10% *Pacemaker:Yes *Sweep Speed:12.5 mm/s,25mm/s,50mm/s *Bandwidth:Diagnostic:0.05--130Hz Monitor: 0.5--40Hz Surgery: 1-20Hz |
Spo2 | *Measure Range:0-100% *Resolution:1% *Accuracy:2%(70-100%) *Pulse Rate:20-250BPM *Resolution:1BPM *Accuracy:+-3BPM |
NIBP | *Work mode:Manual,Automatic,Continuous *Unit:mmHg,Kpa *Measure Range: Adult: SYS: 40-280mmHg DIA: 10-225mmHg MEAN:20-240mmHg Pediatric: SYS:40-220mmHg DIA: 10-160mmHg MEAN:20-170mmHg Neonatal: SYS:40-135mmHg DIA:10-100mmHg MEAN:20-110mmHg *Resolution:1mmHg *Accuracy:+-5mmHg |
RESP | *Measure Range:0-150BrPM *Resolution:1BrPM *Accuracy:+-2% |
