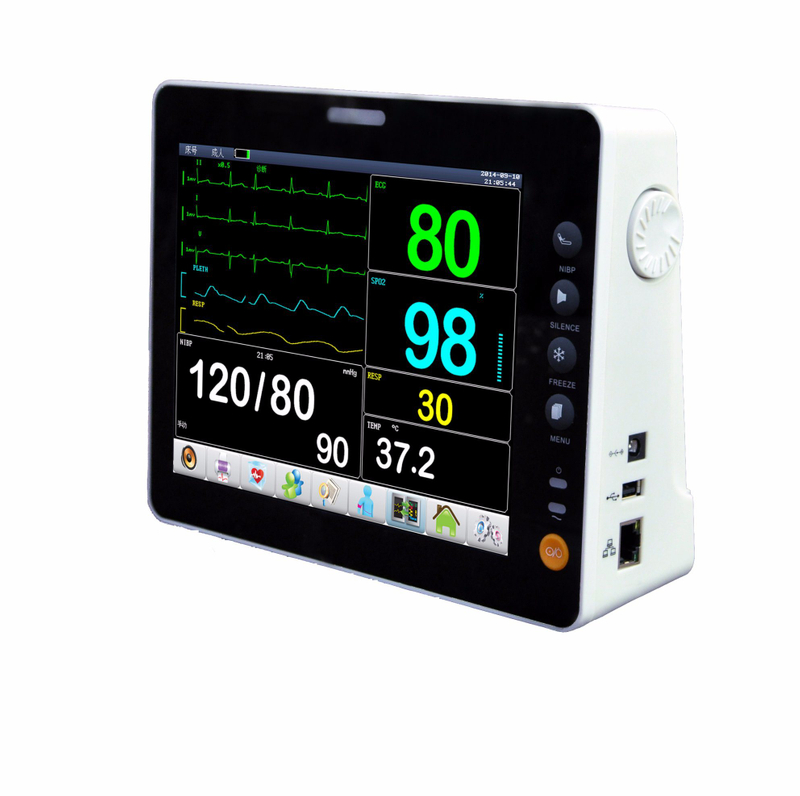

Cheapest China Medical Multi-Parameter Patient Monitor Hm-2000b

Cheapest China Medical Multi-parameter Patient Monitor HM-2000B
Specification
1. Standard parameters:ECG,RESP,NIBP,SPO2,PR/HR,TEMP.
2.13 types Arrhythmic Analysis, Multi-lead ECG waveforms display in Phase, 15 types Drug calculation and titration table.
3.Anti-ESU, anti-defibrillator; RA-LL impedance.
4.SPO2 can testing for 0.1% weak,high accuracy.
5.Unique breathing measurement technology, real-time monitoring, intelligent filter design, eliminate interference, measuring respiratory accurately.
6.Trend Coexist interface for all parameter to observe easily.
7.OxyCRG Dynamic View display, More intultive with all parameters.
8.Platform scalable with cable or wireless connecting to central monitoring.
9.Printer /Recorder is optional for real-time printing.
10.Brief operation interface, Touchscreen is optional.
Up to 2-5 hours working capacity of built-in rechargeable Li-ion battery.
11.8 inch high resolution color TFT LCD display.
12.Holographic waveform trends playback for 2 weeks and 12 hours off electricity saving.
13.Built-in networking to realize central monitoring function.
14.Optional: Touchscreen, VGA, 2-IBP, HDMI, ETCO2.
15.System start up only need 10 seconds with ARM-A5 Nuclear technology.

Standard accessory:

5-lead ECG cable                              1pc
Surface temp.probe                            1pc
Adult NIBP cuff                                 1pc
NIBP tube                                        1pc
Adult SpO2 sensor                             1pc
Power cord                                        1pc
Electrode                                     5pcs
User manual                                          1pc



Specifications

1. ECG
Lead Mode: 5 Leads or 3 Leads
3 Leads:RA,LA,LL,Lead mode:I,II,III
5 Leads:RA,LA,LL,RL,V,Lead mode:I,II,III,aVR,aVL,aVF,V
Gain  ´250,´500,´1000,´2000

Heart Rate :

Range:   Adult:15 ~ 300bpm ; Neonate / Pediatric:15 ~ 350 bpm
Accuracy:±1%or ±1bpm,
Resolution:1 bpm
Sensitivity  >200 uV
Differential Input Impedance >5MΩ
Bandwidth
Diagnostic:0.05~130Hz
Monitor:0.5~40Hz
Surgery:1~20Hz


2. RESP
Method: Impedance between R-F(RA-LL)
Scope of base impedance:200~4000Ω
Bandwidth: 0.1~ 2.5 Hz

RESP
Range: Adult:2~120BrPM   Neonate / Pediatric :2~150 BrPM
Resolution:1 BrPM
Accuracy:±2 BrPM
Suffocation warning:10~40s

3. NIBP
Method: Oscillometric
Mode: Manual, Auto, STAT
Measuring interval in AUTO MODE:1,2,3,4,5,10,15,30,60,90,120,180,240,480 MINS
Measuring interval in STAT MODE 5 MINS
PR range  40~240 bpm
Measuring Range and Resolution
Adult SYS    40~270mmHg
DIA          10~215mmHg
MEAN       20~235mmHg
PED SYS     40~200mmHg
DIA          10~150mmHg
MEAN       20~165mmHg
NEO SYS    40~135mmHg
DIA         10~100mmHg
MEAN       20~110mmHg
STATIC NIBP range: 0~300mmHg
Static NIBP accuracy: ±3mmHg
Max Average tolerance ±5mmHg;Max. Standard tolerance: 8mmHg
Over-pressure protection:
Adult mode: 300 mmHg
Ped mode:   240 mmHg
Neo mode: 150 mmHg


4. SpO2
Measuring range: 0~100%
Resolution:          1%
Accuracy:           70~100%:±2;0%~69%
Pulse Rate:
Measuring range: 20~300bpm
Resolution:      1bpm
Accuracy:           ±3bpm


5.TEMP
Channels: 2
Measuring:
Range: 0~50°C
Resolution 0.1°C
Accuracy :    ±0.1°C(sensor tolerance no not included )


6. Power

Adapter
Input:AC 90 V~240V, 50/60Hz
Output:DC 12V-20V
Built-in Battery:
TYPE:14.8V, 2200mAH Li-ion rechargeable battery
Operating time:3.5-4 hours working time under full power
Charging time:2 hours
