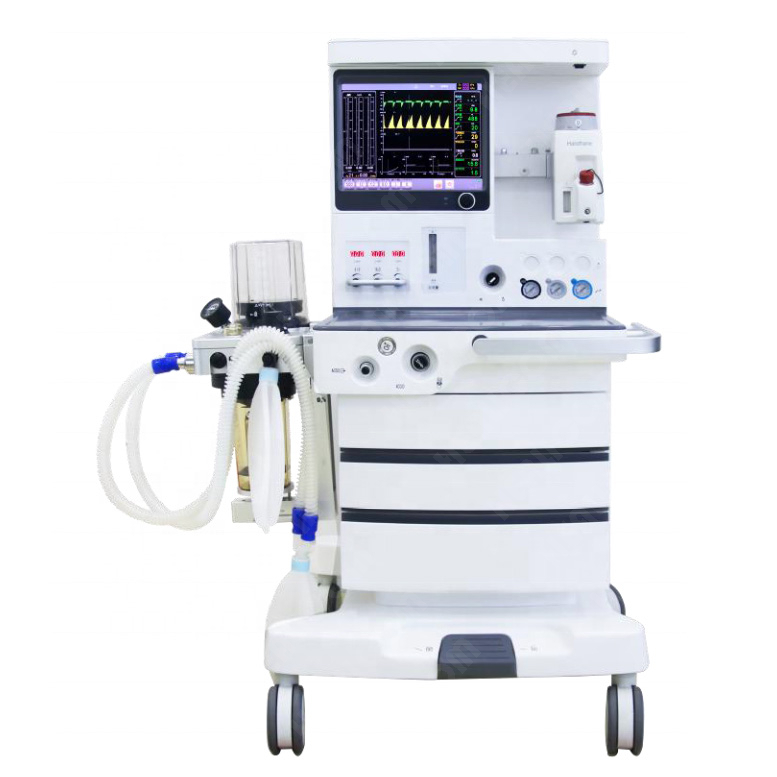

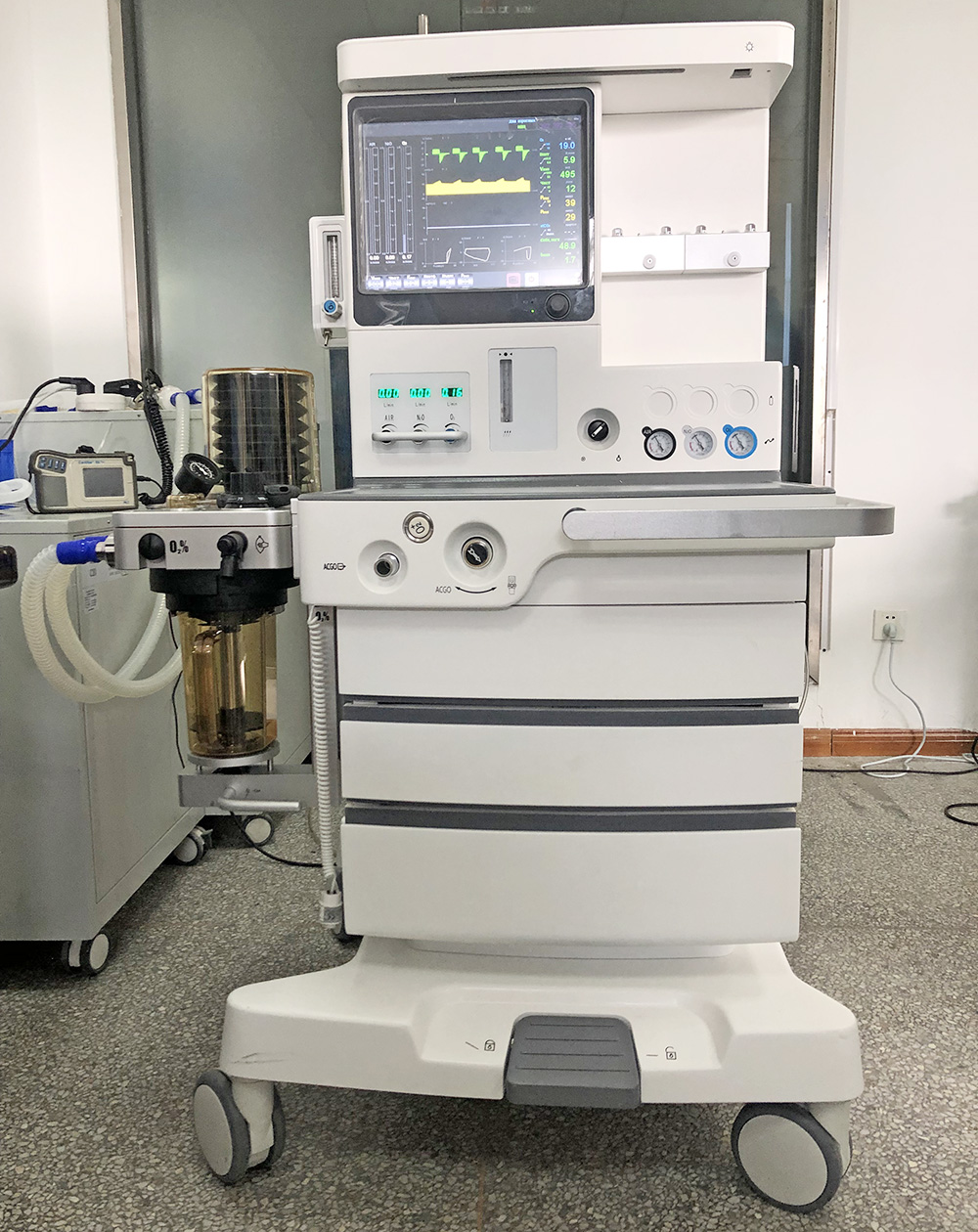

HA-6100XS Medical 15 Inch Colorful LCD Touch Screen Anesthesia Machine

HA-6100XS Medical 15 Inch Colorful LCD Touch Screen Anesthesia Machine

The 6100XS anesthesia system is used in the medical department to perform general anesthesia, controlled or assisted breathing, and to monitor and display patient ventilation parameters. Suitable for adults and children 3 years and older.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
HA-6100XS
Brand:
Healicom

Product Description

Product Description

HA-6100XS Medical 15"Colorful LCD Touch Screen Anesthesia Machine

Features

1. Adopt electronic control and pneumatic control. 2. A variety of alarms, prompts and protection functions. 3. With power failure support. When the utility power is cut off, it will automatically switch to the standby power supply in the machine. 4. Use 15' color LCD display to display ventilation parameters, alarm information, waveform diagram and ring diagram. Control by touch and button. 5. Adult VTH, Pediatric VTL. 6. It has various working modes such as capacity control and pressure limitation. 7. Metal circuit with heating and bypass function. 8. An anesthetic evaporator with temperature, flow compensation and zero self-locking 9. The electronic flowmeter has a linkage device to ensure that the O2 concentration is ≥25%, the equipotential knob and the digital tube display are configured, and the display monitors the flow rate. 10. O2 drive pressure shortage alarm and N2O cutoff protection;

Technical Specifications
Ventilation modes	IPPV,A/C,PCV,SIMV,PSV,SIGH,MANUAL
Waveform display	Time - airway pressure Time - flow(under all modes EtCO2 waveform and volume - time( either-or) (all modes) Pressure volume loop, flow volume loop,pressure and flow loop (all modes)
Adjusting parameters
Flow meter	O2 (0.1-10L/min)N2O (0.1-10L/min) AIR (0.1-10L/min)
Rapid oxygen supply	25L/min-75L/min
Tidal volume	VT (0, 20 mL ~ 1500 mL)VTH (250 mL ~ 1500 mL) VTL (0,20mL~ 300 mL)
Minute volume(MV)	VTH ≥18 L/minVTL ≥10 L/min
Frequence(Freq)	1 /min ~ 100 L/min SIMV: 1 /min~ 40 /min Beside SIMV: VTH 4 /min~ 40 /min VTL 20 /min~ 100 /min
I/E	VTH 4:1(1:0.25) ~ 1:8 VTL 2:1(1:0.5) ~ 1:8 (Inhalation time 0.2 s ~ 12.0 s)
PEEP	0cmH2O ~ 30 cmH2O
Pressure triggering sensitivity(PTr)	-2.0kPa ~ 2.0 kPa [base on PEEP: -2.0kPa~ 0 kPa (-20cmH2O ~ 0cmH2O)]
Flow trigger sensitivity (FTr)	off, 0.5 L/min ~ 30 L/min
Pressure control (PC)	5 cmH2O ~ 60 cmH2O
Breathing-hodling time(Tip)	0 ~ 6s(≤50 % Inhalation time)
SIGH	0(off) 1/100 ~ 5/100
Apnea Ventilation	OFF, 5 s ~ 60 s
Pressure Limit	20 cmH2O ~ 100 cmH2O
Monitored Parameters
Frequence(Freq)	0 /min ~ 100 /min
Tidal volume(Vt)	0 mL ~ 2000 mL
MV	0 L/min ~ 100 L/min
Airway pressure (Ppeak)	0 cmH2O ~ 100 cmH2O
Dynamic lung compliance(Cydn)	1mL/cmH2O ~ 1000 mL/cmH2O
FiO2	15 % ~ 100 %
Alarm and protection
AC power failure alarm
Internal backup power battery voltage undervoltage alarm
no tidal volume
High (low) ventilation alarm
Airway high (low) pressure alarm
Pressure limit
Continuous pressure alarm
High (low) oxygen concentration alarm
suffocation alarm Maximum ultimate pressure
O2 drive pressure shortage alarm and N2O cutoff protection.
O2 and N2O flowmeters have linkages to ensure O2 concentration ≥ 25%. When O2 is turned off, N2O is automatically turned off at the same time.
Vaporizer
Anesthesia gas	Adjustment range %(percentage)
HAL(halothane)	0~5
ENF(enfluoroether)	0~5
ISO(isoflurane)	0~5
SEV(sevoflurane)	0~8
