TH-1(A)
Healicom
Product Description
| Technical Specifications | |

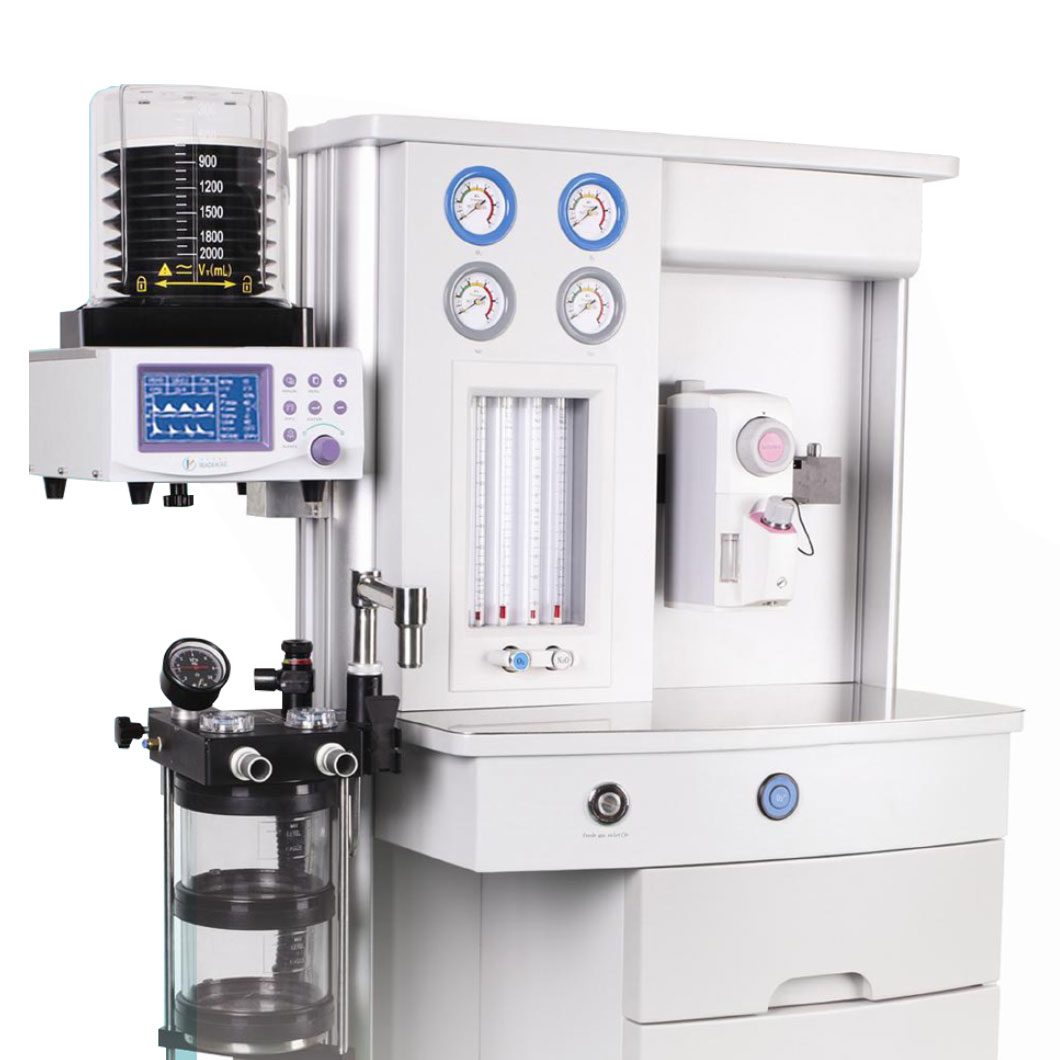

| Product name | Veterinary anesthesia machine |
| Model | TH-1（A） |
| Respiration mode | IPPV, SIMV, MANUAL. |
| Display | 5.5’ SNT screen |
| Waveform | P-t, V-t |
| Tidal volume | 0.50ml～1600ml |
| Respiratory frequency | 1 to 65bpm |
| I:E ratio | 8:1～1:8 |
| Alarm parameters | High pressure alarm, Low pressure alarm,O2 source lost alarm ,AC power lost alarm |
| High Pressure alarm limit | 20～60cmH2O. Low |
| Pressure alarm Limit | 0～20cmH2O |
| Monitor Parameters | Tidal volume, MV, P peak, PEEP, respiratory frequency, I:E ratio. |
| Safety valve pressure limit | 6Kpa |
| Good air tightness, high reliability, and minor respiration impedance | |

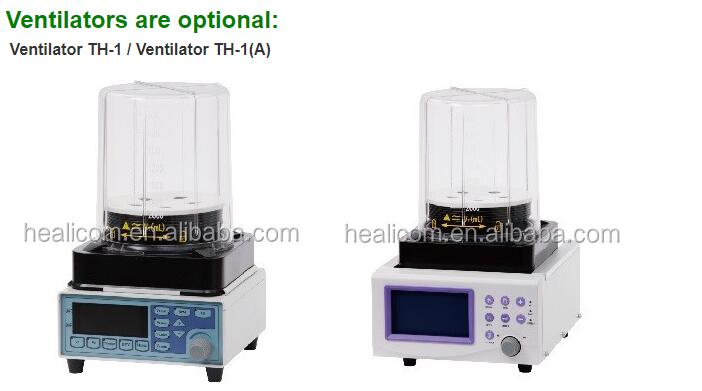

1.Ventilator TH-1
Special Feature:
Driven mode: Pneumatically driven electronically controlled
Display: High light LED display
Ventilation mode: IPPV and Manual mode
Tidal volume: 50 ~ 1500ml
Breath frequency: 1~ 90Bpm
I:E ratio: 4:1 ~ 1:6
Monitor parameter: Tidal volume, breath frequency, MV, airway pressure
Alarm: MV high alarm,MV low alarm, TV high alarm, TV low alarm

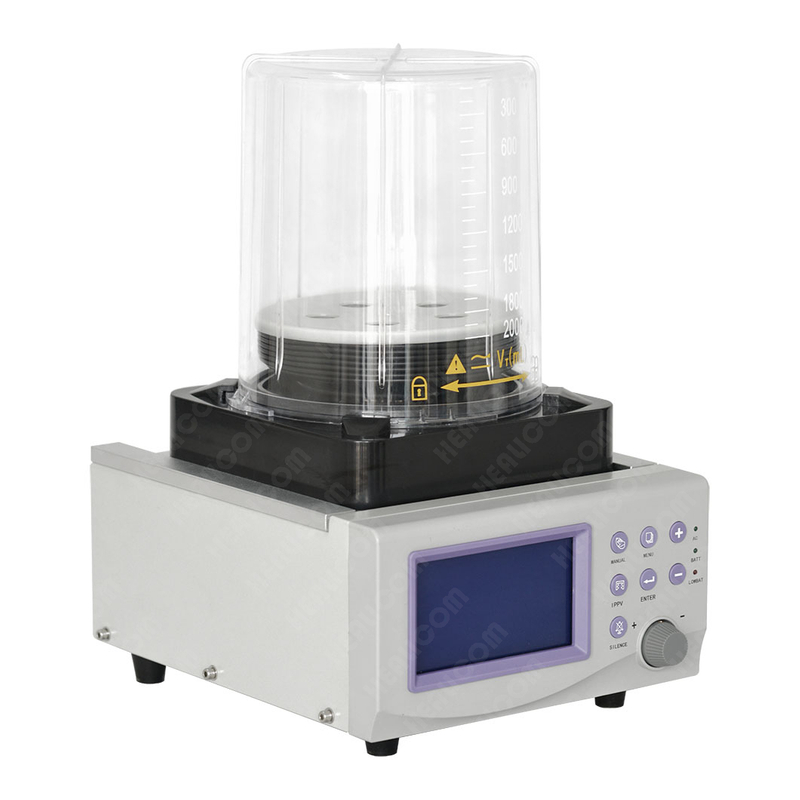

2.Ventilator TH-1(A)
Special Feature:
Respiration mode: IPPV, SIMV, MAUAL
Display: 5.5’ SNT screen
Waveform: P-t, V-t
Tidal volume: 50 ~ 1600ml
Breath frequency: 1~ 65Bpm
I:E ratio: 8:1 ~ 1:8
Alarm parameters: High pressure alarm, Low pressure alarm
High pressure alarm limit: 20 ~ 60cmH2O
Low pressure alarm limit: 0 ~ 20cmH2O
Monitor parameter: Tidal volume, MV, Ppeak, PEEP, respiratory frequency, I:E ratio
Safety valve pressure limit: 6Kpa
Good air tightness, high reliability, and minor respiration impedance
