HA-3100A/B
Healicom
Product Description

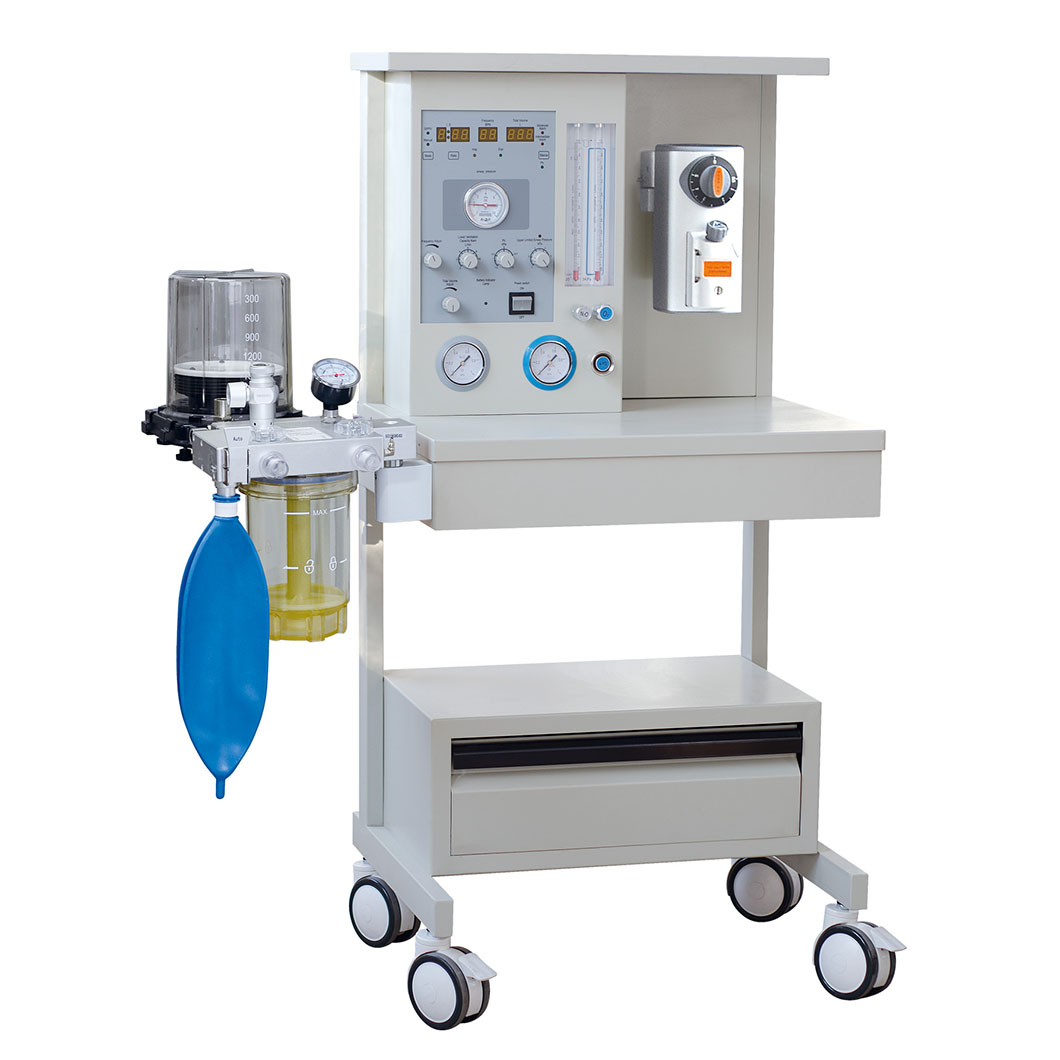

Surgical Equipment HA-3100A/B Trolley Anesthesia Machine
Features
• Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect

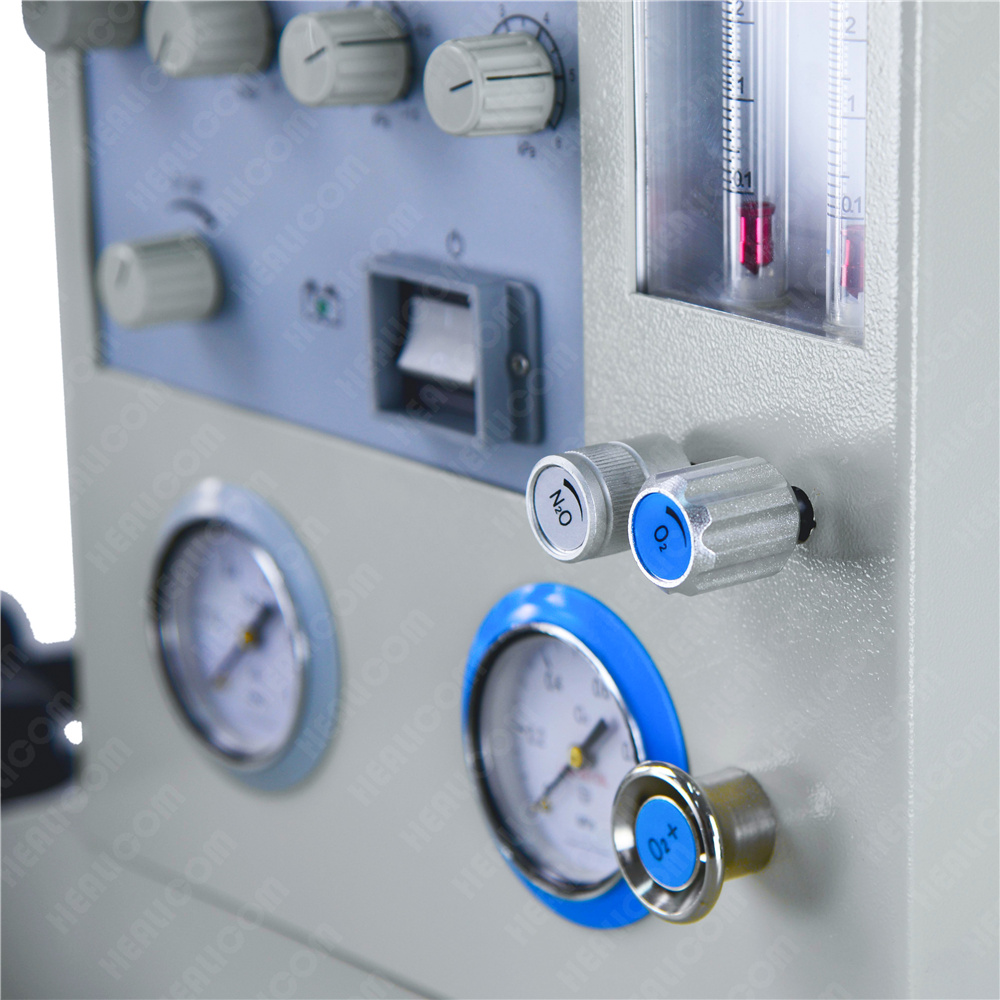

• High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
• Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
• Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
• Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
• Vaporizer: Imported tank components assembled locally; Also possesses self-compensating functionality
• Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Advanced Model Exclusive Features

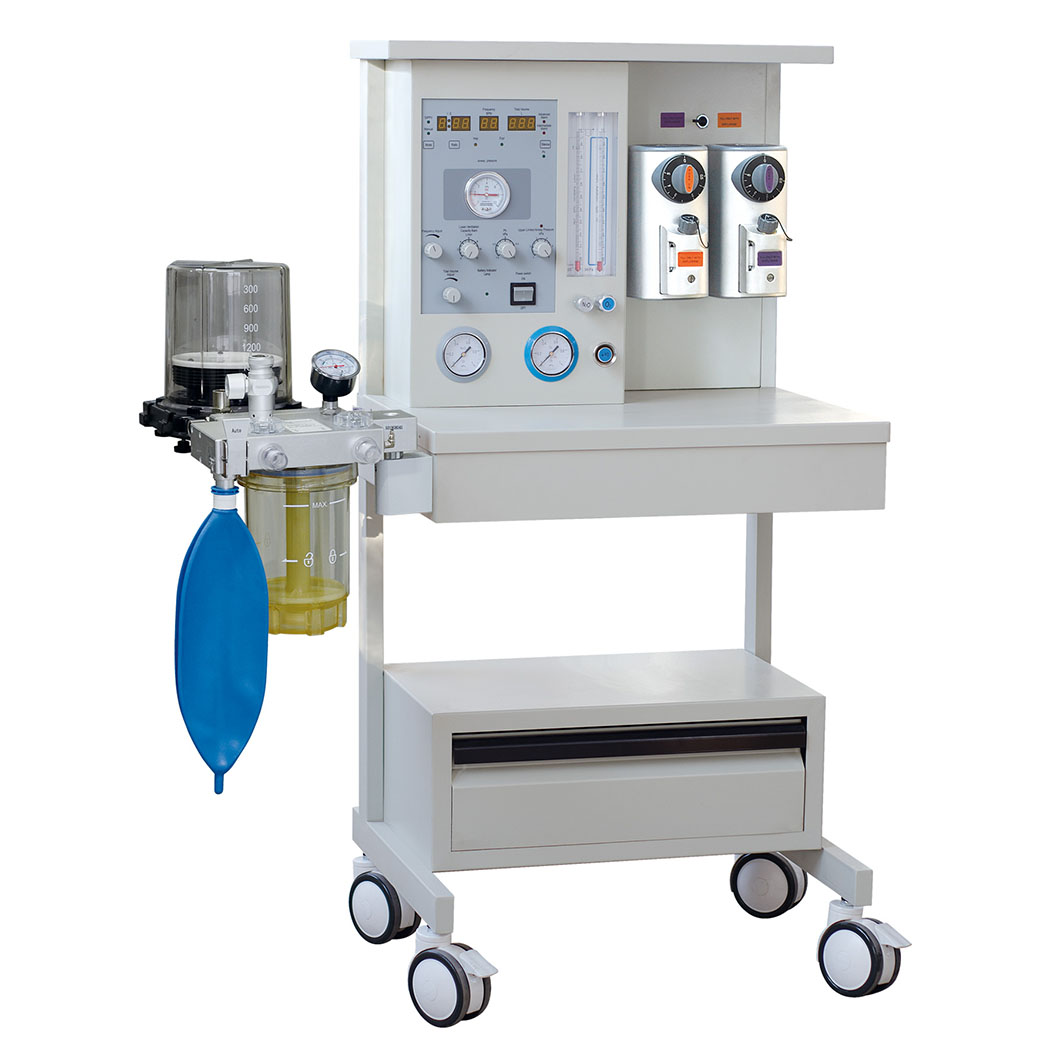

• Vaporizer with dual tank design, effective for extending surgical lengths and features interlocking tank capability.
| Physical specifications | |

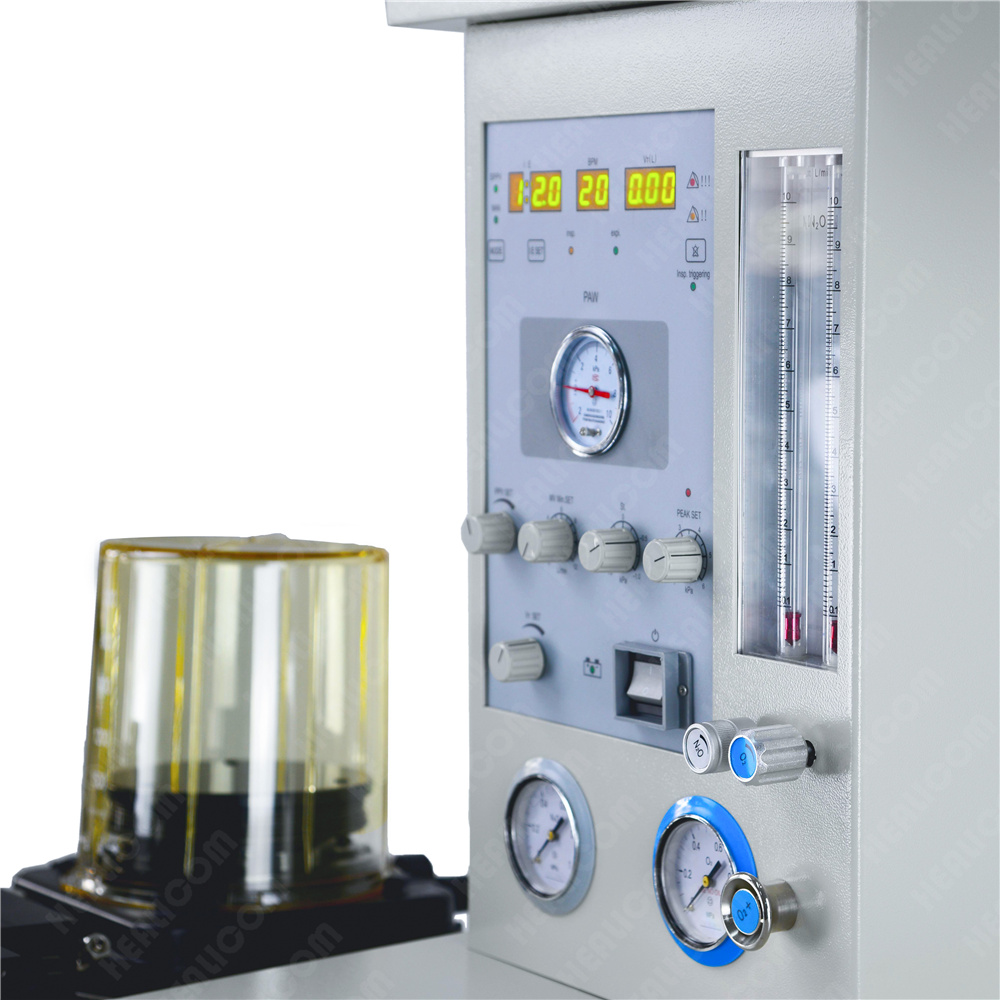

| Screen | LED Display Screen |
| Suitable | Adult & Child |
| Mode | pneumatically powered and electrically controlled system |
| Working Mode | Closed; Semi-Closed; Semi-Open |
| Circuit | Breathing circuit integrated standards |
| Tube | 2 Tubes Flowmeters: O2:0.1~10L/Min, N2O:0.1~10L/Min |
| Trolley | Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions |
| Safty | NO2 Automaticlly Cutting while oxygen deficiency |

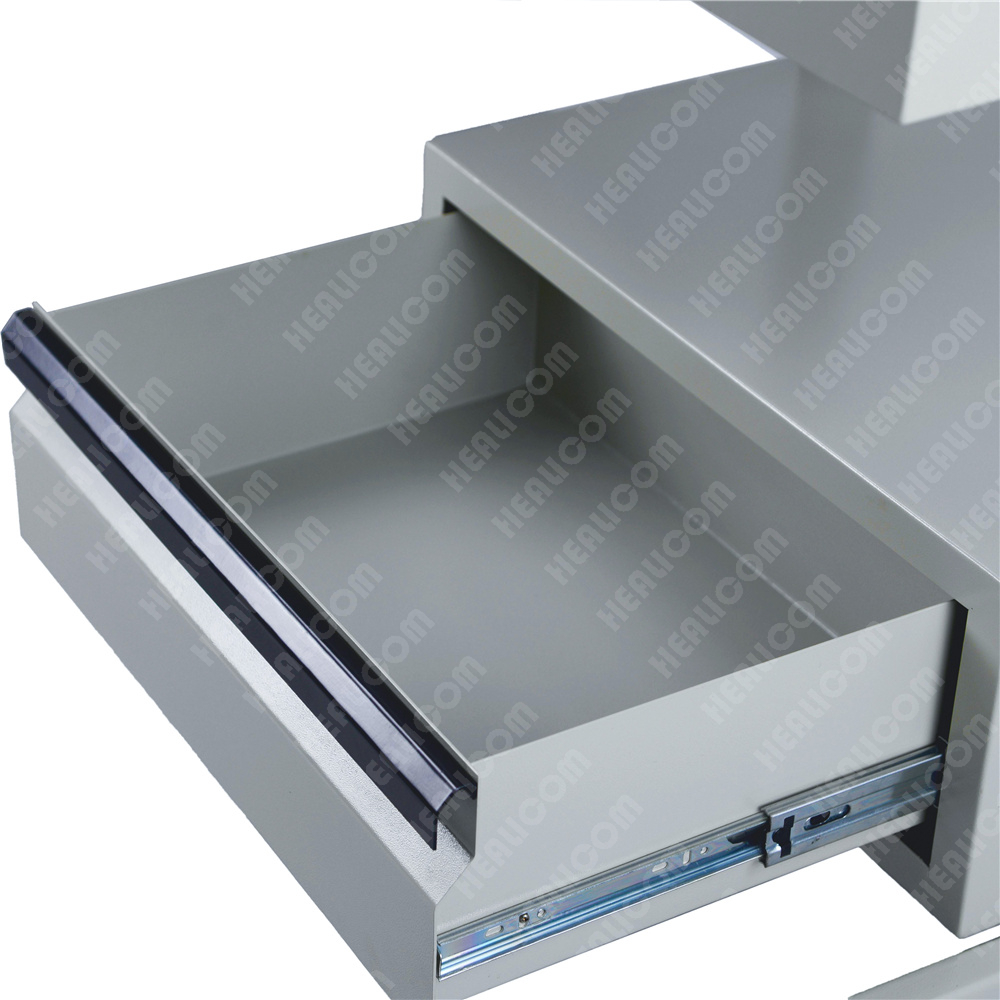

| Drawer unit | ONE drawer totally extractable |
| Technical Specifications | |

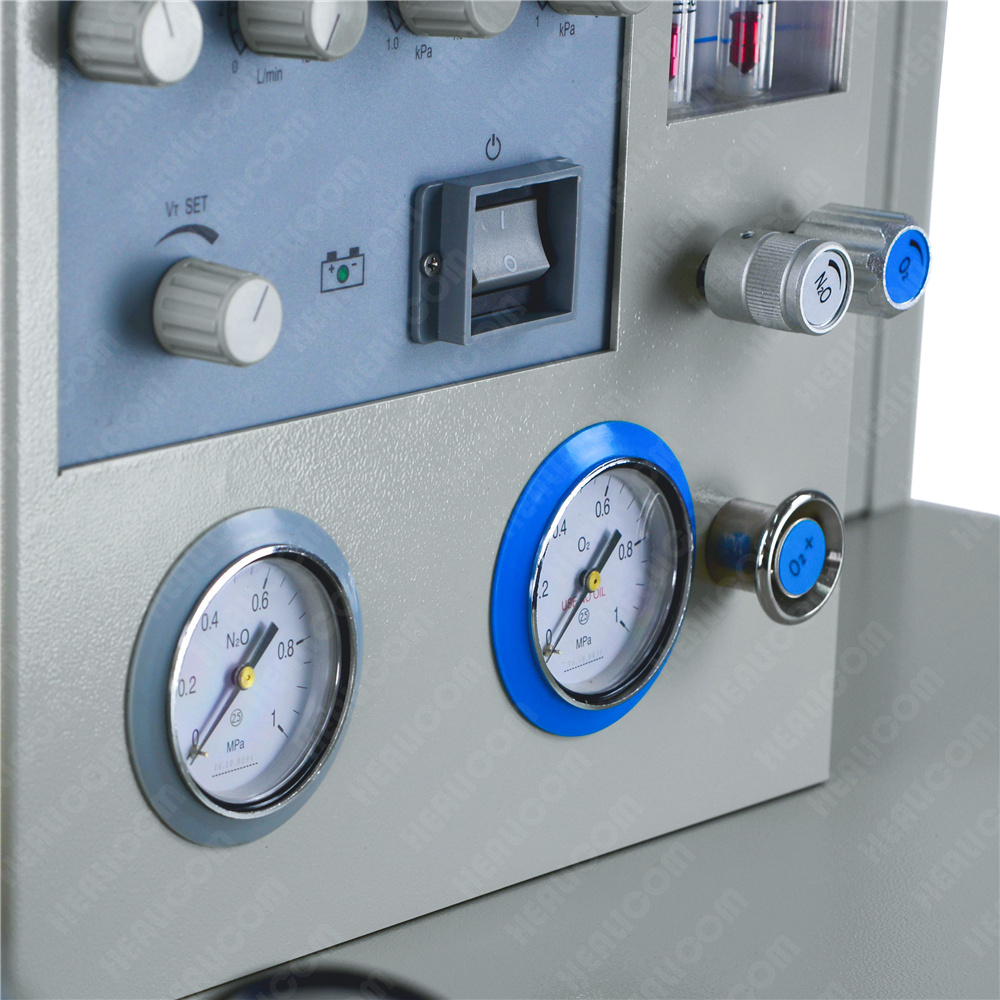

| Gas requirement | Medical oxygen and nitrous oxide with a pressure ranging from O2: 0.32~0.6MPa ; NO2: 0.32 MPa to 0.6 MPa. |
| safety valve | <12.5 kPa |
| Respiratory Rate | 4~40bpm |
| Flow meter | O2:0.1~10L/Min, N2O:0.1~10L/Min |
| Oxygen concentration in the mixed gas N2O/O2 | > 21% |
| Oxygen Flush | 25~75 L/min |
| Maximum error of the pressure testing device | not exceed ± (4% of the full scale reading + 8% of the actual reading) |
| Modes of ventilation | A/C, IPPV, SIPPV, MANUAL |
| I/E Ratio: | 1:1.5; 1:2.0;1:2.5; 1:3 |
| Tidal Volume | 0~1500ML |
| Controlled ventilation and assisted ventilation switching time | 6s |
| Maximum safety pressure | ≤ 12.5 kPa |
| Pressure limit range | 0 ~ 6.0 kPa |
| Airway pressure alarm: Audible and visual and with yellow and red color indicating | Lower: 0.2kPa~5.0kPa; Upper: 0.3~6.0 kPa (±0.2 kPa) |
| Tidal volume alarm: Audible and visual and with yellow and red color indicating | upper alarm: 50 to 2000ml,lower alarm: 0~1800ml |
| Power Supply Alarm | Ac/dc power supply are after failing to send out alarm immediately Alarm Time: keep >120s |
| Configuration | |
| Vaporizer | Enflurane/ Isoflurane(Option: Halothane) |
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
