HA-210
Healicom
Product Description

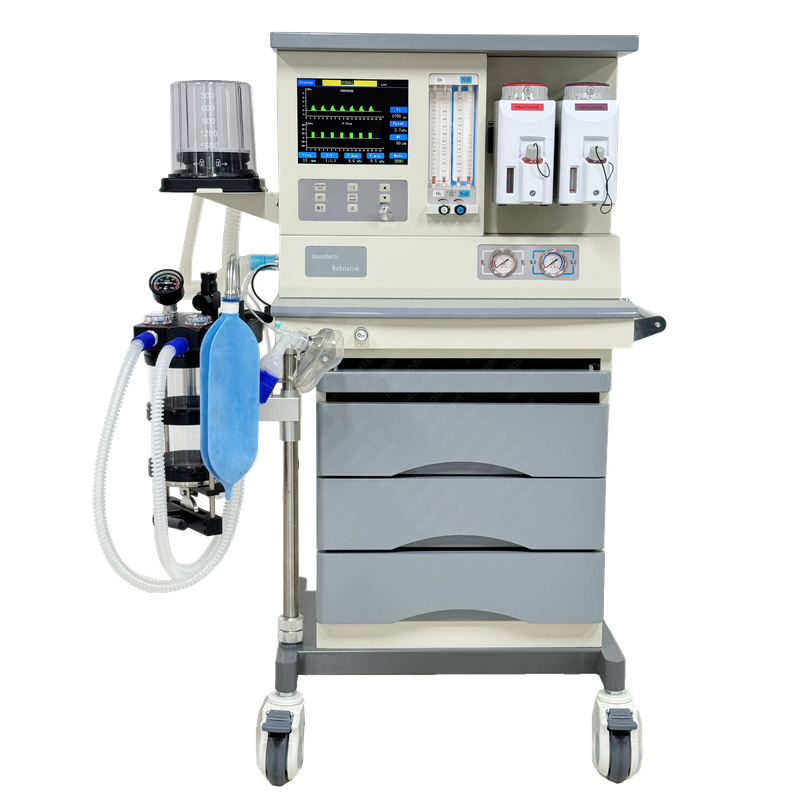

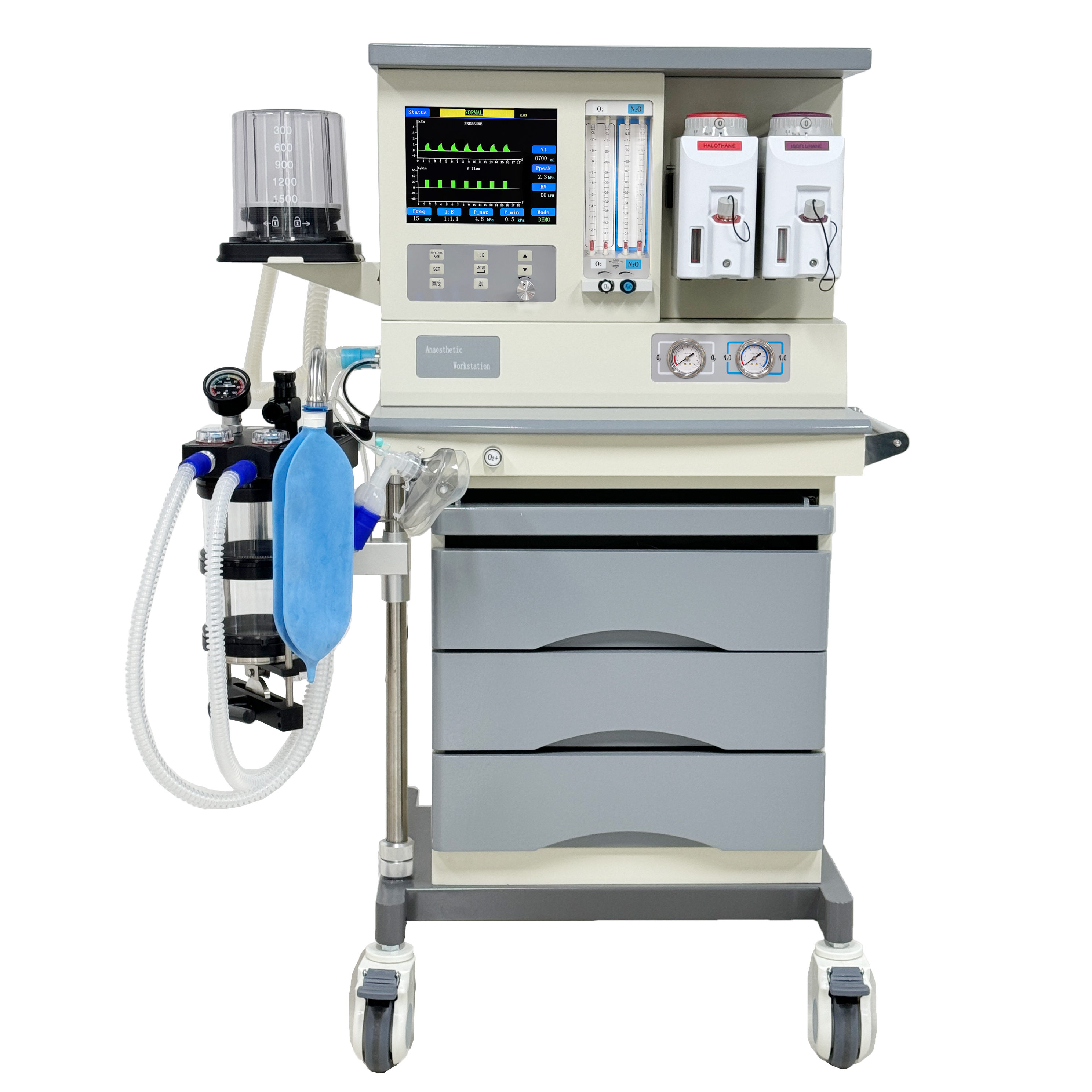

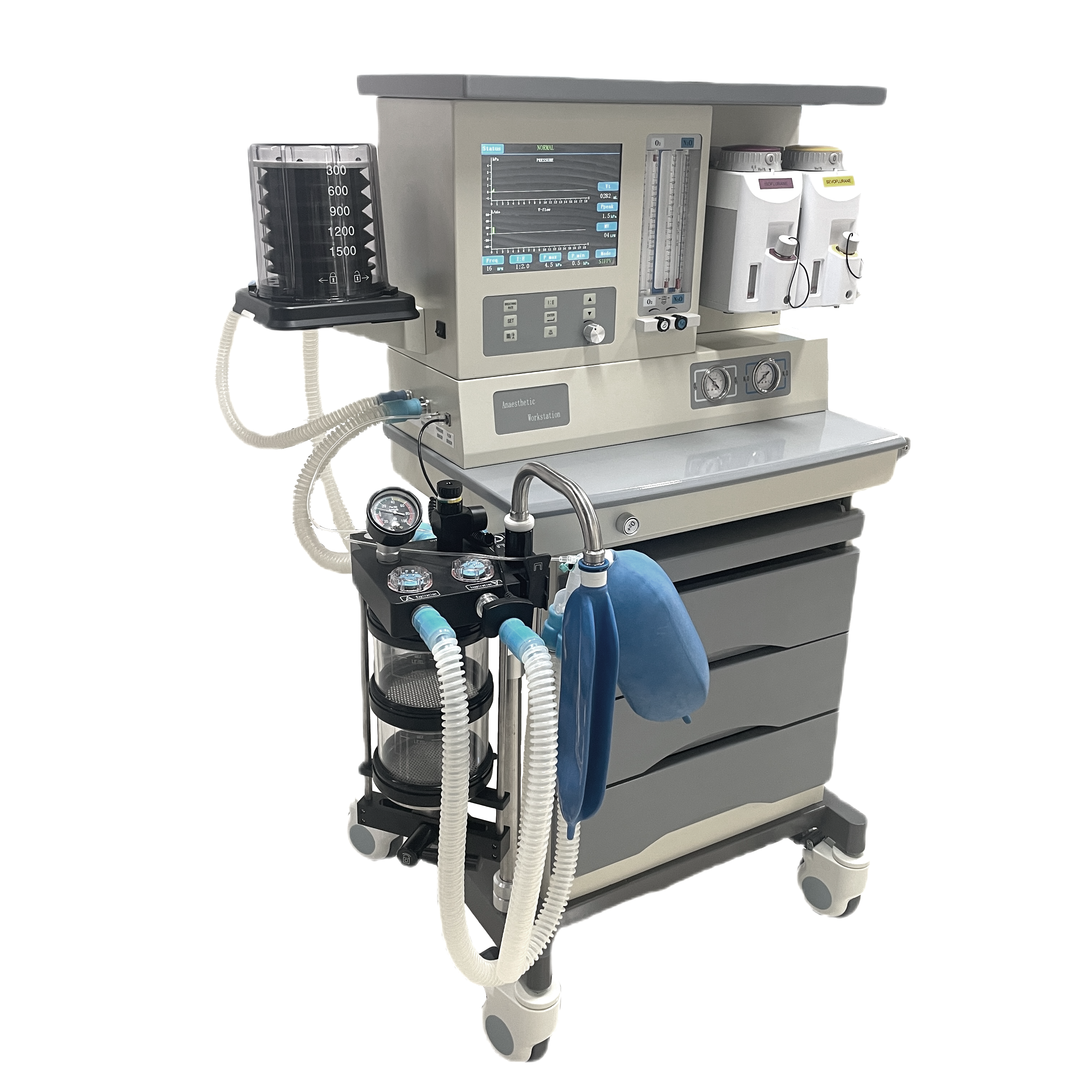

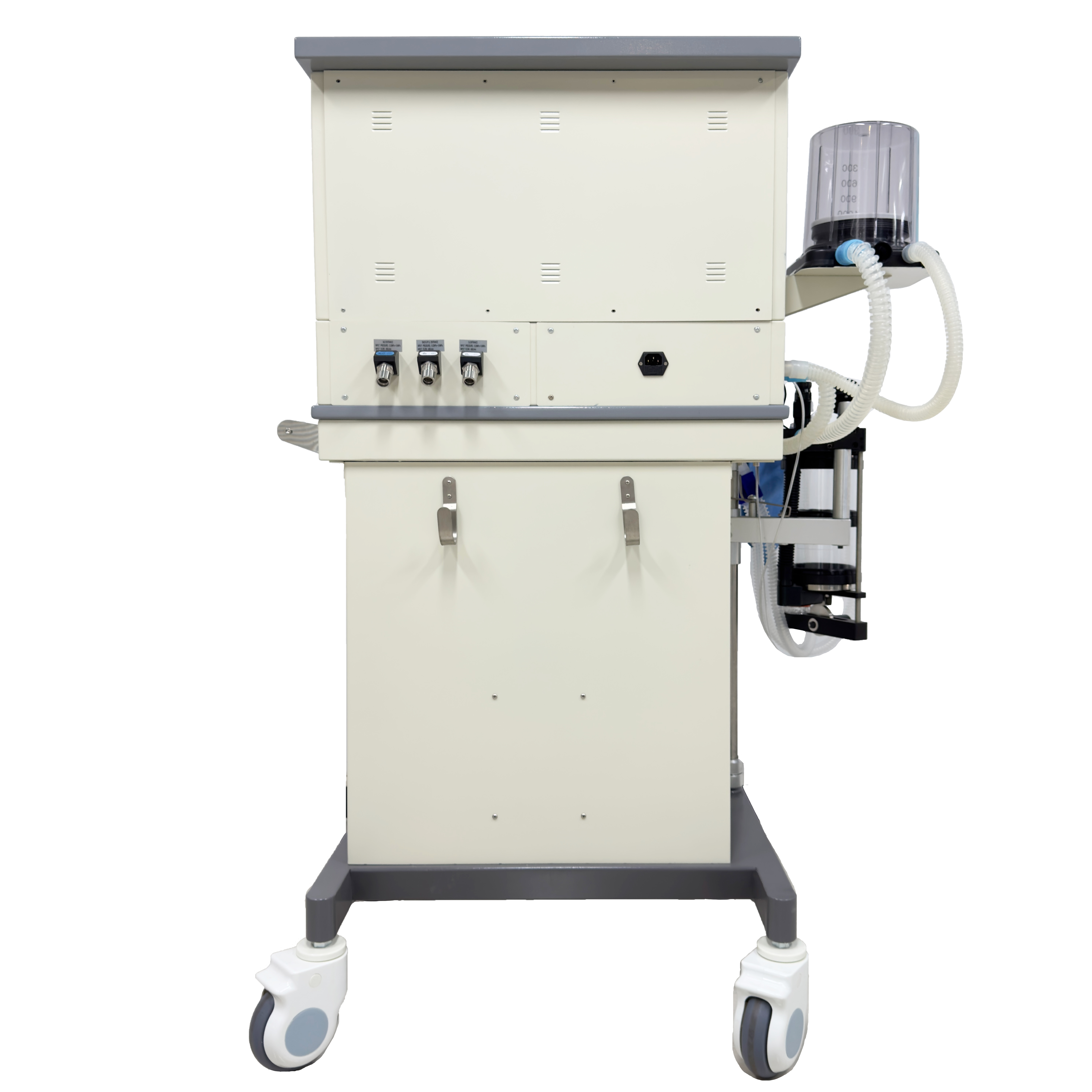

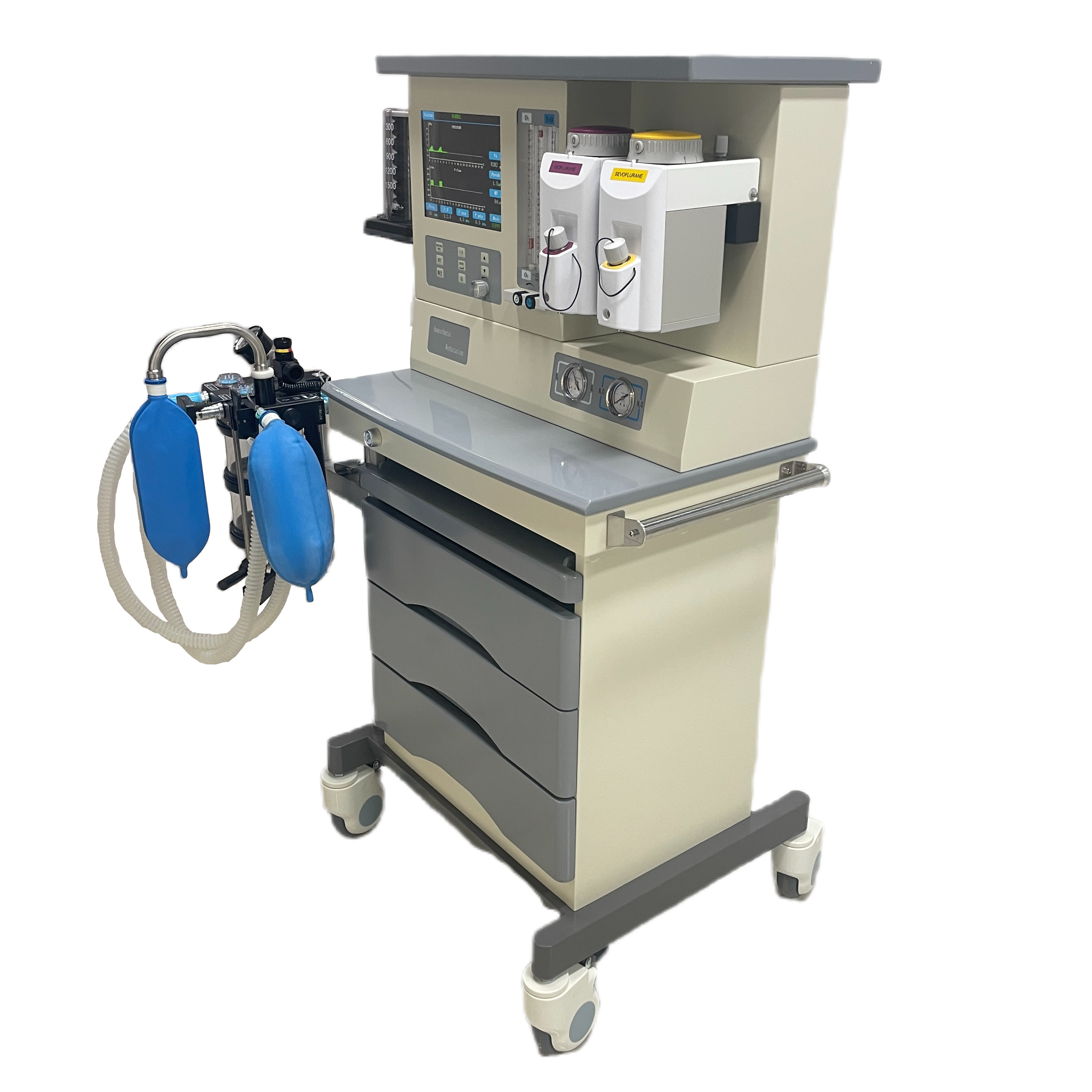

Surgical Equipment HA-210 Trolley Anesthesia Machine
Main Frame | Vaporizer | ||
Display | 10.4 Inch Color TFT High-Luminance Screen | Concentration Range | 0.2~5% VOL |
Overall Dimension | 100*65*140CM(L*W*H) | Flow Range | 0.2 to 5L/Min |
Working Mode | Closed,Semi -Closed,Semi -Open System | Automatic Compensation | Flow,Temperature and Pressure |
Application | Adult,Children | Lock | Self-Lock and Interlock |
Flow Meter | O2/N2O Four Tubes(0~10L/Min) | Volume | 250mL |
Vaporizer Quantity | Isoflurane,Sevoflurane,Halothane (Optional Two Of Three) | Mount | Pour-fill Selectatec Mount |
Ventilation Mode | Alarm And Protection | ||
IPPV,SIGH,SIMV/F/2,SIPPV (Optional: PEEP) ,MANU | The AC power failure alarm | Power failure or no connection | |
Internal battery backup low voltage alarm | < 11.3 ± 0.3 V | ||
Ventilator Parameter Range | No tidal volume | ≤ 5 mL within 6 s | |
Bellow | Adult and Child | High oxygen concentration alarm | 19% ~ 100% |
Driven | Pneumatically Driven and Electrically Controlled | Low oxygen concentration alarm | 18% ~ 99% |
Upper Airway Pressure | 2~6KPa | High Airway pressure alarm | 20 cmH2O ~ 100 cmH2O |
Lower Airway Pressure | 0.6~2KPa | Low Airway pressure alarm | 0 cmH2O ~ 20 cmH2O |
Four Flow meters | O2 (0.1~ 10 L/min) | High Minute Volume alarm | Adult (5 L/min ~ 20 L/min) |
N2O (0.1 ~ 10 L/min) | Paed (1 L/min ~ 15 L/min) | ||
Rapid oxygen supply | 35 L/min ~ 75 L/min | Low Minute Volume alarm | 0 ~ 10 L/min |
Tidal volume (Vt) | 3 0 ~ 1500 mL | Continuous Pressure alarm | (PEEP+1.5 kPa) over 16s |
Respiratory Rate | 4 ~99bpm | Suffocation warning | 5 s ~ 60 s no spontaneous ventilation |
I:E | 3: 1~1:4 Adjustable | The maximum limited pressure | <12.5 kPa |
PEEP | 0 cmH2O~30 cmH2O | Fan Error | Show on screen |
Pressure triggering sensitivity (PTr) | -20 cmH2O ~ 0 cmH2O (Based on PEEP) | Oxygen deficit | Show on screen |
Flow trigger sensitivity (FTr) | 0.5 L/min ~ 30 L/min | Alarm of low tidal volume | 20～990mL |
Pressure control (PC) | 5 cmH2O ~ 60 cmH2O | ||
SIGH | 0 (off) ,1/100 ~ 5/100 | Working Condition | |
Apnea Ventilation | OFF, 5 s ~ 60 s | Two Gas Supplies | O2/N2O:0.3MPa —0.5MPa |
Pressure Limit | 20 cmH2O ~ 100 cmH2O | Pressure | 280 kPa ~ 600 kPa |
Voltage | 100 ~ 240 V | ||
Monitoring Parameter | Power frequency | 50/60 Hz | |
Frequency（Freq） | 4～99 bpm | ||
Tidal volume (Vt) | 0 mL ~1500 mL | Packing Size | |
MV | 0 L/min ~ 100 L/min | Wooden Case Packing size One | 81*82*99CM(L*W*H), 110KGS |
Wooden Case Packing size Two | 81*61*76CM(L*W*H), 55KGS | ||
Oscillogram | G.W. | 165 KGS | |
P-T (pressure – time) | P-V Loop(pressure -volume loop) | N.W. | 100KGS |
V-T(volume -time) | Optional: EtCO2 Wave | CBM | 1.1 m3 |
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
