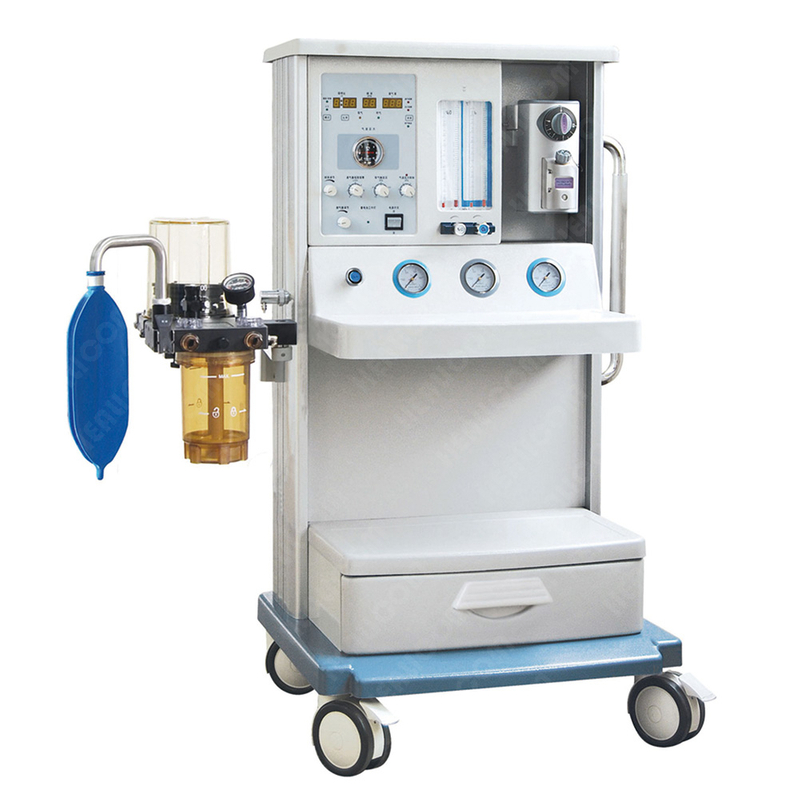

HA-3200A
Healicom
Product Description
| Technical Specifications | |
| Ventilator | |
| Drive method | Pneumatically driven & electronically controlled, closed, semi-closed and semi-open |
| Tidal volume | Adjustable range: 50-1500 ml, Display range: 0-2000 ml |
| Respiratory rate | 1-99 bpm |
| Operating modes | Manual, Standby, Intermittent Positive Pressure Ventilation (IPPV), Synchronized Intermittent Positive Pressure Ventilation (SIPPV), Intermittent Mandatory Ventilation (IMV), Synchronized Intermittent Mandatory Ventilation (SIMV) |
| Pressure range | 5-60 hPa |
| Pressure trigger | -10-10 cmH20 (electronically controlled) |
| SIMV Rate | 1-20 bpm |
| Inspiration/Expiration ratio (:E) | 4:1-1:10 (capable of inverse ratio ventilation) |
| Sigh function | 1 sigh breath in every 80-160 breaths |
| Gas System | |
| Flowmeter | O2: 0.1-10 Lmin, N2O: 0.1-10 L/min |
| Fresh-gas flow | 0-10 L/min |
| Gas supply | O2, N2O: 0.32-0.6 Mpa |
| O2 flush | 25-75 L/min |
| Anesthesia Gas Scavenging System (AGSS) | Optional |
| Other Specifications | |
| Monitoring | Monitorable parameters: Minute Volume (MV), Tidal Volume (VT), breathing frequency, peak pressure, spontaneous inspiration rate, airway resistance, lung compliance & power supply |
| Alarm | Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure & more, also features a alarm query function |

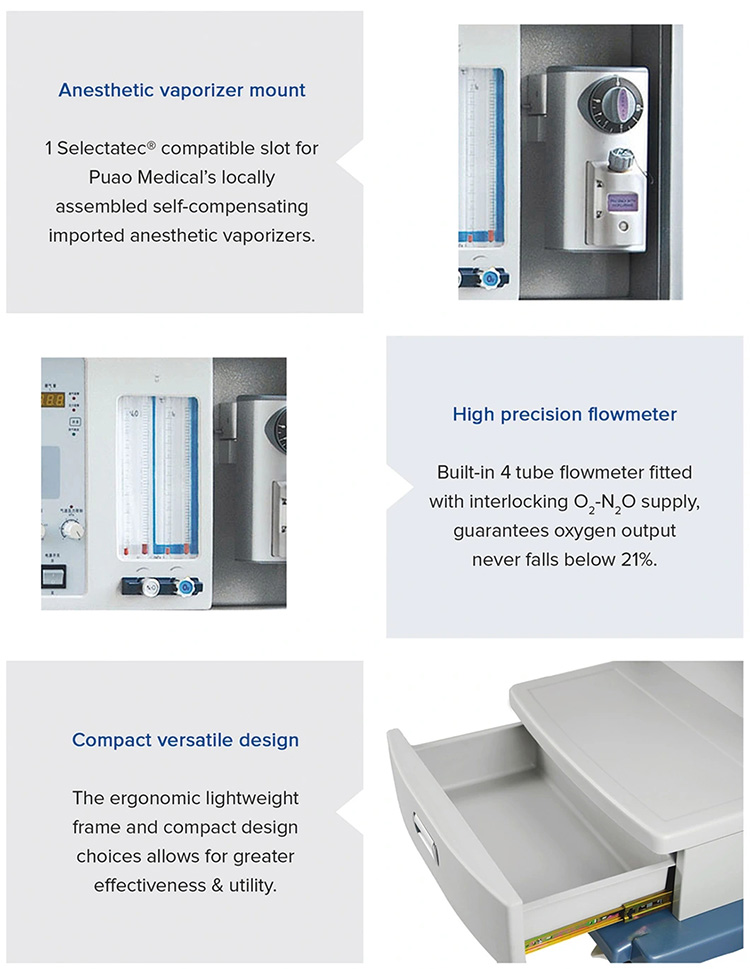

| Vaporizers | 1 PA series (Selectatec compatible) vaporizer mount |
| Vaporizer concentration | 0-5 % |
| Absorber volume | 1.5L |
