HA-12Apro
Healicom
Product Description

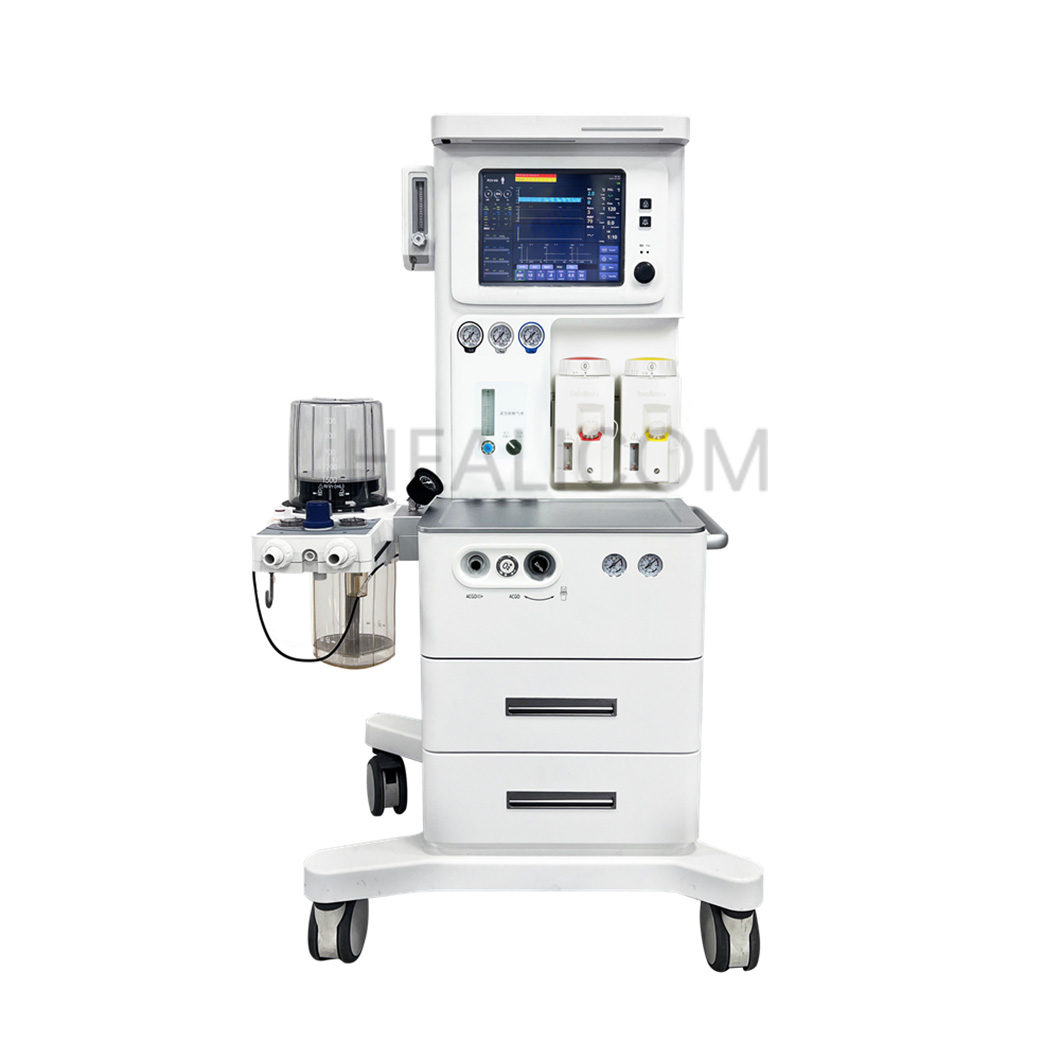

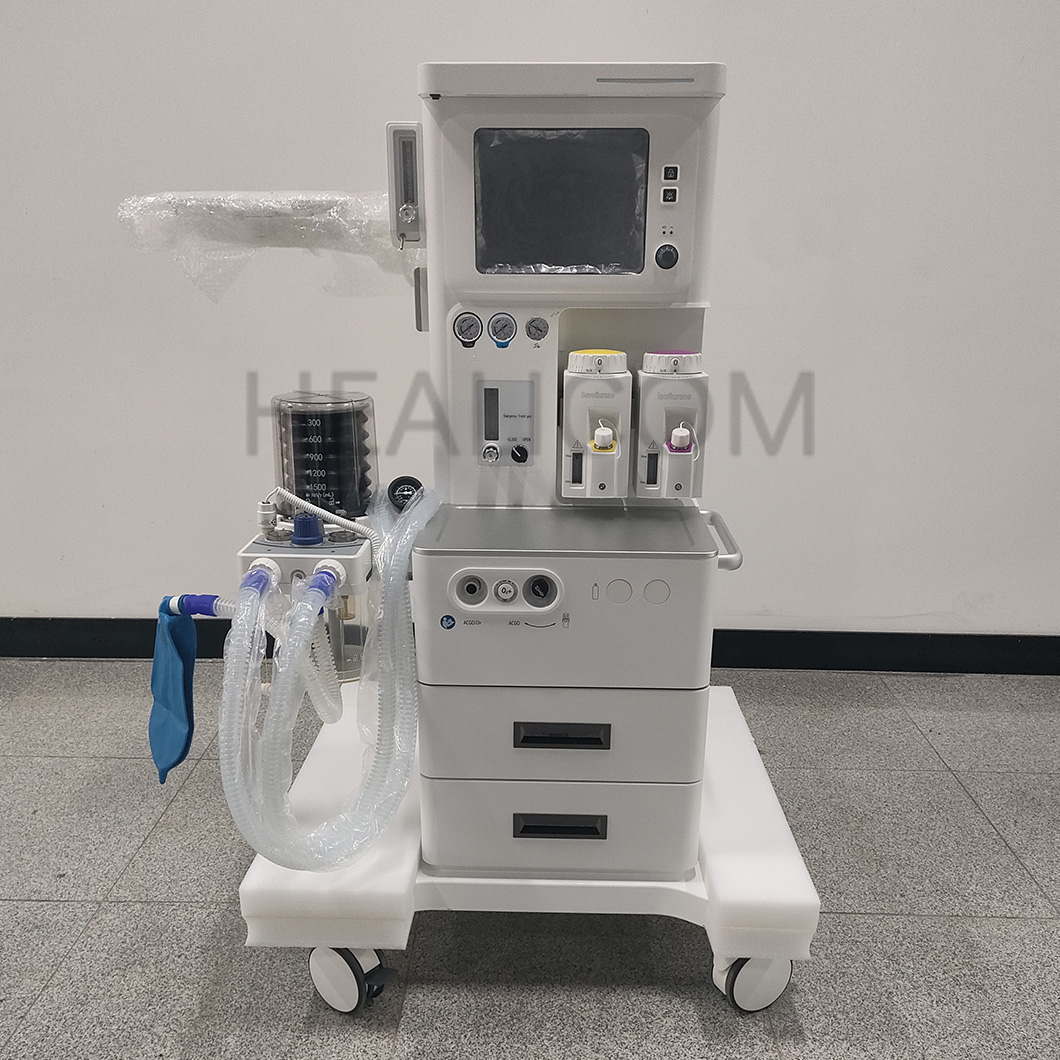

Surgical Equipment HA-12Apro Trolley Anesthesia Machine
Performance characteristics
- Adopt electronic control and pneumatic control methods.
- Has a variety of alarm, prompt and protection functions.
- Controlled by touch and button
- parameters, alarm information, waveforms and ring diagrams
- It has a power outage support function. When the mains power is cut off, it will automatically switch to the internal backup power supply.
- HA-12APro use 12.1 -inch high-definition color LCD to display ventilation Display background switching function (day/night.)
- Suitable for both adults and children.
- With capacity control, pressure limit and other working methods.
- Adopt temperature, flow and pressure compensation, Anesthetic evaporator with automatic altitude compensation function and zero-position self-locking.
- Built-in electronic flowmeter
- Linkage device to ensure that the O2 concentration is ≥25%.
- With O2 driving pressure insufficient alarm and N2O cut-off protection.
- Carbon dioxide monitoring module.
- Optional exhaust gas transmission and collection system.
- Optional anesthetic gas monitoring module.
| Ventilator parameter range | |
| Flowmeter | O2, N2O, AIR (0 ~ 10 L/min) |
| Rapid oxygen supply | 25 L/min ~ 75 L/min |
| Tidal volume(Vt) | 20 mL ~ 1500 mL |
| Adult: 300 mL ~ 1500 mL | |
| Children: 20 mL ~ 300 mL | |
| I:E | 4:1 ~ 1:8 |
| PEEP | OFF, 3 cmH2O ~ 30 cmH2O |
| Pressure triggering sensitivity (PTr) | -20 cmH2O ~ -1 cmH2O |
| Flow trigger sensitivity (FTr) | OFF, 0.5 L/min ~ 30 L/min |
| Pressure control (PC) | 5 cmH2O ~ 70 cmH2O |
| SIGH | OFF, 1/100 ~ 5/100 |
| Suffocation time | OFF, 5 s ~ 60 s |
| Respiratory rate | 1/min ~ 100/min SIMV: 1/min ~ 40/min |
| Adult: 4/min ~ 40/min | |
| Children: 10/min ~ 100/min | |
| Inspiratory time | SIMV: 0.2 s ~ 10.0 s Adult: 0.3s ~ 10.0 s |
| Children: 0.2 s ~ 4.8 s | |
| Support pressure | 5cmH2O ~ 70cmH2O |
| Rapid oxygen supply flow | 25L/min ~ 75L/min |
| Fresh gas outlet pressure | 30 kPa ~ 45 kPa |
| Ventilation mode | |
| IPPV, A/C (V-A/C, P-A/C), SIMV (V-SIMV, P-SIMV) | |
| PCV, PCV-PC, PCV-VG, PSV, MANUAL | |
