HA-301
Healicom
Product Description

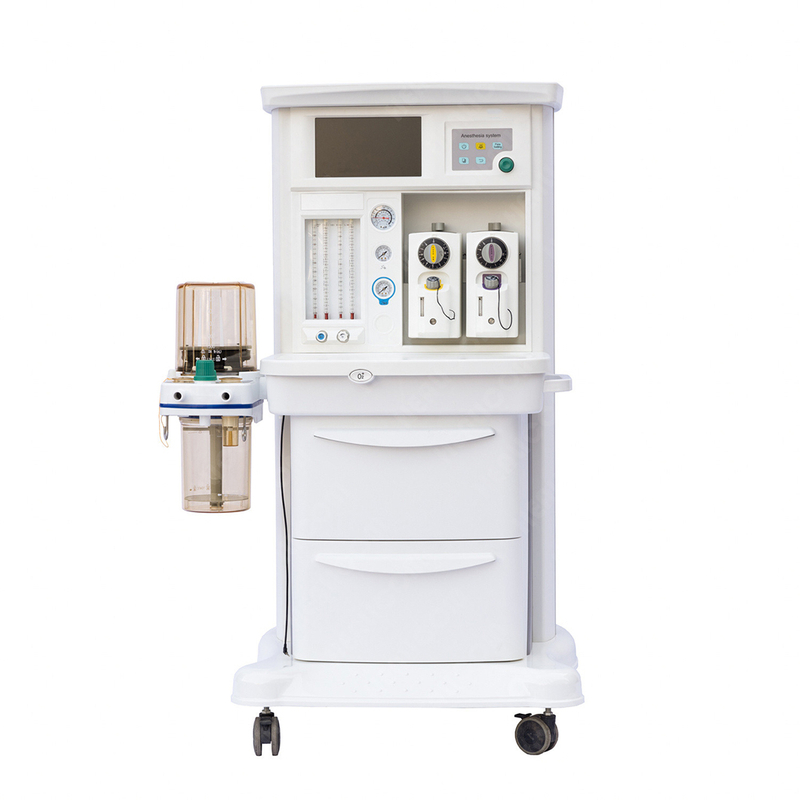

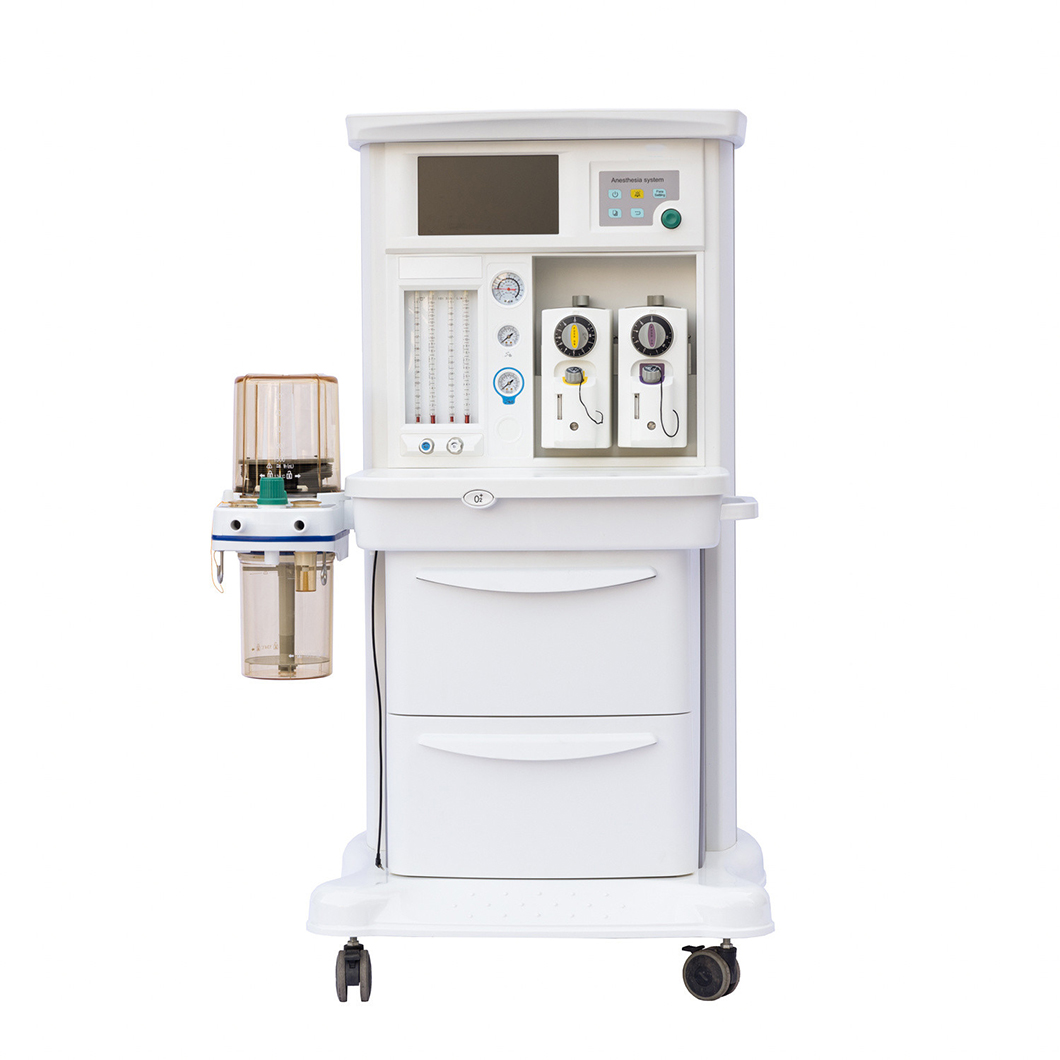

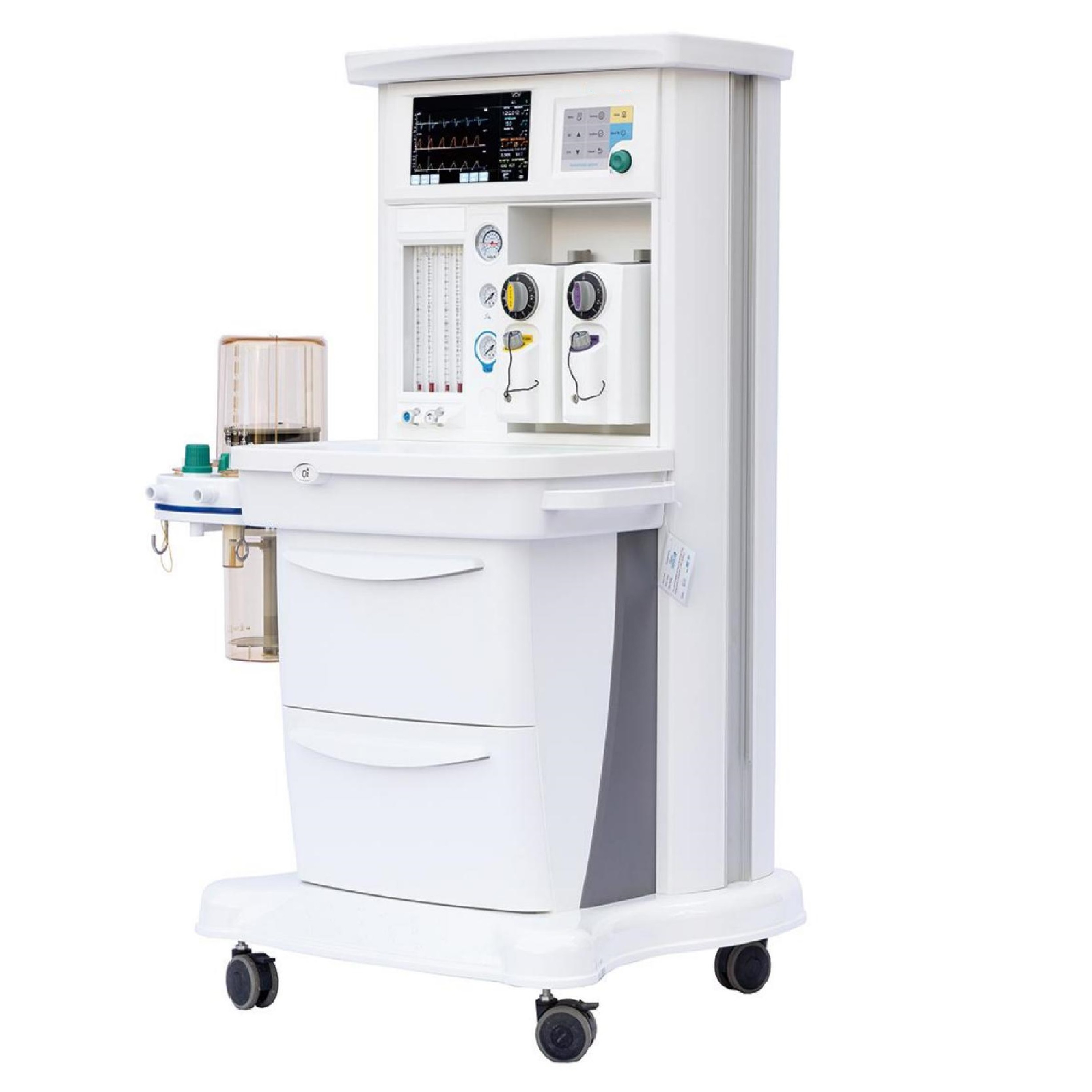

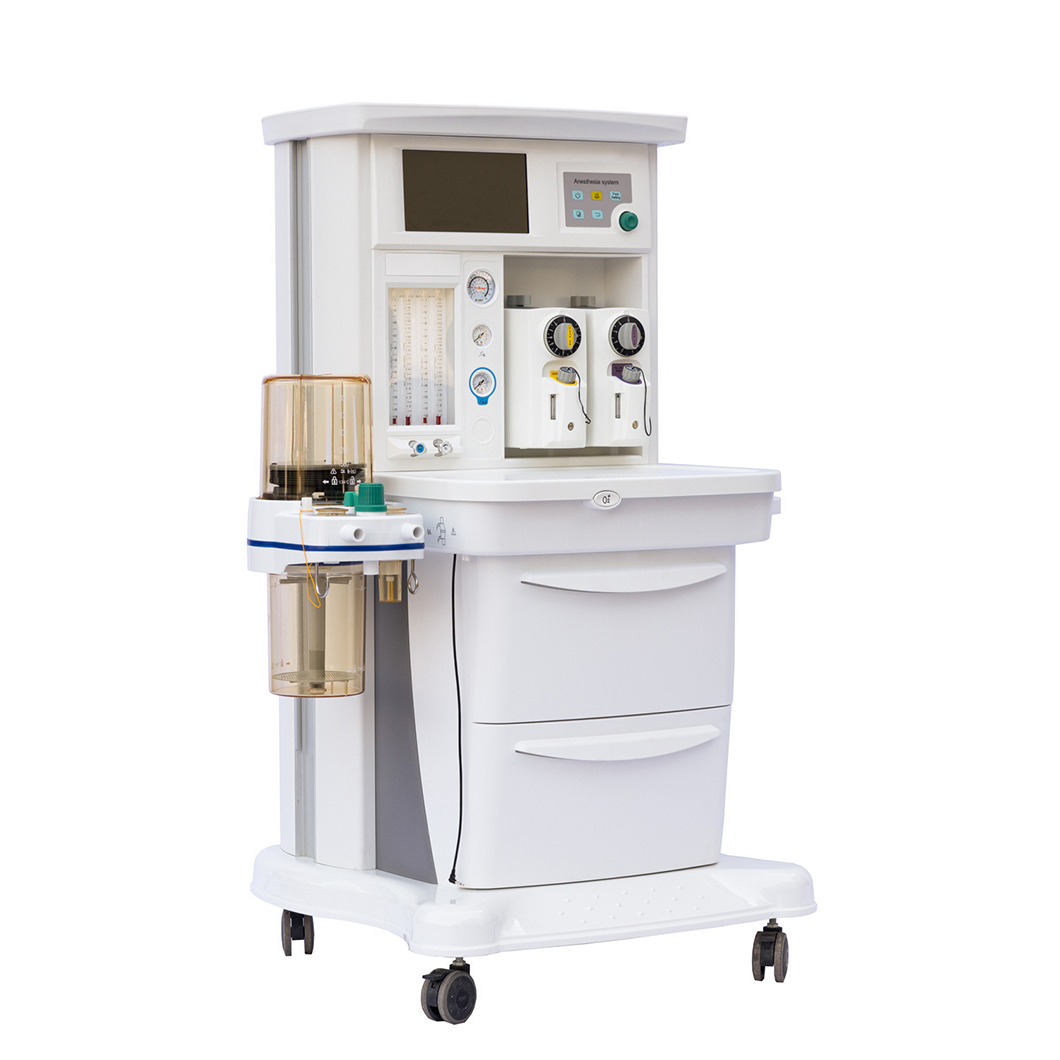

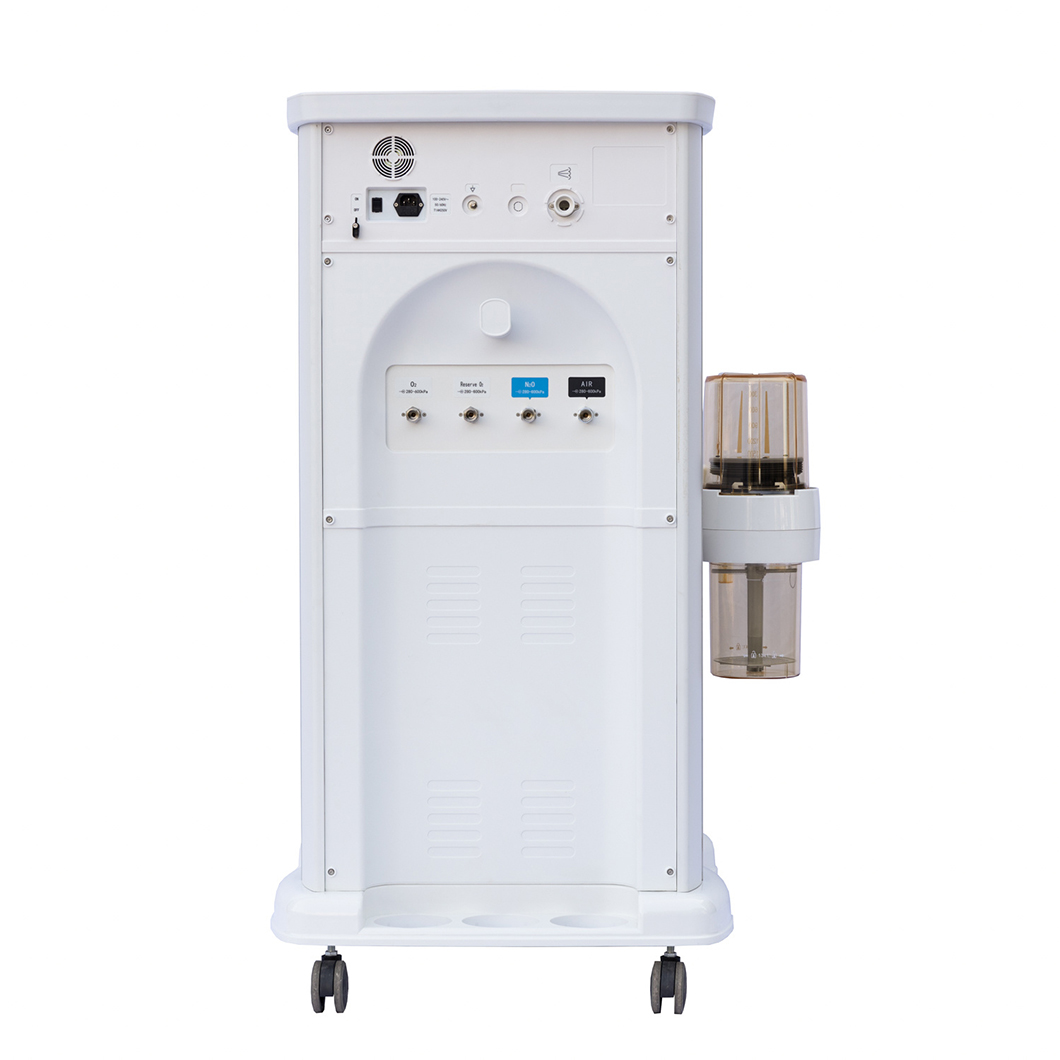

Surgical Equipment HA-301 Trolley Anesthesia Machine
Feature
· Integrated breathing circuit with APLvalve, excellent tightness.
· Replacing drive bellow is NOT required when operating Adult/pediatric anesthesia.
· Applied with 1 high-precision vaporizers. (Selectatec).
· 10.1 inch screen.
· Real-time detection for loops, Paw, BPM, VT and compliance.
· Comprehensive monitoring capabilities include ventilation parameters monitoring,preset parameters, alarm indication and breathing waveform monitoring.
· ACGO available to connect with T/Bain circuit for open operation.(Optional)
| Technique Specifications | |
| Physical specifications | |
| Dimensions | 70*85*140cm |
| Weight | 65kg |
| Casters | Front wheels with lock |
| Screen | LCD |
| Display | 10.1 inch |
| Display graphics | Waveforms of P-T, F-T, V-T |
| Working specifications | |
| Power | AC 110V-240V, 50Hz/60Hz |
| Battery Power | ≥180 mins |
| Pipeline supply | |
| Gas configuration | O2, N2O, Air (Optional) |
| Pipeline input range | 280-600kPa(40-85psi) |
| Ventilator Specifications | |
| Applications | |
| Patient range | AudIt/ Peadiatric |
| Modes of ventilation | |
| VCV | Volume Control Ventilation |
| SIMV | Synchronized Intermittent Mandatory Ventilation |
| MANUAL | Manual |
| STAND-BY | STAND-BY |
| Ventilator parameter | |
| Working type | Electronic control, pneumatic driven |
| Tidal Volume range | 20-1500ml |
| Pressure range | 5-60 cmH2O |
| Rispriation Rate Range | 1-100bpm (1-40bpm under SIMV) |
| I:E Range | 4:1-1:8 |
| Ptrigger Range | -20-0cmH2O |
| Minute volume range | >18L/Min |
| SIGH range | 0-5/100 |
| System Standard | |
| Hypoxic guard system | N2O cut-off valve, O2 concentration >25% |
| Safety valve | <12.5kPa |
| O2 Flush | 25-75L/min |
| Flowmeter | 4 tubes, cascade 0-15L/min O2, 0-15L/min N2O, 0-15L/min Air (Optional) |
| Volume of CO2 absorber | 2L |
| Vaporizer | 1 Selectetac, maximum 2 mounts (Isoflurane/Enflurane/Sevoflurane/Halothane) |
| Monitoring | VT, MV, BPM, Paw, Lung compliance,FiO2 (Optional) |
| Alarm Limits | |
| Audio/Visual | No tidal volume, MV,Paw, FiO2 (Optional),Air failure, AC power failure, Battery low |
| Pre-setting functions | |
| Language | CHINESE,ENGLISH etc. |
| Self-test | Automatic |
| Optional features | |
| ACGO | Auxiliary Common Gas Outlet |
| Yoke system (Pin-index) | Support 11L cylinder O2,N2O |
| AGSS | Anaesthetic Gas Scavenging Systems |
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
