HA-301D
Healicom
Product Description

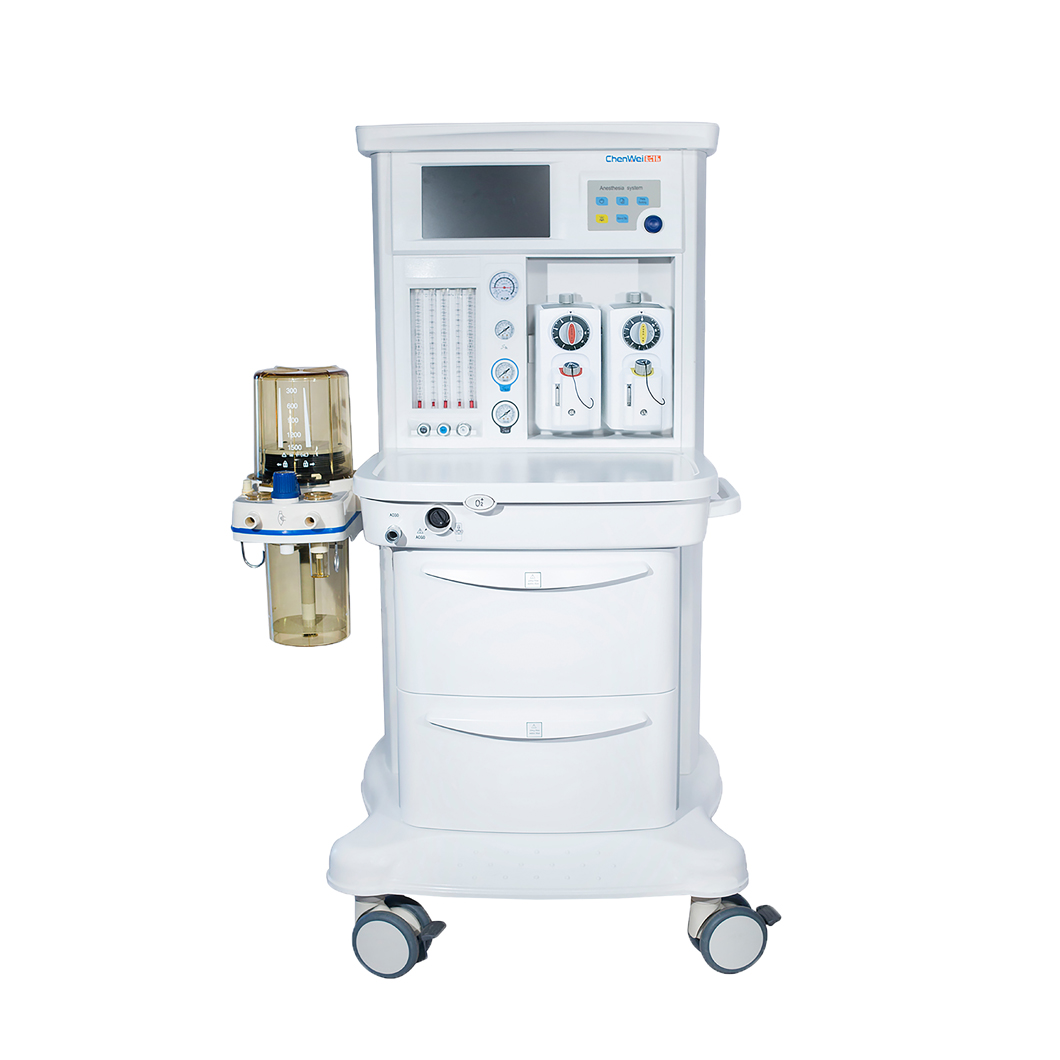

Surgical Equipment HA-301D Trolley Anesthesia Machine
Features:
Integrated breathing circuit with APL valve, excellent tightness.
Replacing drive bellow is NOT required when operating adult/pediatric anesthesia.
Applied with 2 high-precision vaporizers. (Selectatec).
10.1 inch screen with no dead space.
Real-time detection for loops, Paw, BPM, VT and compliance.
Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
Head light.
Altitude compensation function.
ACGO available to connect with T/Bain circuit for open operation.
Yoke system with up to 3 back up cylinders (A type with 11L size) (Optional).
| Technique Specifications | |
| Physical Specifications | |
| Dimensions | 70*85*140cm |
| Weight | 65kg |
| Casters | Front wheels with lock |
| Screen | 10.1 inch LCD |
| Pipeline Supply | |
| Gas configuration | O2,N2O,Air |
| Pipeline input range | 280-600Kpa |
| Battery Power | |
| Run-time | ≥180 mins |
| Pre-setting Functions | |
| Language | English |
| Calibration | Automatic |
| Ventilator Specifications | |
| Modes of Ventilation | |
| VCV | Volume Controlled Ventilation |
| A/C | Assist/Control Ventilation |
| SIMV | Manual |
| PCV | Pressure Control Ventilation |
| PSV | Pressure Support Ventilation |
| Ventilator Parameter | |
| Working type | Electronic control, pneumatic driven |
| Tidal Volume range | 20-1500ml |
| Pressure range | 5-60cmH2O |
| Rispriation rate range | 1-100bpm(1-40bpm under SIMV) |
| I:E range | 4:1-1:8 |
| Ptrigger range | >18L/Min |
| SIGH range | 0-5/100 |
| System Standard | |
| Hypoxic guard system | N2O cut-off Valve, O2 concentration>25% |
| Safety valve | <12.5Kpa |
| Fresh gas compensation | 25-75L/min |
| Volume of CO2 absorber | 2L |
| Flow meter | 5 tubes, Cascade 0.1-15L/min O2; 0.1-15L/min N2O,0.1-15L/min air |
| Vaporizer | 2 Selectetac, maximum 2 mounts (Isoflurane/Enflurane/Sevoflurane/Halothane) |
| Monitoring | |
| Display graphics | Waveforms of P-T, F-T,V-T, loops of P-V, V-F, F-P |
| Types | VT, MV, BPM, Paw, Lung compliance, Inspiratory Platform, FiO2 |
| Alarm Limits | |
| Audio/Visual | No tidal volume, MV, Paw, Fio2 limitation O2,Air failure, AC power failure, Battery low. |
| PEEP | |
| Type | Integrated, Electronic control |
| Range | OFF, 3-30cmH2O |
| Optional | |
| 1.AGSS | |
| 2.Suction Unit | |
| 3.Communication Interface | |
