HA-300
Healicom
Product Description

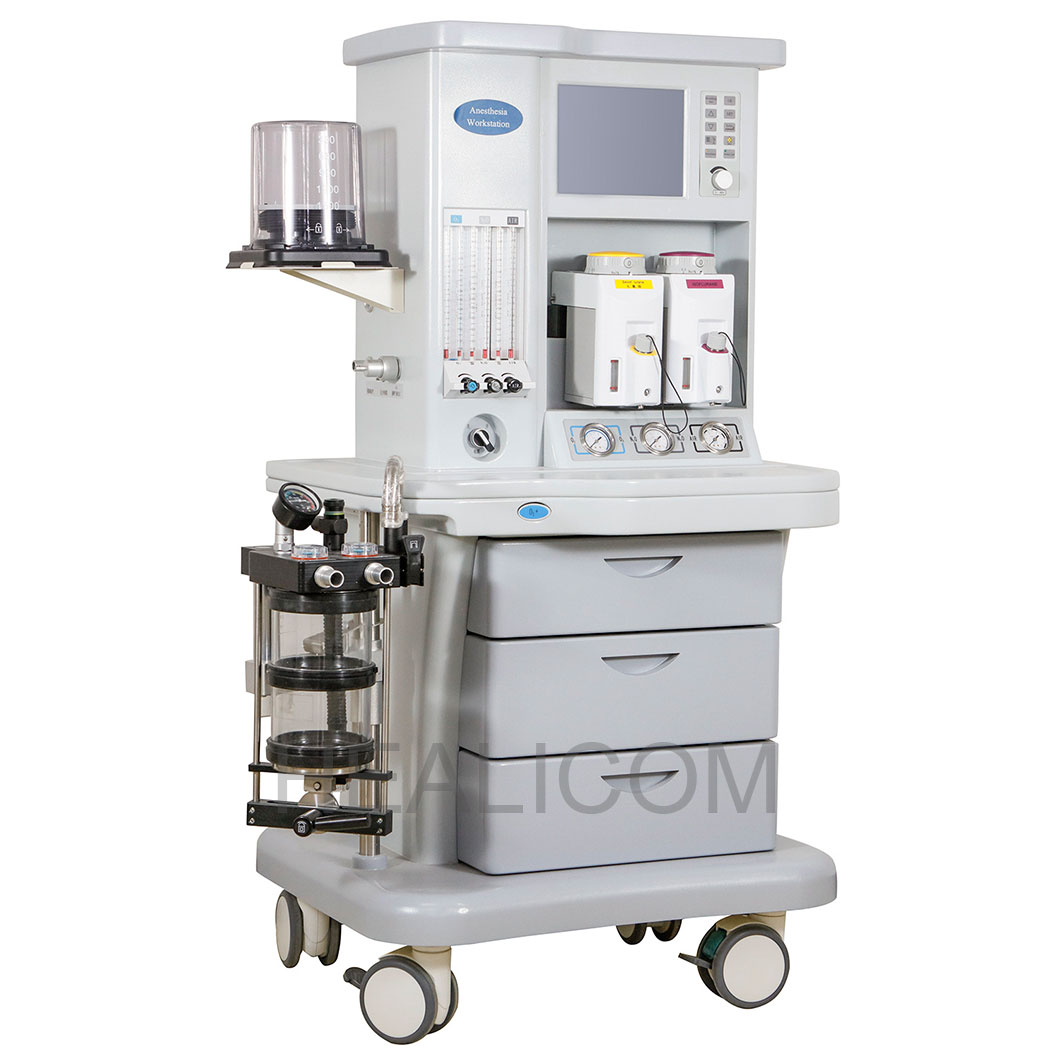

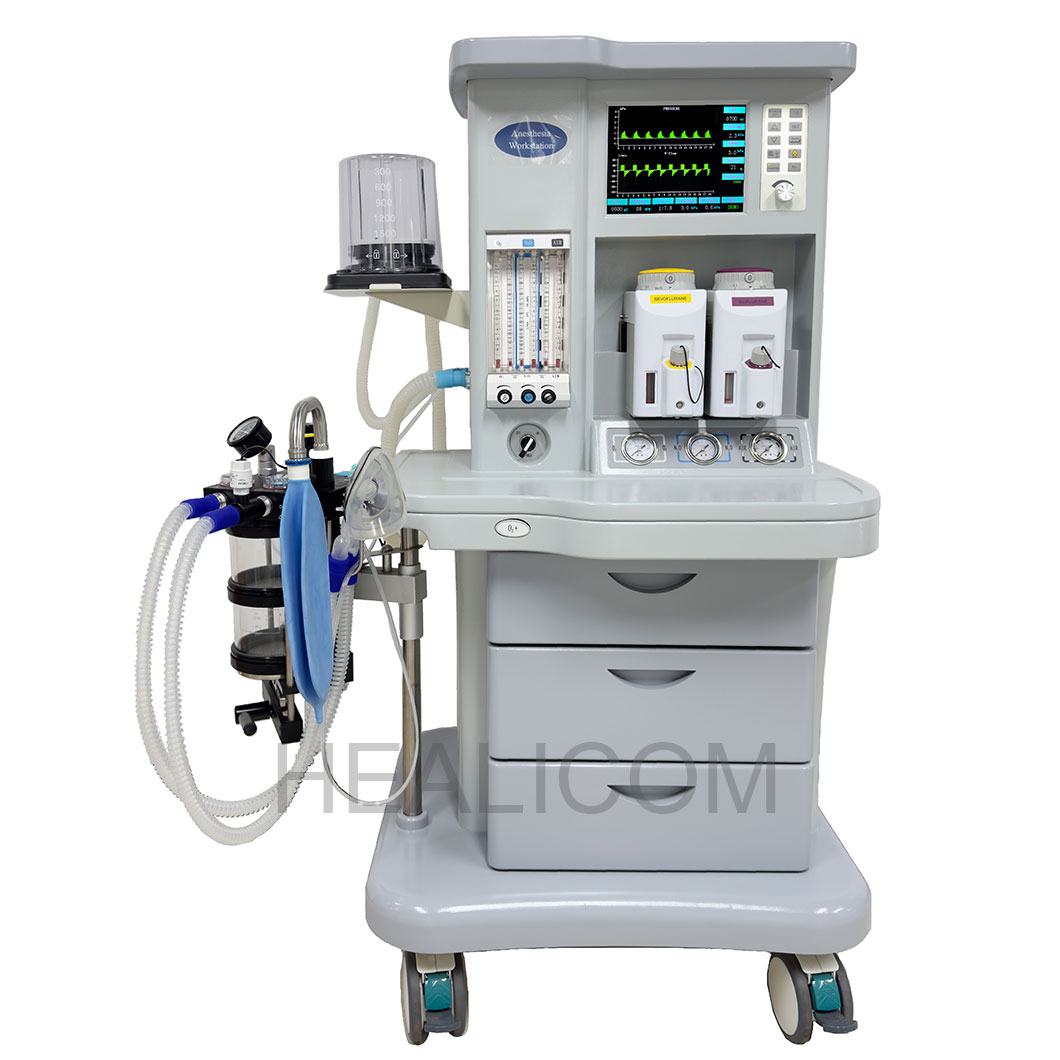

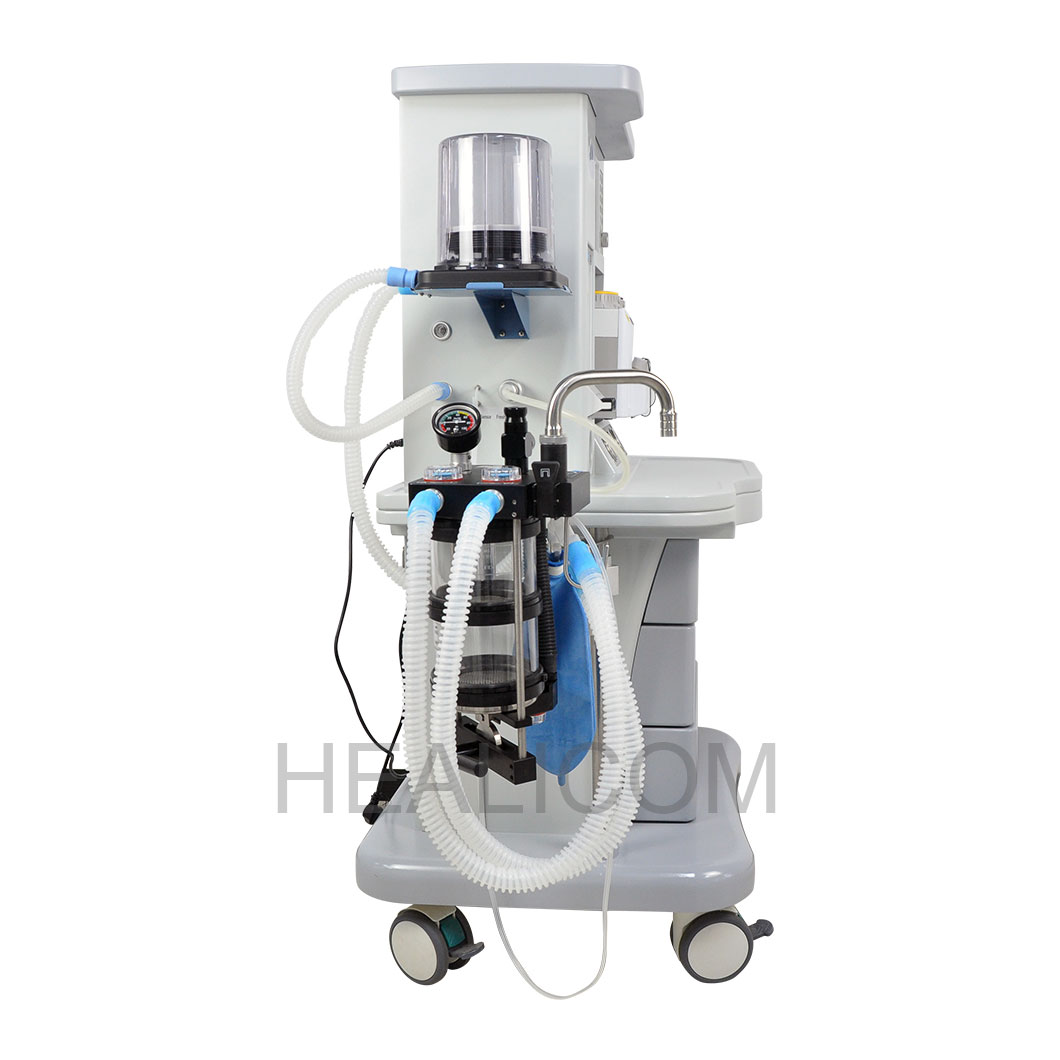

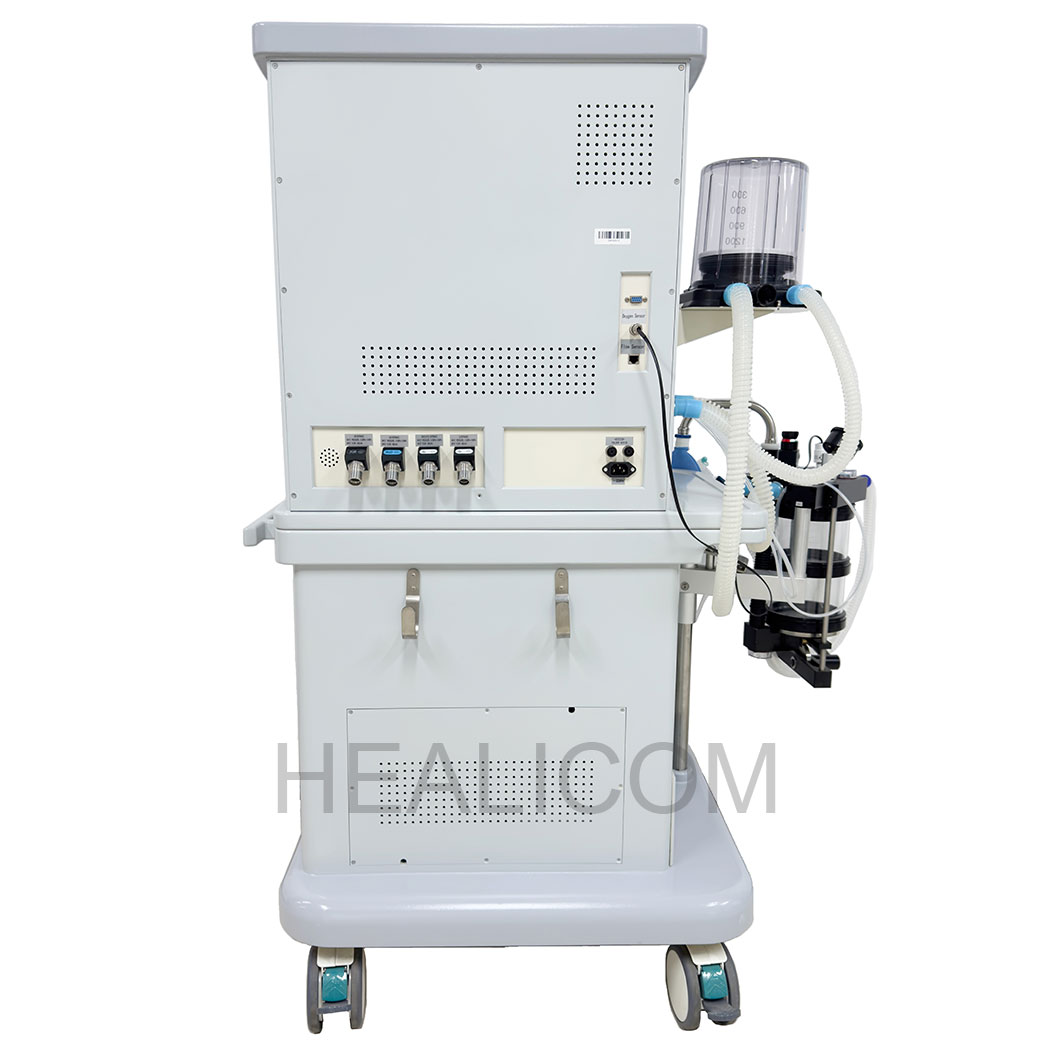

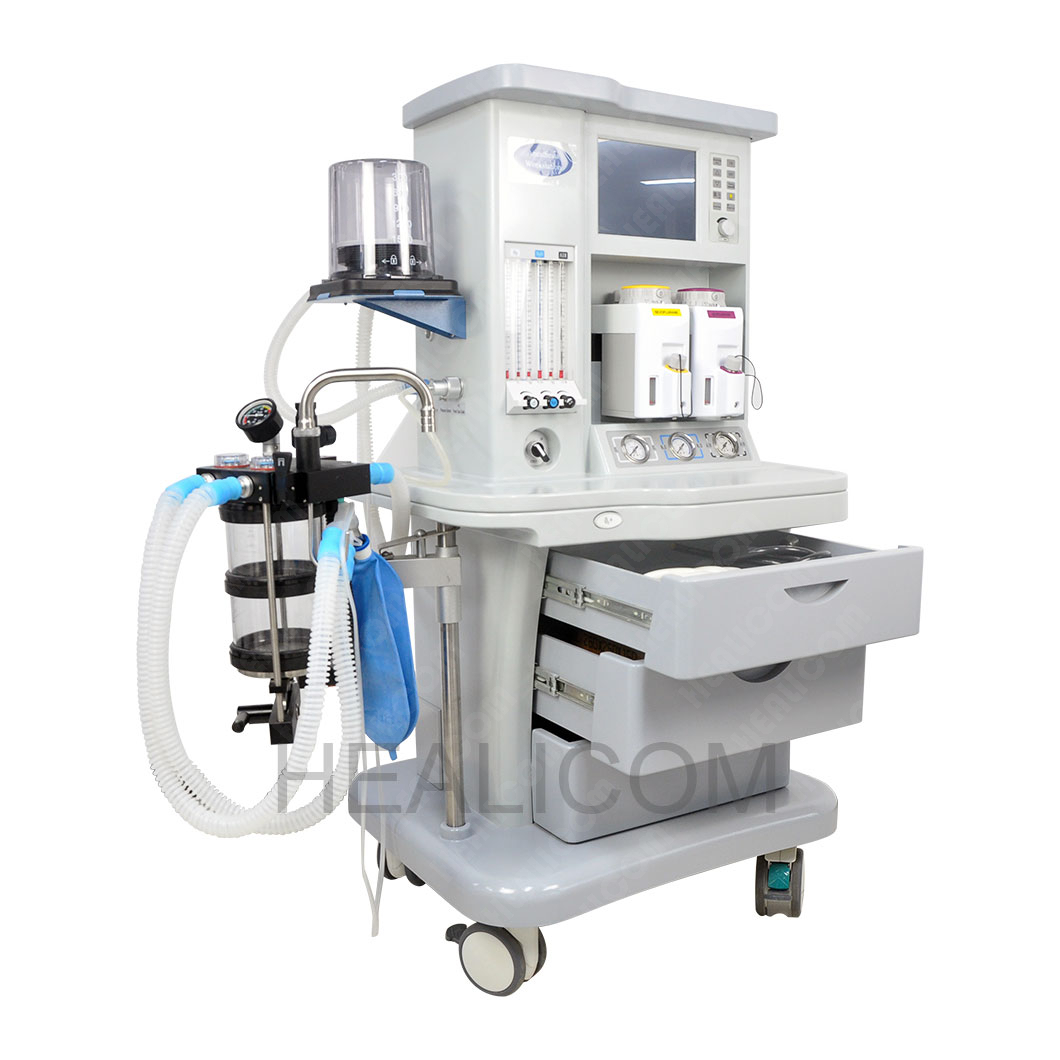

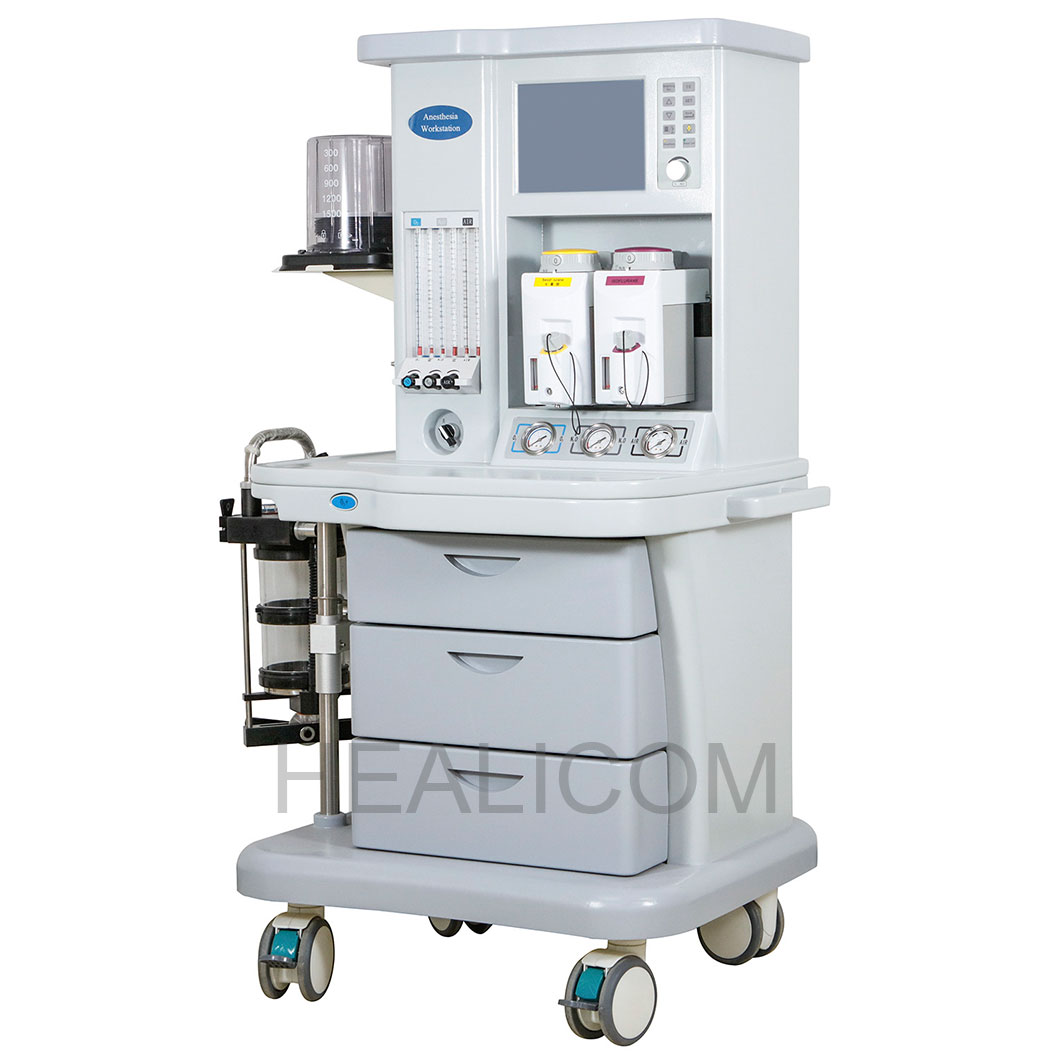

Surgical Equipment HA-300 Trolley Anesthesia Machine
Features
10.4" Colorful TFT High-Luminance large Display,built-in Ventilator
O2/N2O/Air Six Tube Flow Meter
Two high precise vaporizer as to Customer choose
(Isoflurane//Halothane/Sevfluran e ;According your chose )
Tidal Volume: 30 -- 1500ml
I/E Ratio: 3: 1~1:4 Adjustable
24-Hour Whole Parameter Trending Curve.
Optional: Patient Monitor
| Main Frame | Vaporizer | ||
| Display | 10.4 Inch Color TFT High-Luminance Screen | Concentration Range | 0.2~5%, 0.2~8% |
| Overall Dimension | 110*65*144CM(L*W*H) | Flow Range | 0.2 to 5L/Min |
| Working Mode | Closed,Semi -Closed,Semi -Open System | Automatic Compensation | Flow,Temperature and Pressure |
| Application | Adult,Children | Lock | Self-Lock and Interlock |
| Replay | 24-Hours Whole Parameter Trending Curve | Volume | 250mL |
| Vaporizer Quantity | Isoflurane,Sevoflurane,Halothane (Optional Two Of Three) | Mount | Pour-fill Selectatec Mount |
| Ventilation Mode | Alarm And Protection | ||
| IPPV,SIGH,SIMV/f/2,SIPPV (Optional: PEEP) ,MANUAL | The AC power failure alarm | Power failure or no connection | |
| High Airway pressure alarm | 20 cmH2O ~ 100 cmH2O | ||
| Ventilator Parameter Range | Low Airway pressure alarm | 0 cmH2O ~ 20 cmH2O | |
| Bellow | Adult and Child | High Minute Volume alarm | Adult (5 L/min ~ 20 L/min) |
| Driven | Pneumatically Driven and Electrically Controlled | Low Minute Volume alarm | 0 ~ 10 L/min |
| Upper Airway Pressure | 2~6KPa | Continuous Pressure alarm | (PEEP+1.5 kPa) over 16s |
| Lower Airway Pressure | 0.6~2KPa | Suffocation warning | 5 s ~ 60 s no spontaneous ventilation |
| Six Flow meters | O2 (0.1~ 10 L/min) | The maximum limited pressure | <12.5 kPa |
| N2O (0.1 ~ 10 L/min) | Oxygen deficit | Show on screen | |
| AIR (0.1 ~ 10 L/min) | Alarm of low tidal volume | 20~990mL | |
| Rapid oxygen supply | 35 L/min ~ 75 L/min | ||
| Tidal volume (Vt) | 30 ~ 1500 mL | ||
| Respiratory Rate | 4 ~99bpm | ||
| I:E | 2: 1~1:8Adjustable | ||
| PEEP(OPTIONAL) | 0 cmH2O~30 cmH2O | ||
| Pressure triggering sensitivity (PTr) | -20 cmH2O ~ 0 cmH2O (Based on PEEP) | ||
| Flow trigger sensitivity (FTr) | 0.5 L/min ~ 30 L/min | ||
| Pressure control (PC) | 5 cmH2O ~ 60 cmH2O | Working Condition | |
| SIGH | 0 (off), 1/100 ~ 5/100 | Three Gas Supplies | O2/N2O:0.3MPa -0.5MPa;Air |
| Apnea Ventilation | OFF, 5 s ~ 60 s | Pressure | 280 kPa ~ 600 kPa |
| Pressure Limit | 20 cmH2O ~ 100 cmH2O | Voltage | 100 ~ 240 V |
| Power frequency | 50/60 Hz | ||
| Monitoring Parameter | |||
| Respiratory Frequency(Freq) | 4~99bpm | Packing Size | |
| Tidal volume (Vt) | 0mL ~ 1500 mL | Wooden Case Packing size One | 84*94*162CM(L*W*H), 150KGS |
| MV | 0 L/min ~ 100 L/min | Carton Packing size Two | 58*53*44CM(L*W*H), 14KGS |
| Oxygen concentration | 21 % ~ 100 % | G.W. | 164 KGS |
| Oscillogram | CBM | 1.5 m3 | |
| V-T(volume-time) | Optional | Patient monitor hander | |
| Remark: Above configuraions include standard and option. Please contact with sales representative for more details. | |||
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
