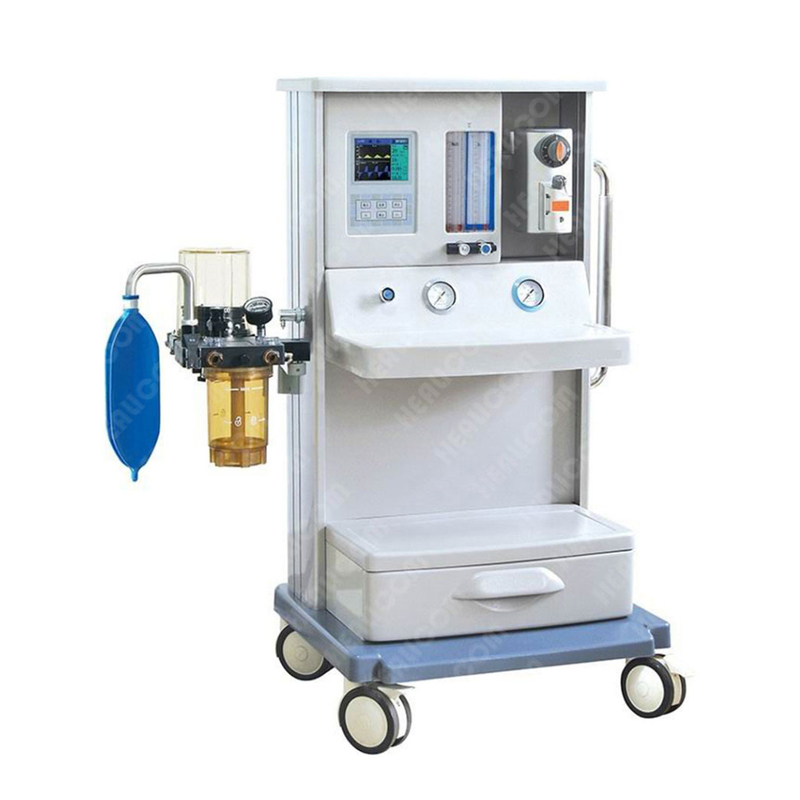

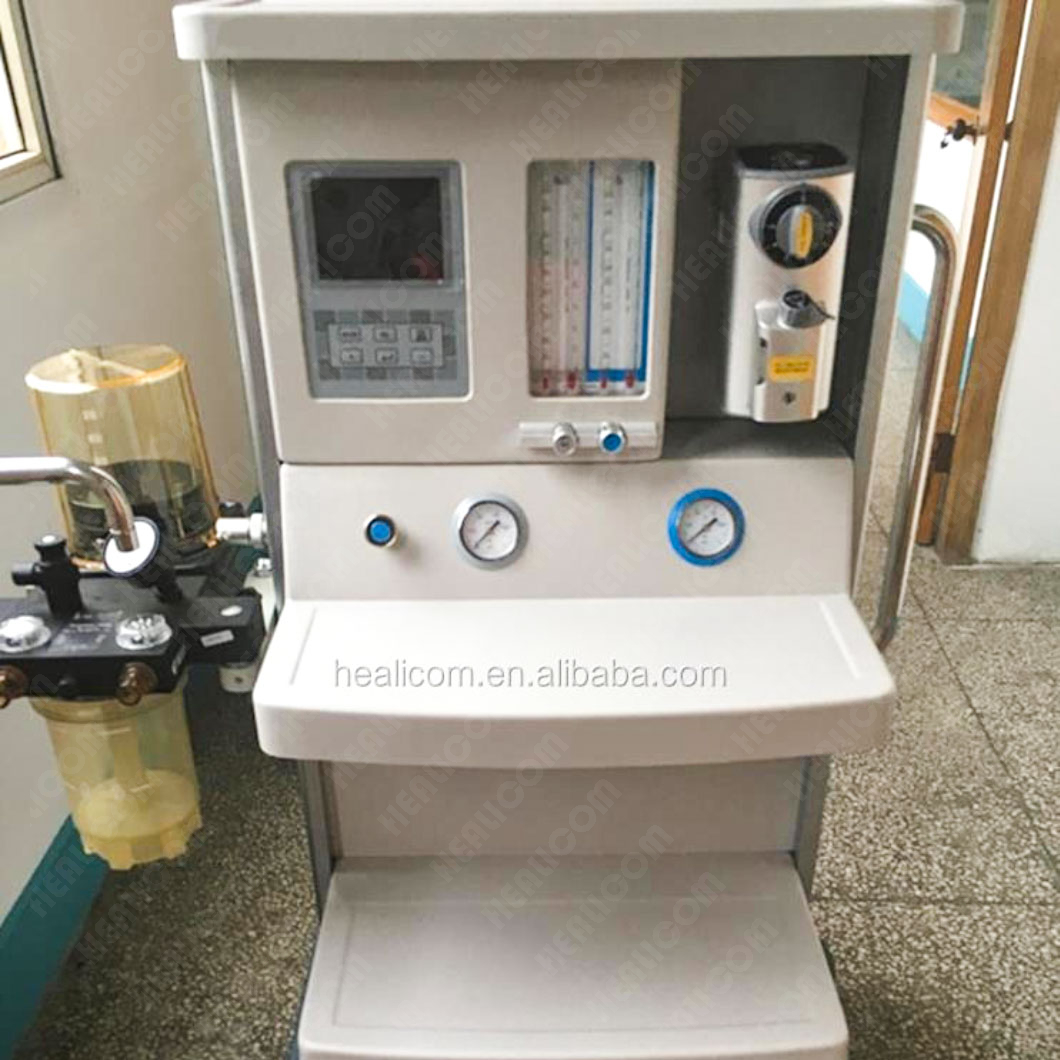

HA-3600 Medical Color LCD Screen Trolley Anesthesia Machine

HA-3600 Medical Color LCD Screen Trolley Anesthesia Machine

Product Features:

1. Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect.

2. High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%.

3. Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor.

4. Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia.

5. Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C.

Technical Specifications
Display	5.7 inch TFT display
Flowmeter Range	O2: 0.1-10L/min, N2O: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, VCV, IMV, SIMV, MANUAL
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml Display range: 0-2000ml
Respiratory Rate	1-100bpm
Inspiratory/Expiratory (I:E) Ratio	8:1-1:10 (capable of inverse ratio ventilation)
PEEP Range	0-20cmH2O (electronically controlled)
Inspiratory Pressure Trigger Range	.-10-10cmH2O (electronically controlled)
SIGH	1 sigh breath in every 80-120 breaths
SIMV Rate	1-20bpm
Inspiratory Plateau	0-1 second
Vaporizer Concentration Ranges	0-5%
Vaporizer Slots	Single PA-I type slot
