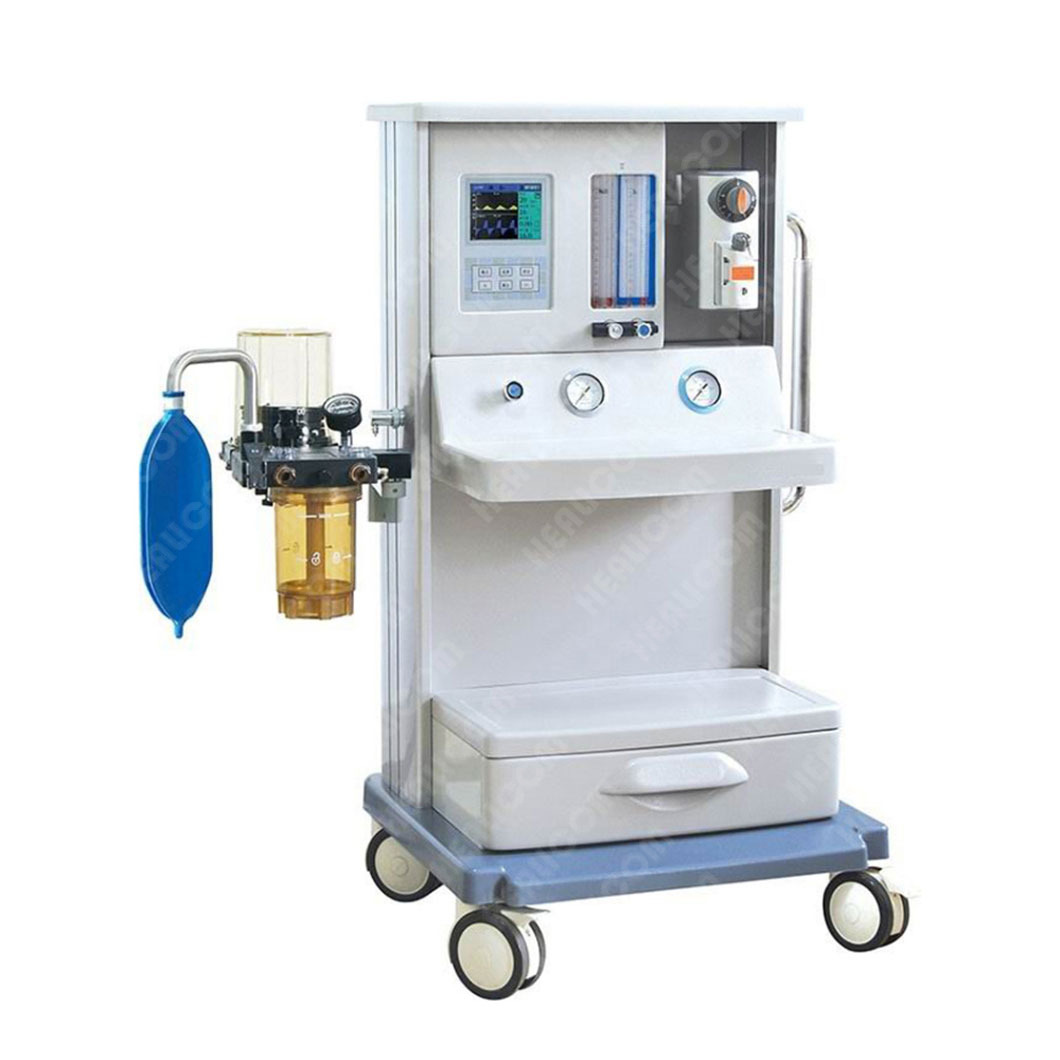

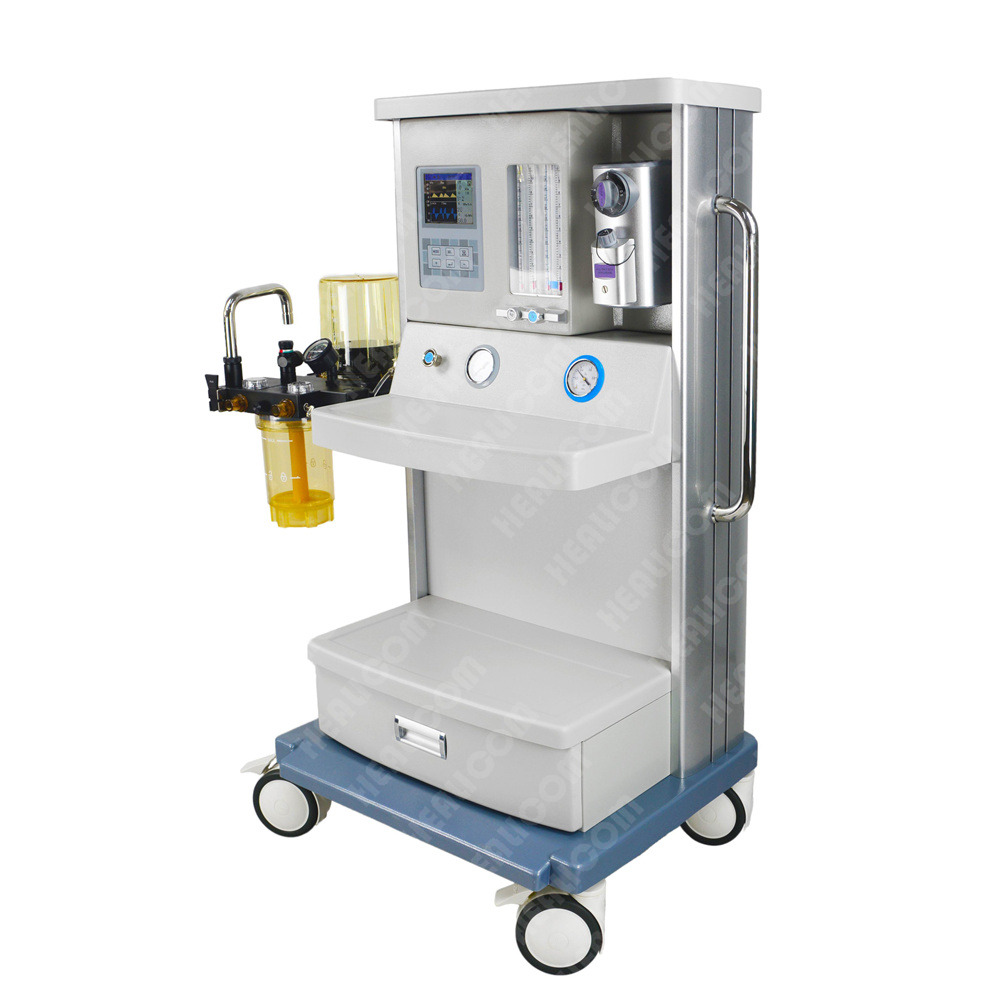

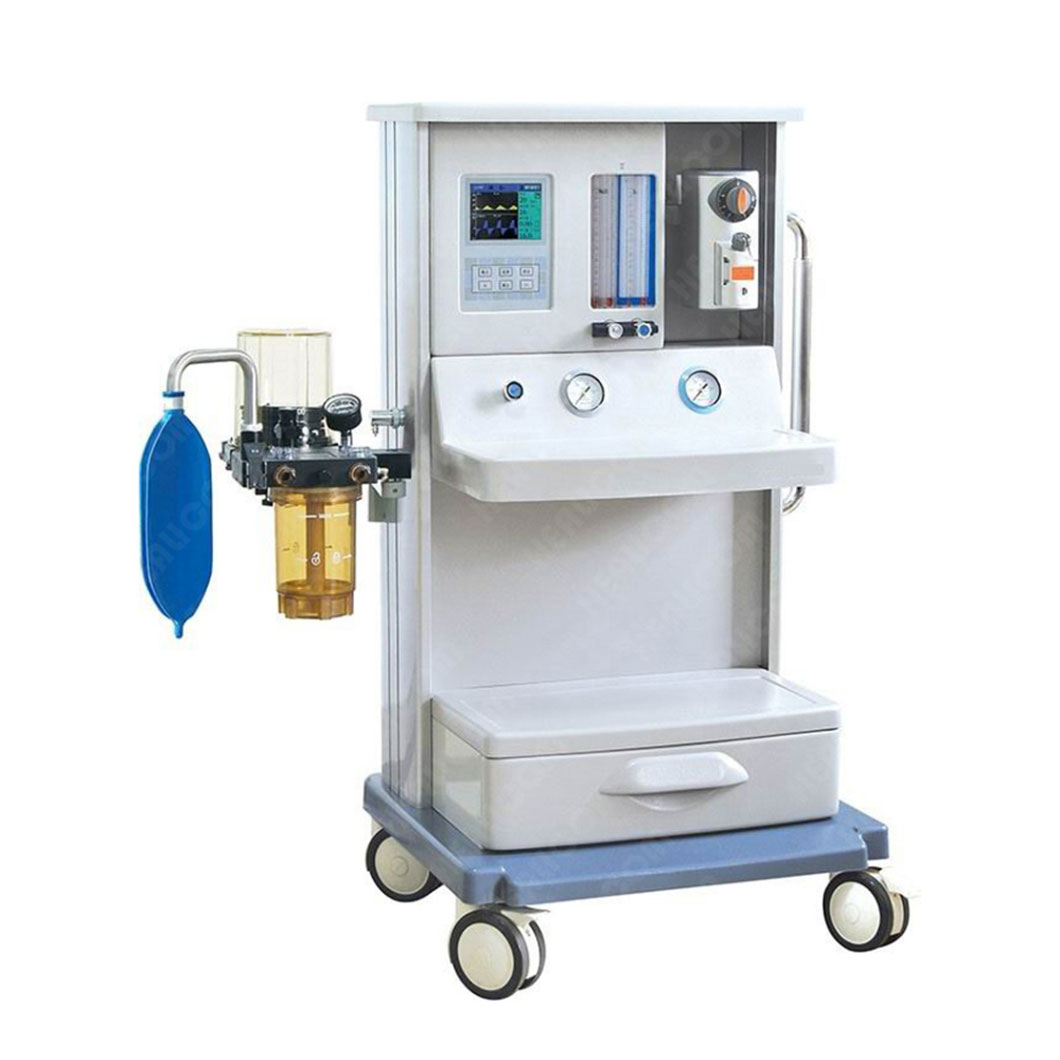

Professional Service Integrated Ventilator Dual Gas Flowmeter Anesthesia Workstation for Hospital Operating Rooms

Dimenslons (H×W×D)

132 cm x 100 cm x 65 cm

Weight

91kg(with 1PAI Vaporizer attachec)

Power

220-240V,50-60Hz (wellgroundecj

Backup power

At least 30 minutes, nominally between 2 to 4 hours

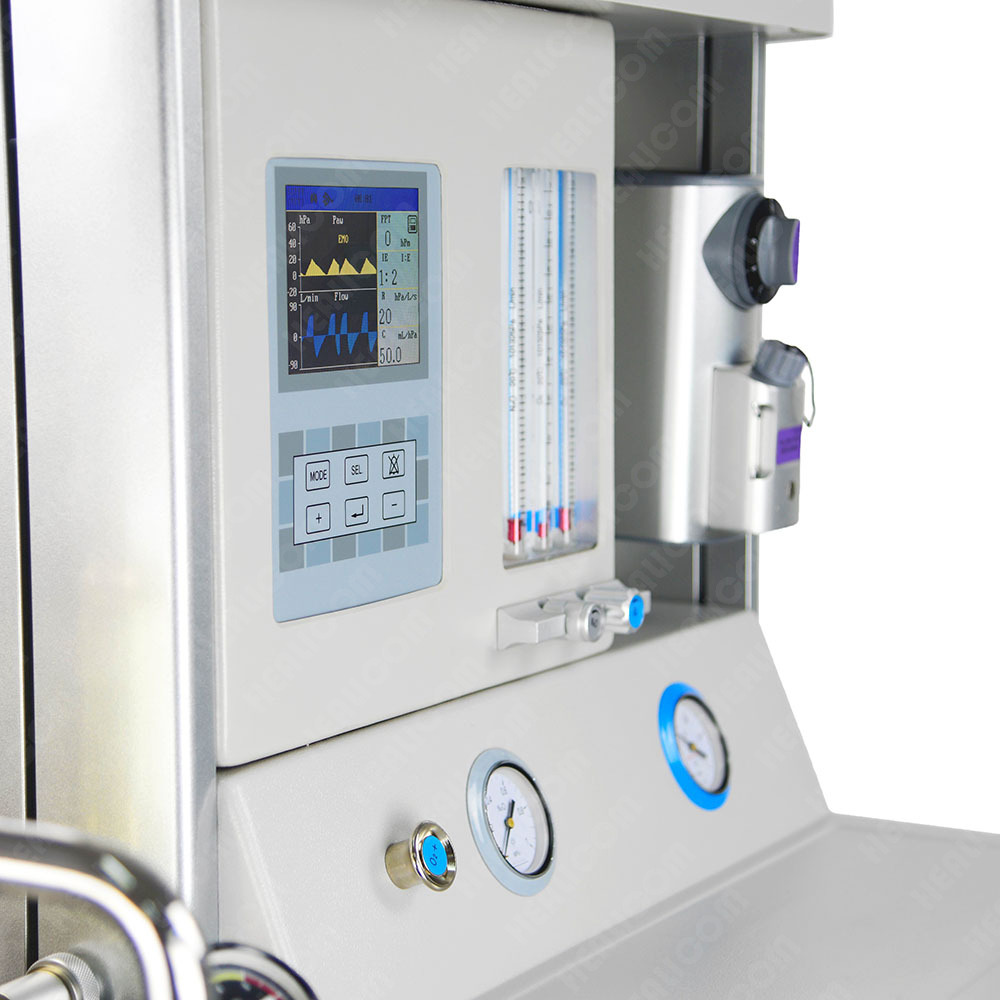

Dsplay

5.7 Inch TFT display

Ventlator

Drive method

Pneumaticallydriven &electronically controled,closed,sem-closed and
seml-open

Tdal volume

Adjustable range: 50-1500 ml, Display range: 0-2000 ml

Respiratory rate

100 bom

Operating modes

Manual,Stancby,Intermitent Positve Pressure Ventlation(PPV
Synchronized Intermittent Positive Pressure Ventilation [SIPPV],
VolumeControlledVentlatlon (VCV.Intermittent Mandatory
Venilation (IMV,Synchronized Interittent Mandatory Ventilation
(SIMV)

Prossure range

5-60 hPa

Pressure trioger

-10-20cmH2O (electronically controlled)

SIMV Rate

-20 bpm

InsplratonExpiration ratio (I:E)

81-10 (capable of inverse ratoventlation)

Inspiratory time

0.2s

Inspiratory plateau

0-1s

Electronic PEEP

0-20cmH2O felectronicallycontroled)

Sig function

5loch breath In every80-120 breats

Gas System

Flowmeter

02:0.1-70 L/min,N20:0.1-10 L/min

Fresh-gas low

0-10 L/min二

Gas suply

02,N20:0.32-0.6 Mpa

O2 flush

25-75Umin

Anesthesia Gas Scavonging System (AGSS）

Opional
