HA-15pro
Healicom
Product Description

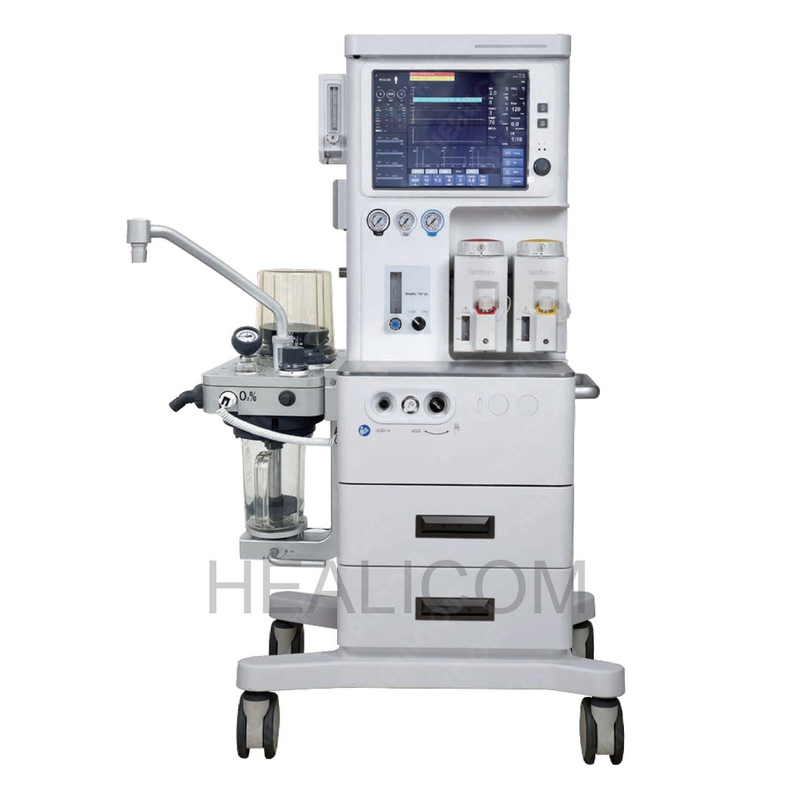

Surgical Equipment HA-15pro Trolley Anesthesia Machine
Performance characteristics
· Adopt electronic control and pneumatic control methods.
· Has a variety of alarm, prompt and protection functions.
· It has a power outage support function. When the mains power is cut off,it will automatically switch to the internal backup power supply.

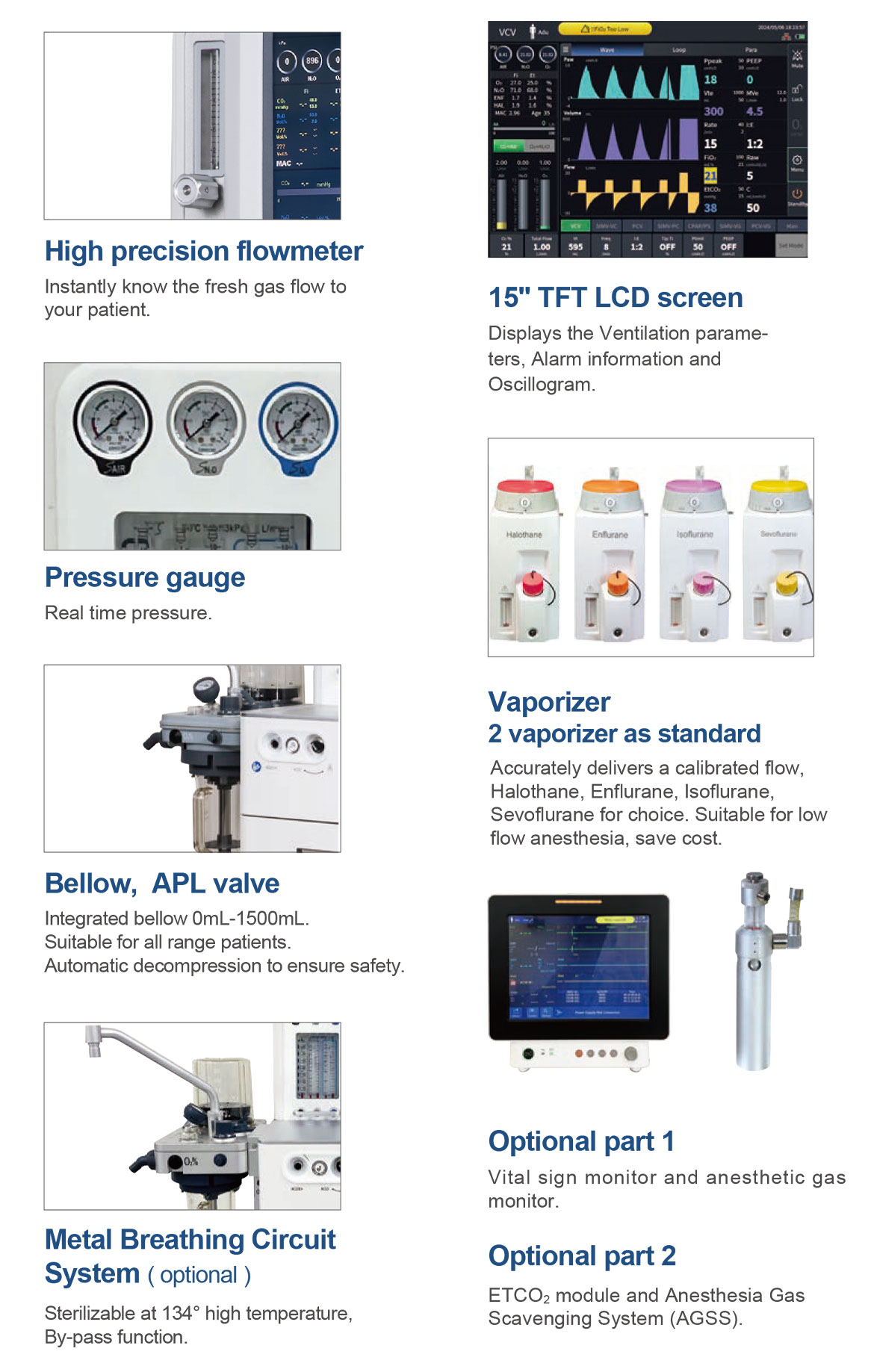

· HA-15(A)Pro use 15-inch high-definition color LCD to display ventilation parameters, alarm information,wave forms and ring diagrams.
· Controlled by touch and button.
· Display background switching function (day/night.)
· Suitable for both adults and children.
· With capacity control, pressure limit and other working methods.
· Adopt temperature, flow and pressure compensation, Anesthetic evaporator with automatic altitude compensation function and zero-position self-locking.
· Built-in electronic flow meter.
· Linkage device to ensure that the O2 concentration is ≥25%.
· With O2 driving pressure insufficient alarm and N2O cut-off protection.
· Carbon dioxide monitoring module.
· Optional exhaust gas transmission and collection system.
| TECHNICAL SPECIFICATION | |||||||||
| Ventilation mode | Ventilator parameter range | ||||||||
| IPPV, A/C (V-A/C, P-A/C), SIMV (V-SIMV, P-SIMV) , | Flowmeter | O2, N2O, AIR (0 ~ 10 L/min) | |||||||
| PCV, PCV-PC, PCV-VG, PSV, MANUAL | Rapid oxygen supply | 25 L/min ~ 75 L/min | |||||||
| Tidal volume(Vt) | 20 mL ~ 1500 mL | ||||||||
| Alarm and protection | Adult: 300 mL ~ 1500 mL | ||||||||
| Pressure limit | High (low) tidal volume alarm | Children: 20 mL ~ 300 mL | |||||||
| Suffocation alarm | Alarm sound paused (mute) | I:E | 4:1 ~ 1:8 | ||||||
| Hypoxia alarm | Airway high (low) pressure alarm | PEEP | OFF, 3 cmH2O ~ 30 cmH2O | ||||||
| Absorber missed alarm | High (low) respiratory rate alarm | Pressure triggering sensitivity (PTr) | -20 cmH2O ~ -1 cmH2O | ||||||
| Fan failure alarm | High (low) oxygen concentration alarm | Flow trigger sensitivity (FTr) | OFF, 0.5 L/min ~ 30 L/min | ||||||
| Continuous pressure alarm | External power supply interruption alarm | Pressure control (PC) | 5 cmH2O ~ 70 cmH2O | ||||||
| High (low) ventilation alarm | Maximum safety pressure ≤12.5 kPa | SIGH | OFF, 1/100 ~ 5/100 | ||||||
| Internal backup power supply voltage undervoltage alarm | Suffocation time | OFF, 5 s ~ 60 s | |||||||
| Ventilator outage (no tidal volume output) alarm | Respiratory rate | 1/min ~ 100/min SIMV: 1/min ~ 40/min | |||||||
| The O2 and N2Oflow meters have linkage devices to ensure that the O2 | Adult: 4/min ~ 40/min | ||||||||
| concentration is ≥25%. When O2is turned off, N2O is turned off | Children: 10/min ~ 100/min | ||||||||
| automatically at the same time | Inspiratory time SIMV: 0.2 s ~ 10.0 s Adult: 0.3s ~ 10.0 s | ||||||||
| Children: 0.2 s ~ 4.8 s | |||||||||
| Working condition | Support pressure | 5cmH2O ~ 70cmH2O | |||||||
| Supply voltage | 100-240 V~ | Rapid oxygen supply flow | 25L/min ~ 75L/min | ||||||
| Power | frequency 50/60 Hz | Fresh gas outlet pressure | 30 kPa ~ 45 kPa | ||||||
| Input power | 8A | ||||||||
| Gas source | O2 , N2O, AIR (medical grade) | Oscillogram | |||||||
| Air source pressure | 280 kPa ~ 600 kPa | P-T (pressure-time) | |||||||
| Ambient temperature range | + 5 ºC ~ +40 ºC | F-T (flow-time) | |||||||
| Relative humidity range | ≤ 80% | V-T (volume-time) | |||||||
| Atmospheric pressure range | 860 hPa ~ 1060 hPa | ETCO2-T (ETCO2 -time) | |||||||
| P-V loop (pressure-volume loop) | |||||||||
| Monitoring parameter | P-F loop (pressure-flow loop) | ||||||||
| Frequence(Freq) | 0 /min ~ 120 /min | F-V loop (flow-volume loop) | |||||||
| Tidal volume (Vt) | 0 mL ~ 3000 mL | ||||||||
| MV | 0 L/min ~ 100 L/min | Wooden case packing size | |||||||
| Oxygen concentration | 15 Vol. % ~ 100 Vol.% | Wooden case packing size : L 925 * W 1060 * H 1620 mm | |||||||
| G.W. : 125 KG | |||||||||
