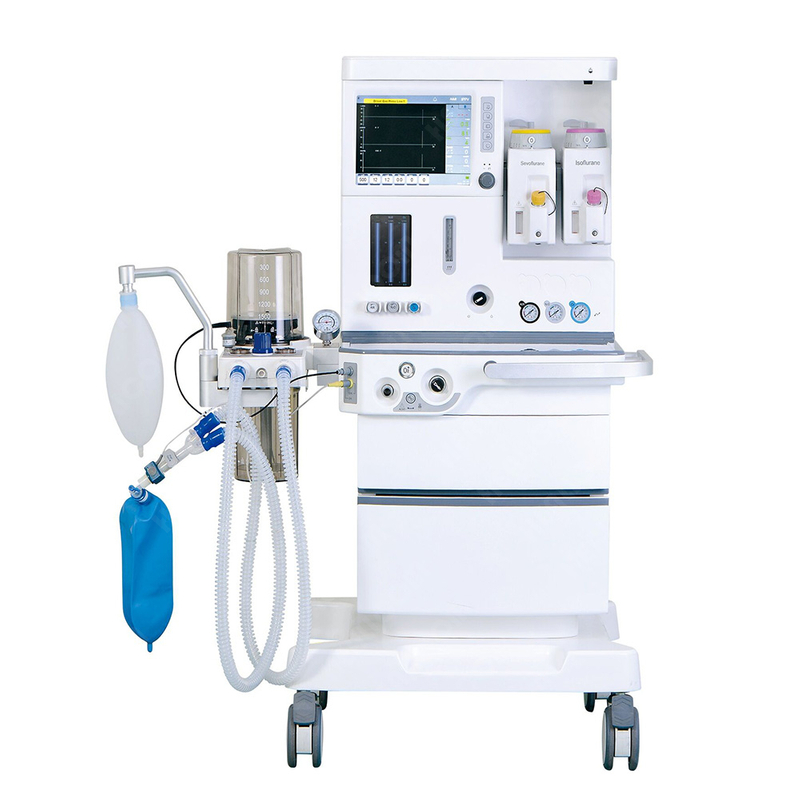

HA-6100P
Healicom
Product Description
Features
1. 12.1” TFT LCD touch screen displays the Ventilation parameters, Alarming information and Waveform.
2. High precision flow meter, instantly know the fresh gas flow to your patient.
3. Integration breathing circuit design, ensure easy operating and keep tidy.
4. Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
5. Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.
6. Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;
7. Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.
8. Vital sign monitor and Anesthetic gas monitor are optional.
9. ETCO2 module is optional.
Safety
1. Three level alarming system, visual and sound alarm information.
2. With lots of alarming, reminding and protection functions.
3. Advanced power management control technology.
4. Low O2 pressure alarm and N2O cut-off protection.
Ventilation modes | IPPV, A/C, PSV, SIMV, SIGH, MANUAL |
Graphical display | Oxygen concentration |
Ventilator parameter ranges | |
Flow meter | O2(0.1-10L/min) N2O(0.1-10L/min) AIR(0.1-10L/min) |
Rapid oxygen supply | 35L/min-75L/min |
Tidal volume(Vt) | 0, 20 mL ~ 1500 mL |
Frequence(Freq) | 1bpm ~ 100 bpm |
I/E | 4:1~1:8 |
PEEP | 0cmH2O ~ 30 cmH2O |
Pressure triggering sensitivity(PTr) | -20 cmH2O ~ 0 cmH2O(Based on PEEP) |
Flow trigger sensitivity (FTr) | 0.5 L/min ~ 30 L/min |
Pressure control (PC) | 5 cmH2O ~ 60 cmH2O |
SIGH | 0(off) 1/100 ~ 5/100 |
Apnea Ventilation | OFF,5 s ~ 60 s |
Pressure Limit | 20 cmH2O ~ 100 cmH2O |
Monitored Parameters | |
Frequence(Freq) | 0 /min ~ 100 /min |
Tidal volume(Vt) | 0 mL ~ 2000 mL |
MV | 0 L/min ~ 100 L/min |
Oxygen concentration | 15 % ~ 100 % |
Alarm and protection | |
No tidal volume | ≤5Ml within 6s |
High oxygen concentration alarm | 19%-100% |
Low oxygen concentration alarm | 18%-99% |
High Airway pressure alarm | 20cmH2O-100cmH2O |
Low Airway pressure alarm | 0cmH2O-20cmH2O |
High Minute Volume alarm | Adult(5L/min-20L/min) Paed(1L/min-15L/min) |
Low Minute Volume alarm | 0-10L/min |
Continuous Pressure alarm | (PEEP+1.5kPa) over 16s |
Suffocation warning | 5s-60s no spontaneous ventilation |
The maximum limited pressure | <12.5 kPa |
Fan error | Show on screen |
Oxygen deficit | Show on screen |
Working conditions | |
Gas source | O2,N2O,AIR |
Pressure | 280kPa-600kPa |
Voltage | 100-240V |
Power frequency | 50/60Hz |
Input power | 85VA |
