SCA3100
Healicom
Product Description

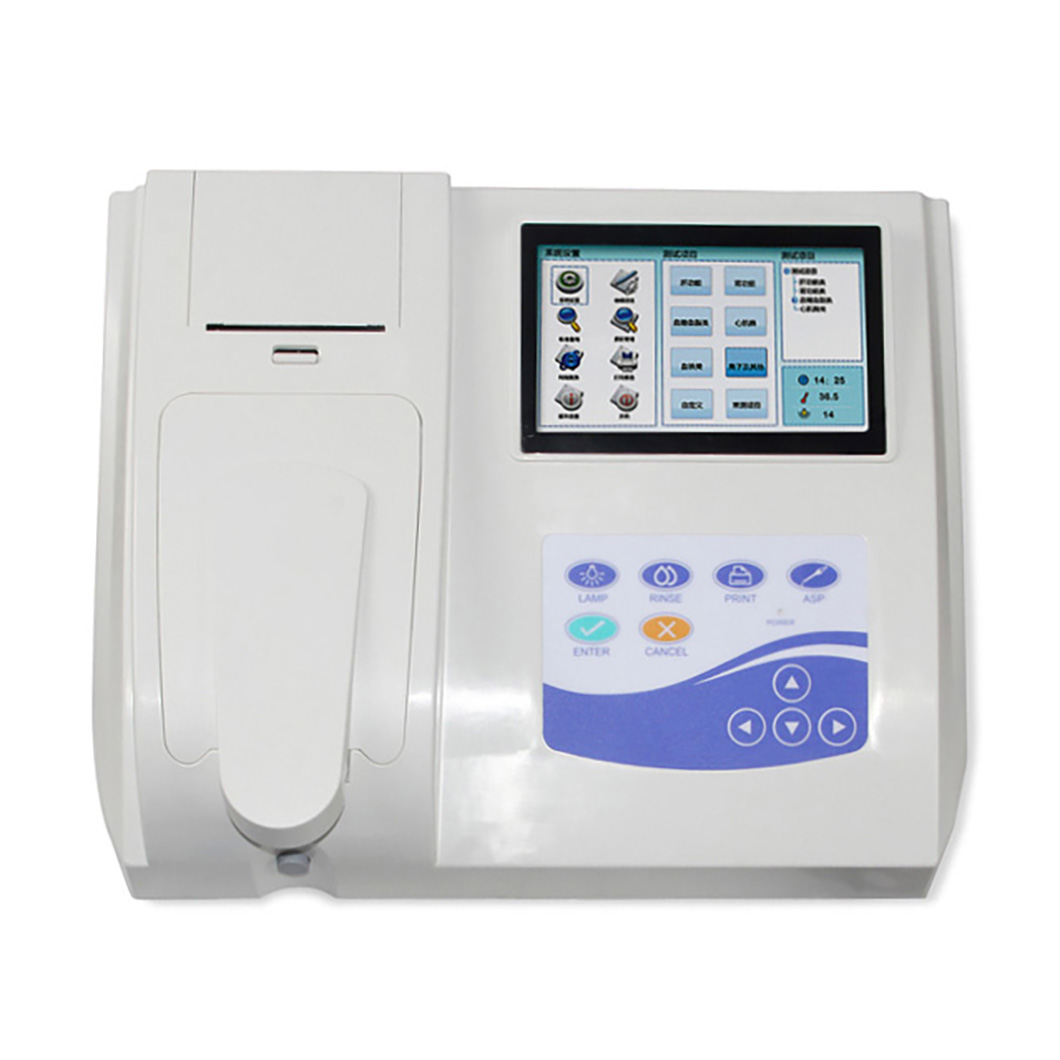

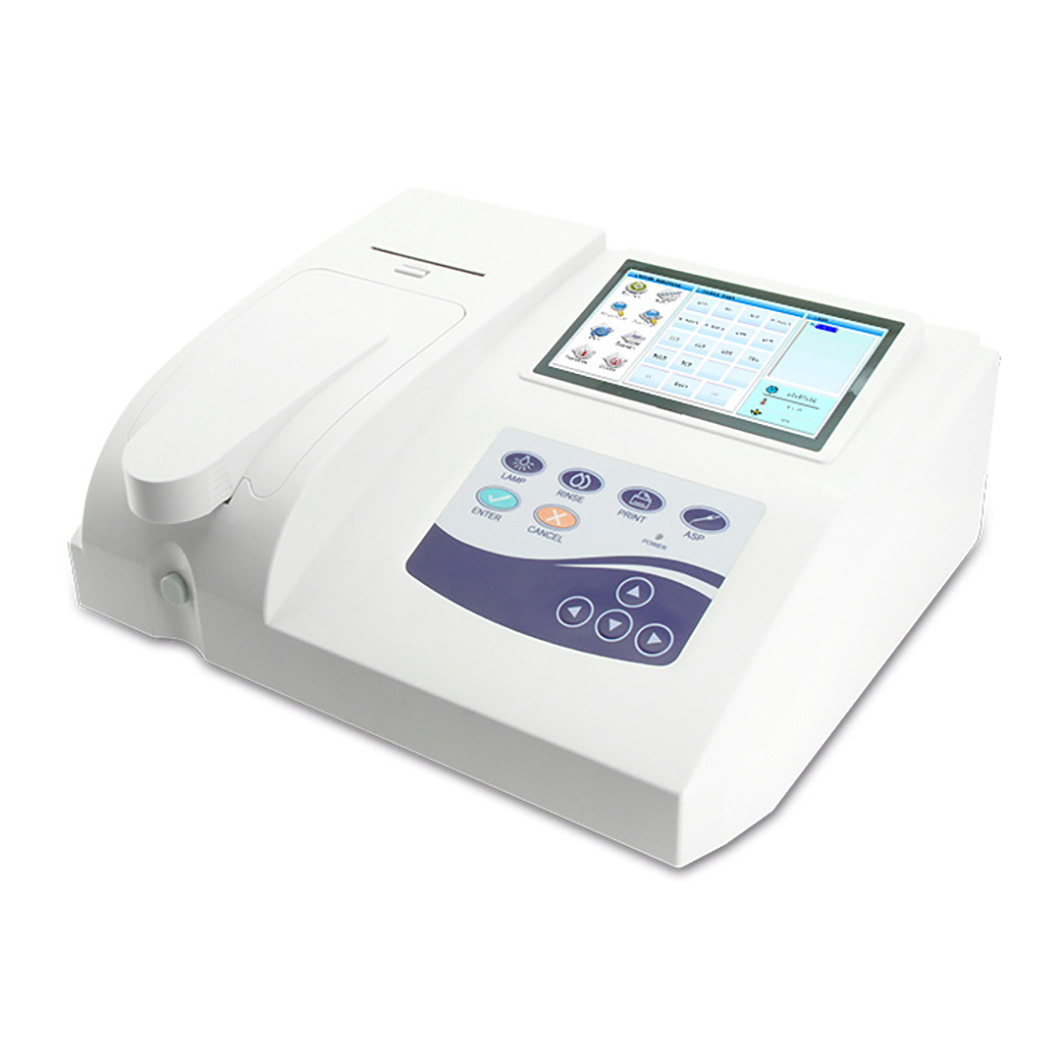

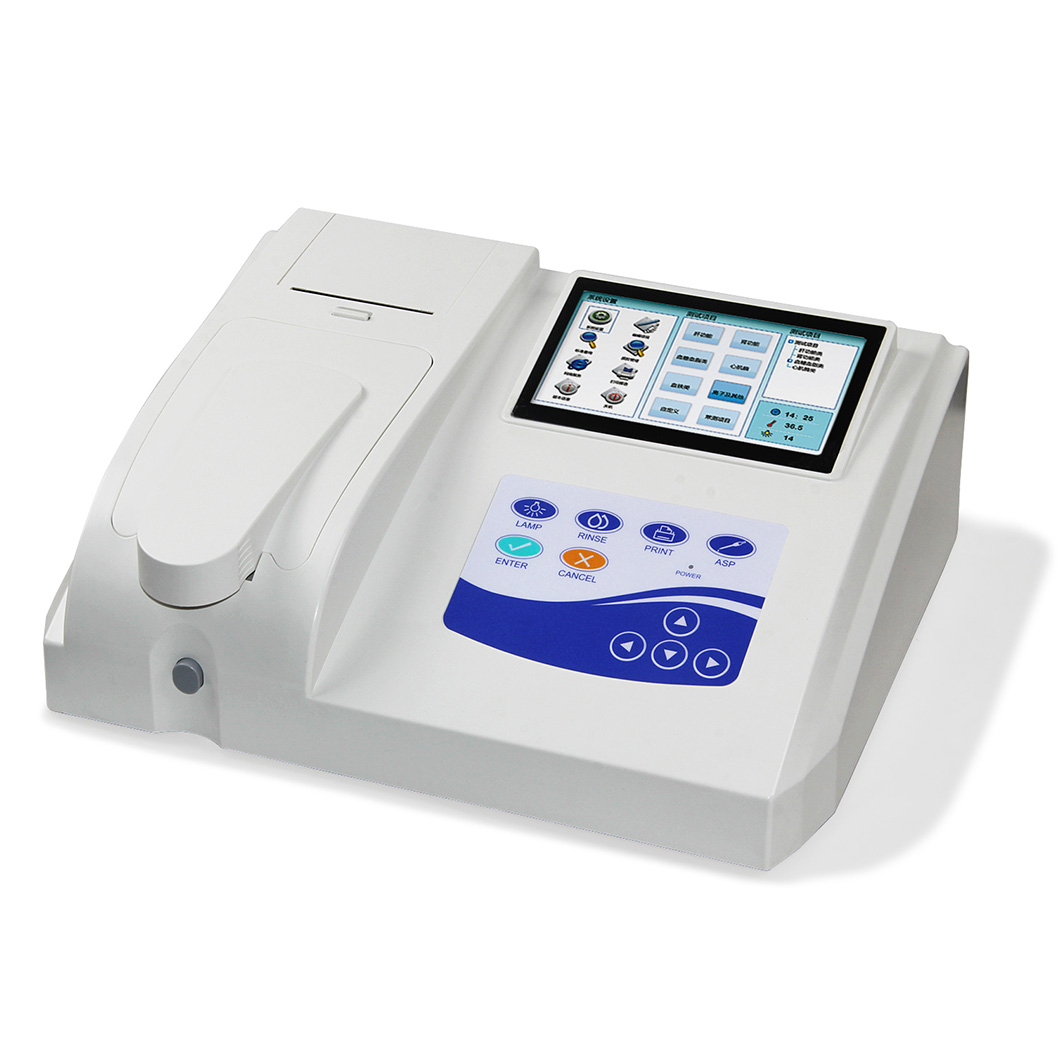

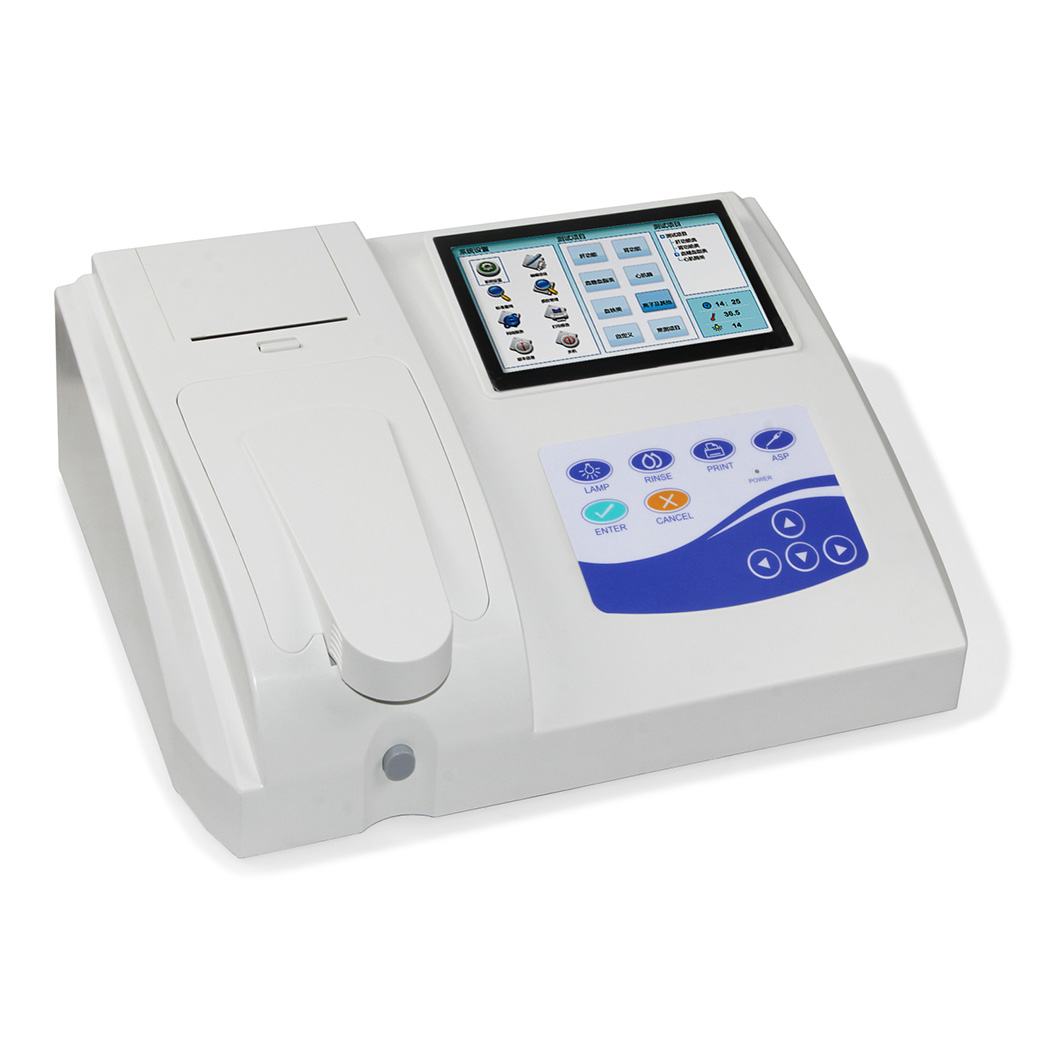

SCA3100 Protable Semi-auto Chemistry Analyzer
Introduction
The Semi-auto Biochemistry Analyzer measures biochemical indexes by analyzing blood and other body fluid, then combines with other clinical information, to help diagnose disease, evaluate organs function, identify disease gene and determine the norm for future therapy.
Features
• Based on the Linux operating system, color graphical interfaces, large and color LCD.
• Operating with touch screen, function keys and external USB mouse or keyboard, which is simple and fast.
• Multiple measurement methods (End point, Two-point, kinetics, double wavelength) are optional, and multiple calculation methods (factor, linear regression, nonlinear regression, etc.) are also optional.
• Store 500 test items and 10000 test results; supply many methods of printing and many formats of report.
• Each item can be set for two quality-control, automatically statistic and draw QC curve, store one year's QC data and QC chart, also can query and print.
• Auto-dormancy for the lamp to prolong its life.
• Power-off protective function to automatically save measurement results.
• Seft-check function for alarming to light route, liquid route and machine components, etc.
• With standard interface for communication, convenient for data transmitting and processing.
| Absorbency range | -0.3-3.0Abs |
| Resolution | 0.001Abs(display),0.0001 Abs(inner calculation) |
| Light source | Halogen lamp |
| Wavelength | 340,405,510,546,578,620nm + 2 free positions |
| Stability | ≤0.005A/30min |
| Half-bandwidth | ≤12 nm |
| Temperature control | Room Temperature, 25ºC, 30ºC, 37ºC |
| Temperature accuracy | ±0.1ºC |
| Colorimetric cell | 30μl quartz flow cell |
| Injection | 0~6000ul |
| Cross Contamination | ≤1.0% |
| Storage | 500 test items and 10000 test results. |

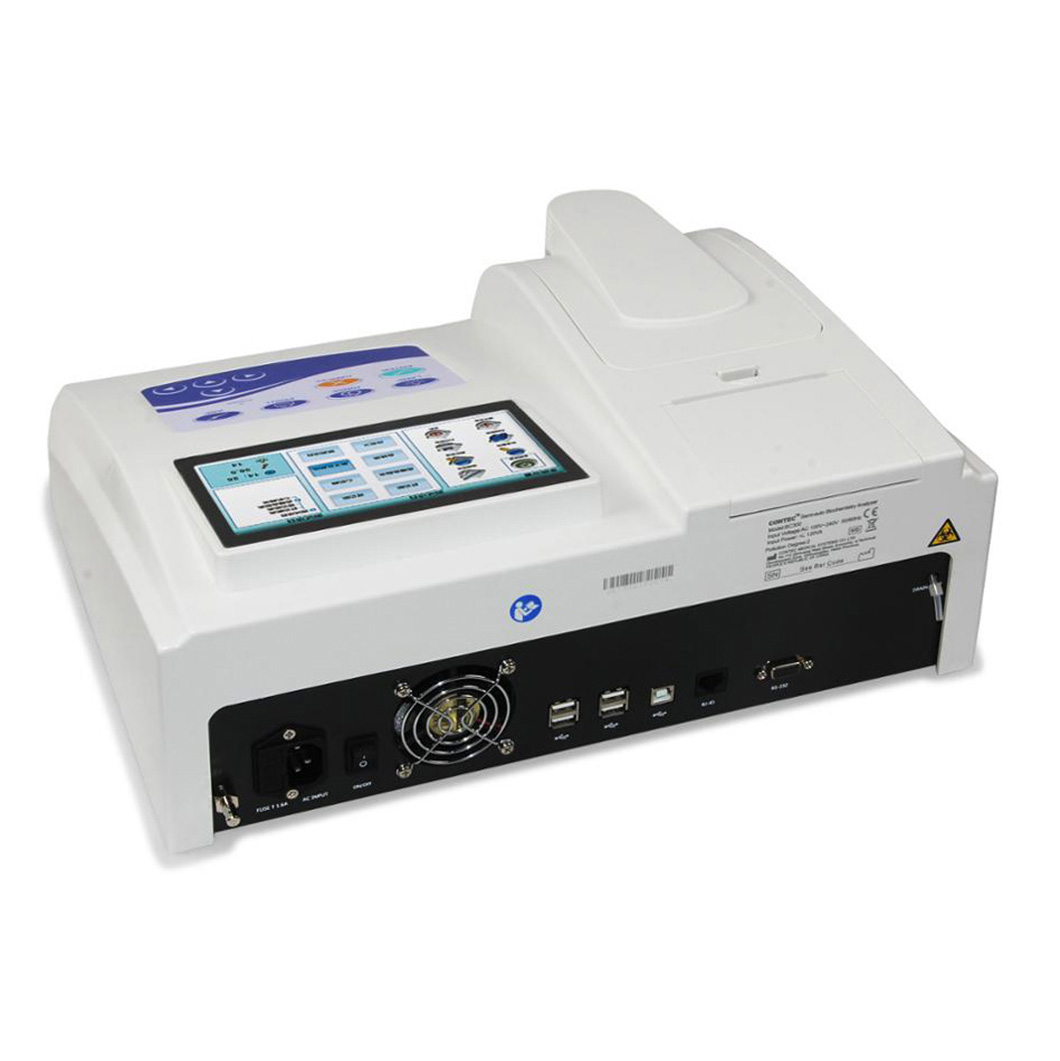

| Interface | Standard RS232 interface, 4 USB interfaces, Ethernet interface |
| Display | 7″color LCD |
| Print | Built-in high-speed thermal printer, and connect external printer |
| Processor | Embedded high-speed processor |
| Weight | 10kg |
| Dimension | 410(L)×340(W)×150(H)mm |
| Power Supply | 100~240VAC, 50HZ/60HZ |
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
