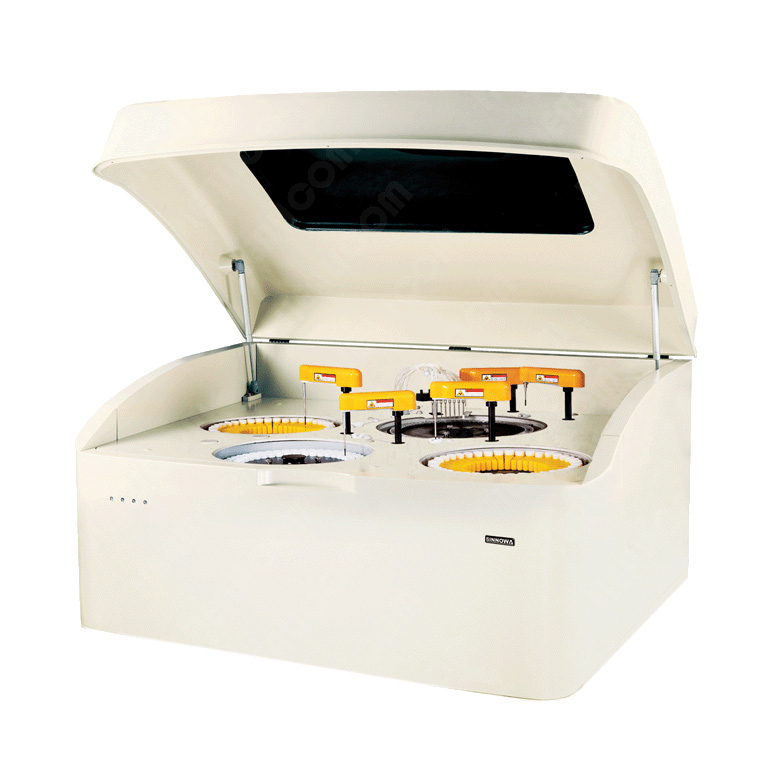

FCA401
Healicom
Product Description
Feature:
● Random access fully automatic biochemistry analyzer
● New concept and more friendly software
● New techniques and spare parts are used for much better quality and function
● Automatic washing station for both sample and reagent probe
● Liquid level detection and collision protection for both sample and reagent probe
● Reliable cooling system for reagent chamber
● Powerful reaction cuvette washing system
● ISE module and barcode scanner (optional)
● Lower waste and pro environment
Technical specifications | ||||
Model | FCA401 | FCA301 | FCA261 | FCA161 |
Assay model | Random access with Direct reading system | |||
Assay item | 80 assay | 40 assay | 36 assay | |
Throughput | 400test/h | 300tests/h | 240tests/h | 200test/h |
sample position | 80 | 60 | 60 | 40 |
sample volume | 1-100µL, 0.1µL/step | |||
reagents position | 2 * 40 | 40 or 80 | 36 | |
reagents volume | R1:1-400µL, 1µL/step; R2:1-400µL, 1µL/step | |||
Reagent/Sample Probe | With liquid level sensor, collision sensor, teflon coating and automatic washing station | |||
reaction times | 0-999seconds | |||
Cuvette | High quality UV-transmitted plastic cuvette, or quartz glass cuvette on request | |||
Cuvette Washing | 8 channels automatic washing station for reaction cuvette | 5 channels | ||
Alarm | Automatic alarm for malfunction (e.g: collision, reagent and distilled water insufficiency, waste container full, etc) | |||
Calibration | Linear, Non-linear, Multi point, K factor | |||
Sample Dilution/Retest | Sample can be diluted and retested if results are out of range | |||
Wavelength | 340, 405, 450, 505, 546, 578, 620, 670nm(standard), 330, 380, 492, 510, 600, 630, 650, 660, 700, 750, 800, 810nm (optional two filters) | |||
Light Source | Halogen lamp | |||
Absorbance Resolution | 0.0001A | |||
Absorbance Accuracy | 0-0.5A: ±0.02A; 0.5-1.0A: ±0.04A; 1.0-1.5A: ±0.06A | |||
Repeatablility (CV%) | ALT<3%, UREA<2.5%, TP<1.5% | |||
Quality Control | Levy jennings quality control program at 3 levels | |||
Bar Code | Optional | |||
Printer | Multiple report formats available | |||
Language | English, French, Spanish, German, Russian, etc | |||
System | Windows XP or Vista; windows 7 | |||
Power Supply | 220V/50Hz, or 110V/60Hz | |||
Dimension | 100x85x70cm | 85x72x53cm | 85x72x53cm | 65x53x52cm |
Weight | 137kg | 90kg | 85kg | 45kg |
