HKN-2500-Z
healicom
Product Description

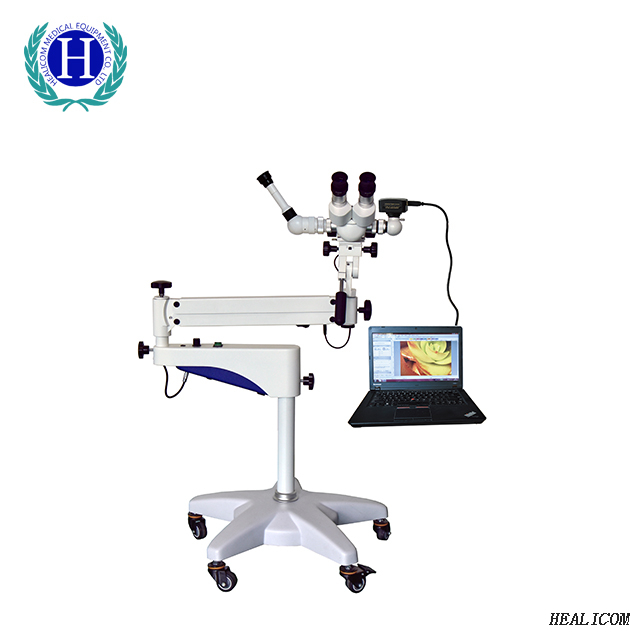

Gynecologic Examination Vaginal Diagnosis Colposcope
Product Descriptions :
HKN-2500-Z Colposcope is precise optical instrument designed especially for the gynecologic examination and diagnosis. Due to the magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. HKN-2500-Z zoom colposcope is featured for sharp image, wide field of view, uniform illumination, adjustable brightness and easy operation. It is the essential instruments for gynecologic examination.
Specifications :
| Observation angle | 45°tilted |
| Magnification of eyepiece | 10X |
| Interpupillary distance | 50mm-80mm |
| Diopter | ±5D |
| Focal length of objective | F=300mm |
| Zoom Magnification changer | 0.4X-2.75X |
| Total Magnification | 2.4X-16X |
| Linear field | 80mm-13mm |
| Fine focusing distance | 20mm |
| Balance arm | Counterweight adjustable and can be locked |
| Illumination | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx |
| Filter | Build-in green & blue filters |
| Floor stand | Short column fitted on the five-star base with casters With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable |
| Power supply input | AC100V-240V, 50HZ-60HZ |
| Optional accessories | Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, XFCAM1080PHD, WUCAM0720PA, FHD2100, HD200, HDV130 WK-73X10H), SLR camera adapter, Monitor (S24E360H, S24F350FH), Objective (F=230mm & F=280mm), Monitor mount (FE110G, FE111G, GM112G, GM112B, DS312B) |
| Power supply adapter | DC12V3A, 36W |
