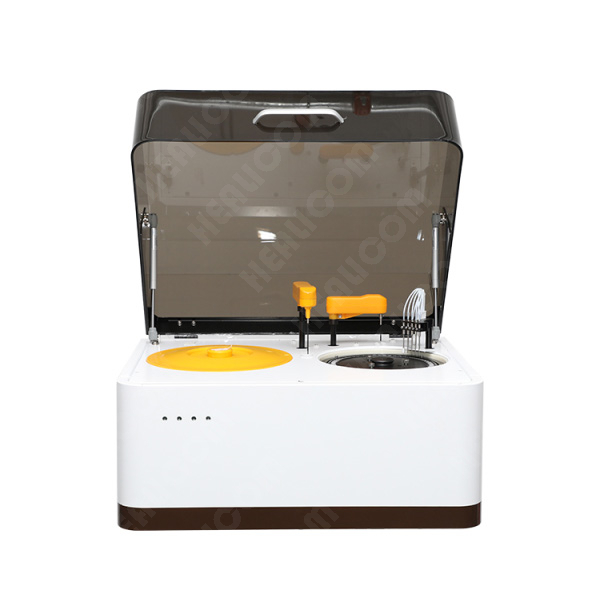

FCA161
Healicom
Product Description
Feature:
1. No touch mixing function, greatly reducing water consumption and decreasing carry-over.
2. Lower reagent consumption technology, greatly saving reagent's production, transportation and storage cost, and decreasing carry-over (On request, down to 80ul/test)
3. New cooling system, steadily keeping reagent chamber in 2-8℃.
4. Auto perameter setting function.
Technical specifications | |
Operation | Random access |
Reading System | Direct reading system |
Method | End point, Kinetic, Fixed time, Bi-chromatic, Immunoturbidimetric, 1-2 reagent multistandard, reagent/serum blank, etc |
Assay Item | 36 assay items |
Throughput | 1 Reagent: 200 tests/h (max) |
2 Reagent: 150 tests/h (max) | |
With ISE: +100 tests/h | |
Sample Position | 50 postions |
including standard, control stat; either serum cup or primary tube available | |
Sample Volume | 1-100µL, 0.1µL/step |
Reagent Position | 36 positions |
Reagent Volume | 1µL-500µL, 0.1µL/step |
Reagent/Sample Probe | With liquid level sensor, collision sensor |
Reaction Time | 0-999seconds |
Cuvette | High quality UV-transmitted plastic cuvette, or quartz glass cuvette on request |
Cuvette Time | 5 channels automatic washing system for reaction cuvettes |
Independent washing station for each sample/reagent probe and mixer | |
Alarm | Automatic alarm for malfuction (e.g: collision, reagent and distilled water insufficiency, waste container ful, etc) |
Calibration | Linear, Non-linear, Multi point, K factor |
Sample Dilution/Retest | Sample can be diluted and retested if results are out of range or sample is insufficient |
Wavelength | 340-810nm |
Light Source | Halogen lamp |
Absorbance Resolution | 0.0001A |
Absorbance Accuracy | ±0.0003A(0~2.5A) |
Repeatablility (CV%) | ALT<3%, UREA<2.5%, TP<1.5% |
Quality Control | Levy jennings quality control program at 3 levels |
Bar Code | Optional |
Printer | Multiple report formats available |
Other | Tele-diagnostic, bi-direction interface to LIS syste, etc |
Language | English, French, Spanish, German, Russian, etc |
System | Windows XP or Vista |
Power Supply | 220V/50Hz, or 110V/60Hz |
Dimension | 65 x 53 x 52cm |
Weight | 50Kg |
