HBS-9 Fiber Hysteroscope
You are here: Home » Products » Medical Optical » Colposcope » HBS-9 Fiber Hysteroscope

Category List

HBS-9 Fiber Hysteroscope

Availability:
Quantity:

PDF Export

  • HBS-9
  • healicom

Product Description

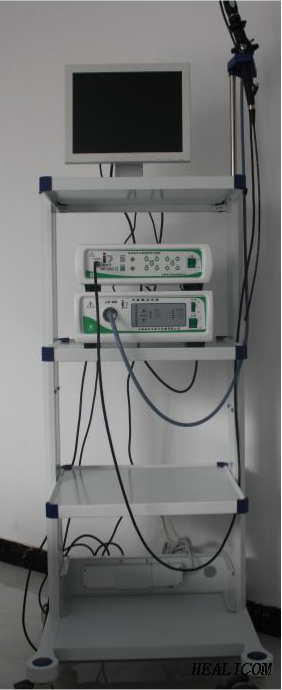

HBS-9 Fiber Hysteroscope

(USD7620.00/SET=Fiber Hysteroscopy+ Cold light source+ camera system+ LCD Display+ Equipment vehicles)

Ø Overview:

HBS-9

Item

Hysteroscopy

Diameter of distal- end

Φ5.0mm

Diameter of insert tube

Φ5.0mm

Clamp aperture

Φ2.0mm

Working length

410mm

Total length

680mm

View of field

90 º

Depth of view

3-50mm

Tip deflection

up 135° down 90°

Remark

We can provide OEM service, technical details can be customized.



Ø
Characters

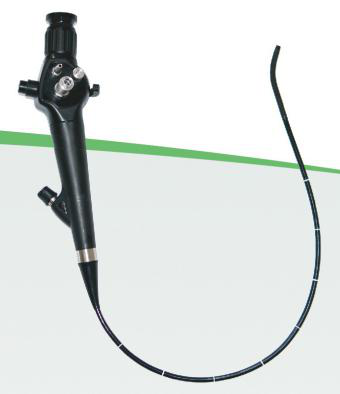

Part 1: Fiber Hysteroscopy




Bending operation : Traction chain structure, whole sealed waterproof

Image display : Two image display optional

Quality certification : CE

Warranty : One year(free), permanent repairs (not free)

Package size :64*18*48cm (G.W.:5.0kgs)

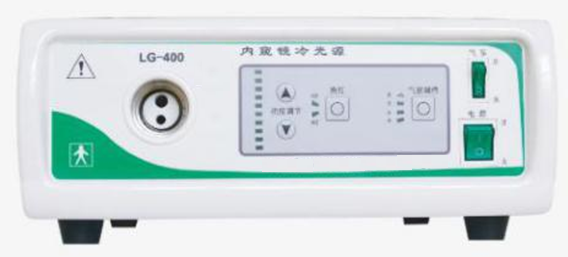

Part 2: Cold light source HLG-400


1. Voltage: 220V-240V

2. Frequency: 50-60HZ

3.lamp Power: 300W environmentally friendly halogen tungsten lamp

4. Illumination: 180000LX (using special measuring tools)

5. Color Temperature: 3000~7000K

6. Air Pump Pressure: 30-60kpa

Main Function:

1.Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector irradiation.

2. Built with micro axial fan cooling temperature.

3. Adopt dimming electronic control unit organization.

4. Dual-lamp light sources, the lamp can be freely exchanged in order to extend lamp life, convenience to the operation

Package box:54*47*27.3cm (10.54kgs)

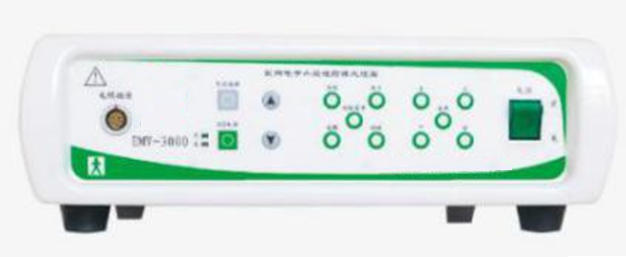

Part 3:  HEMV-3000 camera system


图片5图片6图片7

 1. Voltage: 220-240V

2. Frequency: 50-60HZ

3. System: PAL

4.Image regulation : Automatic regulate light, keep the image EMVat its best

Video processor : DSP-Digital image processor with powerful multi-function , Brightness / color / contrast adjustable 0-100 level , Svideo / AV output.

Reverse function :Black and white reversed.

White balance : Auto white balance , manual white balance.

Manual white balance :Manual white balance can be calibrated color, color adjustable (Red, Blue).

Electronic shutter : 10 level electronic shutter adjustment.

Metering : Average metering, peak metering, metering area delineated.

Contour enhancement : 10-level contour enhancement.

Lens optional : Manual lens, automatic lens, video lens three optional.

Sharpness adjustment : 0-30 sharp changes of the image in fine processing.

Digital WDR :Digital broadband function.

Backlight compensation : Improve the average brightness of the whole screen

Cama line :Cama line clarity 6 level adjustment.

R/L Mirroring: The left and right mirror position can be changing.

Package size :50.5*46*20cm (G.W.:8.5kgs)

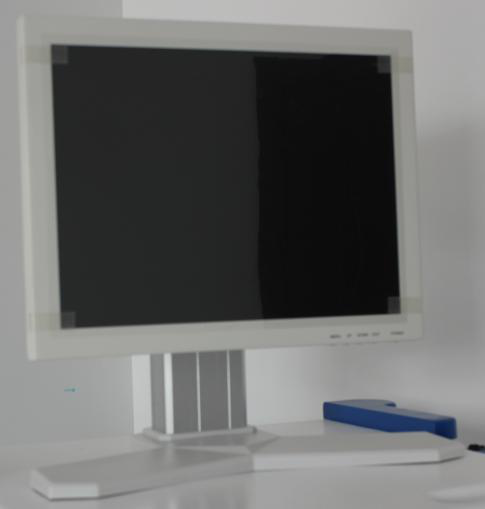

Part 4: LCD Display




1. Display size: 15"

2. Power SupplyExternal Power Supply 12V

3. Resolution1024X768

4. Display Ratio4:3

5. Color16.7M

6. Camoration Brightness180±10 cd/㎡

7. Max.Brightness 400 cd/

8. Contrast Ratio700 : 1

9. Viewing Angle120/140 Response Time8ms

Package size : 44*36.5*16.5cm (G.W.:6.0kgs)

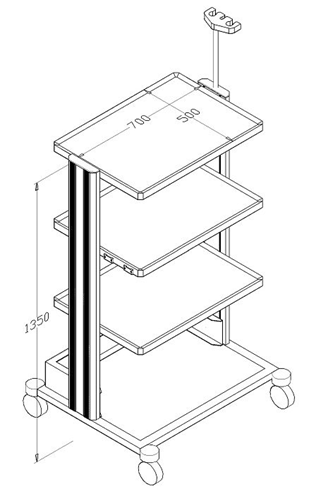

Part 5: Equipment vehicles






Size : 500 * 700 *1350mm

Package size:118.5*63.5*22cm (G.W.:44.5kgs)
