FCA261
Healicom

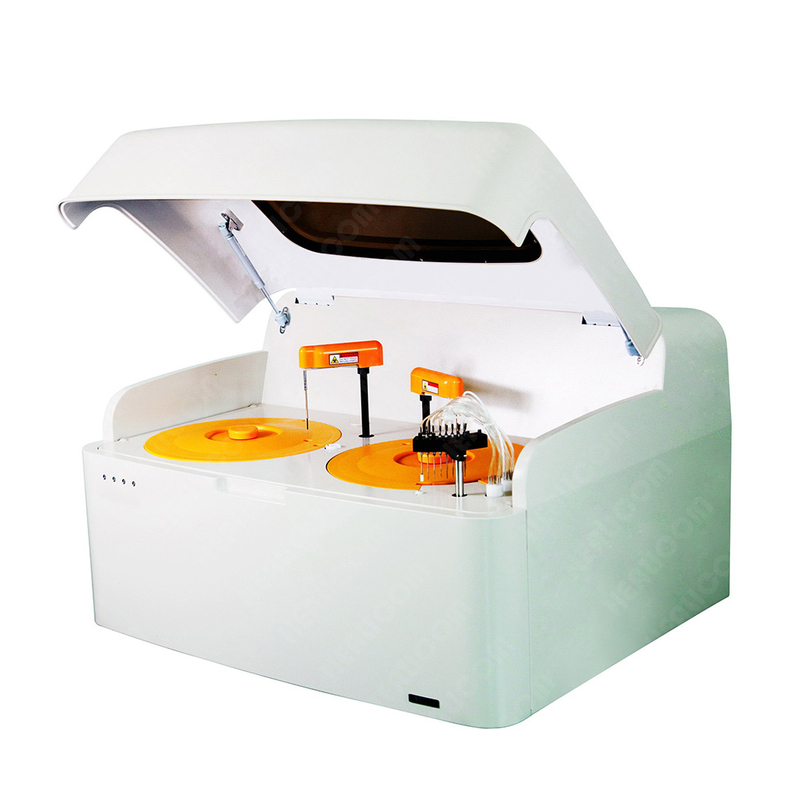

Product Description
Feature:

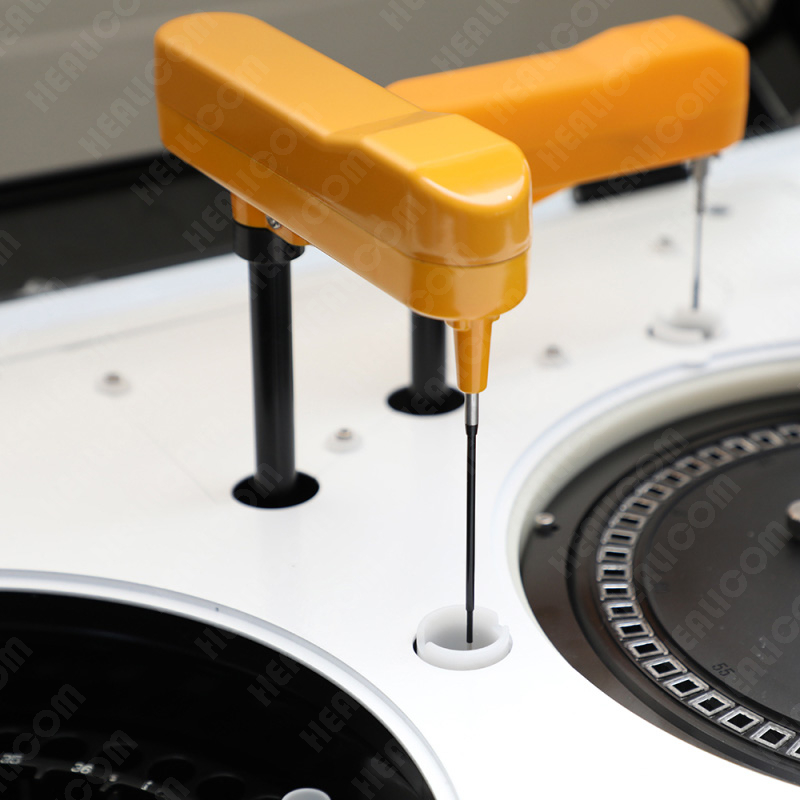

1. Sample/Reagent Probe
Sample/reagent probe with liquid sensor, anti-collision sensor and automatic washing function
2. Sample/Reagent Disk
40 positions (80 positions optional); 24-hour continuous refrigeration system with independent switch; 60
sample positions, available to use serum cup or blood tube
3. Cuvettes
High quality UV-transmitted plastic cuvettes, quartz glass cuvettes optional
4. 8 channels automatic washing system
Eight channels washing station for each cuvette, automatic record and deduct cuvette blank value
5. Independent mixer ensuring full reaction of sample/reagent position
| Performance Parameters | |
| Analytical System | Random access with direct reading system |
| Method | End point, Kinetic, Fixed time, Immunoturbidimetric, 1-2 reagent, multistandard, reagent/serum blank, etc |
| Assay Item | 40 assay items (80 optional) |
| Throughput | 1 Reagent: 240 tests/h (max) |
| 2 Reagent: 150 tests/h (max) | |
| With ISE: 120 tests/h (optional) | |
| Sample Position | 60 postions |
| including standard, control stat; either serum cup or primary tube available | |
| Sample Volume | 1-100µL, 0.1µL/step |
| Reagent Position | 40 positions (80 optional) |
| Reagent Volume | R1: 1µL-400µL, 0.1µL/step R2: 1µL-400µL, 0.1µL/step |
| Reagent/Sample Probe | With liquid level sensor, collision sensor, teflon coating and automatic washing |
| Reaction Time | 0-999seconds |
| Cuvette | High quality UV-transmitted plastic cuvette, or quartz glass cuvette on request |
| Cuvette Time | 8 channels automatic washing system for reaction cuvettes |
| Independent washing station for each sample/reagent probe and mixer | |
| Alarm | Automatic alarm for malfuction (e.g: collision, reagent insufficiency, full waste container etc) |
| Calibration | Linear, Non-linear, Multi point, K factor |
| Sample Dilution/Retest | Sample can be diluted and retested if results are out of range or sample is insufficient |
| Wavelength | 340-810nm |
| Light Source | Halogen lamp |
| Absorbance Resolution | 0.0001A |
| Absorbance Accuracy | ±0.0003A(0~2.5A) |
| Carry-over | ≤0.1% |
| Quality Control | Levy jennings quality control program at 3 levels |
| Bar Code | Optional |
| Printer | Multiple report formats available |
| Language | English, French, Spanish, German, Russian, etc |
| System | Windows XP or 7 |
| Power Supply | 220V/50Hz, or 110V/60Hz |
| Dimension | 85 x 72 x 53cm |
| Weight | 85Kg |
