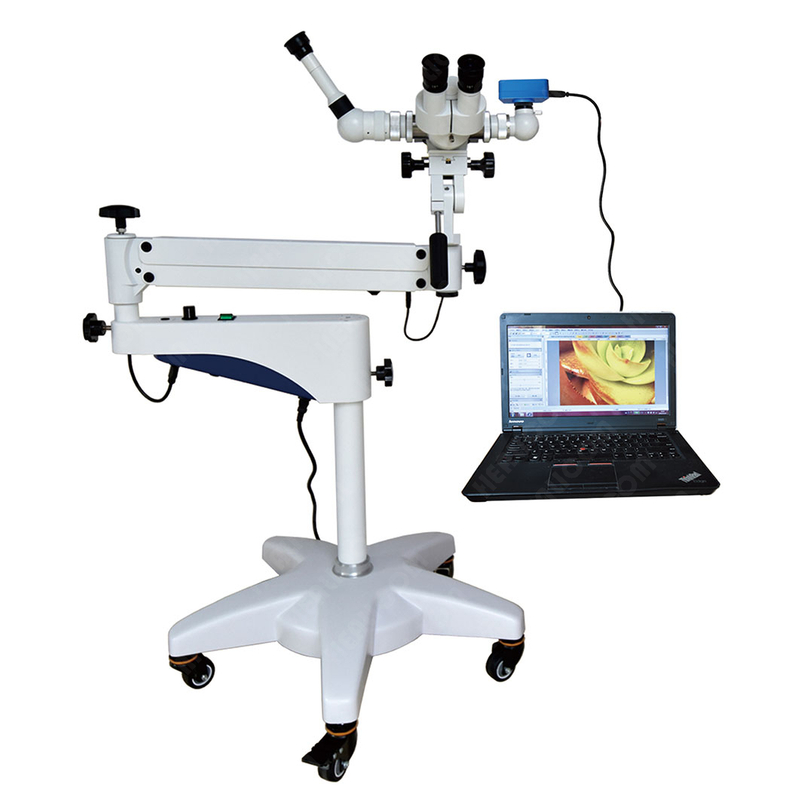

YDJ-II High Resolution Optical Colposcopy Vaginal Microscope

YDJ-II High Resolution Optical Colposcopy Vaginal Microscope

YDJ-II Colposcopes are precise optical instruments designed especially for the gynecologic examination and diagnosis. Due to the magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. YDJ-II Series Colposcopes are featured for sharp image, wide field of view, uniform illumination, adjustable brightness and easy operation. They are the essential instruments for gynecologic examination.

YDJ-II Colposcope:

Observation angle: 45°tilted

Magnification of eyepiece: 16X

Interpupillary distance: 50mm-80mm

Diopter: ±5D

Focal length of objective: F=300mm

Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X

Total Magnification: 2.7X, 4.4X, 6.6X, 10X, 16.6X

Linear field: 90mm, 55mm, 37mm, 24mm, 15mm

Fine focusing distance: 20mm

Balance arm: Counterweight adjustable and can be locked

Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx

Filter: Build-in green & blue filters

Floor stand: Short column fitted on the five-star base with casters

With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable

Power supply input: AC100V-240V, 50HZ-60HZ

Power supply adapter: DC12V3A, 36W

Optional accessories: Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, XFCAM1080PHD, WUCAM0720PA, FHD2100, HD200, HDV130,WK-73X10H), SLR camera adapter, Monitor (S24E360H, S24F350FH), Objective (F=230mm & F=280mm), Monitor mount (FE110G, FE111G,GM112G, GM112B, DS312B)
