HKN-2400 Series
healicom
Product Description
Medical Imaging Equipment Digital Colposcopes Gynecologic Examination use for Vaginal Diagnosis Video Colposcope
Product Descriptions :
HKN-2400 Series Colposcopes are precise optical instruments designed especially for the gynecologic examination and diagnosis. Due to the magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. YDJ-II Series Colposcopes are featured for sharp image, wide field of view, uniform illumination, adjustable brightness and easy operation. They are the essential instruments for gynecologic examination.
Specifications :
Table of Specification for YDJ-II Series Colposcope: | ||
Item | HKN-2400-II | HKN-2400-1 |
Observation angle | 45º tilted binocular observation unit | |
Magnification of eyepiece | 16X | |
Interpupillary distance | 50mm-80mm | |
Diopter | ±5D | |
Focal length of objective | F=300mm (M58x0.75mm) | |
Magnification changer | 5-step magnification change: 0.4X, 0.66X, 1X, 1.5X, 2.5X | |
Total magnification | 2.7X, 4.4X, 6.6X, 10X, 16.6X | |
Linear field | 90mm, 55mm, 37mm, 24mm, 15mm | |
Beamsplitter | 50:50 | |
Video camera adapter | C-mount 1/3 inch video camera attachable | |
Fine focusing distance | 20mm | 60mm |
Balancing arm | Counterweight adjustable and can be locked | No |
Illumination system | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx | |
Power supply adapter | Output: DC12V3A, 36W, Cable length 3m with Magnetic ring, Output connector: coaxial 5.5x2.1mm plug | |
Filter | Built-in green and blue filters | |

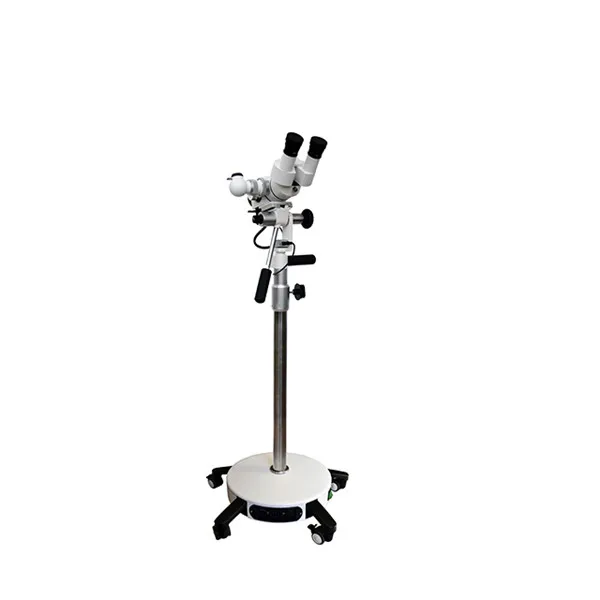

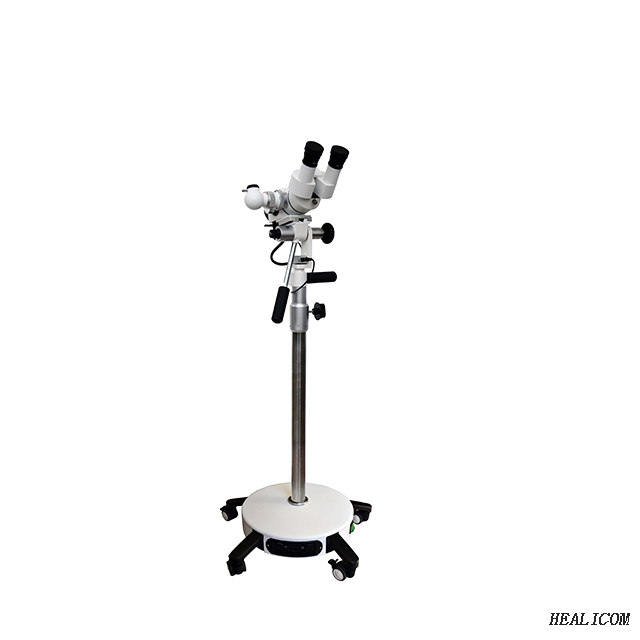

Floor stand | Short column fitted on the five-star base with casters | Column height adjustable fitted on the 5-jaws round base with casters |
Optional accessories | Demonstrator, Camera(U3CMOS03100KPA, XCAM1080PHA, XFCAM1080PHD, WUCAM0720PA, FHD2100, HD200, HDV130, WK-73X10H), SLR camera adapter, Monitor (S24E360H, S24F350FH), Objective (F=230mm & F=280mm) | |
Table of Optical Characteristics for HKN-2400 Series Colposcope (16X Eyepiece): | |||||||||||||||
Focal length of objective | F=300mm | F=230mm(optional) | F=280mm(optional) | ||||||||||||
Magnification on handwheel | 2.5x | 1.5x | 1x | 0.66x | 0.4x | 2.5x | 1.5x | 1x | 0.66x | 0.4x | 2.5x | 1.5x | 1x | 0.66x | 0.4x |
Total magnification | 16.6x | 10x | 6.6x | 4.4x | 2.7x | 21.7x | 13.2x | 8.7x | 5.7x | 3.5x | 17.8x | 10.8x | 7.1x | 4.7x | 2.9x |
Linear field (mm) | 15 | 24 | 37 | 55 | 90 | 11 | 18 | 28 | 42 | 62 | 14 | 22 | 35 | 54 | 84 |
Resolution (LP/mm) | 78 | 61 | 40 | 30 | 21 | 86 | 68 | 52 | 35 | 27 | 80 | 63 | 42 | 31 | 22 |
