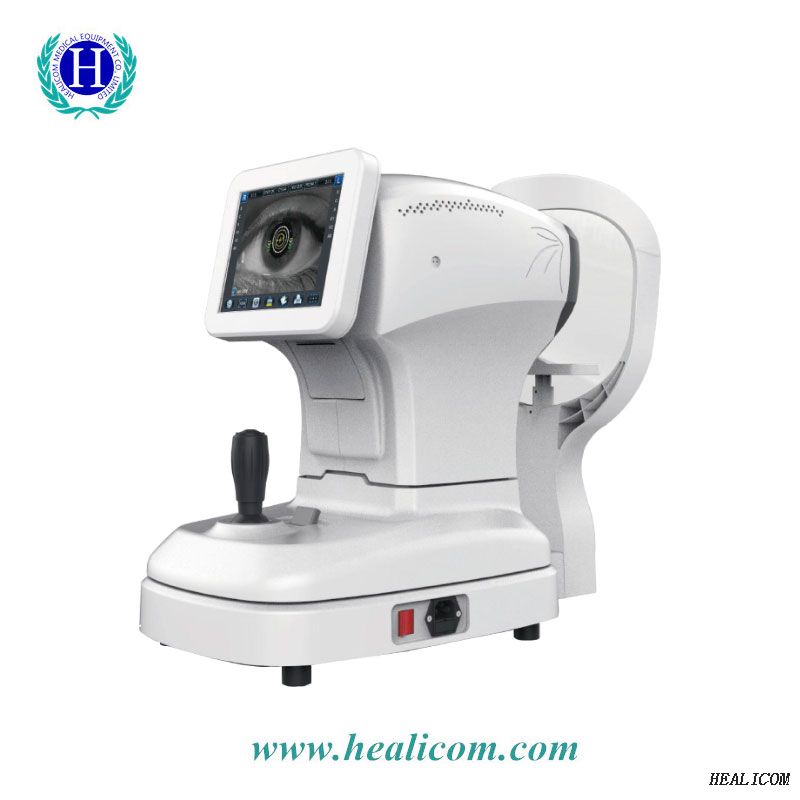

HRK-4000
healicom
Product Description
Hartmann's Principle | |
New light path design, clear human eye imaging effect | |
High-speed image acquisition system, advanced image processing and analysis | |
The screen can be rotated freely up and down | |
Automatic eye tracking for lifting, automatic measurement | |
Electric lifting amount tow | |
Off-speed printer, automatic paper cutting | |
Corneal apex distance | 0.0,12.0,13.75,15.0 |
Spherical mirror degree | -20.0OD~+ 20.00D (VD =12mm,0.01,0.06,0.12,0.25 units) |
Cylindrical power | 0.00D~+10.00D(0.06,0.12,0.25 units) |
Axis position | 10 ~180°(1 °unit) |
Astigmatism symbol | 一,+,± |
Interpupillary distance | 10 ~86mm |
Minimum pupil diameter | 2.0mm |
Measurement completion time | <0.5 seconds |
Pupil diameter | 2.00-8.00mm |
Measure light energy | <30uw (ensure measurement safety) |
Cornea curvature radius | 5.0 ~10.0mm (0.01mm accuracy) |
Cornea diopter | 33.00D~67.0D (when the corneal equivalent diopter is 1.3375) |
Corneal astigmatism | 0.00D-15.0OD (0.06D /0.12D /0 25D units) |
Stored data | 10 measurements each |
Axis position | 1 °~180 ° |
Visual target | Guided cloud map |
Display | 8-inch TFT touch screen (adjustable viewing angle) |
Printer | 57mm thermal printer, automatic paper cutting |
Power supply | AC 100~250V, 50 / 60Hz, wide power supply |
Net weight | 22 kg |
Gross weight | 26.5 kg |
Packing size | (length)680mm x (width) 400mm x (height)640mm |
