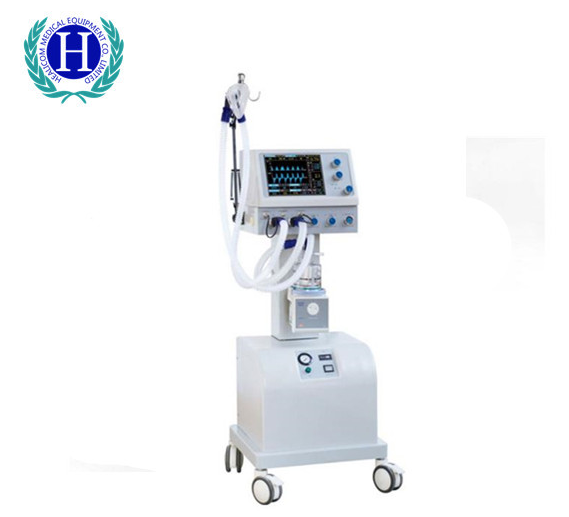

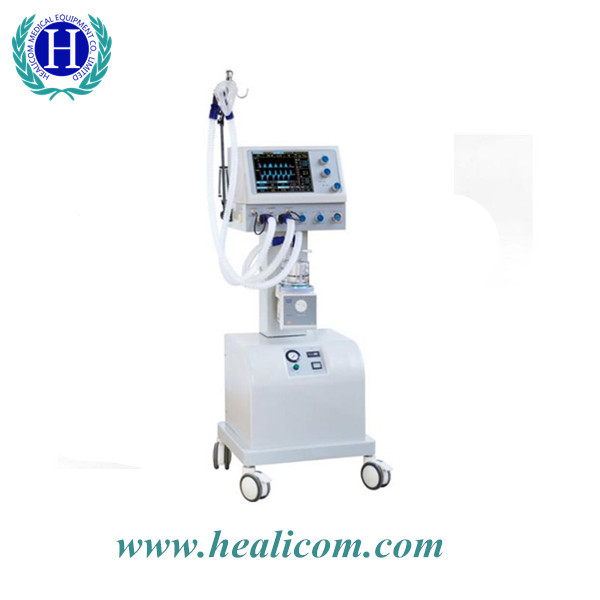

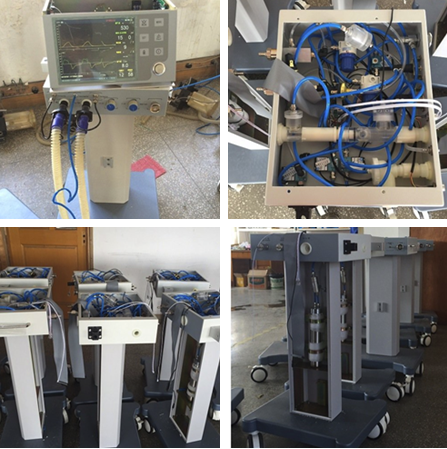

HV-400B
Healicom
9019200000
Product Description
Prospective service and support
The HV-400B ventilator is gas driven by medical compressed oxygen and compressed air. In the inspiratory phase, two streams of compressed gas (compressed oxygen and compressed air) flow into a high performance air-oxygen mixer to form a mix of oxygen and air with a certain pressure.
Air Compressor
Power: AC220V + 22 v, 50 Hz + 1 Hz and 300 va has a good reserve of single-phase ac power supply.
FUSE: Φ 5 x 20 / F8A
Output gas pressure: 0.3 ~ 0.4 MPa
Output gas minimum flow: ≥50L/Min
Output gas transient flow: ≥100L/Min
| TECHNIQUES SPECIFICATIONS | |
| Physical specifications | |
| Display | 10.4'' LCD Display |
| Mode | pneumatically powered and electrically controlled system |
| Trolley | Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions |
| Technical Specifications | |
| Gas requirement: | Medical oxygen and nitrous oxide with a pressure ranging from 280~600kpa |
| safety valve | <12.5 kPa |
| Respiratory Rate | 1 ~ 99 bpm |
| Oxygen Concentration | 21% ~ 100% |
| Maximum Minute ventilation | ≥18L / min |
| modes of ventilation | A/C, IPPV, SIPPV, IMV, SIMV, PEET. MANUAL, SIGH, SPONT |
| Ventilator compliance | ≤30 Ml/kPa |
| PEEP | 0 ~ 1.0 kPa |
| Ptr | -10 ~ 10 hPa |
| IMV frequency | 1~20 bpm |
| I/E Ratio | 4:1~1:4, Has the inverse ratio ventilation |
| Tidal Volume | Setting Range: 50~1500ML Display Range: 0~2000ml ; resolution ratio: 10ml |
| Inspiratory Plateau | 0~1s |
| Maximum Safety Pressure | ≤ 6.0kPa |
| Sigh | one deep breath per 80 controlled respirations, the inspiration time is 1.5 times of the setting point |
| Pressure limit range | 1.0~ 6.0kPa |
| Airway pressure alarm: Audible and visual and with yellow and red color indicating | Lower: 0.1 kPa ~ 6.0 kPa; Upper: 0 ~ 5.0 kPa |
| ±0.2 kPa | |
| Ventilation Volume alarm | ≥ 18L/ MIN |
| Power Supply Alarm | Ac/dc power supply are after failing to send out alarm immediately Alarm Time: keep >120s |
| Operating conditions | |
| Ambient temperature | 10 ~ 40oC |
| Relative humidity | no higher than 80 % |
| Atmospheric pressure | 860 hPa ~ 1060 hPa |
| Power requirement | 100-120 Vac, 50/60 Hz; |
| Attention: the AC power supply used for the ventilator machine must be well grounded. | |
| Attention: the ventilator machine used must be equipped with a carbon dioxide monitor complying with ISO 9918:1993, an oxygen monitor complying with ISO 7767:1997 and an expiratory gas volume monitor complying with 51.101.4.2 of Medical Electrical Equipment Part II: Special Requirements for Safety and Basic Performance of Anesthesia System. | |
| Storage | |
| Ambient temperature: | -15oC ~ +50oC |
| Relative humidity: | no higher than 95 % |
| Atmospheric pressure: | 86 kPa ~ 106 kPa. |
| It should be stored in a room without corrosive gas and well ventilated | |
| Package | |
| packaging box | comply with the requirement of GB/T 15464 |
| Between the packaging box and product, soft material with appropriate thickness provided to prevent loosening and mutual friction during transportation | |
| Moisture protection and rain protection to ensure that product is protected from natural damage. | |
| Safty & Alarm | |
| Gas source pressure | Immediate alarm; "high level alarm" indicator flickers raising an audible alarm. |
| Airway Pressure Alarm | The airway pressure exceeds 15hpa. The maximum delay is no longer than 17s. The "high level alarm" indicator flickers raising an audible alarm. |
| Tidal Volume Alarm | Lower than 50ml, The alarm will be raised after one breathing cycle. |
| Ventilation Volume Alarm | Lower: 0~12L/Min; Up: 18L/ Min |
| Battery Voltage Alarm | It alrms when the battery voltage is lower than 10.5V. |
| Power On Self Test | Self test before working, assure it's working normally. |
| STANDARD CONFIGURATIONS | |
| QTY | NAME |
| 1 set | Main unit |
| 1 set | Oxygen tube |
| 2 set | Silicone Mask |
| 1 pc | Power line |
| 4 pcs | Threaded pipe |
| 2 pcs | Standard Pipe |
| 1 set | Oxygen Reducer |
| 1 set | Humidifier |
| 1 pc | Battery |
| 2 set | flow sensor |
| 2 pcs | A leather bag ( Blue) |
| 1 set | Tools with the machine |
| 1 set | User Manual (English Version) |
