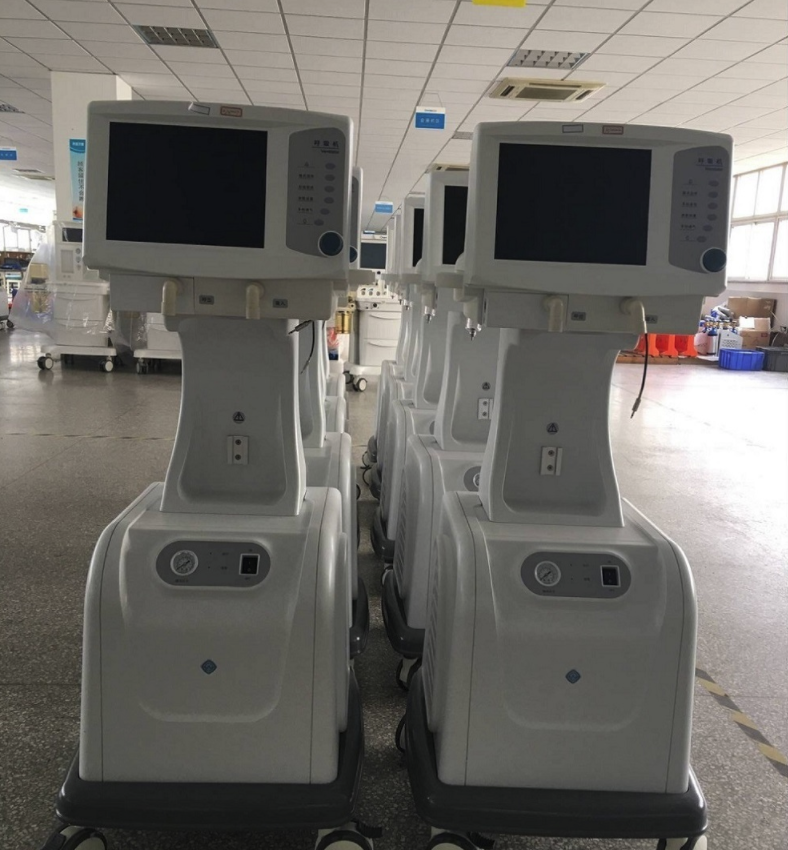

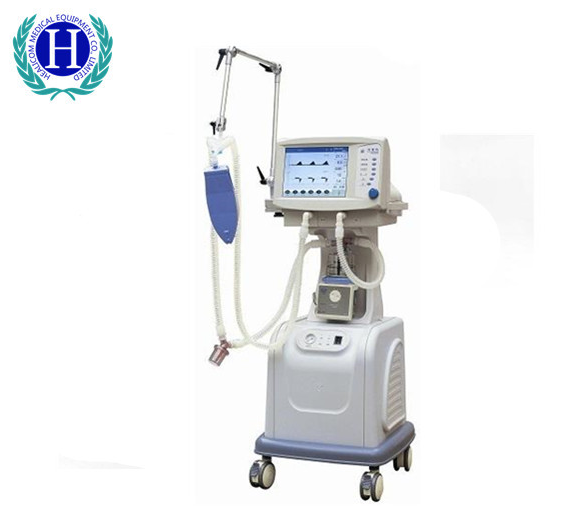

HV-800B
Healicom
9019200000
Product Description
| Flow(Optional) and pressure trigger | |
| Air compressor (Optional) | |
| Main Specification | |
| Power | AC 220V±10%,(50Hz~60Hz)±2%, built-in battery for back-up |
| Gas source | O2, Air |
| Ventilation mode | VCV, SIMV, Sigh, SPONT, CPAP, PEEP, |
| ST, S/T, Bi-level (Optional), Manual | |
| Parameter monitoring: tidal volume, MV, breathing rate, inhaling time, Paw, PEEP, FiO2, Continuous pressure. | |
| Waveform display: Pressure-time, Flow-time, Pressure-volume loop (optional) | |
| Alarm | No tidal volume |
| MV too high(low) | |
| Paw too high(low) | |
| FiO2 too high (low) | |
| AC power failure | |
| O2 or air failure | |
| Breathing rate too high back-up battery too low | |
SPECIFICATION
| Physical specifications | |
| Dimensions | 45*55*140cm |
| Weight | 65kg |
| Casters | Central brake with lock |
| Screen | 10.2 inch |
| Display | Color LCD |
| Display graphics | Waveforms of P-T, F-T |
| Loops | Optional: P-V, F-V |
| Screen control | NEC, no dead spot at any angle |
| Air compressor specifications | |
| Power | AC 220V±10%, 50Hz±2% |
| Output pressure | 0.4±0.1MPa |
| Noise | <=65dB |
| Ventilator Specifications | |
| Modes of ventilation | |
| VCV | Volume control ventilation |
| SIGH | SIGH |
| SIPPV(A/C) | Assistance Control |
| SIMV | Synchronized Intermittent Mandatory Ventilation |
| MANUAL | Manual |
| CPAP | Continuous Positive Airway Pressure |
| PSV | Pressure Support Ventilation |
| PCV | Pressure Control Ventilation |
| ARPV | N/A |
| BIPAP | N/A |
| Ventilator parameter | |
| Tidal Volume range | 20-1500ml |
| Atmosphere pressure | 960 hPa~1040 hPa |
| Pressure range | 5-80 mbar |
| Rispriation Rate Range | 1-99bpm (1-40bpm under SIMV) |
| I:E Range | 4:1-1:8 |
| Ptrigger Range | -20-20cmH2O |
| Apnea Ti Range | 0-6s |
| PEEP | |
| Type | Integrated, Electronic control |
| Range | 0-30cmH2O |
| Alarm Limits | |
| Visual | No tidal volume, MV,Paw, FiO2 limitation O2, Air failure, AC power failure, backup low |
| Audio | No tidal volume, MV,Paw, FiO2 limitation |
| Pipeline supply | |
| Gas configuration | O2, Air |
| Pipeline input range | 280-600kPa |
| Battery Power | |
| Battery Type | Lead-acid 12V, 4Ah |
| Run-time | Typical 120 mins+ |
| Pre-setting functions | |
| Language | ENGLISH |
| Calibration | AUTOMATIC |
| General settings | N/A |
| Applications | |
| Patient therapy type | Audlt / Peadiatric Invasive |
| Assistant therapy | N/A |
| Environmental Conditions | |
| Operating Temp | 5 ºC ~ 40 ºC |
| Storage Temp | -10 ºC~+40 ºC |
| Humidity | ≤80 % |
| Optional | |
| Air compressor | |
AIR COMPRESSOR TECHNIQUE SPECIFICATIONS
Gas supply: O2, air 0.28~0.6MPa
Power supply: AC110/240V, 50Hz/60Hz, 65VA
Maximum security pressure: 8kPa
Compliance: 4mL/100Pa
Noise: <65dB(A)
