HV-100E
Healicom
Product Description

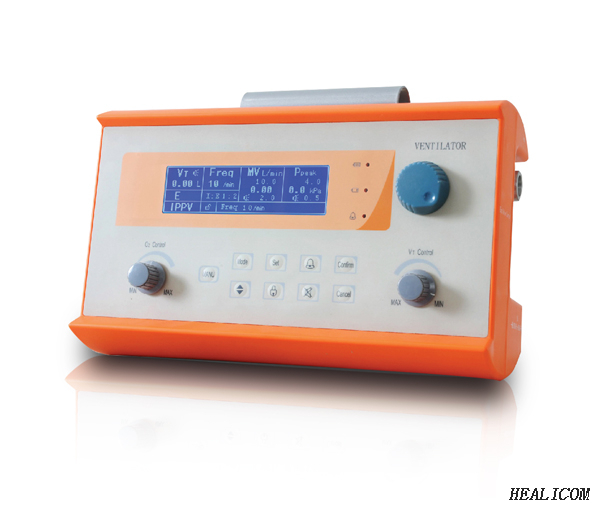

HV-100E Hospital Medical equipment Breathing machine ambulance transport Portable ICU ventilator for coronavirus treatment
Main features:
| 1. Gas driven electronically controlled. |
| 2. Time switch, volume control, pressure limit ventilation mode. |
| 3. I:E function |
| 4. LCD display ventilation parameters, preset parameters alarm indication and breathing waveform |
| 5. Applied for adult and child |
Main Specification:
| Power | AC 110~22OV±10%,50 Hz~60Hz±1Hz, DC 12V 1.5A |
| Mode | IPPV, IPPV+SIGH, A/C (SIPPV), SIMV, SPONT, MANUAL |
| Tidal volume | 0~1.5L |
| Ventilation volume per minute | 0L~20L |
| Frequency | 4~99/min. (1~40/min under SIMV) |
| I/E Ratio | 3:1~1:5 |
| Pressure trigger sensitivity | -2~0 kPa , PEEP(OPTIONAL) |
| O2 concentration | 48~100% adjustable. |
| Pressure limitation | 1~5.5KPa |
| Safety Pressure | ≤6KPa |
| Alarms | No VT, MV too high (low), Airway pressure too high (low), AC power off, back-up battery too low, audio alarms or prompt hints |
| Monitoring Parameters | Tidal volume, Minute volume, Breathing rate, Airway pressure |
| Gas source | Oxygen or Purify air |
| Working Pressure: 0.4Mpa | Allowable range: 0 .3~0.5MPa |

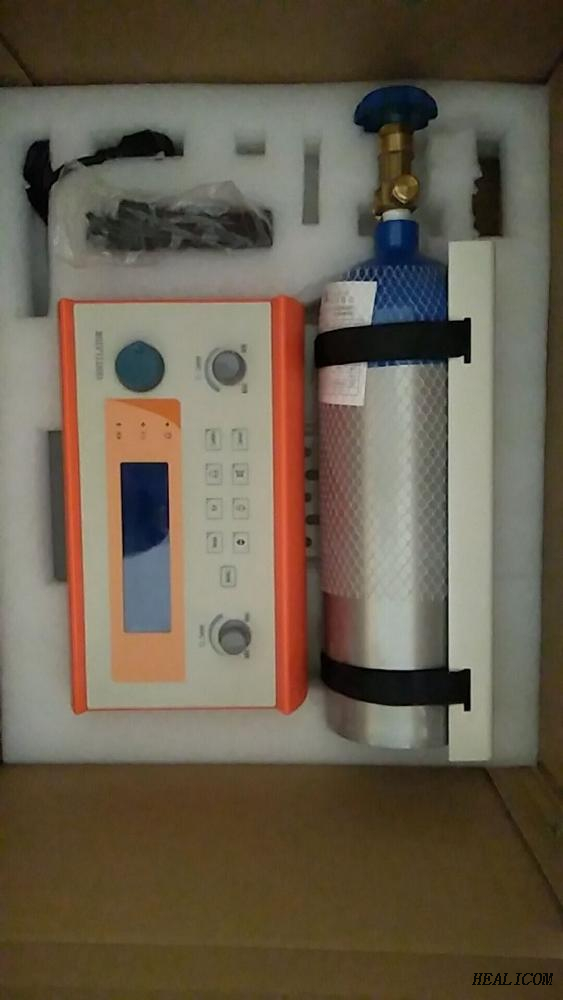

| O2 cylinder | 3L (Max Pressure 15MPa) |
| Internal back-up battery | DC 12V ≥2 hours. |
| Net Weight | 3.5Kg |
| Dimensions | 310mm x 190mm x 115mm (L x H x W) |
| Reserve Condition: Temperature:-10~40ºC, Relative humidity: ≤90% | |
| Working condition: Temperature:5~40ºC, Relative humidity:≤80% | |
