HV-100F
Healicom
9019200000
Product Description

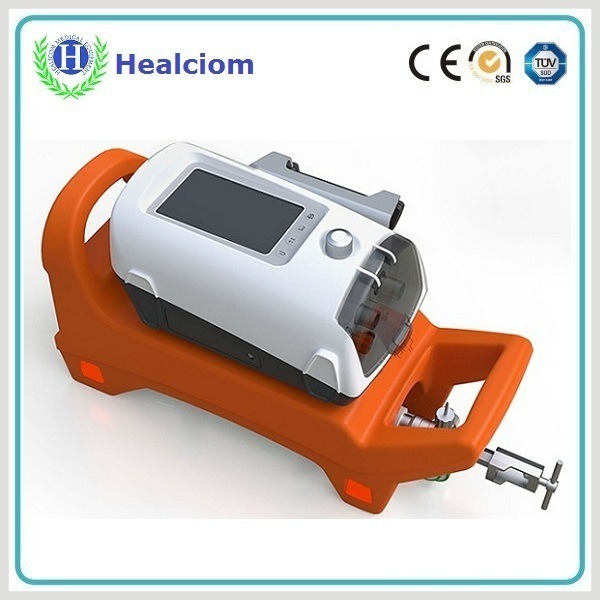

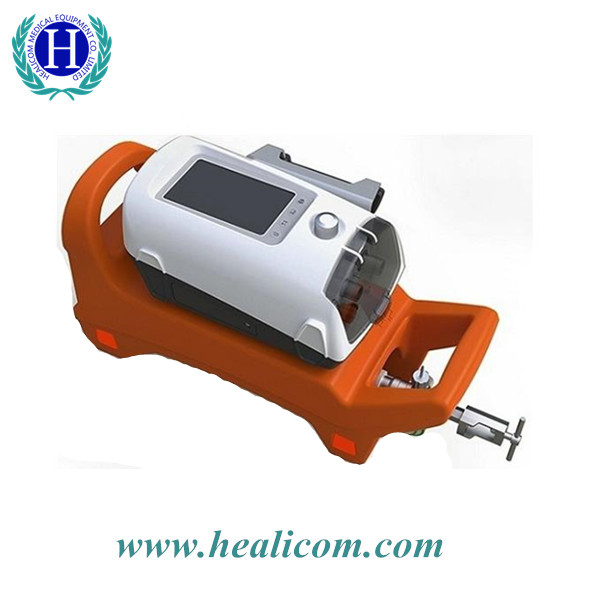

Medical Use Ambulance And Surgical Equipment Portable Transport Ventilator Machine
Specification:
| Operating Panel | English (Standard) |
| Drive | Gas driven |
| Operating | Electronically controlled |
| Application | Applied for child and adult. Used for respiratory depression, respiratory paralysis and failure of emergency rescue. Available in vehicle or portable stretcher. |
| Display | 7 inch LCD |
| Gas source | Pure air or Oxygen |
| Ventilation mode | VCV, SIMV, A/C, SIGH, MANUAL, CPAP |
| Tidal volume | 0~1500ml |
| I:E | 4:1~1:8 |
| Breathing rate | 4-99/min, 4-65/min under SIMV |
| FiO2 | 48%~100% |
| Pressure trigger sensitivity | -2~0kPa , PEEP 0-20cmH2O |
| Monitoring Parameters | Tidal volume, Minute volume, Breathing rate, Airway pressure |
| Alarms | No VT, MV too high (low), Airway pressure too high(low), AC power off, back-up battery too low, audio alarms or prompt hints |
| Power | Battery, AC Power AC 220V/50Hz |
| Battery | ≥ 2 hours |
| Basic configuration requirement | Main body 1 Unit, Oxygen cylinder 3L*1 Unit, Silicon mask/circuit for medical use*1Piece, other accessories used to insure the basic operating. |
| Net Weight | 6.5Kg |
| Reserve Condition | Temperature: -10~40 degree, Relative humidity<90% |
| Working condition | Temperature: 5~40 degree. Relative humidity< 80% |
| User manual | English (standard) |
