In Stock HC-10B Air/Oxygen Blender

In Stock HC-10B Air/Oxygen Blender

Function introduction

The Air/0xygen Blender is a medical device used to mix Medical Air and Oxygen into a gas source ranging from 21% to 100% oxygen. The capacity is to provide and convey accurately controlled mixed air and oxygen gas to the patient in clinical use. The device is not only used as open-ended oxygen deliverer, but also important to offer flexibility to adapt to many medical devices, such as Infant Incubator, Infant Radiant Warmer, Infant Oxygen Hood, Oxygen Therapy Instrument, Ventilator, CPAP, Resuscitator and Epidural Instrument, etc, especially suitable for neonatal intensive care units and ward oxygen delivery. (Ban for high blood oxygen patients)

Specification

Oxygen concentration adjustable range and accuracy :

Oxygen concentration adjustable range: 21%-100%;

Accuracy:±5% O2 (V/V).

Flow rate adjustable range:

OL /min - 15L /min

0L/min- 30L /min (optional, without humidification bottle)

0L/min-70L /min (optional, without humidification bottle)

Input gas source pressure: 207kPa- -517kPa .

The Reverse Gas Flow of zero (The reverse gas flow caused by

the gas flow from one gas source inlet to the other inlet port).

Packing dimension: 315 X 300x 265 mm; Gross weight: 3.0kg

Model & Specification:

Performance Characteristics:

Oxygen concentration level is 21%- -100%

continuously adjustable;

Oxygen concentration and flow rate is adjusted

separately;

High precision regulating and continuous steady

gas output;

Pneumatic control without power supply.

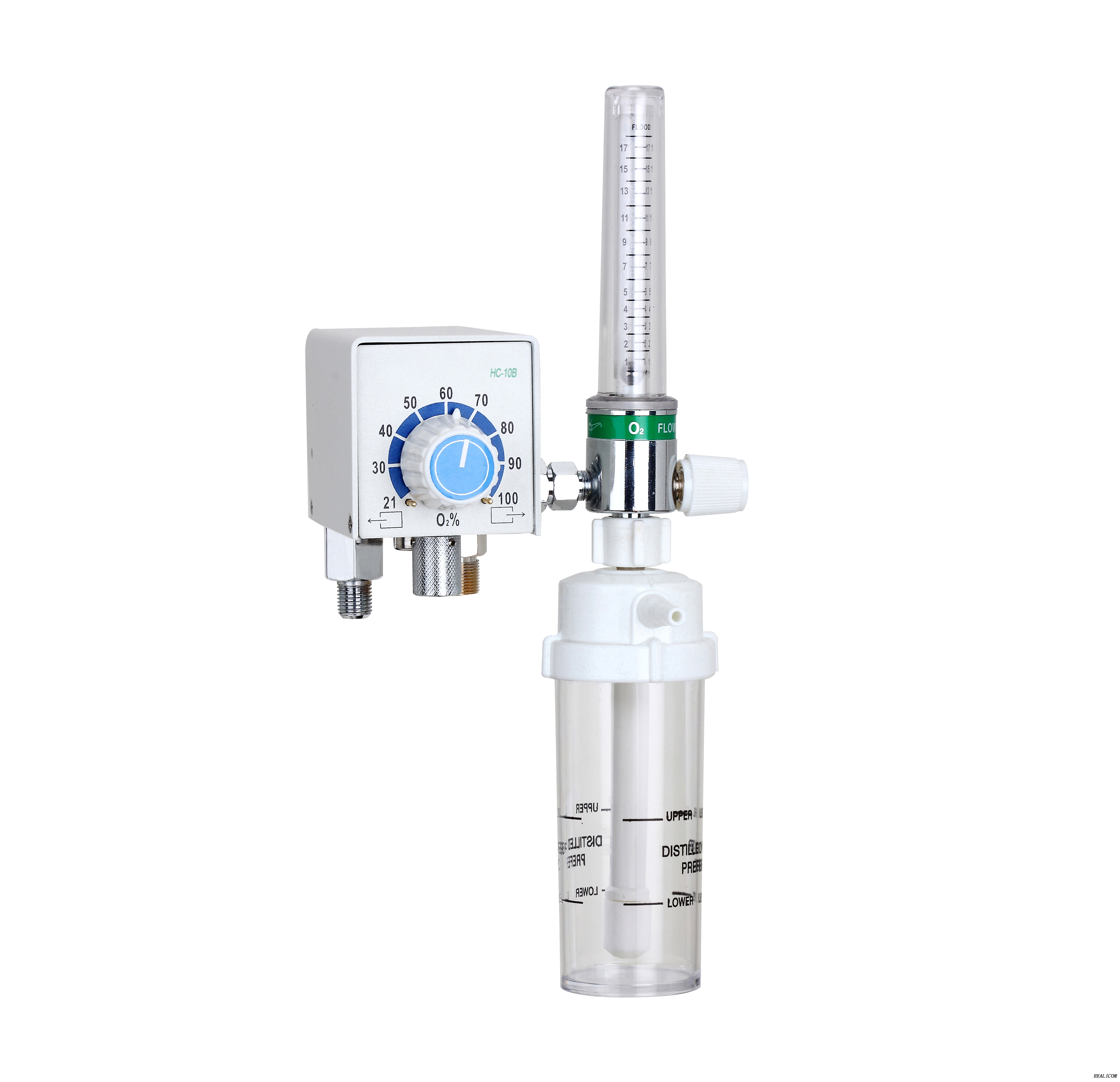

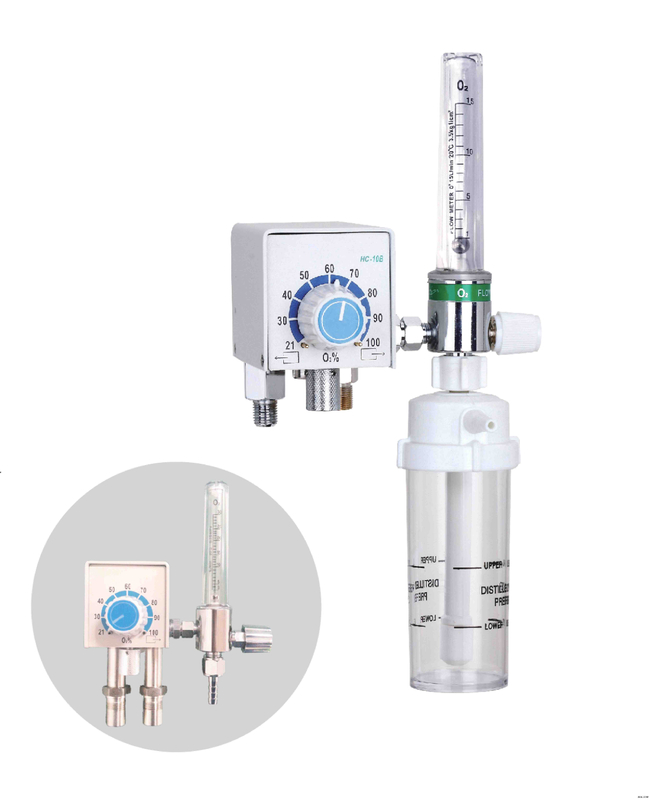

Product Figure:
