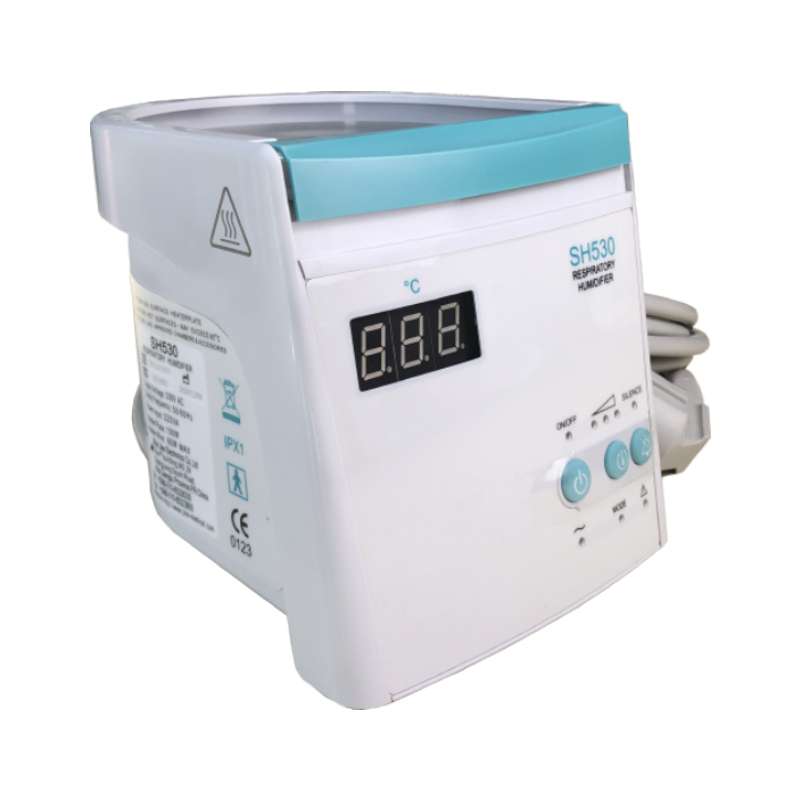

Good Price SH530 Medical respiratory humidifiers High Flow Oxygen Therapy

Product Description
The Mainframe
Application :  Used with ventilators or other positive pressure systems towarm and humidify the airflow
Mode of Operation :  continuous operation
Setup Methad :  set up by knob with graduations
Heating Mode :  two modes , judge and set up automatically
Power Supply : AC220V±22V,50Hz±1Hz
Power Consumption :  -220VA
Type of Protection Against Electric Shock :  Class l
Degree of Protection Against Electric Shock :  Type BF
Degree of Protection Against Ingress of Water : Drip-proof IPX1
Dimensions:  135mm(W)×155mm(D)×145mm(H) (Without chamber fitted)
Weight :  2.5 kg { max } (Without chamber fitted)

Performance Parameter
Static Temperature Control Range of Humidification Chamber :
Non-heater wire mode : the low,medium,high steps, corresponding to 45ºC,60ºC,70°CHeater wire mode : the low,middle,high steps, corresponding to 40C,50C,60ºC
Temperature Range of Patient Port : 10~50C
Display Type : Panel Digital Display
The Ultimate Protection Temperature of Heater Plate : 110ºC+5ºC
Cut-out Point When Output Gas Exceed the Normal Temperature : 41ºC

Humidification Chamber

Marked intuitive max and min waterlevel lines
