HV-3010
Healicom
Product Description

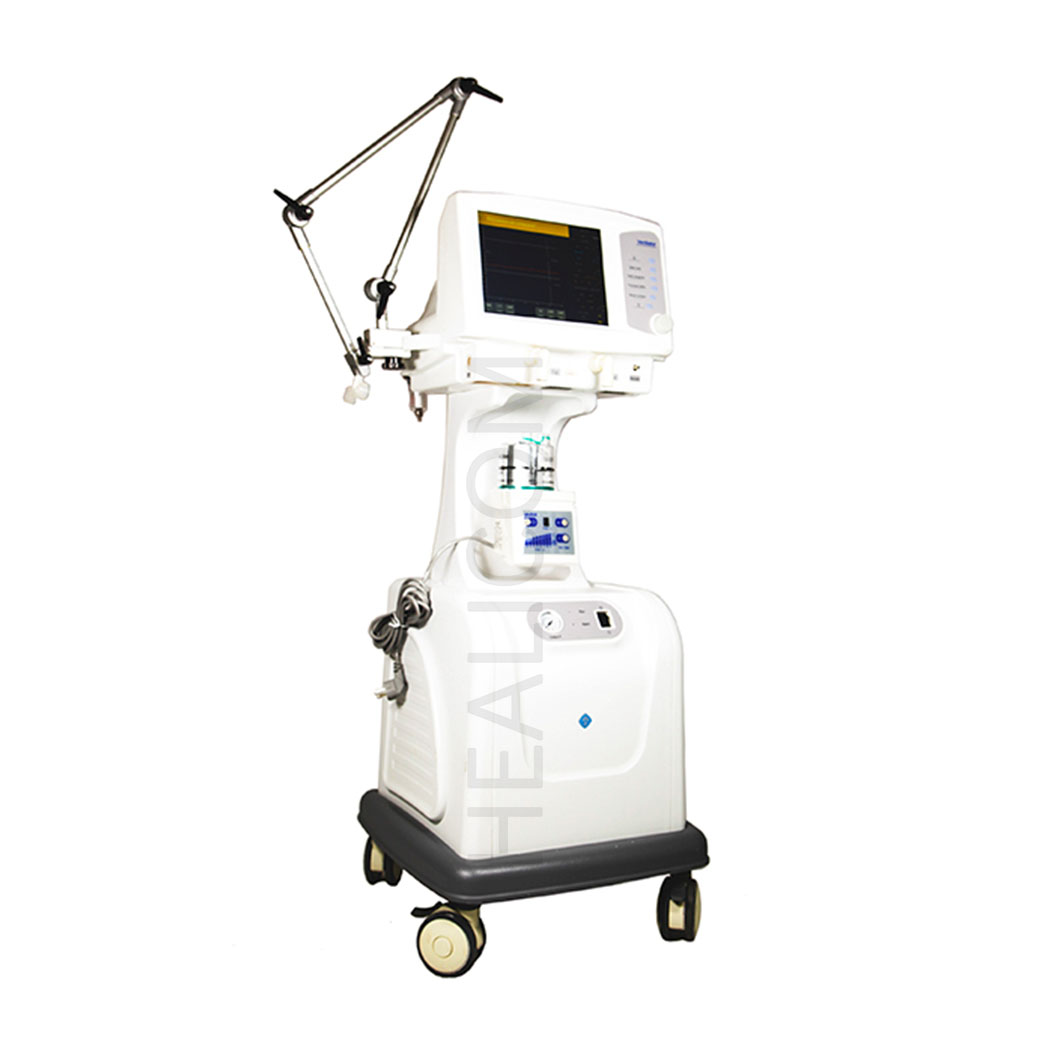

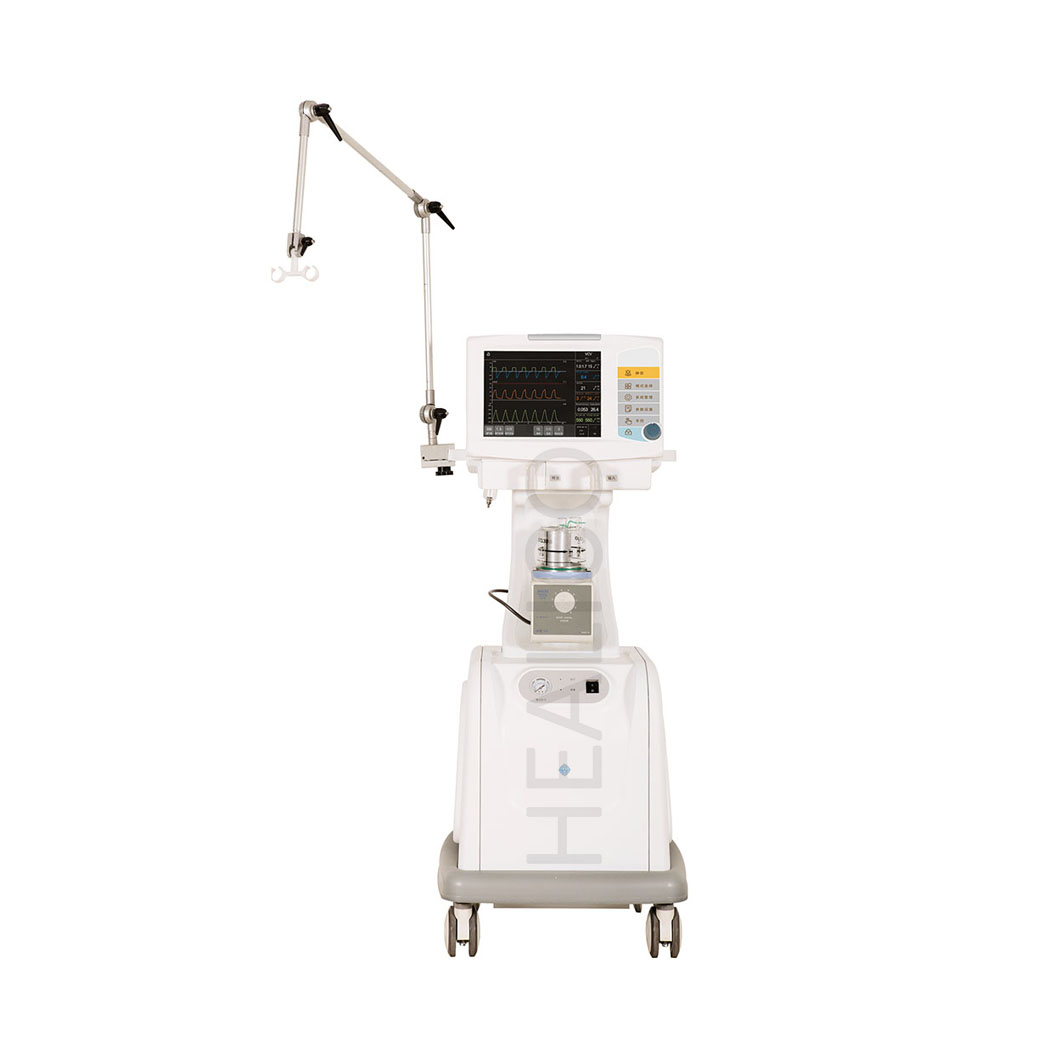

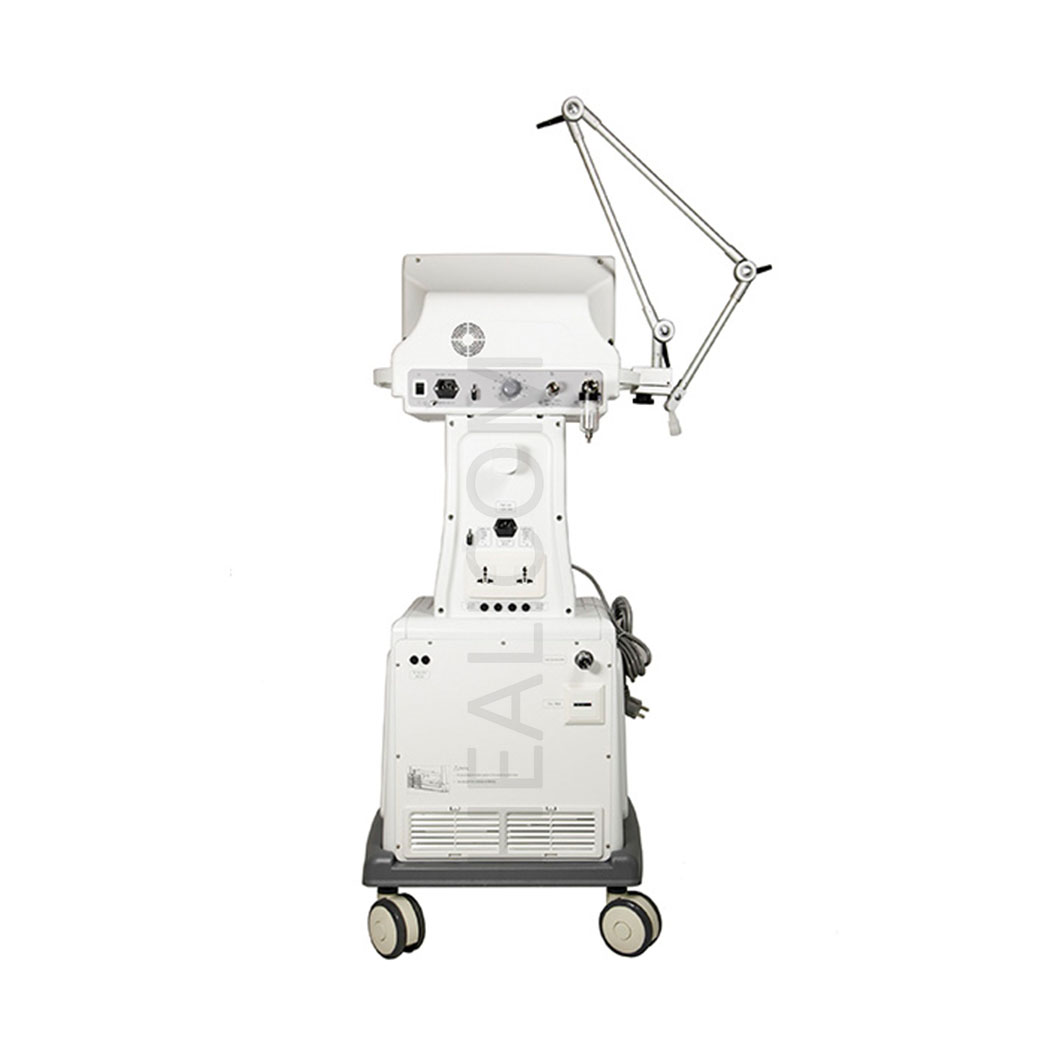

HV-3010 Medical Emergency Respirator Breathing Machine ICU Ventilator
Features:
1.12.1 inch touch screen with desirable color schemes
2.The simplest interface boots a precise control and convenient operation
3.Applied for adult,pediatric and infant
4.Multi-mode ventilation function (VCV, SIMV,SIMV/PSV,PSV, PCV, APNEA,CPAP, BIPAP,Manual, SIGH)
5.Applied with Invasive ventilation and Non-invasive ventilation
6.Advanced air compressor for air input
7.Self testing and calibration function
8.Design of intelligent flashing alarm indicator(Priority alarm,secondary alarm)
9.Auto-wash for exhaust valve Assistant Nebulization treatment , High flow oxygen Therapy
| Physical Specifications | |
| Dimensions | 45*55*140cm |
| Weight | 65kg |
| Casters | Front wheels with lock |
| Screen | 12.1 inch touch screen |
| Display | Colour LCD |
| Display graphics | Waveforms of P-T, F-T, V_T |
| Loops . | P_V, F-V, F-P |

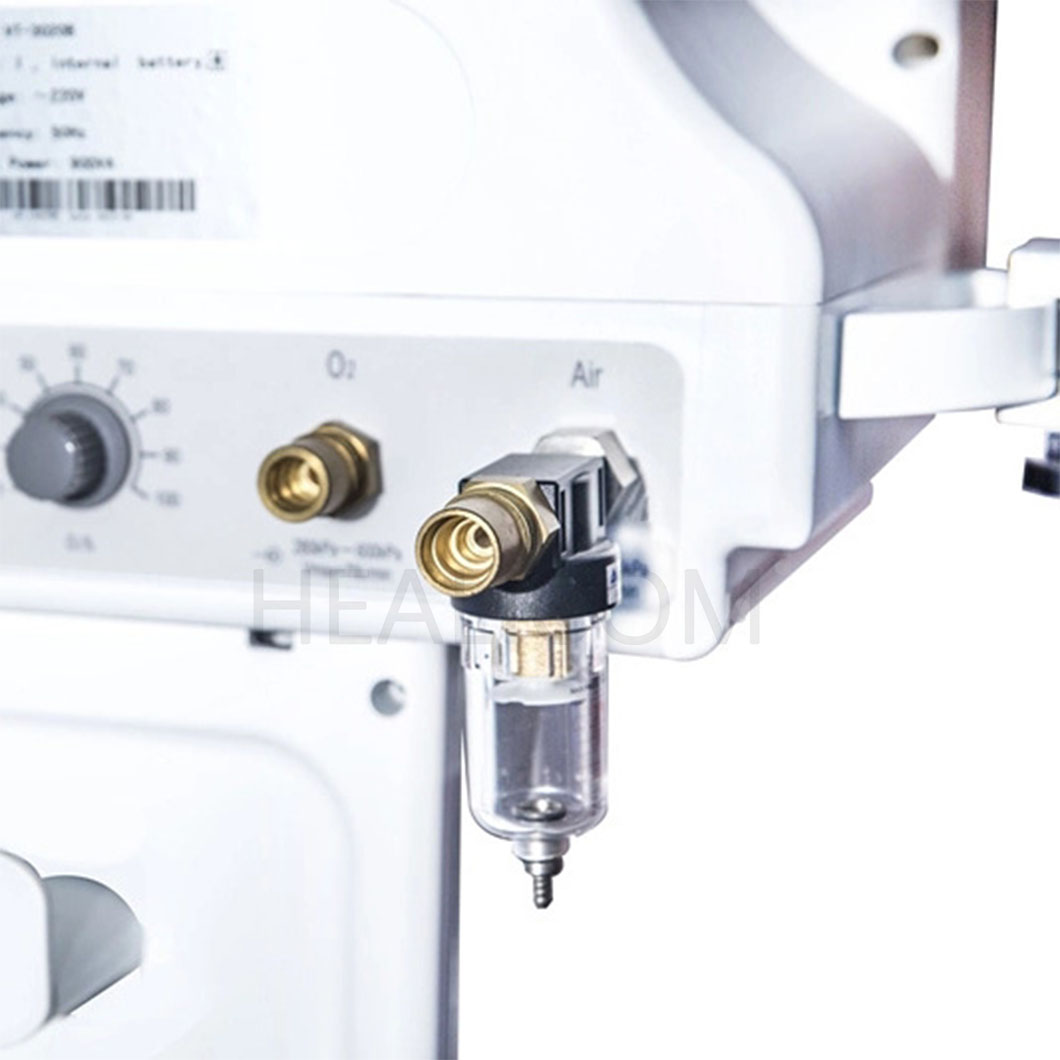

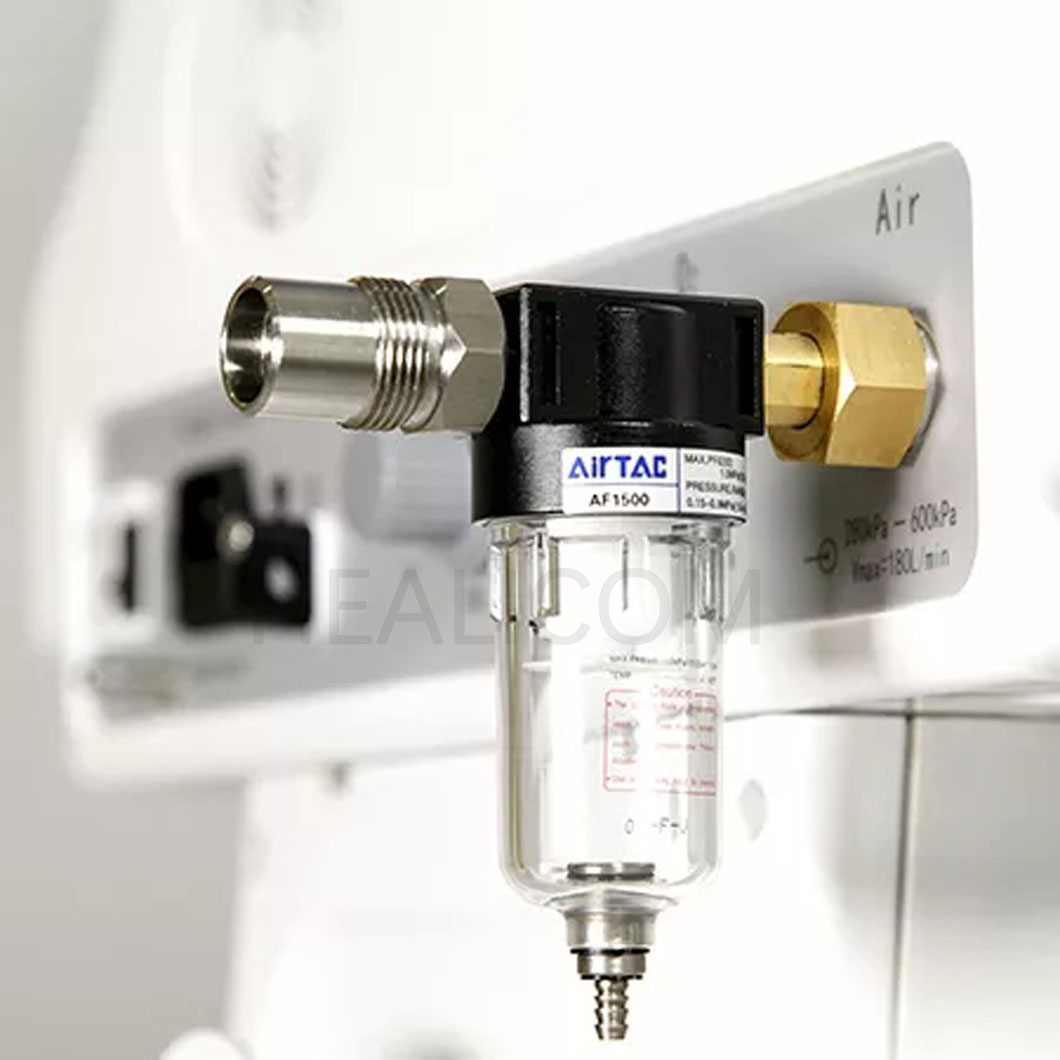

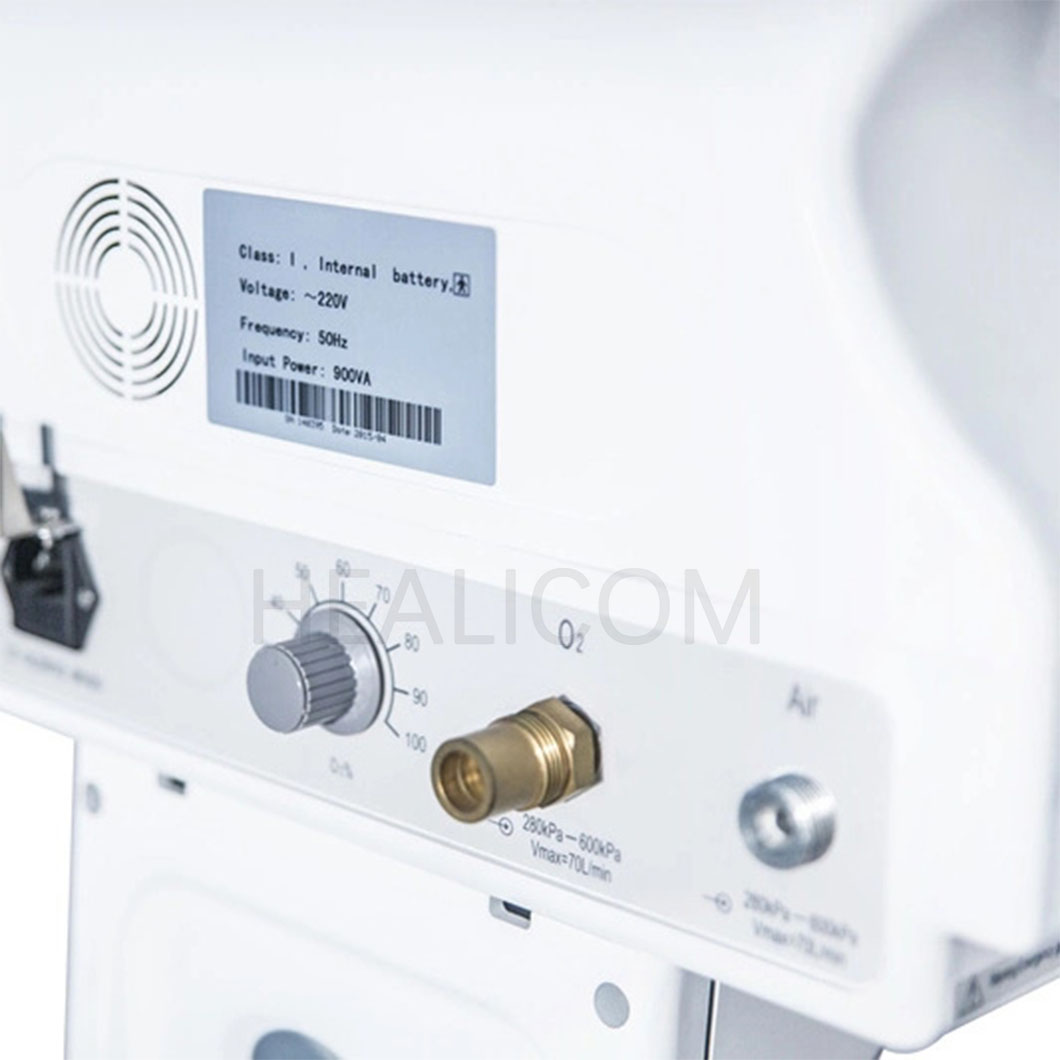

| Pipeline Supply | |
| Gas configuration | O2, Air |
| Pipeline input range | 280-600kPa |

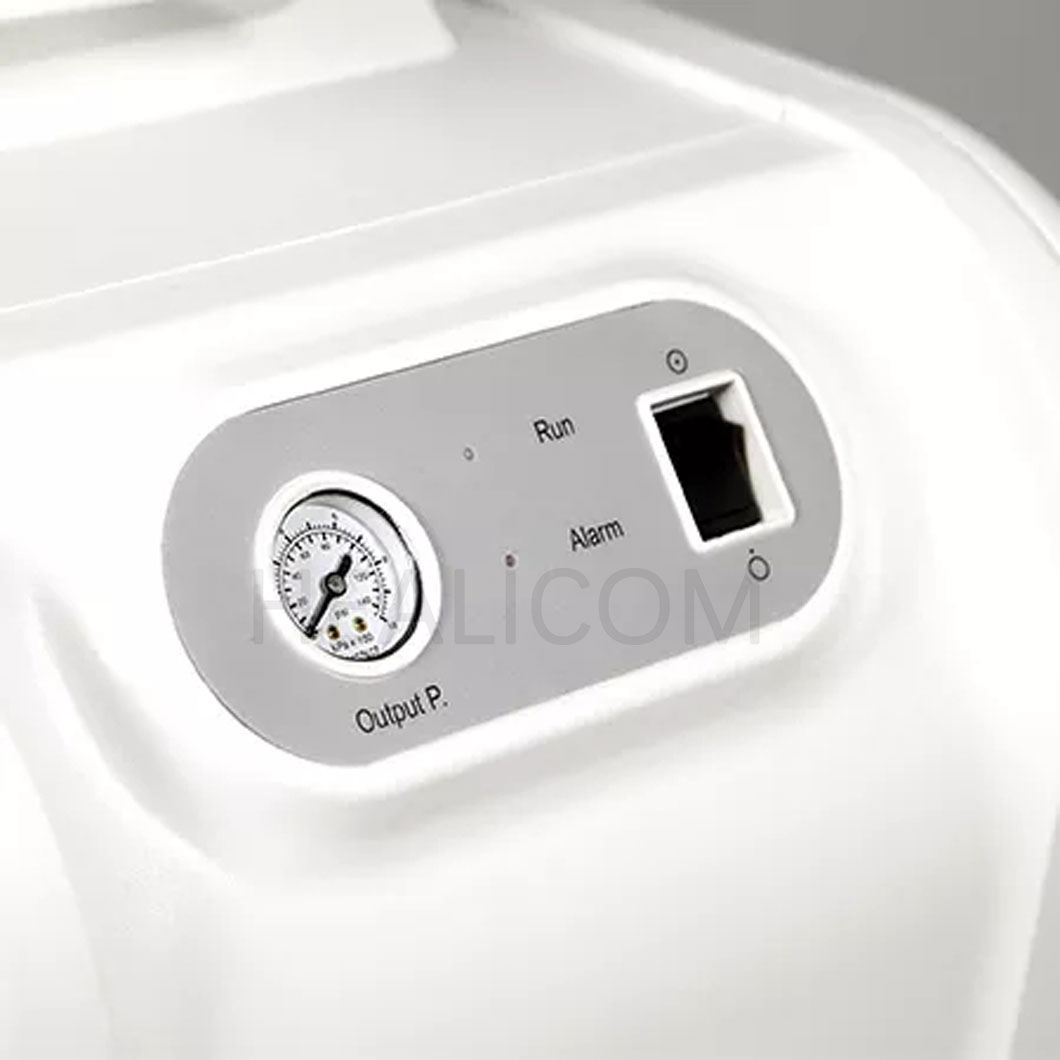

| Air Compressor Specifications | |

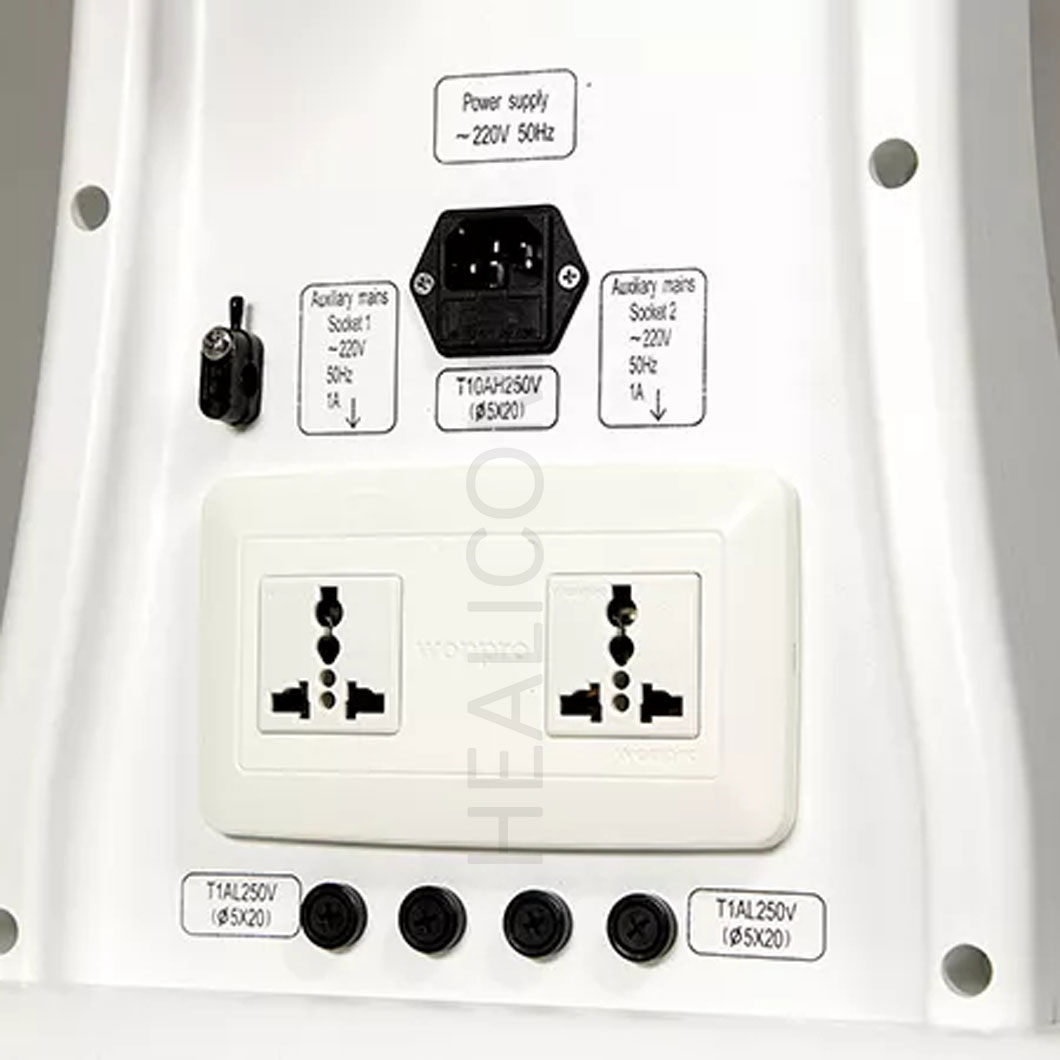

| Power | AC 220V±10%,50Hz ±2% |
| Output pressure | 0.4+0.1MPa |
| Noise | ≤50dB |
| Battery Power | |
| Battery Type | Lead-acid 12V, 4Ah |
| Run-time | Typical 180 mins+ |
| Ventilator Seclfiations | |
| VCA | Volume control ventilation |
| APNEA | APNEA |
| SIMV | Synchronized Itrmittent Mandatory Ventilation |
| SIMV/PSV | SIMV/Pressure support |
| MANUAL | Manual |
| CPAP | Continuous Positive Airway Pressure |
| PSV | Pressure Support Ventilation |
| PCV | Pressure Control Ventilation |
| NIV | Non-invasive venilation |
| BIPAP | BIPAP |
| SIGH | SIGH |
| ARPV | optional |
| Ventilator Parameter | |
| TIdal Volume range | 20-2000ml (10ml optional) |
| Pressure range | 5-80 cmH2O |
| Rispriation Rate Range | 1-100bpm (1-40bpm under SIMV) |
| 1:E Range | 4:1-1:8 . |
| Oxygen concentration | 21%-100% |
| Ptigger Range | -20-0cmH2O |
| Apnea TI Range | 0-6s |
| PEEP | |
| Type | Integrated, Electronic control |
| Range | 0-40cmH2O |
| Alarm Limits | |
| VIsual | No tidal volume, MV,Paw, FiO2 litationO2, |
| Alir failure, AC power failure, backup low | |
| Audio | No tidal volume, MV,Paw, FiO2 litation |
| Pre-setting Functions | |
| Language | Englih |
| Calibration | AUTOMATIC |
| Optional | |
| Aixlliary Suction function | |
| O2 remedy | |
| Communication port | RS-232,VGA,Ethemet, USB (Optional) |
| Environmental Conditions | |
| Operating Temp | 5°C-40°C |
| Storage Temp | -10°C-+40°C . |
| Humidity | ≤80 % |
| Atmosphere pressure | 960 hPa~1040 hPa |
Company Profile
FAQ
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products l spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper .
5.What is payment terms?
T/T in advance, Western Union.
6.Which shipping company usually using?
MAERSK-LINE, PIL, COSCO, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
