HV-300
Healicom
Product Description

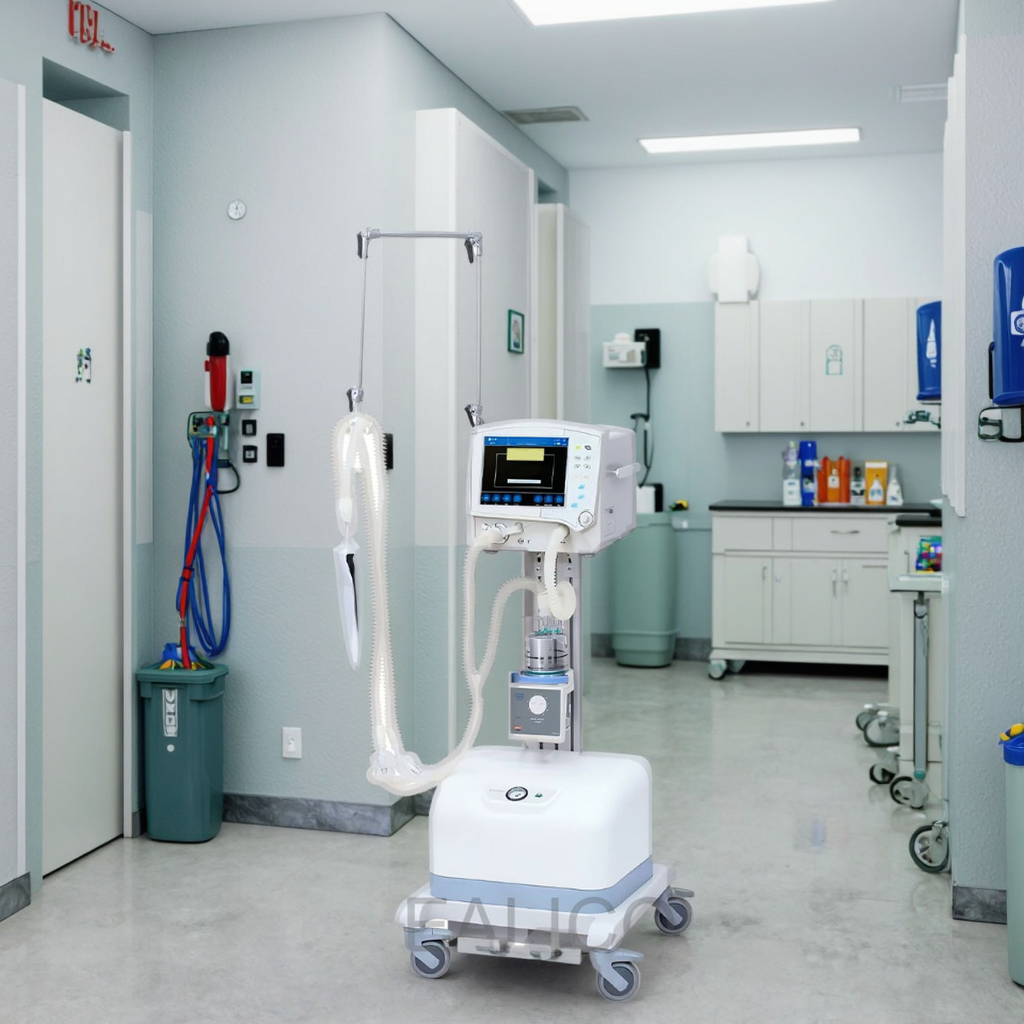

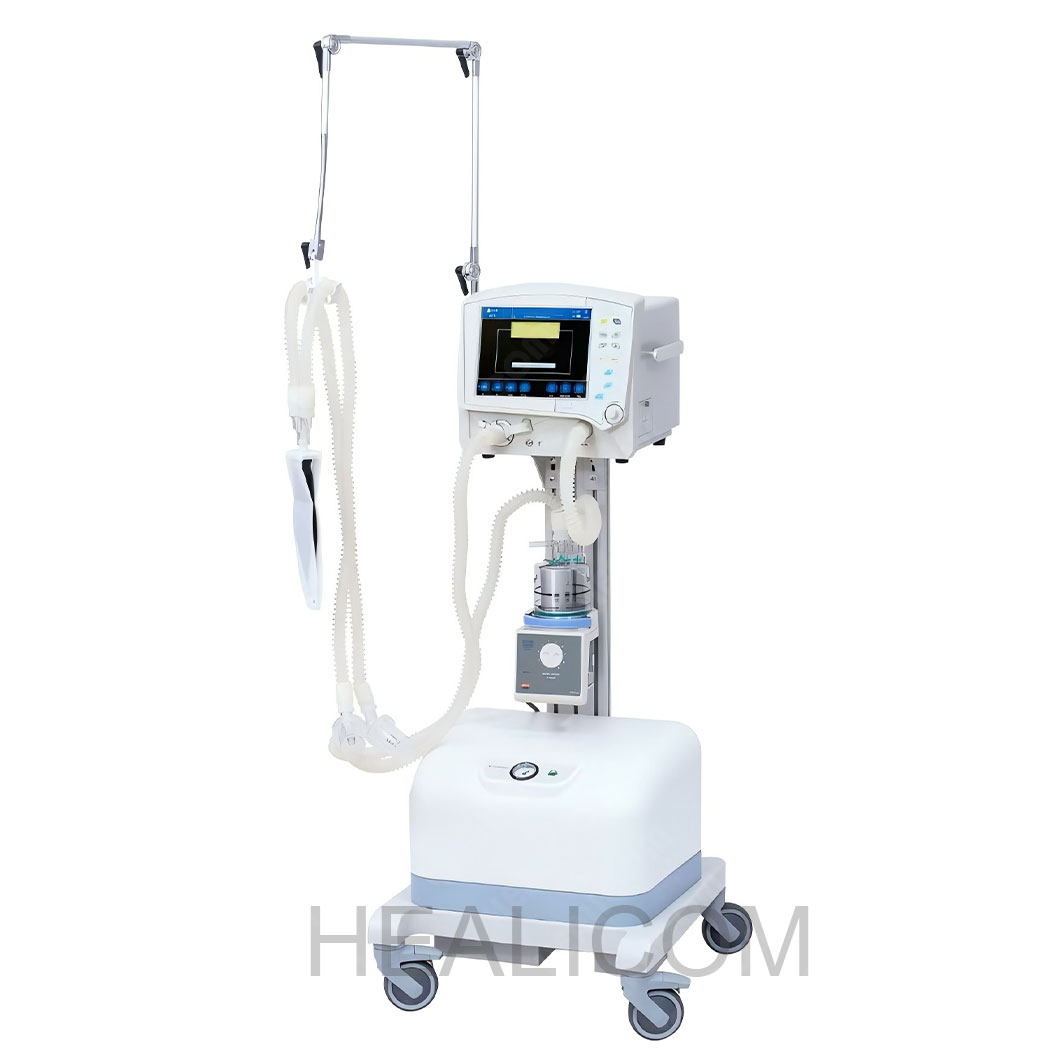

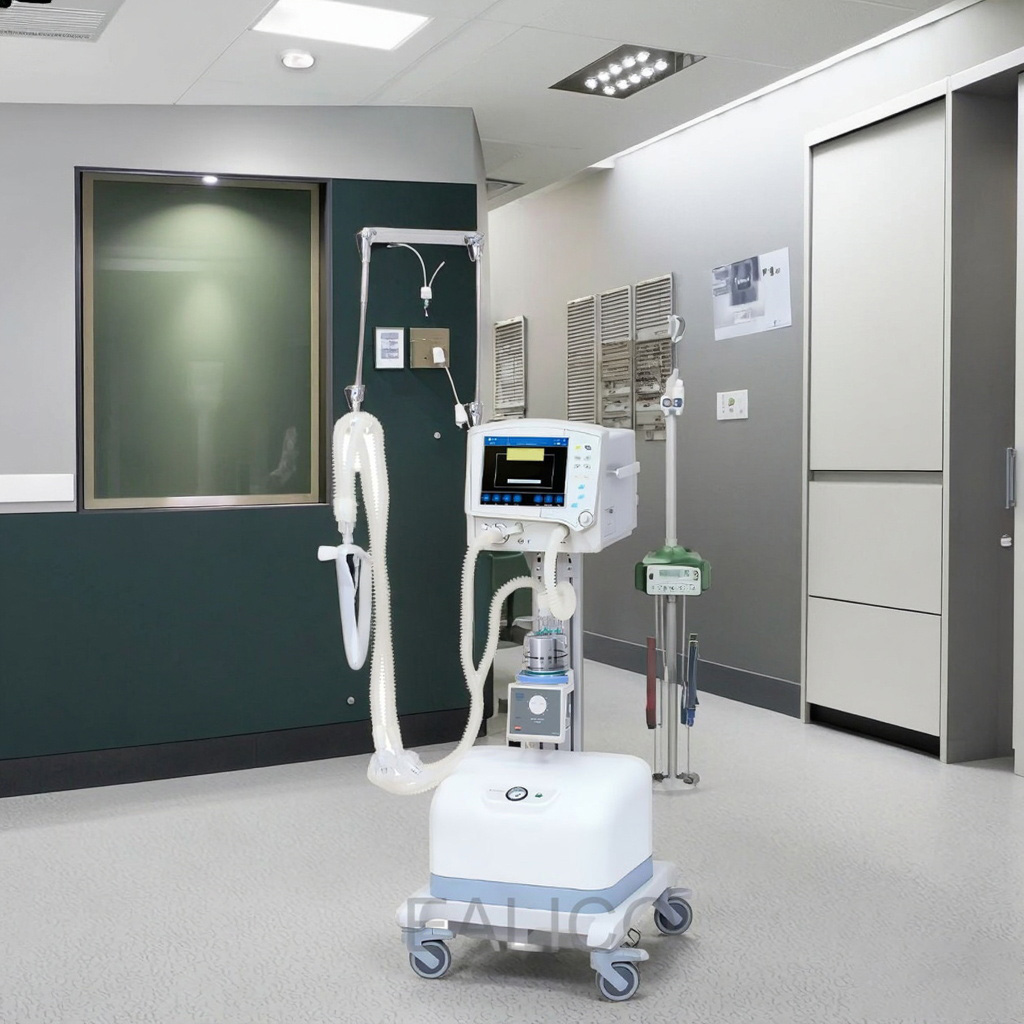

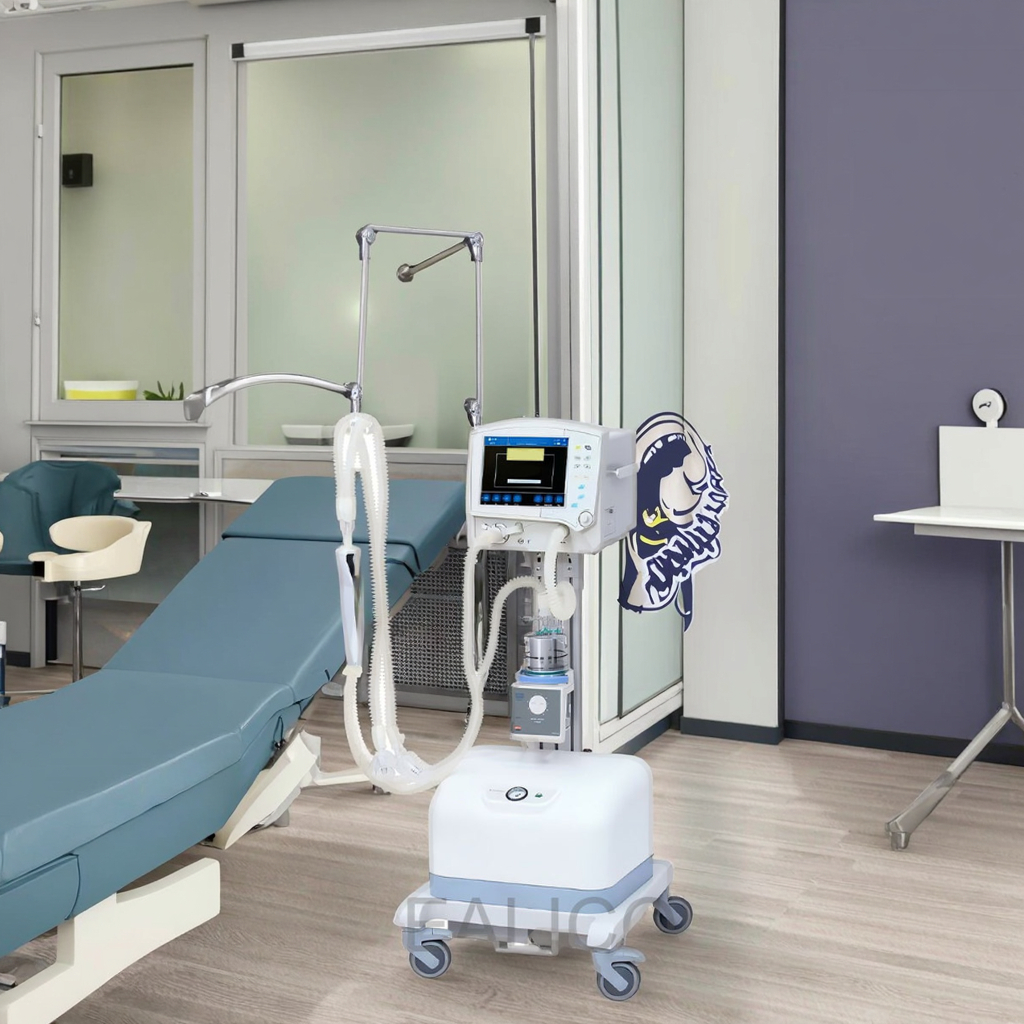

HV-300 Medical Emergency Respirator Breathing Machine ICU Ventilator
HV-300 series ventilator is used for intensive treatment in ICU ward of medical department and rescue and treatment of patients with respiratory failure in respiratory medicine and emergency department. The pneumatic electric controlled design makes the air-oxygen mixing and reaction more efficiency, and the man-machine synchronization is better.
| PATIENT TYPE | |
| Adult, Child,Infant | |
| VENTILATION MODE | |
| VCV | PCV |
| SIMV+VCV | SIMV+PCV |
| PRVC | SIMV+PRVC |
| CPAP/PSV | BIPAP |
| APRV | BACKUP MODE |
| KIDSMODE | |
| VT(Tidal volume) | 20~500 ml |
| f(Respiratory Rate) | 4~100 bpm |
| Tinsp(lnspiratory time) | 0.1~12s |
| Breath-holding time | 0~50% |
| Ptr(Pressure trigger) | -20cmH2O ~ 0cmH2O |
| Ftr(Flowtrigger) | 1~20 L/min |
| PEEP | 0~10 cmH2O |
| Pssup(Pressure Support) | 0~30 cmH2O |
| Pressure control | 5~30 cmH2O |
| FiO2 | 21~100% |
| High pressure level | 5~30 cmH2O |
| Low pressure level | 0~10 cmH2O |
| ADULTMODE | |
| VT(Tidal volume) | 50~2500 ml |
| f(Respiratory Rate) | 4~100 bpm(fSIMV: 1-40bpm) |
| Tinsp(lnspiratory time) | 0.1~12s |
| Breath-holding time | 0~50% |
| Ptr(Pressure trigger) | -20cmH2O ~ 0 cmH2O |
| Ftr(Flow trigger) | 1~20 L/min |
| PEEP | 0~50 cmH2O |
| Pssup(Pressure Support) | 0~70 cmH2O |
| Pressure control | 5~70 cmH2O |
| FiO2 | 21~100% |
| High pressure level | 5~70 cmH2O |
| Low pressure level | 0~50 cmH2O |
| Thigh | 0.1-30s |
| Tlow | 0.5-30s |
| Pure oxygen ventilation | 120s |
| Atomization | 0 to 60 minutes |
