HV-100D
Healicom
9019200000
Product Description

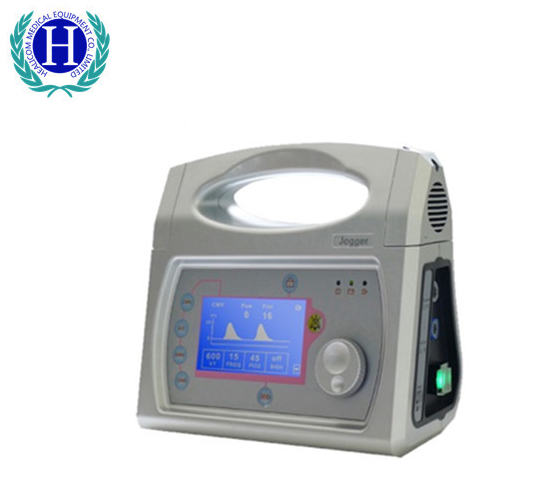

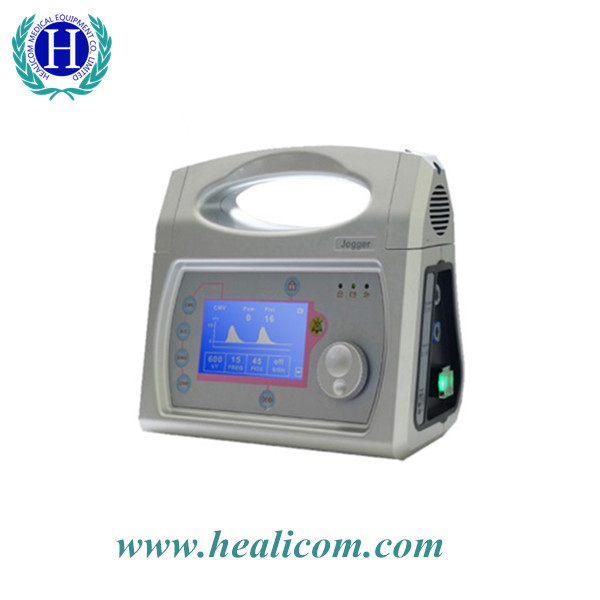

HV-100D Transport and portable Emergency Ventilator
Description:
HV-100D is used for First-Aid, Ambulance, Emergency situation and patients' transport in hospital. It can be used for child and adult patients.
| Relative humidity | 15%~95% |
| Ambient temperature | -18~ 50°C |
| Atmospheric pressure | 70~110kPa |
| Gas source | 0.28~0.6Mpa 60I/min |
| Power | AC110V-240V or DC12V |
| Li-battery | 14.8 V, rechargeable |
Classification
Class I, Type B-by protection against electric shock.IPX4-by protection against harmful ingress of water, particulate matter.
Indication
The patients with respiratory failure caused by central and peripheral nervous system diseases, thoracic and lung diseases, neural and muscular system diseases, circulatory system diseases.
| Modes | CMV, A/C, SIMV, CPAP | |||||
| Tidal Volume | 50~2000ml | |||||
| Respiratory Rate | 1~100bpm | |||||
| FiO2 | 40%~100% | |||||
| Trigger | -20~19hpa | |||||
| Peak pressure | 0~60 hPa | |||||
| Max Minute Volume | ≥22L/min | |||||
| PEEP | 0, 5~20hpa Adjustable | |||||
| PIP | 0~60hpa | |||||
| Over Pressure Relief | ≤ 7.2 kpa | |||||
| Sigh | 0~10 per 100 breat | |||||
| Package Dimension | 570*460*250mm | |||||
| Weight | 13kg(Including all the accessories) | |||||
| Monitors | Tidal Volume | Alarms | High Airway Pressure | |||
| Oxygen Concentration | ||||||
| Sigh | ||||||
| Respiratory Rate | Low Airway Pressure | |||||
| Trigger | Low Battery | |||||
| CPAP pressure | ||||||
| Low Oxygen Source | ||||||
| Peak Airway Pressure | ||||||
| Time Pressure Wave Form | ||||||
