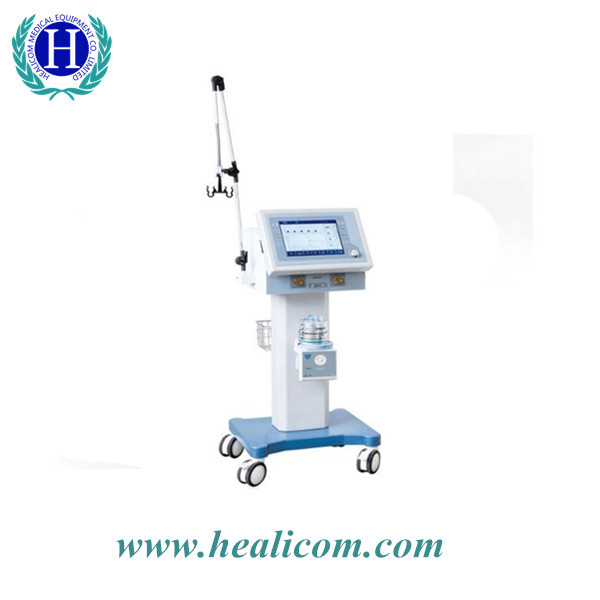

HV-600A Ce ISO Marked Medical Breathing Apparatus Ventilator
You are here: Home » Products » Surgical&ICU Equipments » Ventilator » HV-600A Ce ISO Marked Medical Breathing Apparatus Ventilator

Category List

HV-600A Ce ISO Marked Medical Breathing Apparatus Ventilator

Component Details
Display: 10.4''LCD Display Following Parameters & Real time waveform display
(1) Gas drive and electrical control, time-pressure switching and pressure limit control.
(2) A high-brightness digital display is used to present the control frequency, tidal volume, throughput, overall respiratory rate, spontaneous breathing frequency, etc.
(3) A highly sensitive and responsive pressure sensor and a flow sensor are used to measure, control and display the airway pressure and gas flow rate and the ventilator is equipped with automatic throughput compensation.
(4) In case of an abnormality to the ventilator or misoperation, the ventilator can raise a visual-audible alarm to automatically protect itself.
Availability:
Quantity:

PDF Export

  • HV-600A
  • Healicom
  • 9019200000

Product Description

Prospective service and support
The HV-600A ventilator is an electrically controlled pneumatic ventilator integrating such functions as time, volume cycling, pressure limit, etc. it provides an alternation in case of irreversible lesions in respiratory muscles or irreversible damage to upper airway to maintain the respiratory function of the patient, and also provides ventilation assistance for the patient during the recovery from a disease or operation.

The automatic conversion for standby power while AC power outage, keep working not less than 1 hour.

Ventilator Construction:
-Environmental Protection Material construction, hardly to be broken.
-Trolly: Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions



TECHNIQUES SPECIFICATIONS

Physical specifications

Display

10.4'' LCD Display

Mode

pneumatically powered and electrically controlled system

Trolley

Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions

Technical Specifications

Gas requirement

Medical oxygen and nitrous oxide with a pressure ranging from 280~600kpa

safety valve

<12.5  kPa

Respiratory Rate

1 ~ 99 bpm

Maximum Minute ventilation

≥18L / min

modes of ventilation

A/C, SIPPV,IPPV,SIMV,PSIMV,CPAP,PCV,PEEP,SIGN,SPONT, MANUAL

Ventilator compliance

≤30 Ml/kPa

PEEP

0 ~ 1.0 kPa

Ptr

-1.0kPa~1.0kPa

IMV frequency

1~20 bpm

I/E Ratio

4:1~1:4, Has the inverse ratio ventilation

Tidal Volume range

0~2000ml

Inspiratory Plateau

0~1s

Maximum Safety  Pressure

≤ 6.0kPa

Sigh

one deep breath per 80 controlled respirations, the inspiration time is 1.5 times of the setting point

Pressure limit range

1.0~ 6.0kPa

Airway pressure alarm: Audible and visual and with yellow and red color indicating

Lower: 0.1 kPa ~ 6.0 kPa;   Upper: 0 ~ 5.0  kPa

±0.2 kPa

Ventilation Volume alarm

≥ 18L/ MIN

Power Supply Alarm

Ac/dc power supply are after failing to send out alarm immediately
Alarm Time: keep >120s

Operating conditions

Ambient temperature

10 ~ 40oC

Relative humidity:

no higher than 80 %

Atmospheric pressure

860 hPa ~ 1060 hPa

Power requirement

100-120 Vac, 50/60 Hz;

Attention: the AC power supply used for the ventilator machine must be well   grounded.

Attention: the ventilator machine used must be equipped with a carbon dioxide monitor complying with ISO 9918:1993, an oxygen monitor complying with ISO 7767:1997 and an expiratory gas volume monitor complying with 51.101.4.2 of Medical Electrical Equipment Part II: Special Requirements for Safety and Basic Performance of Anesthesia System.

Storage

Ambient temperature

-15oC ~ +50oC

Relative humidity

no higher than 95 %

Atmospheric pressure

86 kPa ~ 106 kPa.

It should be stored in a room without corrosive gas and well ventilated

Package

packaging box

comply with the requirement of GB/T 15464

Between the packaging box and product, soft material with appropriate thickness provided to prevent loosening and mutual friction during transportation

Moisture protection and rain protection to ensure that product is protected from natural damage.

Safty & Alarm

Gas source pressure

Immediate alarm; "high level alarm" indicator flickers raising an audible alarm.

Airway Pressure Alarm

The airway pressure exceeds 15hpa. The maximum delay is no longer than 17s. The "high level alarm" indicator flickers raising an audible alarm.

Tidal Volume Alarm

Lower than 50ml, The alarm will be raised after one breathing cycle.

Ventilation Volume Alarm

Lower: 0~12L/Min;
Up: 18L/ Min

Battery Voltage Alarm

It alrms when the battery voltage is lower than 10.5V.

Power On Self Test

Self test before working, assure it's working normally.




STANDARD CONFIGURATIONS

QTY

NAME

1 set

Main unit

4 pcs

Adult threaded pipe (Silica)

1 set

Child threaded pipe (single use)

1 pc

Oxygen Tube

1pc

Y-Pipe

2pcs

Mask (Silicom)

2pcs

Leather Bag

2pcs

Fuse

1pc

Power Line

1pc

Oxygen pressure reducer

4 pcs

Hoop

1pc

Battery

1pc

Tools Attachment

1 set

humidifier

1 set

English Version User Manual

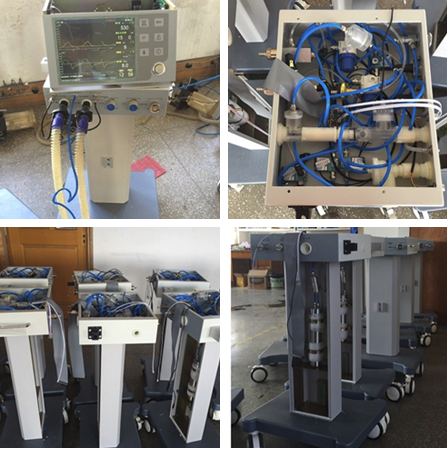

QQ图片20181224103327
