Product Description

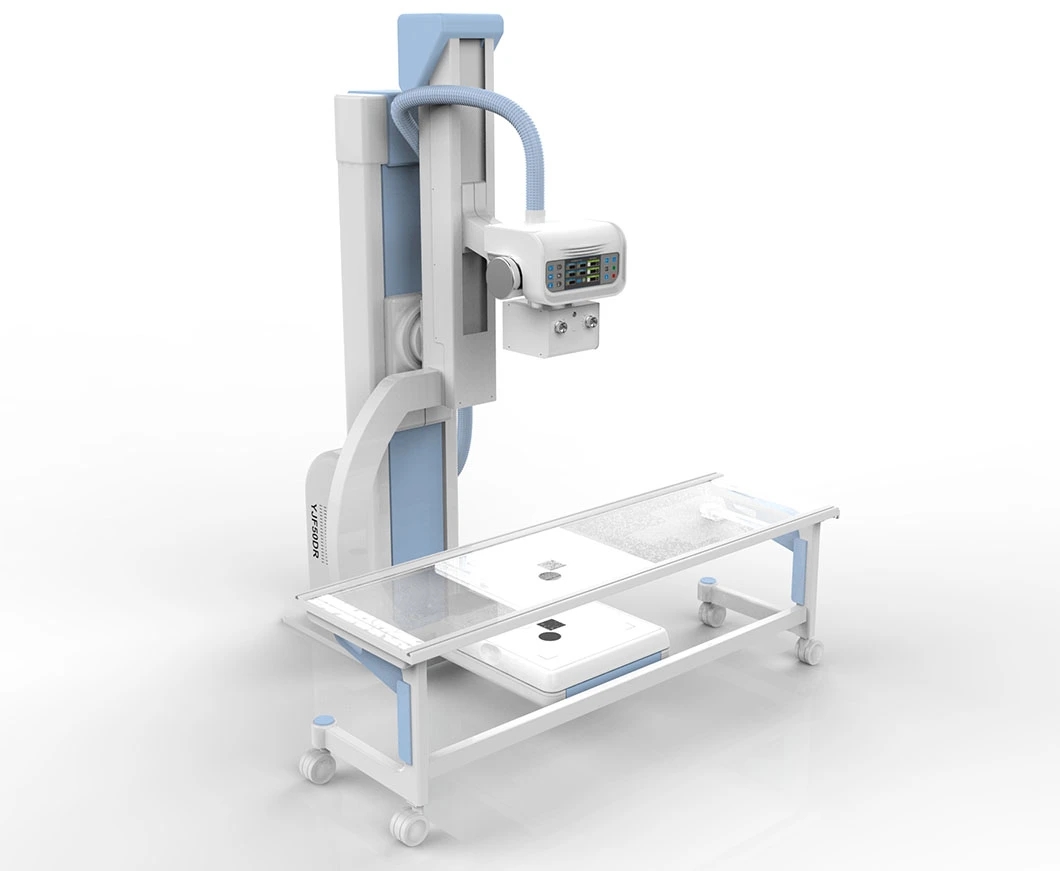

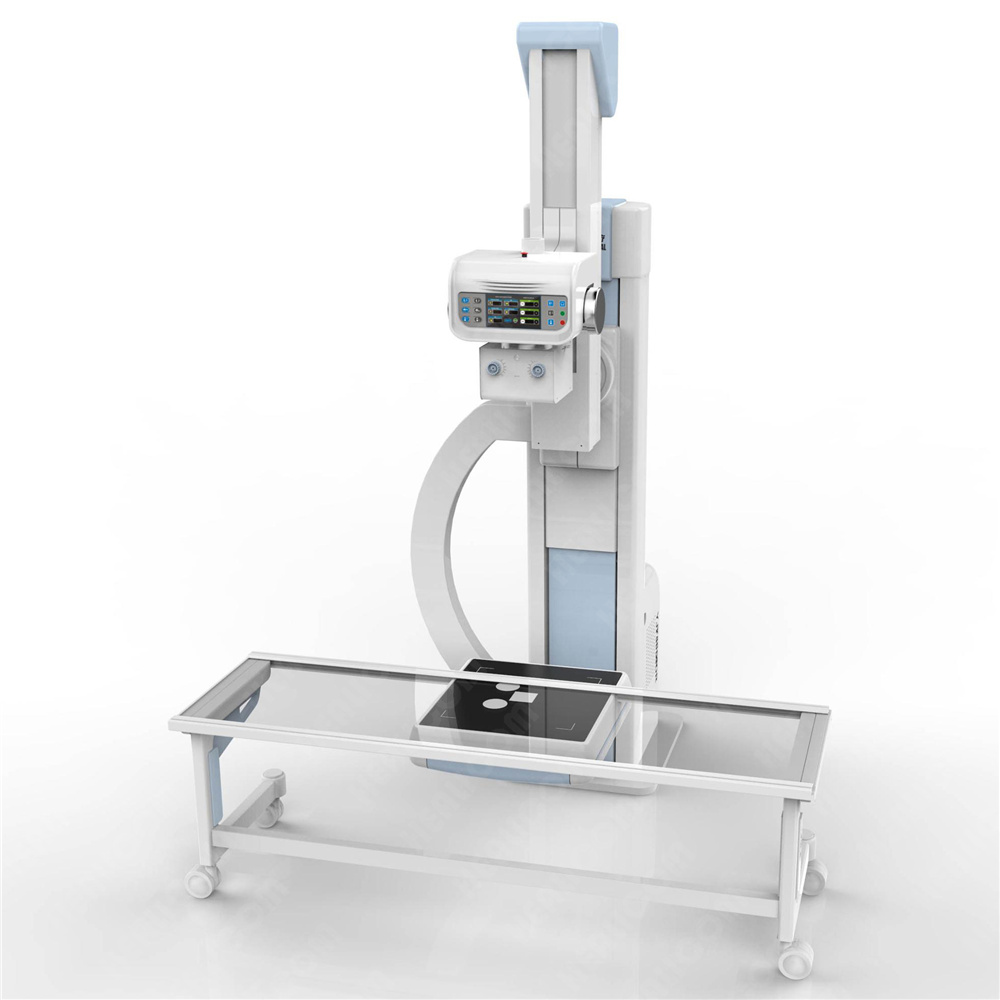

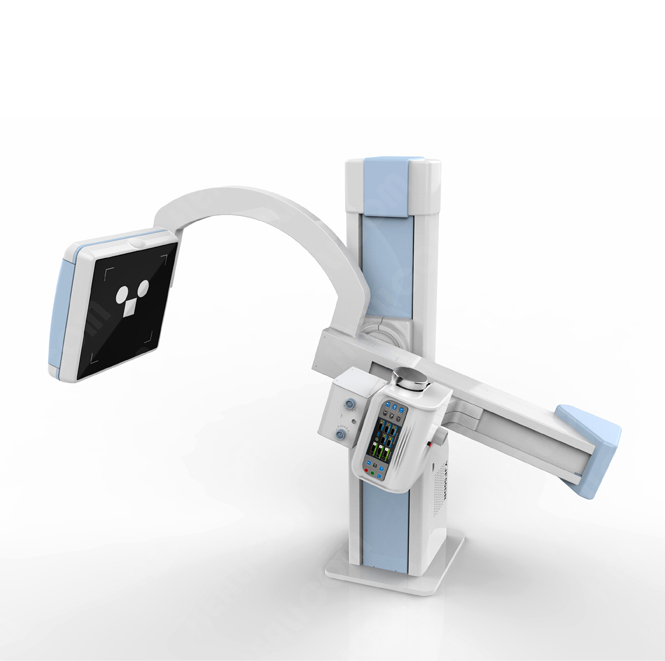

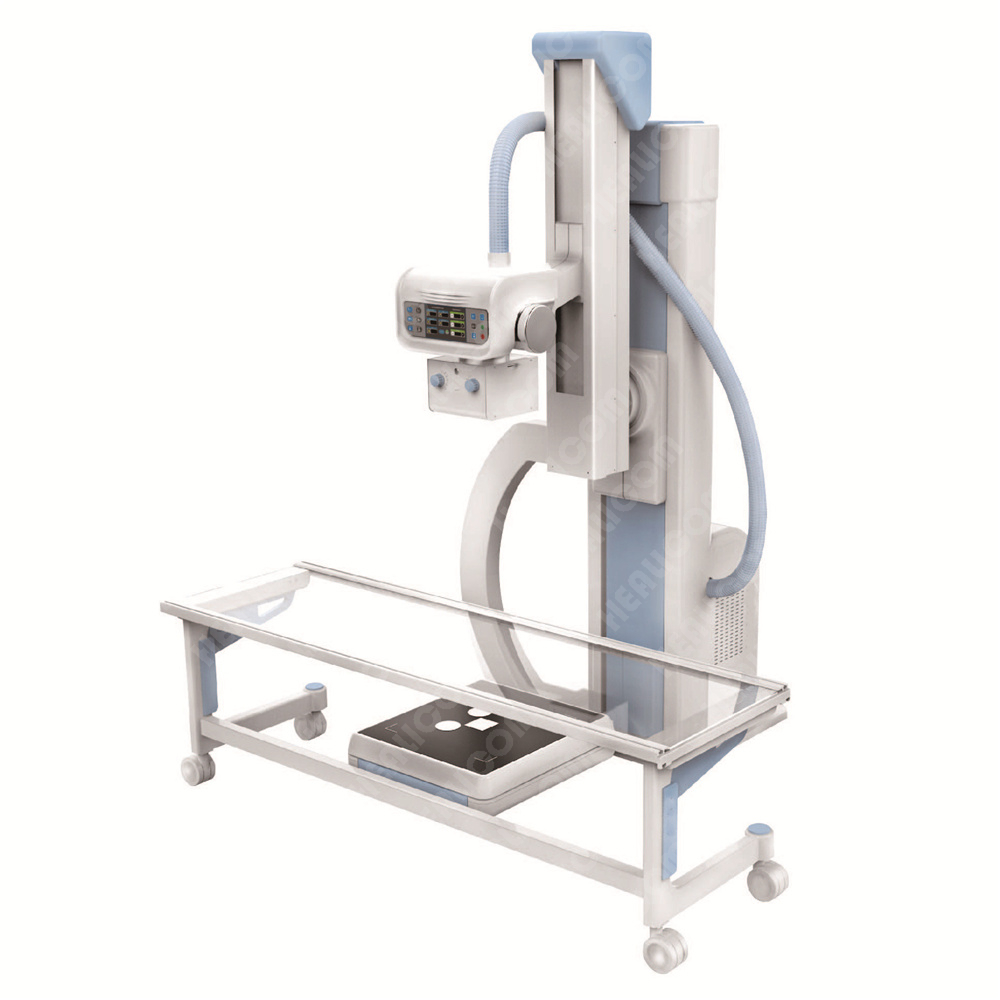

HDR65-U High Frequency 65KW Digital U-arm DR X Ray Machine

Features

1. LCD handle bar control mA, kV

2. Meet whole Body position imaging

3. X-ray tube and detector tracks synchronously

4. Easy installation, easy using, easy maintenance

5. Accurate remote control outside shielding room

6. One-button positioning, automatic tracking function

7. Electrodynamic DR bracket multi-angle full electric control



Technical specifications



X-ray Generator
(include console)
Output Power
65KW
Power Voltage
380V±38V
kV range
40~150kV
mA range
10~800mA
mAs range
0.1 ~630mAs
Loading time
2~10000mS

X-ray Tube
Small focus
0.6
Large focus
1.2
Anode speed
9700r/min

Collimator
Inherent filtration
1.0mm Al /75kV
Light Source
LED

Radiographic Table
Top Table Size
2020mmX690mmX680mm
Load-bearing
Less than 200kg
Movement
Wheels

DR Machine Frame
Up&Down Moving Range
700mm ~ 1700mm
Rotating Range
0°~ 105°
SID
1000mm ~ 1800mm



Wire Flat Panel Detector
Size
17X17inch
Scintillator
CSI
Pixels
3328*3328
Resolution
3.9
AD Conversion
16


Computer& LCD
CPU
≥2.8GHz
Memory
≥8GB
Disk Capacity
≥1T
Medical LCD
23inch

5

X-ray generator

1. Fault self-diagnosis and protection

2. Automatic calibration of tube current

3. Infrared photoelectric switch for four-way table

4. X-ray tube has the function of filament dormancy

5. AEC function, different ionization chamber as optional

6. Analog - digital double - loop control, simple operation, high intelligence

7. High kV, high current, high power, strong penetration, able to handle obese patients


Profession Acquisition Software

1. Support Multi-languages

2. Support professional tools

3. Support different brand of X-ray generators

4. Support RIS/PACS/DICOM Printer Connection



Professional DR workstation

1. Image capture

2. Print and storage

3. Image post-processing

4. Patient management
