HDR50B Hospital Orthopedics Digital Xray System X-Ray Radiography Machine

The HDR50B is a highly versatile medical device, finding extensive applications in multiple medical settings. In orthopedics, it plays a crucial role in diagnosing fractures, joint disorders, and spinal issues. In the emergency room, it serves as an essential tool for rapid assessment of trauma patients. During surgical procedures in the operating room, it provides real - time imaging support. Capable of examining the human head for potential injuries or tumors, limbs for fractures or soft tissue problems, chest for lung conditions, and spine and lumbar spine for herniated discs or spinal fractures, the HDR50B ensures accurate medical diagnosis across a wide range of body parts.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HDR50B

  • Healicom

Product Description

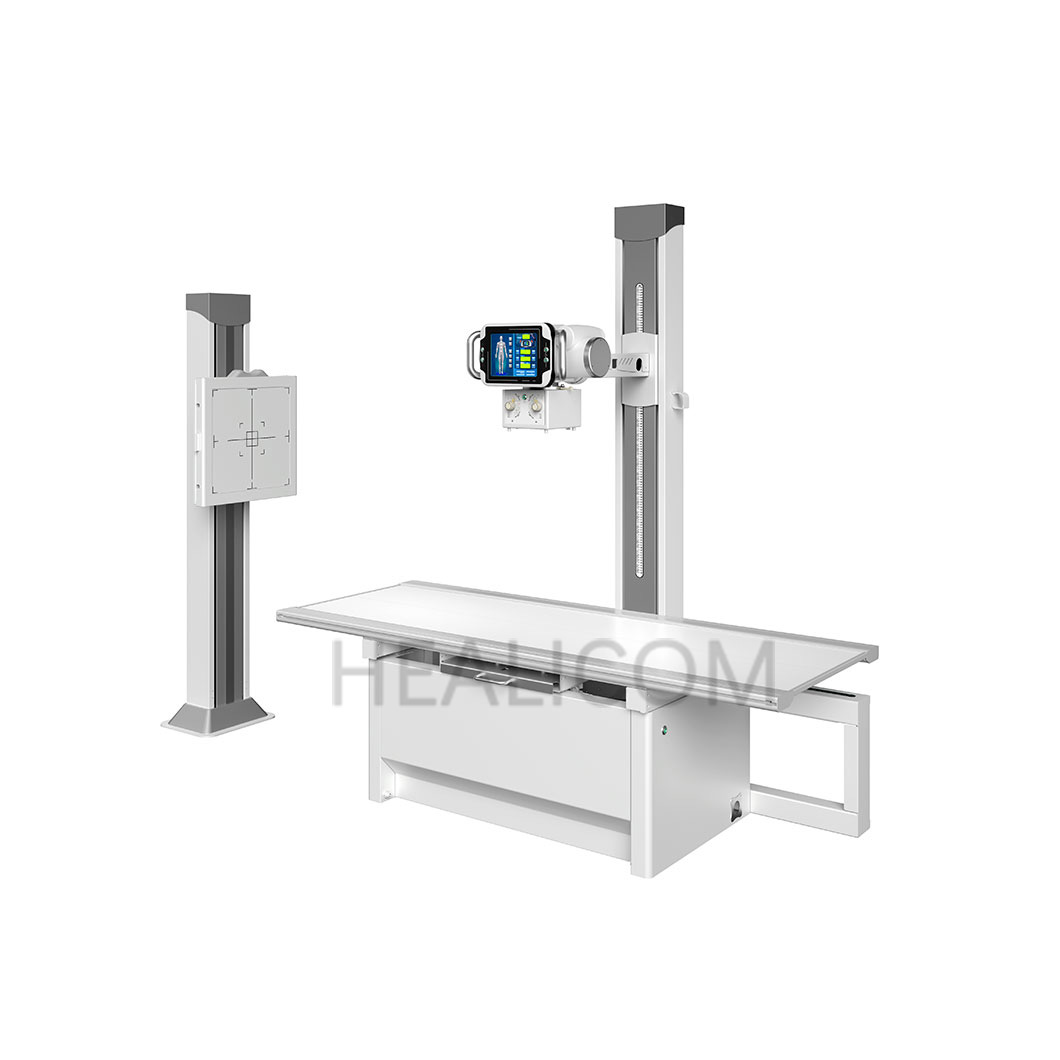

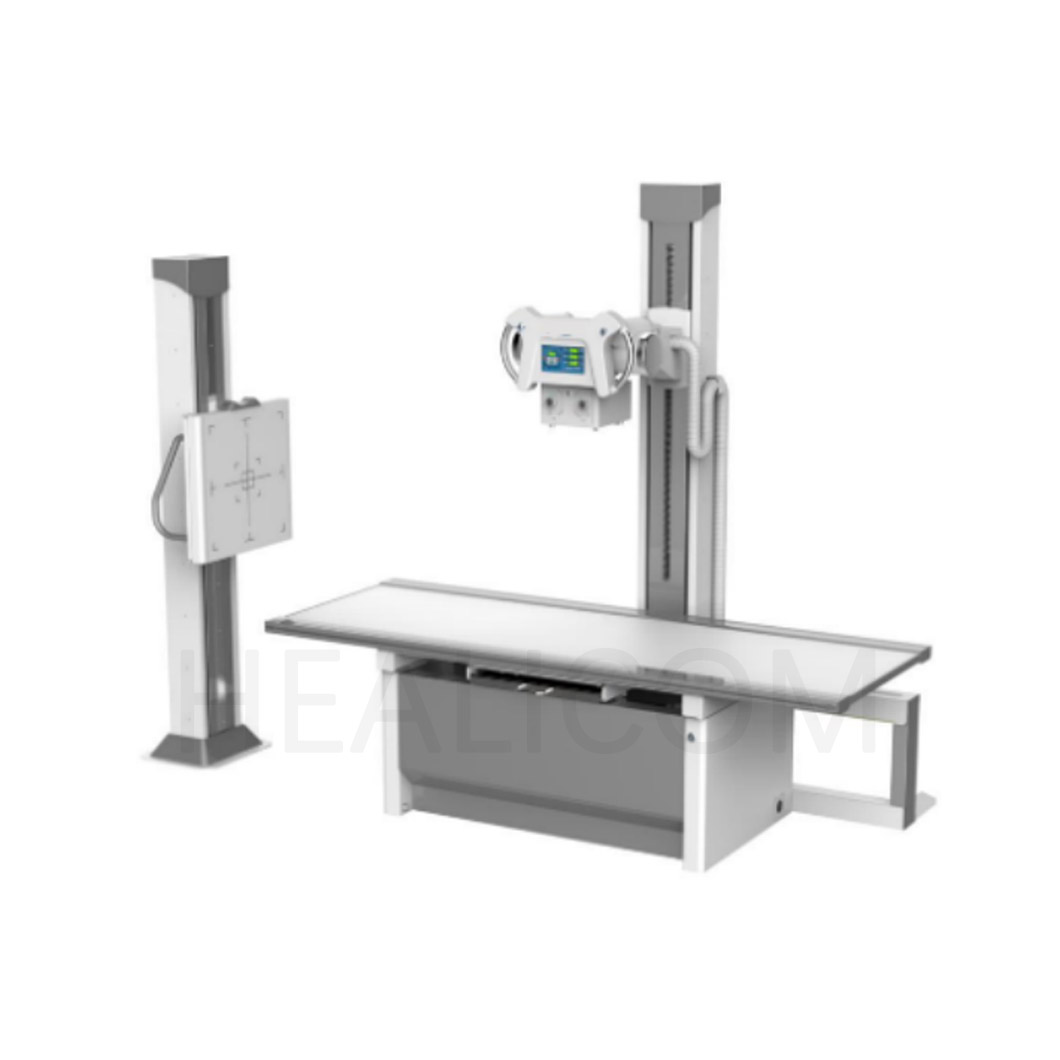

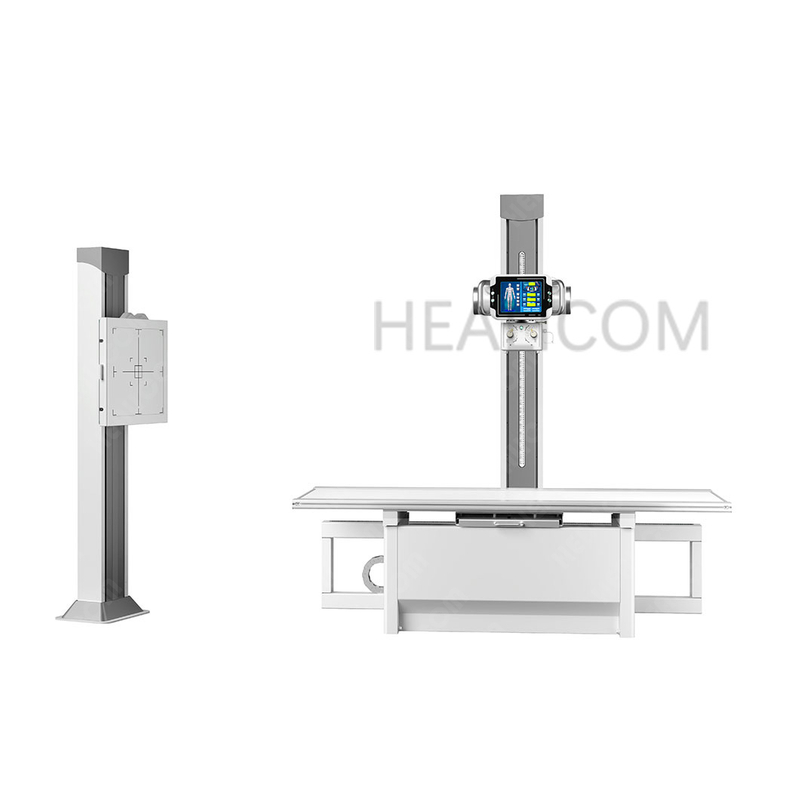

HDR50B High Frequency Digital X Ray Radiography System Xray Machine

1H

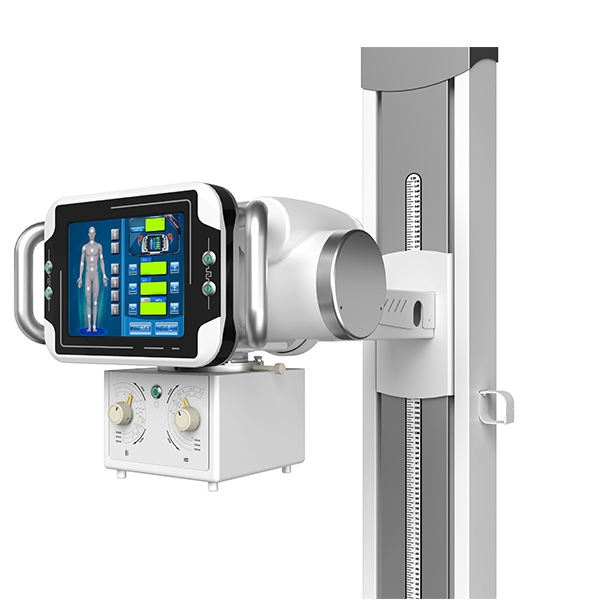

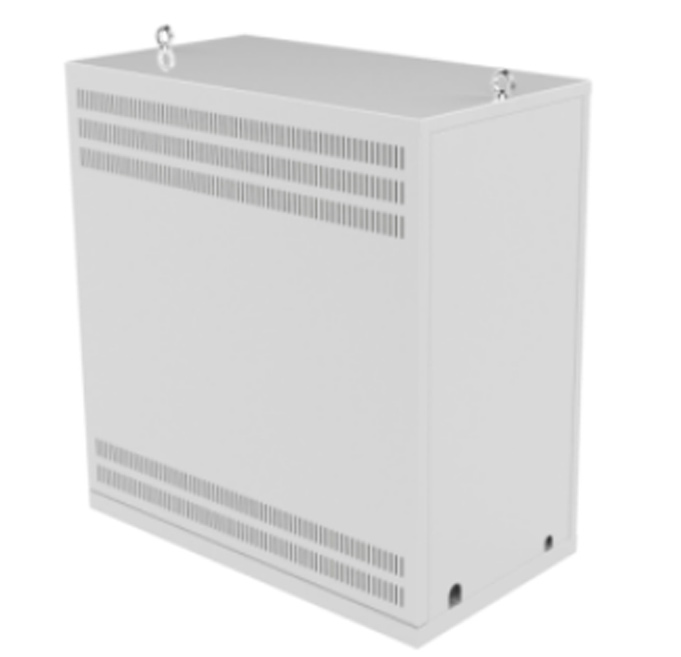

X-ray generator
Rich DR upgrade reserve interface
Fault self-diagnosis and protection
Automatic calibration of tube current
Infrared photoelectric switch for four-way table
X-ray tube has the function of filament dormancy
AEC function, different ionization chamber as optional
Analog - digital double - loop control, simple operation, high intelligenc
High kV, high current,high power,strong penetration,able to handle obese patients


图层 3
图层 5


图层 6
图层 2
图层 4
图层 7
Main Component Technical Spe

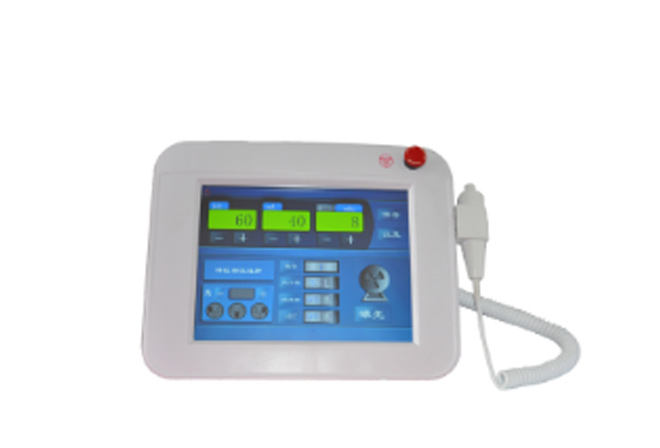

X-rayGenerator(include console)
Output Power
50KW
Power Voltage
380V±38V
kV range
40~150kV
mA range
10~630mA
mAs range
0.1~630mAs
Exposure time
0.002~6.3S

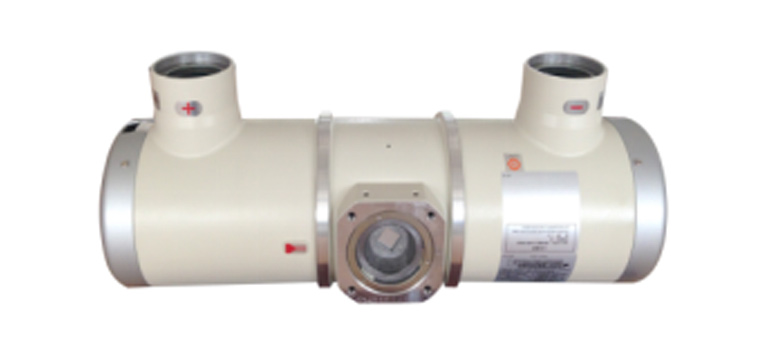

X-ray Tube
Small focus
0.6
Large focus
1.2
Anode speed
3000r/min
Collimator
Inherent filtration
1.0mm Al/75kV
Light Source
LED


Radiographic Table
Top Table Size
2100X800X650mm
Bucky Size
18X18inch

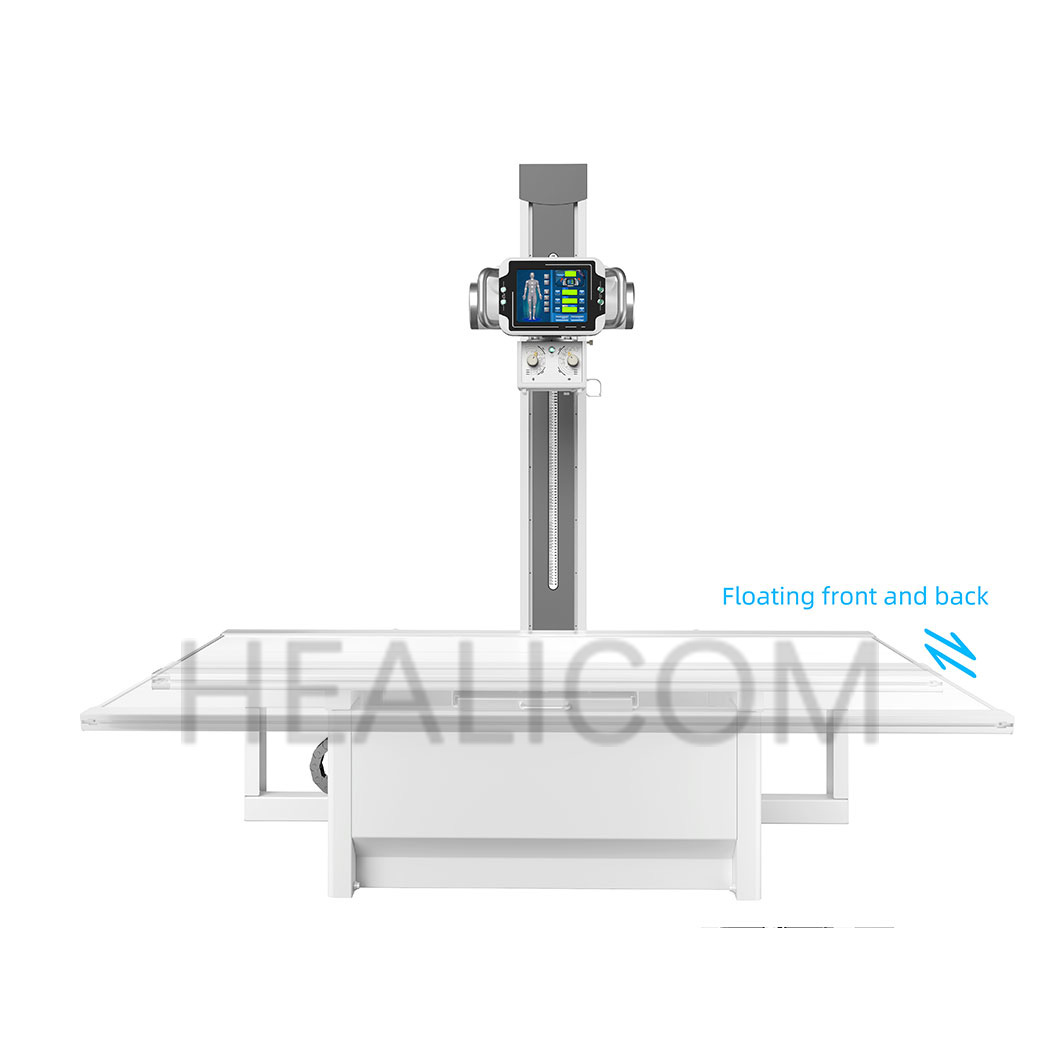

Table longitudinal movement
≥900mm
Cassette Movement Distance
≥500mm
Vertical Chest Stand
Vertical moving range
≥1200mm
Bucky Size
18X18inch

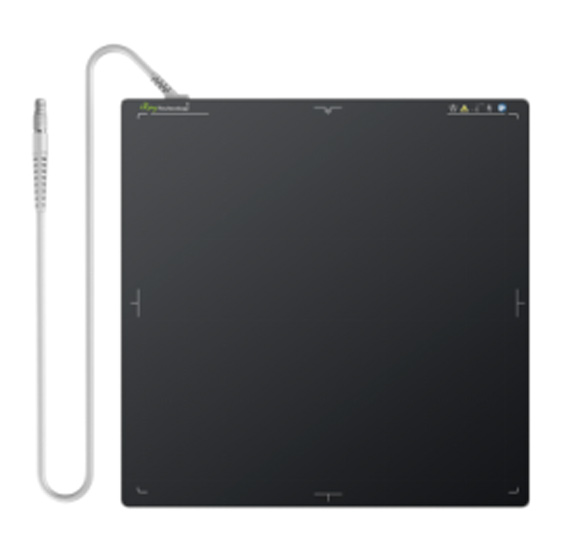

Wire Flat Panel Detector
Size
17X17inch
Scintillator
CSI
Pixels
3072*3072
Resolution
3.6
AD Conversion
16

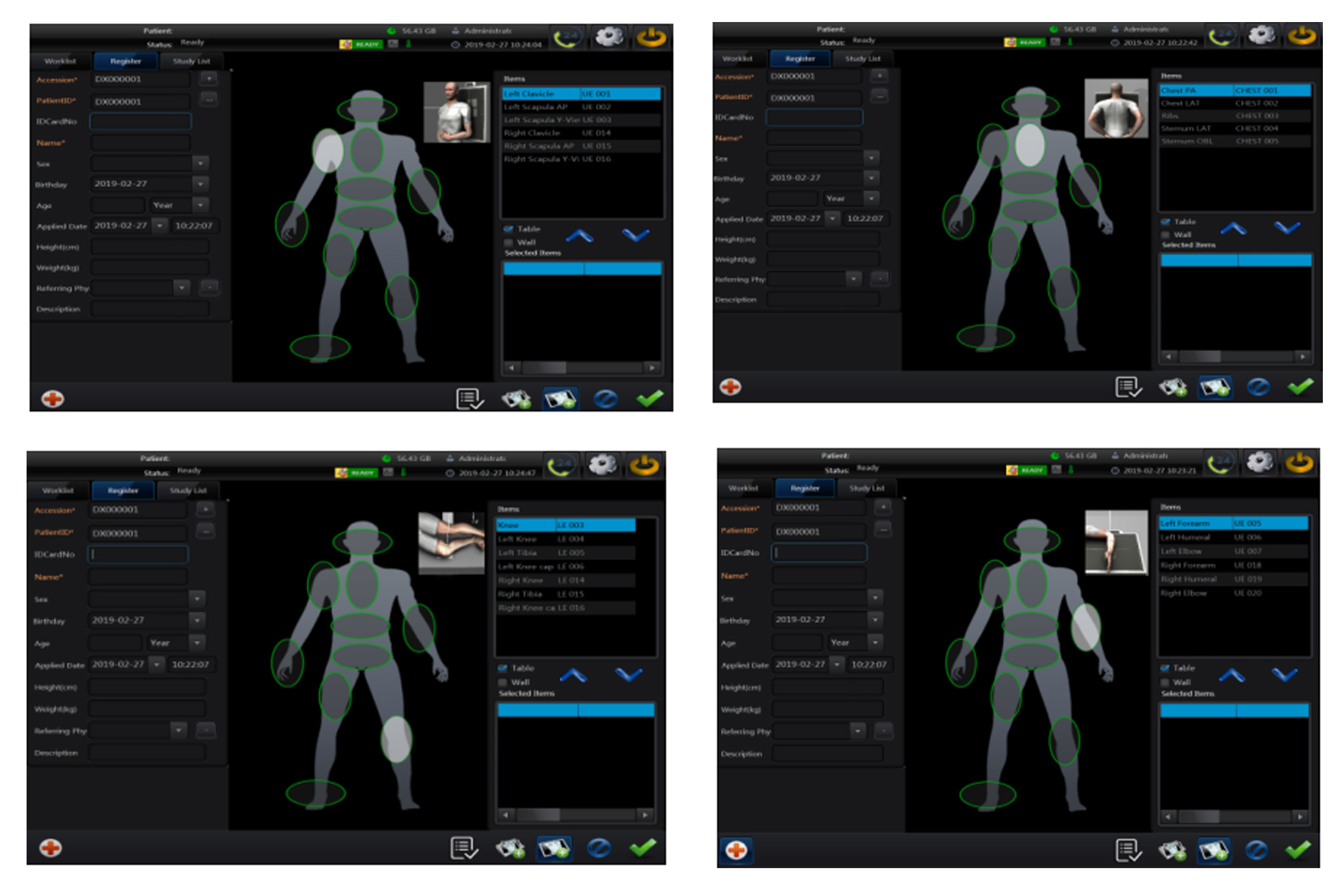

图层 8

1

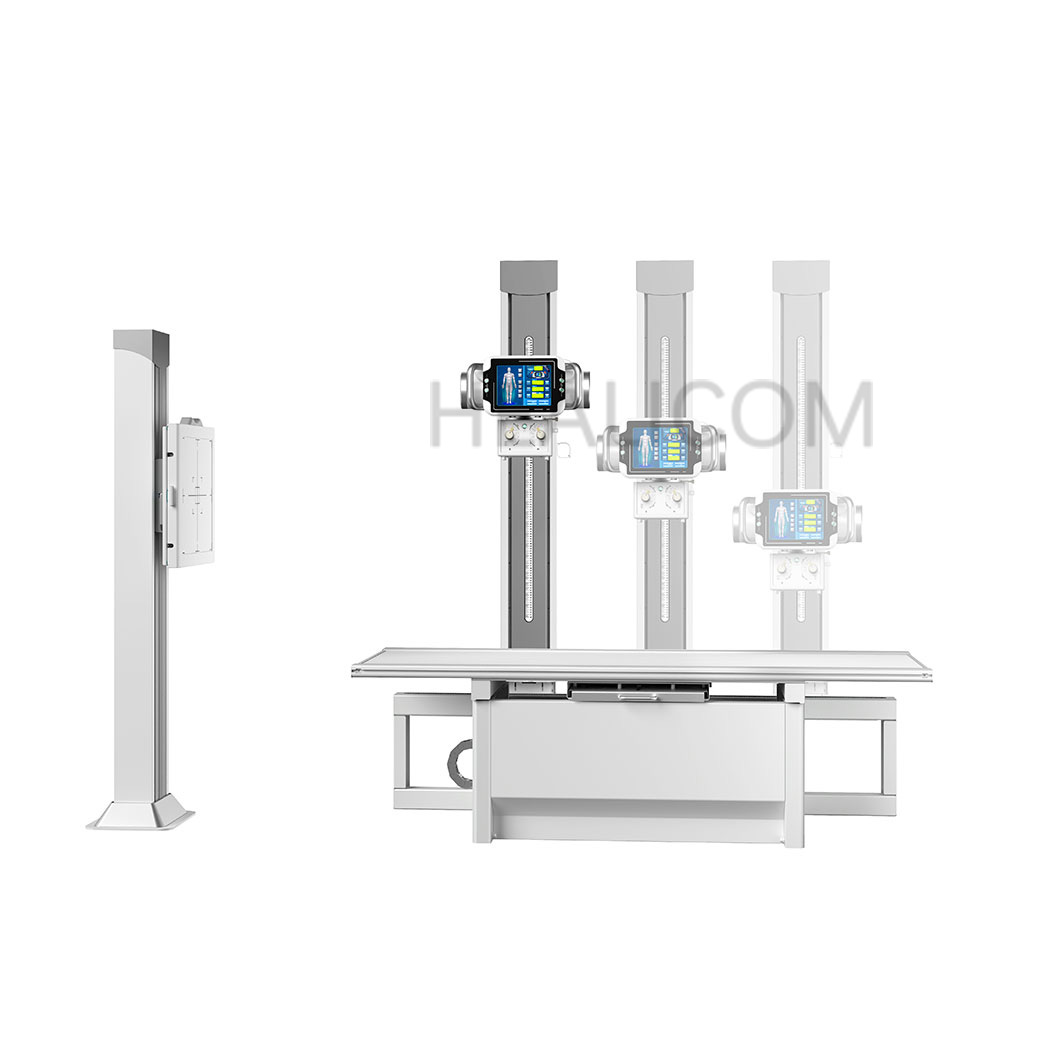

2

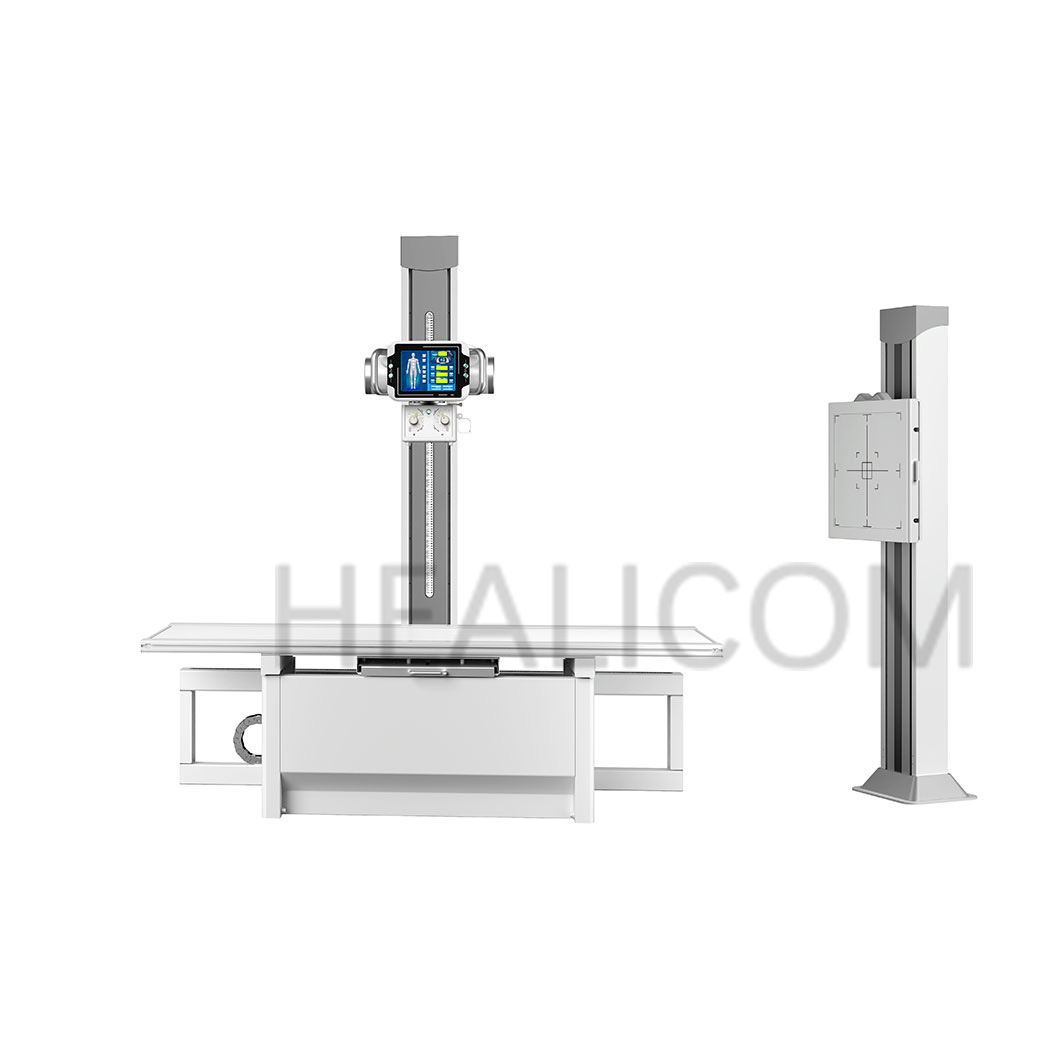

5

6

图层 9
