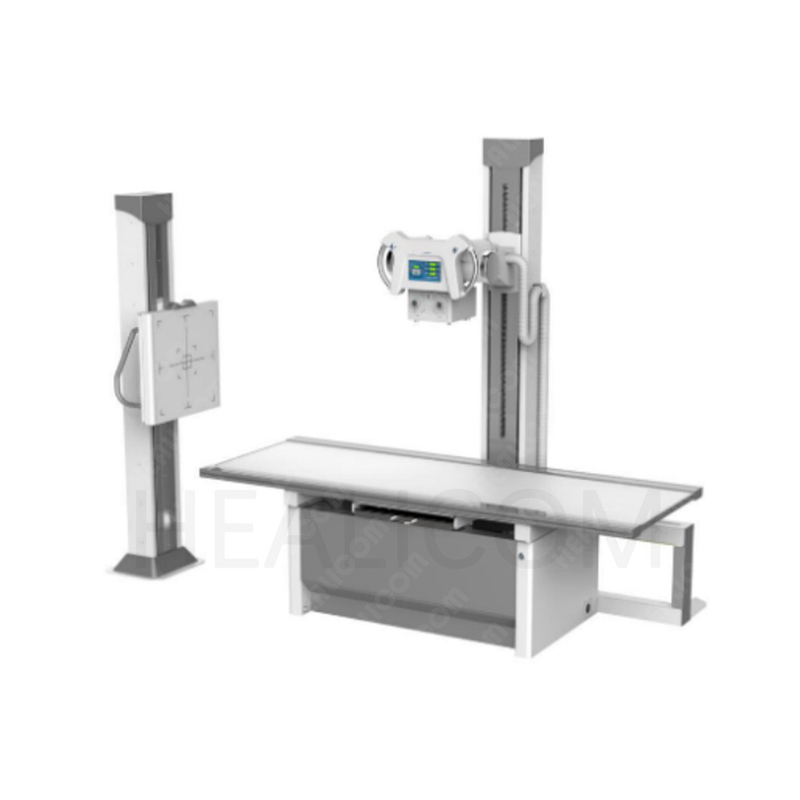

HDR32 Medical X-ray Equipment 32KW Digital X-Ray Photography System

The HDR32 Medical XRay Equipment is a 32KW Digital XRay Photography System Machine now on a big promotion. With a power output of 32KW, it can operate on both 380V and 220V power supplies. It features a dual - focus X-ray tube, with a small focus of 0.6 and a large focus of 1.2. The kV range spans from 40 to 125kV, and the mA range is 32 - 400mA. Equipped with a Chinese - brand Xray tube and a 17*17 Wire Flat Panel Detector from the Chinese IRAY brand, it offers reliable and high quality imaging for various medical examinations.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • HDR32

  • Healicom

Product Description

HDR32 High Frequency Digital X Ray Radiography System Xray Machine

1H


X-ray Generator Features:

The system is equipped with a high-performance X-ray generator, offering rich DR upgrade reserve interfaces for future expansion. It includes fault self-diagnosis and protection for enhanced reliability and safety. The automatic tube current calibration ensures consistent performance, while the filament dormancy function of the X-ray tube prolongs its lifespan. With AEC (Automatic Exposure Control), users can select different ionization chambers for tailored imaging. The analog-digital double-loop control simplifies operation and enhances system intelligence. Designed for high kV, high current, and high power output, it delivers strong penetration capabilities, making it ideal for imaging obese patients and challenging clinical scenarios.

2H

Main Component Technical Spe.

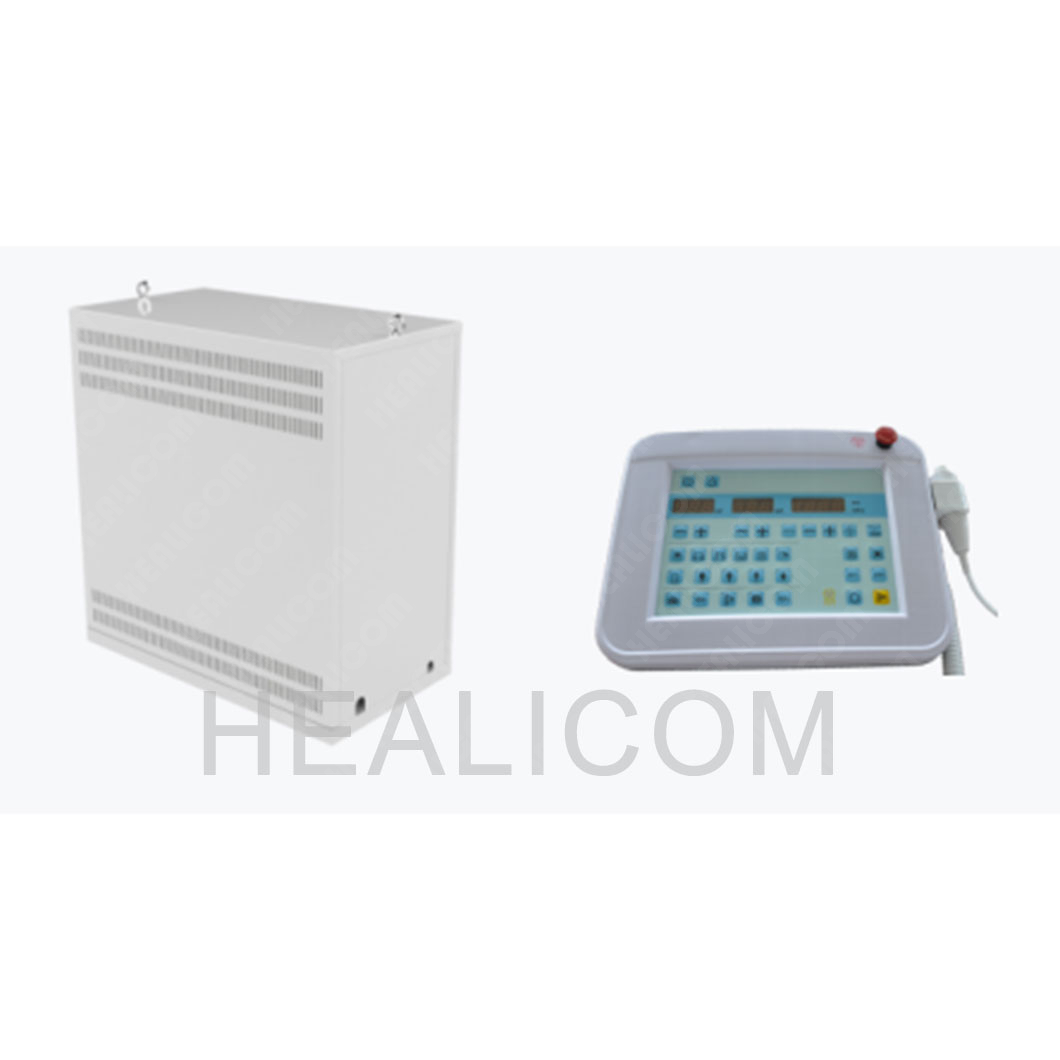

X-ray generator(include console)
Output Power
32KW
Power Voltage
380V/220V
kV range
40~125kV
mA range
32~400mA
mAs range
0.32 ~400mAs
Exposure time
0.002~6.3S


X-ray tube
Anode Heat Storage Capacity
240kHU
Small focus
0.6
Large focus
1.2
Anode speed
3000r/min

Collimator
Inherent filtration
1.0mm Al /75kV
Light Source
LED


Radiographic Table
Top Table Size
2100X800X650mm
Bucky Size
18X18inch
Table longitudinal movement
≥900mm
Cassette Movement Distance
≥500mm

Vertical Chest stand
Vertical moving range
≥1200mm
Bucky Size
18X18inch

Double Grid
Size
18X18inch
Ratio
10:1
F.D.
100cm
Density
40 L/cm

4H

3H

5H
