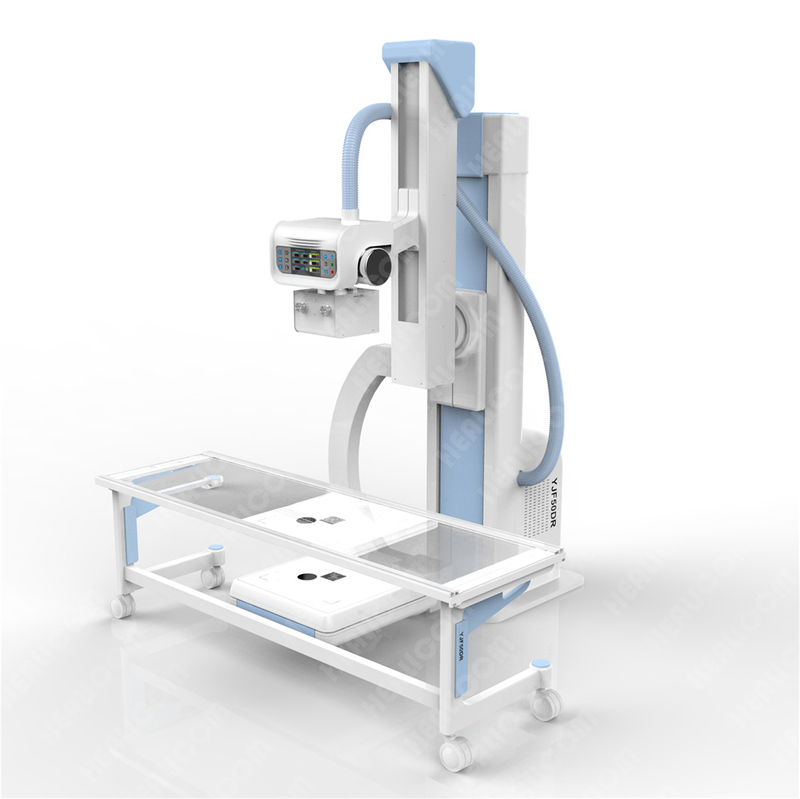

HDR50-U
Healicom
Product Description
Features
1. Fault self-diagnosis and protection
2. Automatic calibration of tube current
3. X-ray tube has the function of filament dormancy
4. AEC function, different ionization chamber as optional
5. Analog - digital double - loop control, simple operation, high intelligence
6. High kV, high current, high power,strong penetration,able to handle obese patients
| Technical Specifications | ||
| X-ray Generator (include console) | Output Power | 50KW |
| Power Voltage | 380V±38V | |
| kV range | 40~150kV | |
| mA range | 10~630mA | |
| mAs range | 0.1 ~630mAs | |
| Exposure time | 0.002~6.3S | |
| X-ray Tube | Small focus | 0.6 |
| Large focus | 1.2 | |
| Collimator | Inherent filtration | 1.0mm Al /75kV |
| Light Source | LED | |
| Radiographic Table | Top Table Size | 2020mmX690mmX680mm |
| Load-bearing | Less than 200kg | |
| Movement | Wheels | |
| DR Machine Frame | Up&Down Moving Range | 700mm ~ 1700mm |
| Rotating Range | 0°~ 105° | |
| SID | 1000mm ~ 1800mm | |
| Wire Flat Panel Detector | Size | 17X17inch |
| Scintillator | CSI | |
| Pixels | 3072*3072 | |
| Resolution | 3.6 | |
| AD Conversion | 16 | |
| Computer& LCD | CPU | ≥2.8GHz |
| Memory | ≥4GB | |
| Disk Capacity | ≥1T | |
| ≥1T | 23inch | |
