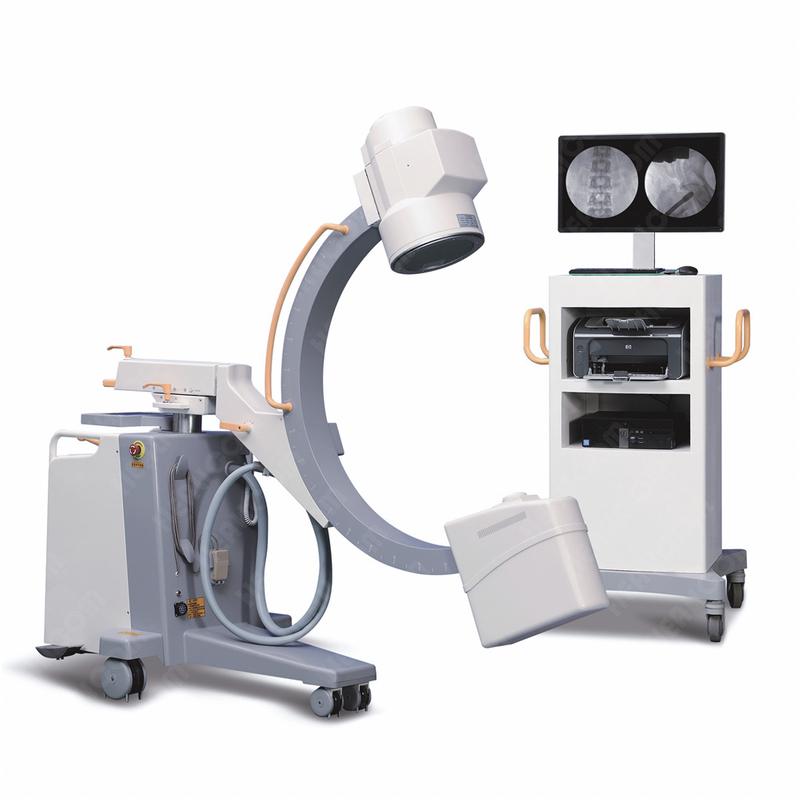

HCX-20/30D
Healicom
Product Description
1. With HF & HV generator, inverter, and High quality image intensifier, the x ray generator can work stably. It also reduces the damage for the doctors caused by radiation.
2. 10.4" LCD friendly interface control board: easy operation and can be rotated to 180° (L90°, R90°) Compared with ordinary key
board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in Chinese, which will improve the
efficiency of fault diagnosis.
3. Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
4. With a steering handle, it can adjust the direction quickly when moving. And parallel movement function is also available.
5. Equipped with unique block line wheels, it can avoid accident when the machine moves.
6. Large free space in arc: the space can reach 800mm, which is convenient for operation.
7. 9"/6"/4.5" three fields of vision: it facilitates diagnosis of partial enlargement.
8. CCD camera with rotation function: range of camera rotation: 360°.
9. Original Korean linear slide rail can make the movement of the machine flexibly.
10. Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.
Technical Specifications | ||
Model | HCX-20D | HCX-30D |
HF generator | 110kV, 3.5kW, 40kHz | 120kV, 5kW, 40kHz |
Fluoroscopy mode | Fluoroscopy mode 40-110Kv, 0.5-5mA (KV manual and automatic); Pulsed fluoroscopy 40-110kv, 0.5-5mA Boost fluoroscopy 40-110kV, 5-10mA; Photography 40-110kV, 1-250mAs | Fluoroscopy mode 40-120Kv, 0.5-5mA (KV manual and automatic); Pulsed fluoroscopy 40-120kv, 0.5-5mA Boost fluoroscopy 40-120kV, 5-10mA; Photography 40-120kV, 1-250mAs |
X ray tube | Dual-focus fixed anode: 0.6mm/1.5mm Italy IMD Technology | Dual-focus Rotating anode: 0.3mm/0.6mm Italy IMD Technology |
Image intensifier | Three fields of vision 9, 6, 4.5 French Thales Brand | |
CCD camera | Japanese Watt Brand, 360° rotation | |
Image system | Recursive Noise Reduction Frame freezing Multi frame image storage Image conversing and rotating Screen display with image comparison | |
Mechanical motion specifications | Vertical travel: 0-400mm Horizontal travel: 0~200mm Rotation about horizontal axis: ±180° | |
C-arm Dimension | Distance of focal spot to image generator (SID): 1000mm Depth in arm ≥650mm Mobile stand: 1800mm*800mm*1850mm Image system: 750mm*530mm*1680mm | |
Standard Configuration | High resolution CCD camera: 1set x-ray generator: 1set 9” image intensifier: 1set Image processor: 1set 24'' LCD high definition display 1 setMobile stand :1 set | |
