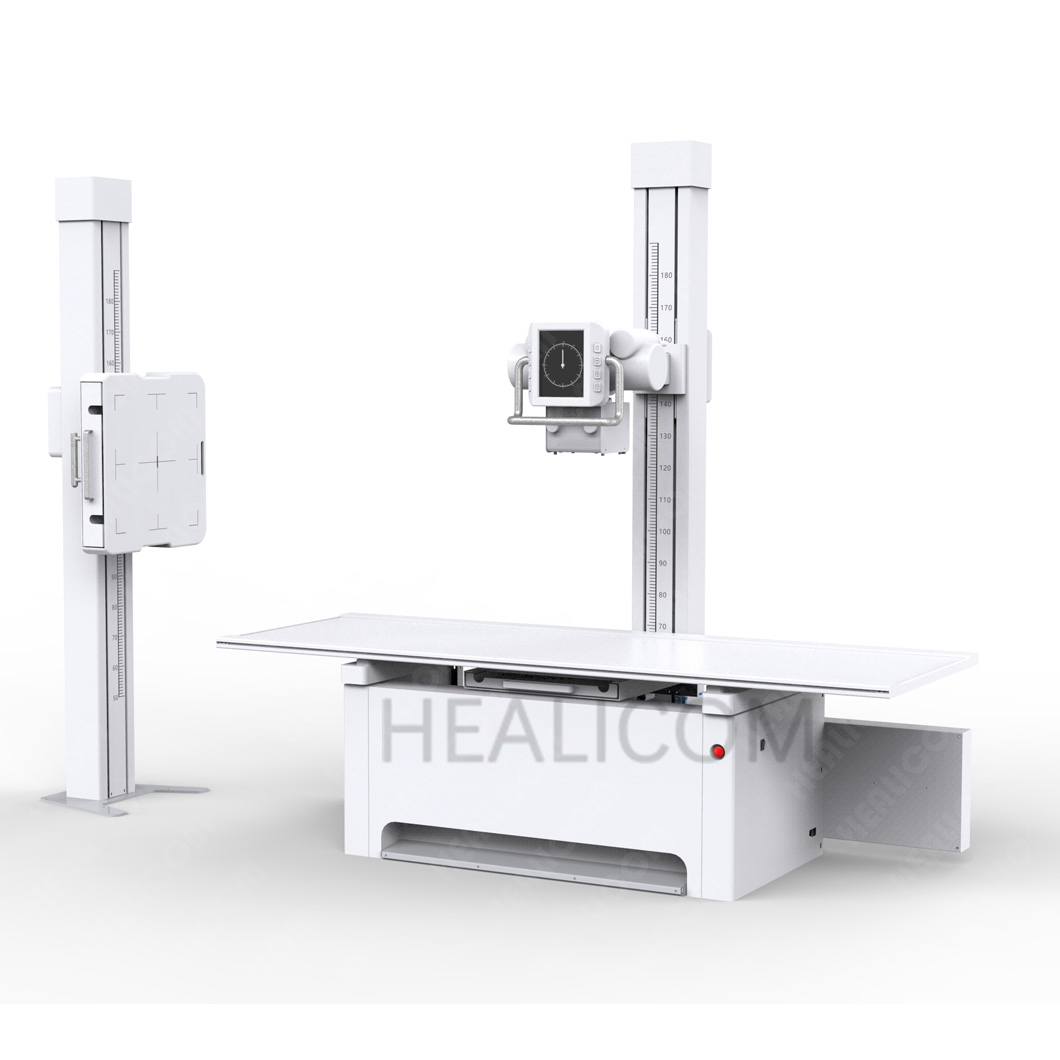

HDR50E High Frequency 50KW Digital Radiography System Stationary X Ray Machine

The HDR50E is a remarkable medical imaging device with several outstanding features. Its high - precision aluminum profile columns are a key highlight. These columns not only ensure smooth and stable movement during operation but also contribute to an extended product lifespan, reducing maintenance costs over time.Complemented by a unique appearance design, the HDR50E stands out in the medical equipment landscape, combining aesthetics with functionality. Additionally, its extra - large range of motion allows medical professionals to position the device with great flexibility, catering to various patient - specific examination requirements and enhancing the overall quality of medical imaging procedures.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HDR50E

  • Healicom

Product Description

HDR50E High Frequency Digital X Ray Radiography System Xray Machine

1

Main Features:

-High-precision aluminum profile columns provide smooth movement and long product life. -Unique appearance design -Extra large range of motion

Parameter
Output power
50kW
Rating voltage
380VAC,±10%,50Hz/60Hz 3phaxe
Inverter frequency
25kHz,±10%
kV accuracy
≤±(5%)(mA>25mA,ms>5);
≤±(10%+1mA)(mA≤25mA);
≤±20%(ms≤5)
Kv Range
40kV-150kV,1kv step

mA Range
10-630mA
ms Range
1-6300ms
ms accuracy
≤±(5%+0.2ms)
mAs Range
0.1-630mAs
mAs accuracy
≤±(5%+0.2mAs)


2
