HCX-15A High Frequency Mobile Digital C-arm X Ray Machine

HCX-15A mobile C-arm machine is a versatile solution for orthopedics, neurosurgery, pain management, and emergency rooms. Equipped with a high-frequency generator, it delivers high - definition images with low radiation doses. During orthopedic and interventional surgeries, its user-friendly design offers an unparalleled operating experience. Thanks to the a-Si detector, the 21×21cm image sensor with direct - deposition CsI provides excellent image quality even at low doses, at a frame rate of up to 30 fps. Ideal for vascular and surgical procedures, it's a top-tier choice for mobile C-arm fluoroscopic X-ray systems.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HCX-15A

  • Healicom

Product Description

Medical High Frequency HF Mobile Digital C-arm System

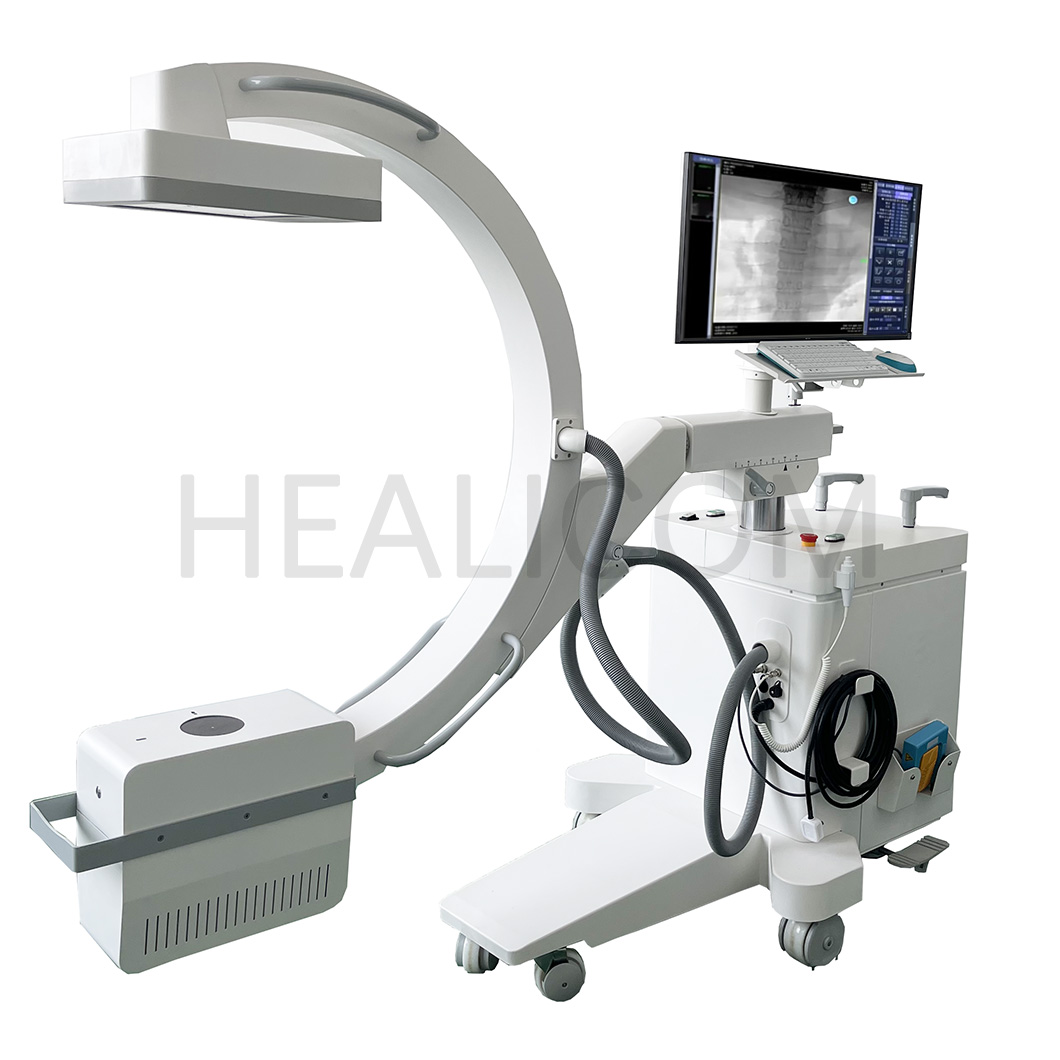

11

Features

· With a compact appearance, and easy to operate.

· High -frequency generator emits high-quality and hard x-rays with strong penetrability.

· 21cm*21cm flat panel detector, which has bigger image size than image intensifier. · Amorphous silicon flat panel makes the surgery more accurate for the clinical operation due to high density resolution and spatial resolution.· High stability oil-cooled heat-resistant combined tube, support long-time image acquisition in surgery, satisfy the requirement of long-time operation.· 34’’ monitor project real-time video and reference images simultaneously for quicker diagnosis and inference .· Microcomputer control system with self-diagnostic function and automatic protection. · Modular design offers error codes and reset button.· Double CPU control improves the stability and safety of the equipment.· Large opening design provides larger free diagnosis spaces, and maximizes the efficiency of surgery environment. · Hand switch, foot switch and remote control make sure that you could do exposure inside and outside the operating theatre.· PACS connectivity with DICOM 3.0 is convenient to send, receive and print images.

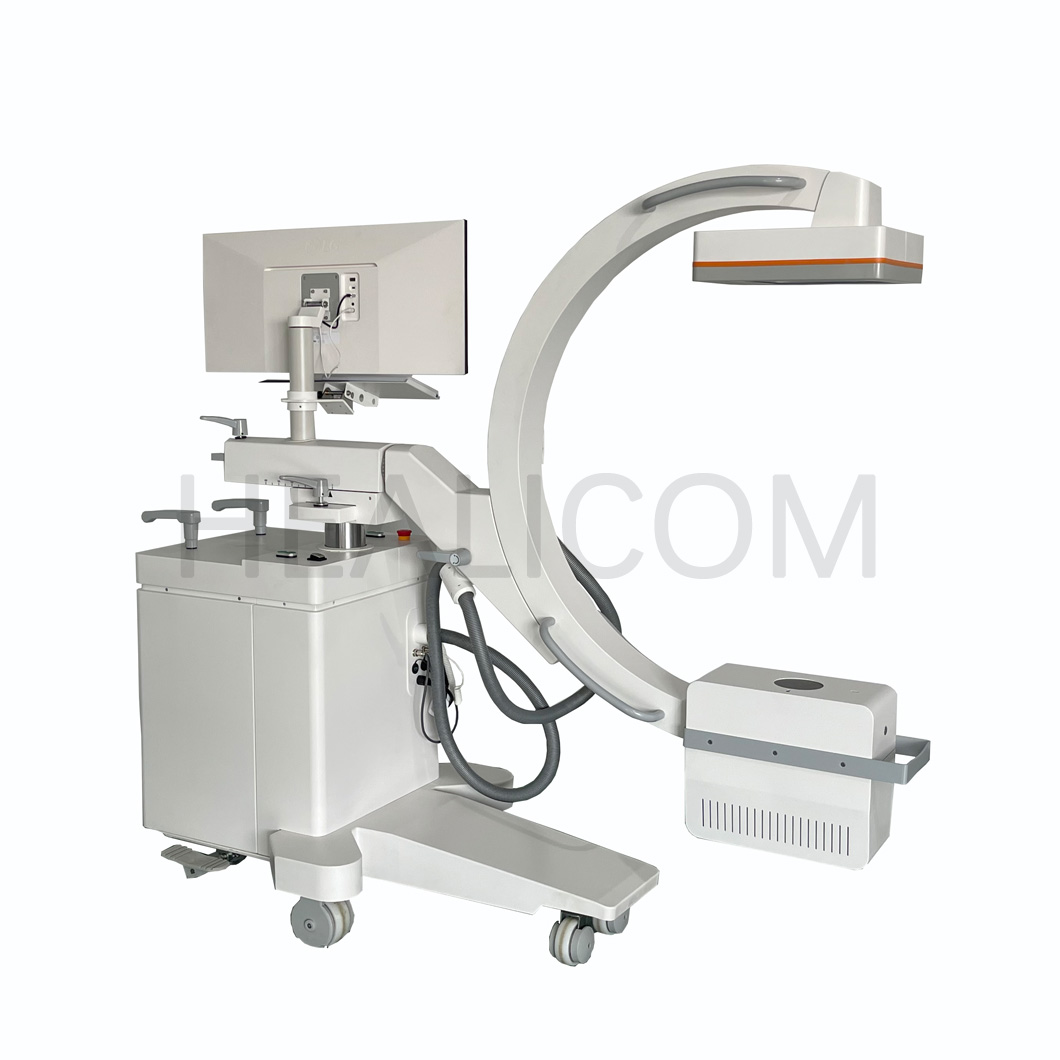

22

Specifications
Ambient Conditions
Ambient temperature
10℃~40℃
Relative humidity
30%~75%
Atmospheric
70~106kPa
X-ray Generator
Output power
15KW
Current of fluoroscopy
0.3-6.3mA
Current of radiography
0.5-150mA
Pulsed mA
32mA
Voltage
40kV-125kV
mAs range
0.2-100mAs
ms range
10-1600ms
X-ray Tube
Anode type
Rotating Anode
Focal Spot value
0.3mm /0.6mm
Rotating anode speed
2800rmp
Anode heat storage
300KHU
Housing Heat Storage Capacity
1200KHU
Flat-panel Detector
Size
21*21cm
Detector Technology
Amorphous Silicon
Scintillator
CsI
Image resolution
2.5lp/mm
Frame rate
MAX 30frames/sec
Active pixels
1024*1024 pixels
A/D conversion
16 bit
Pixel Pitch
205 μm
Faster image capture speed
The image will be displayed on the monitors in 0.8S after exposure.
Grid
Brand
JPI
Ratios
10:1
Density
60l/cm
SID
100cm
C-arm Unit
SID
1000mm
Free space(Tube to I.I)
820mm
Arc depth
640mm
Vertical movement
0-400mm(Electric)
Horizontal movement
0-200mm(Manual)
Planning movement
±15°(Manual)
Orbital movement
-30°-+90°(Manual)
C-arc rotation
±180°
Workstation & Software
Monitor
One set 34’’ LCD HD monitor
Computer memory
500G mass storage.
CPU
2.7GHZ



Software
The image can be step-less rotated continuously for 360°
Flip the Reference image horizontally or vertically
Applies various Gamma values for each image
Last frame frozen
Images can be saved in different formats, such as JPG, DCM, RAW, etc.
DICOM 3.0
Data communication
Data storage etc.

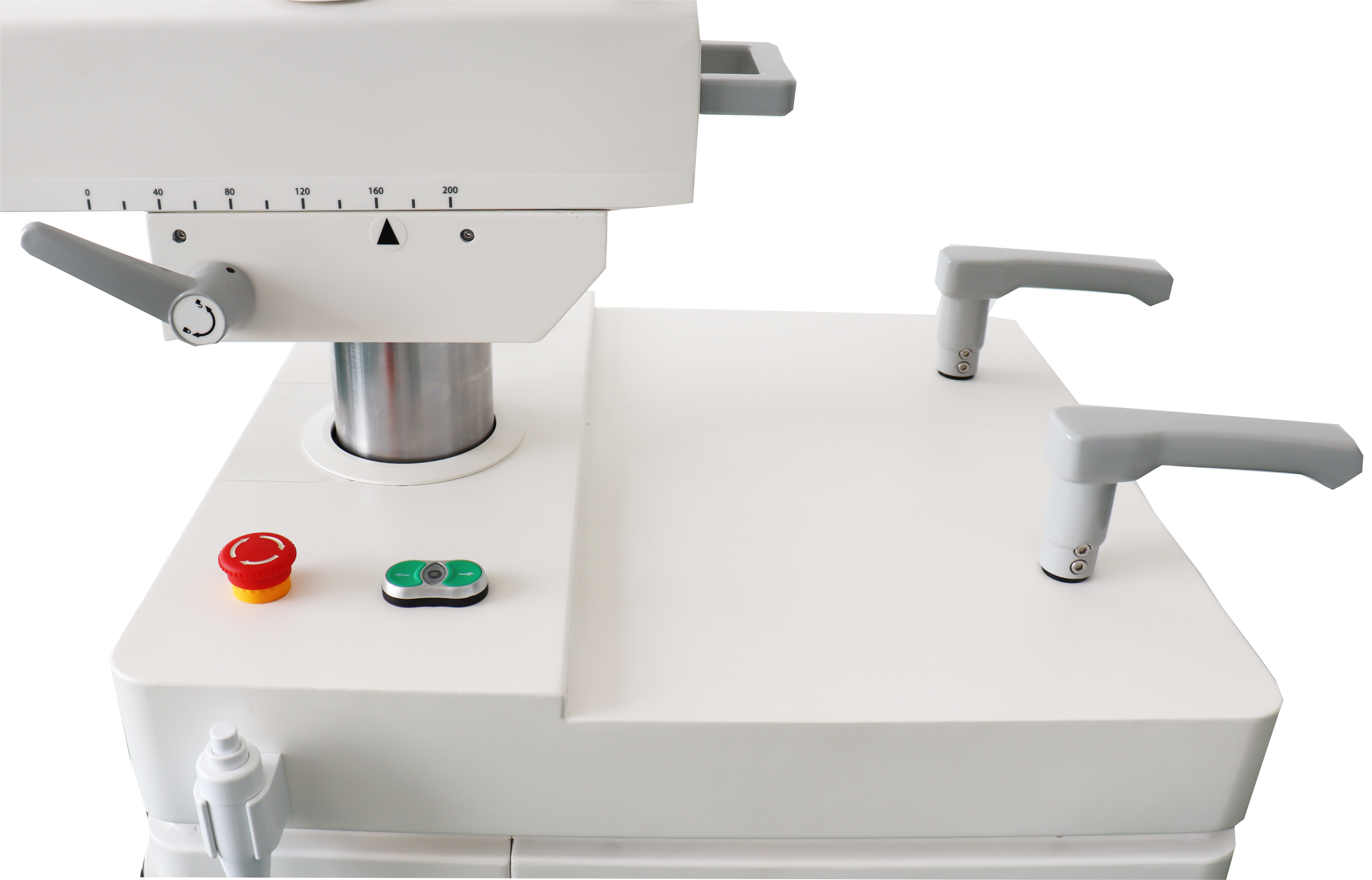

白底图 (12)

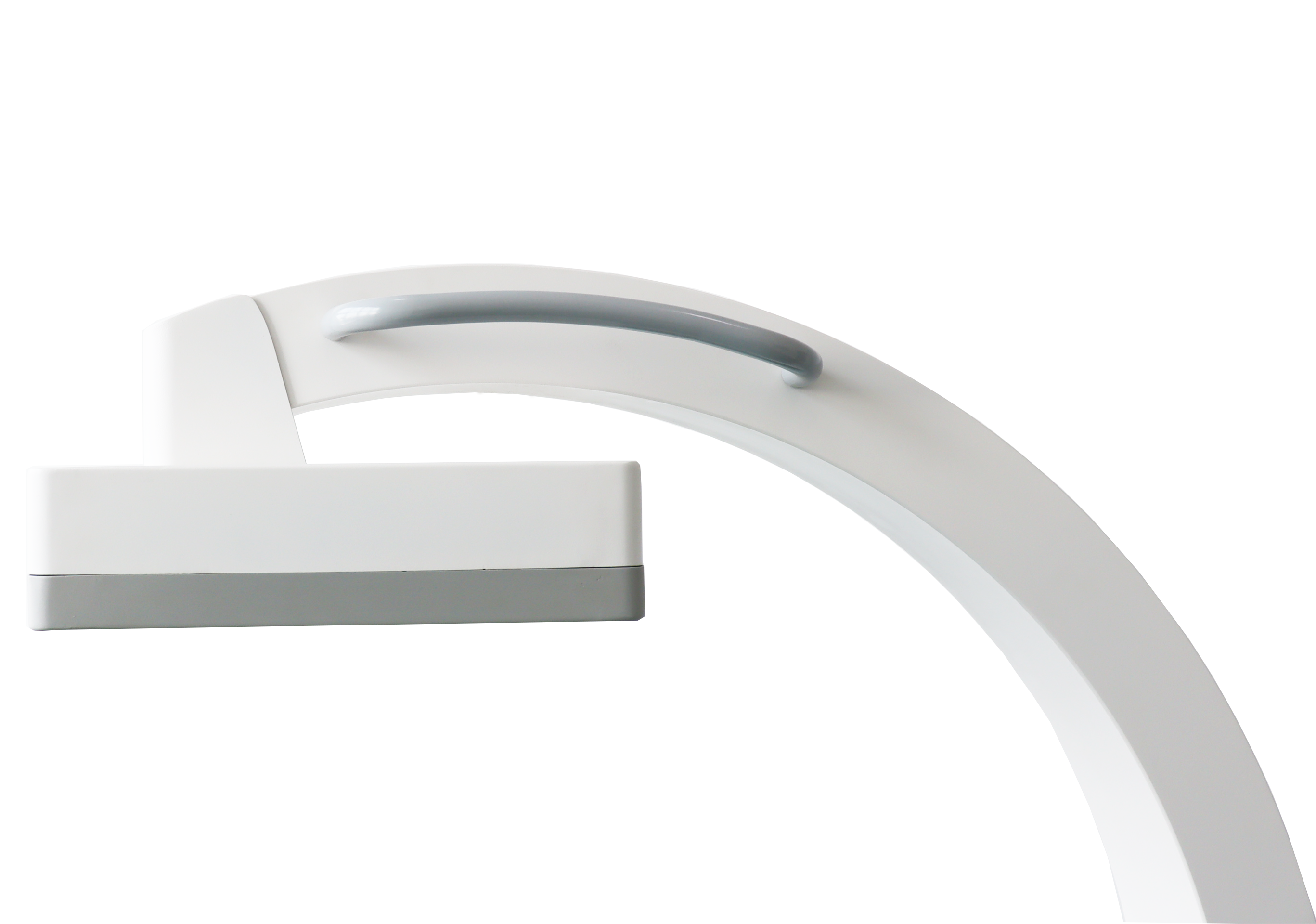

白底图 (13)

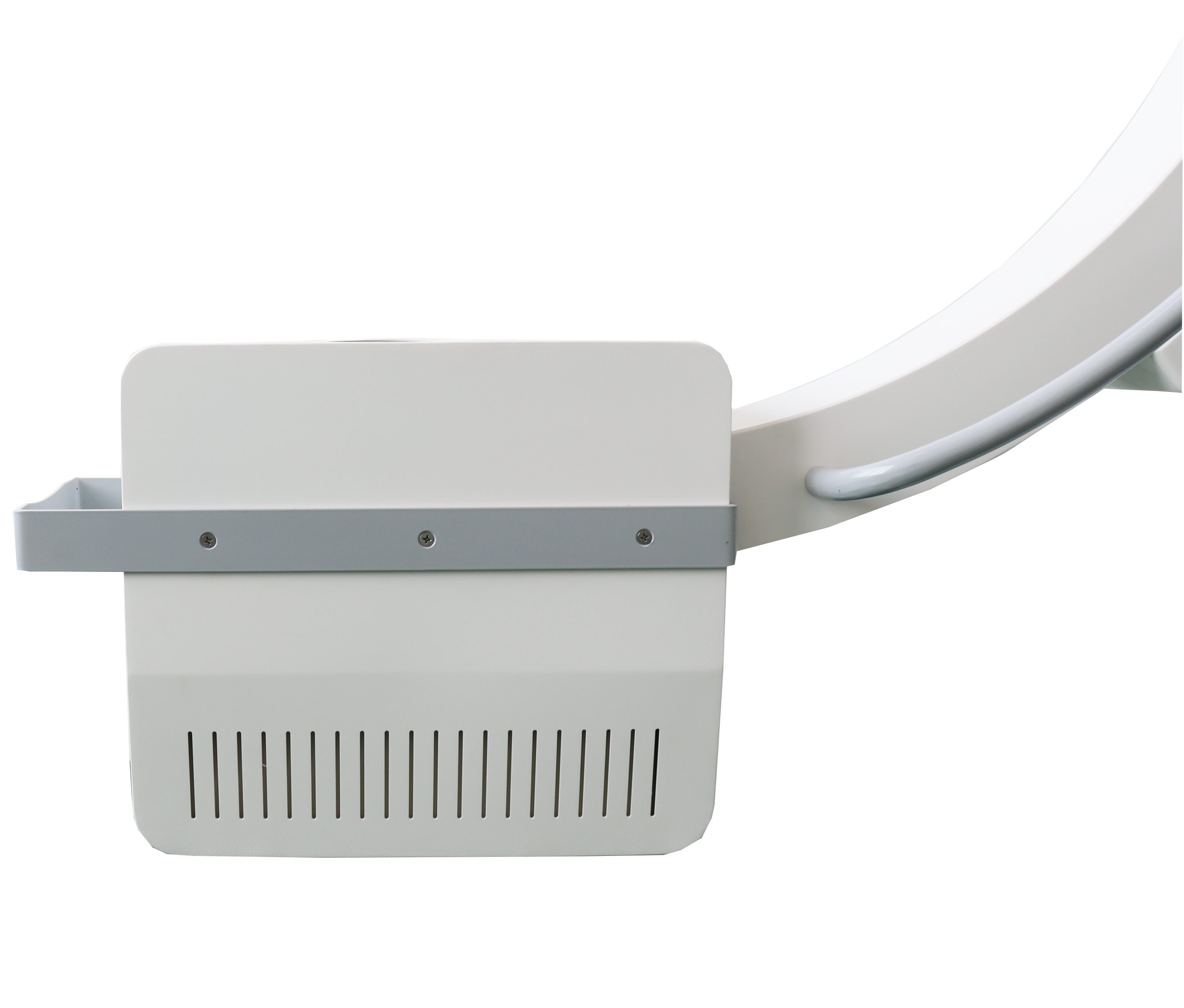

白底图 (14)

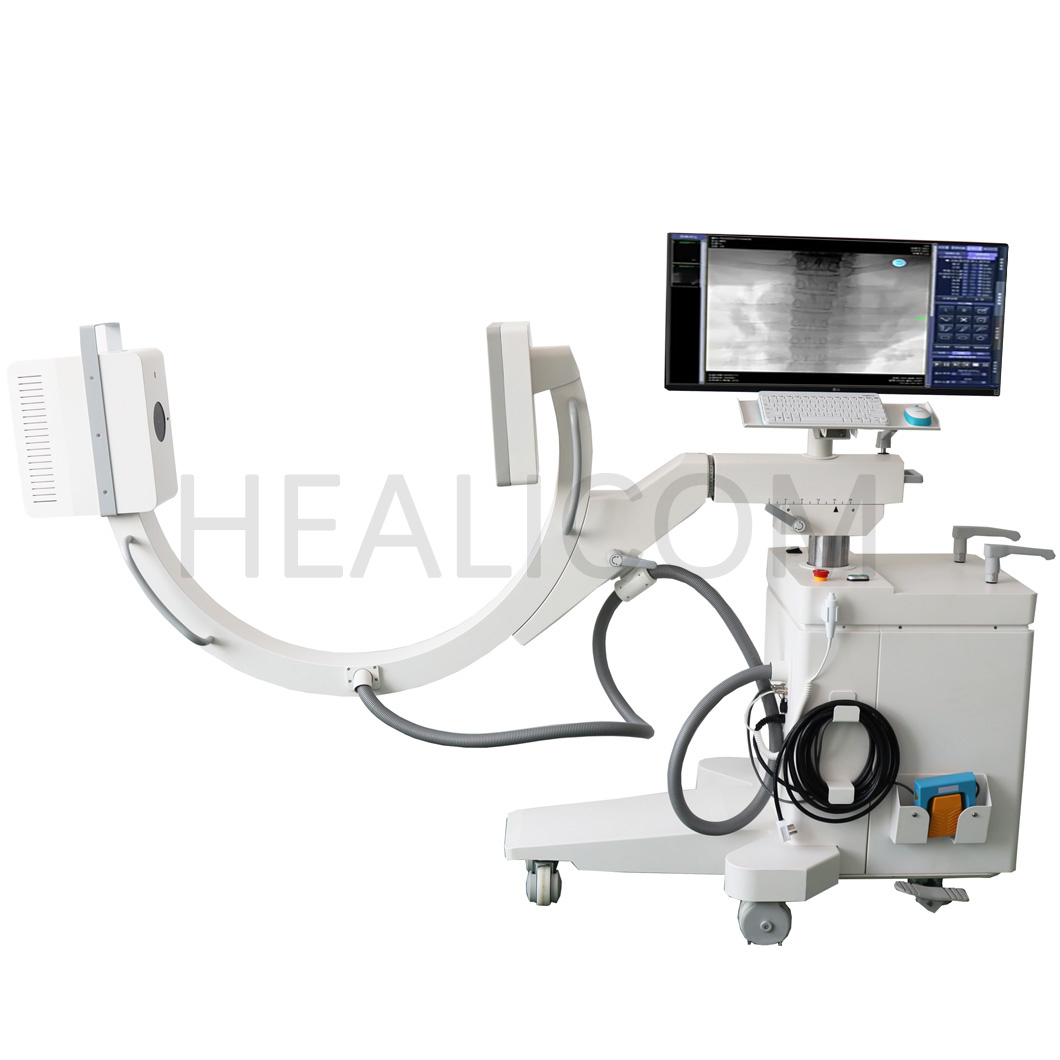

33
