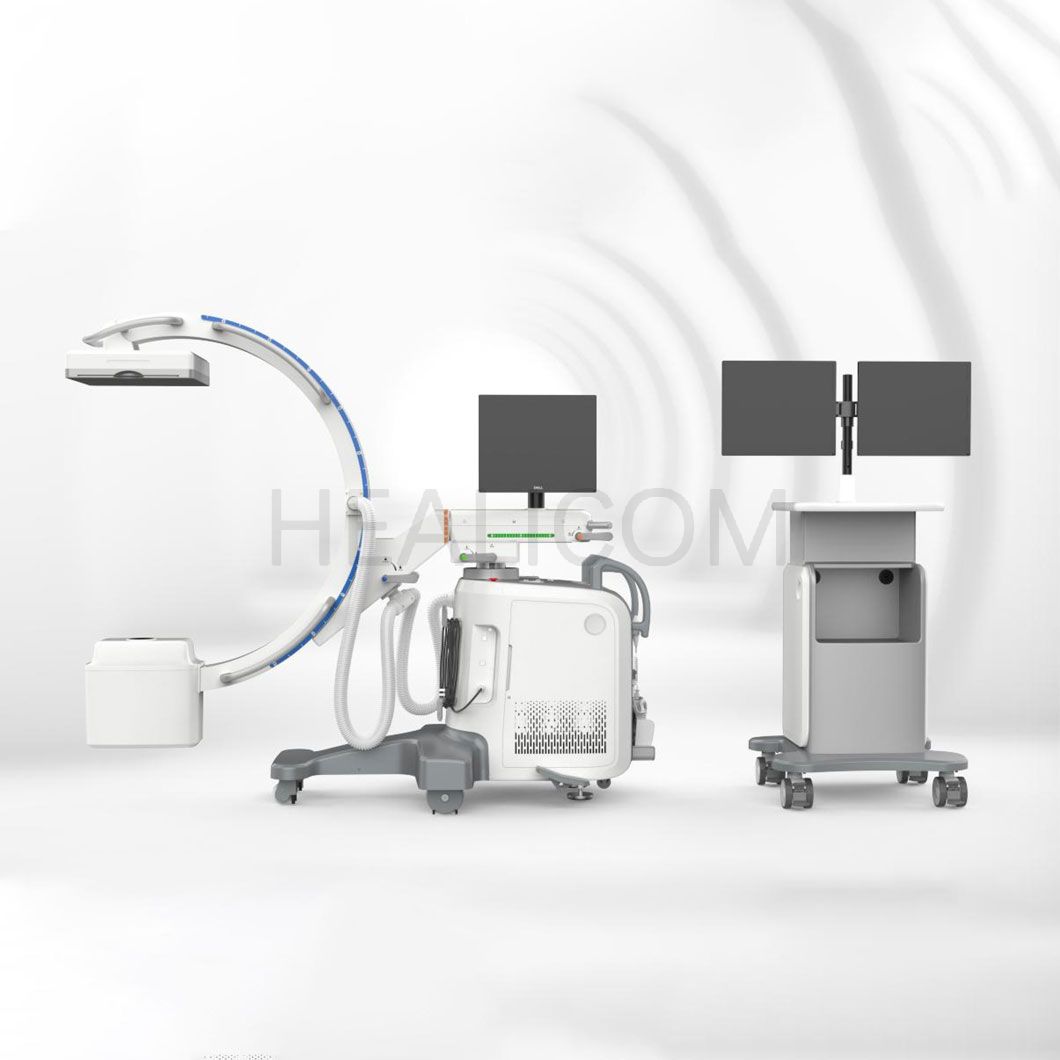

HCX-50A
Healicom
Product Description

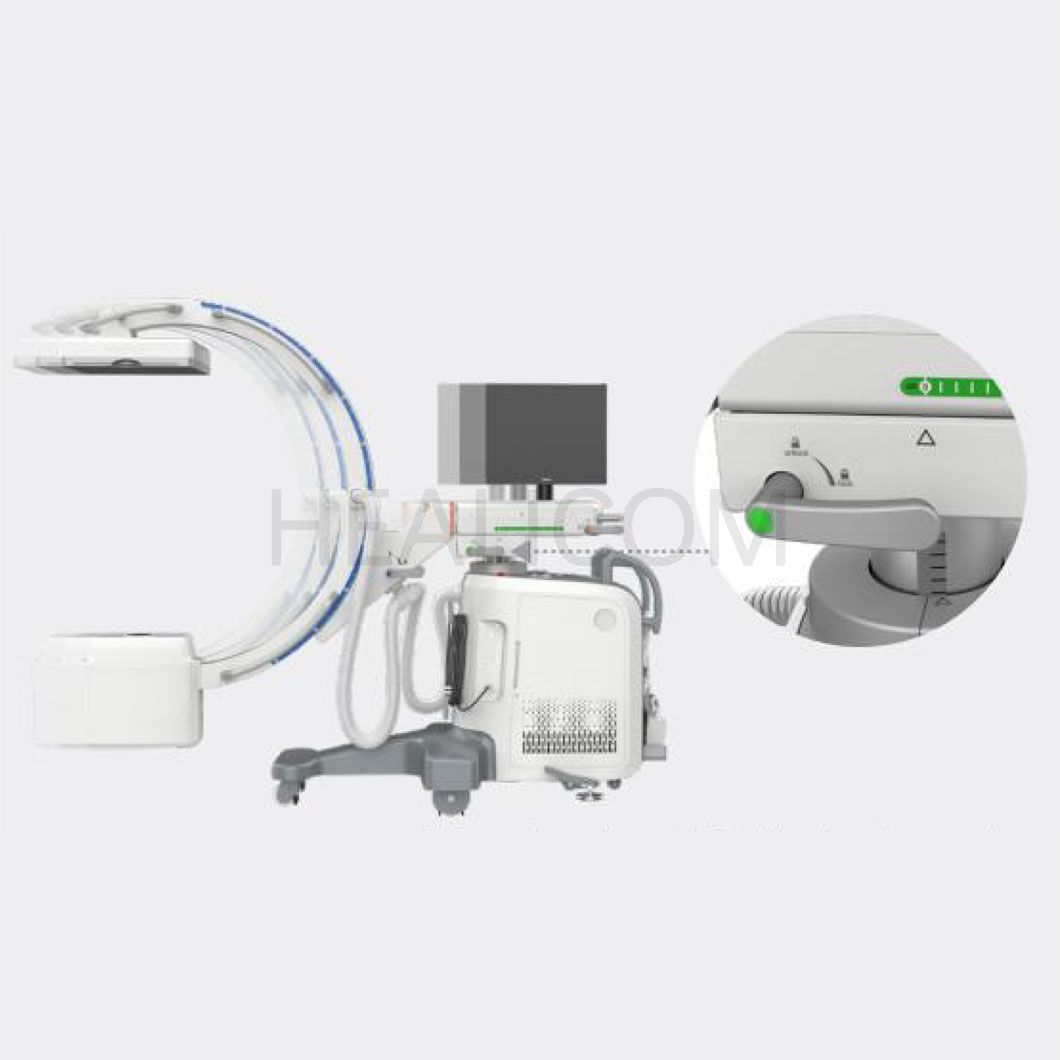

C-arm free slip designrequires no repositioning

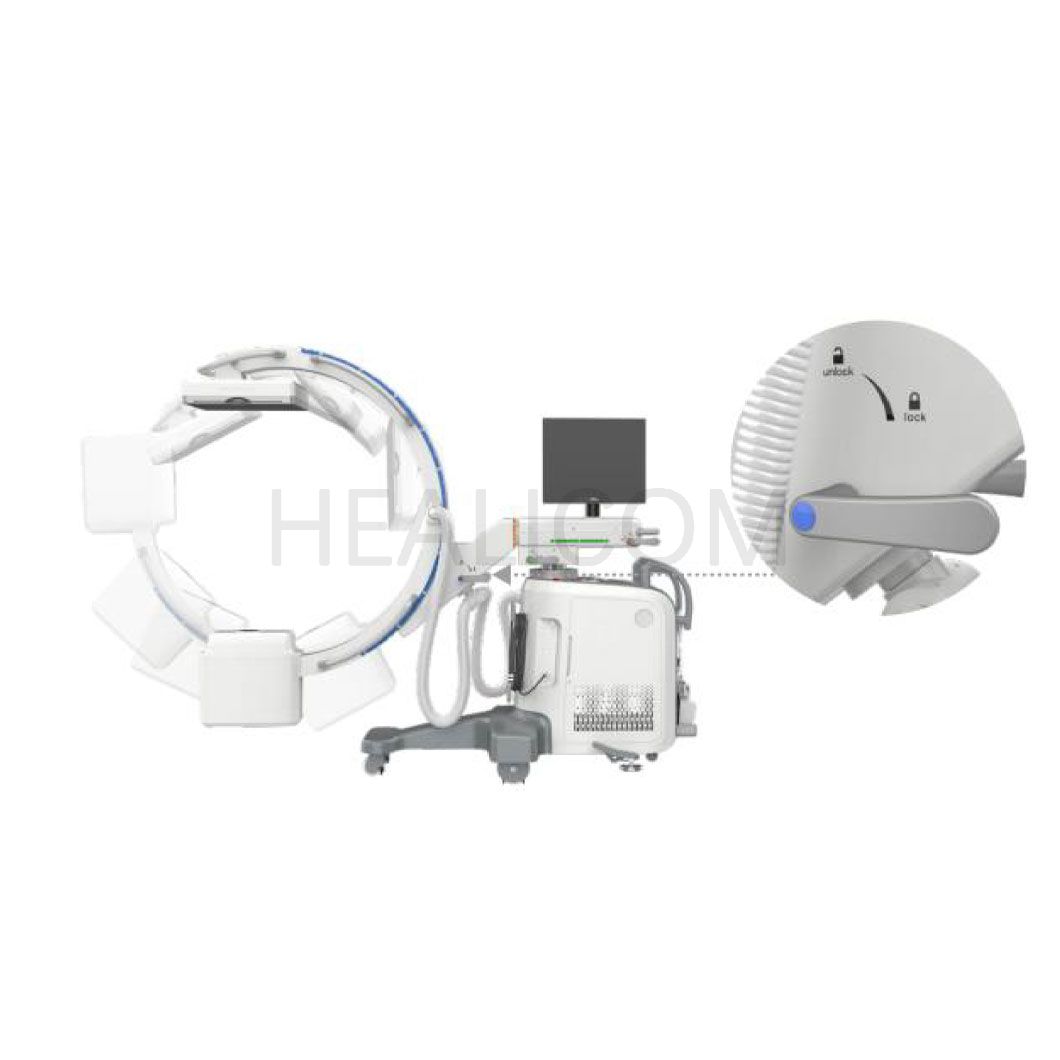

360° large rotating

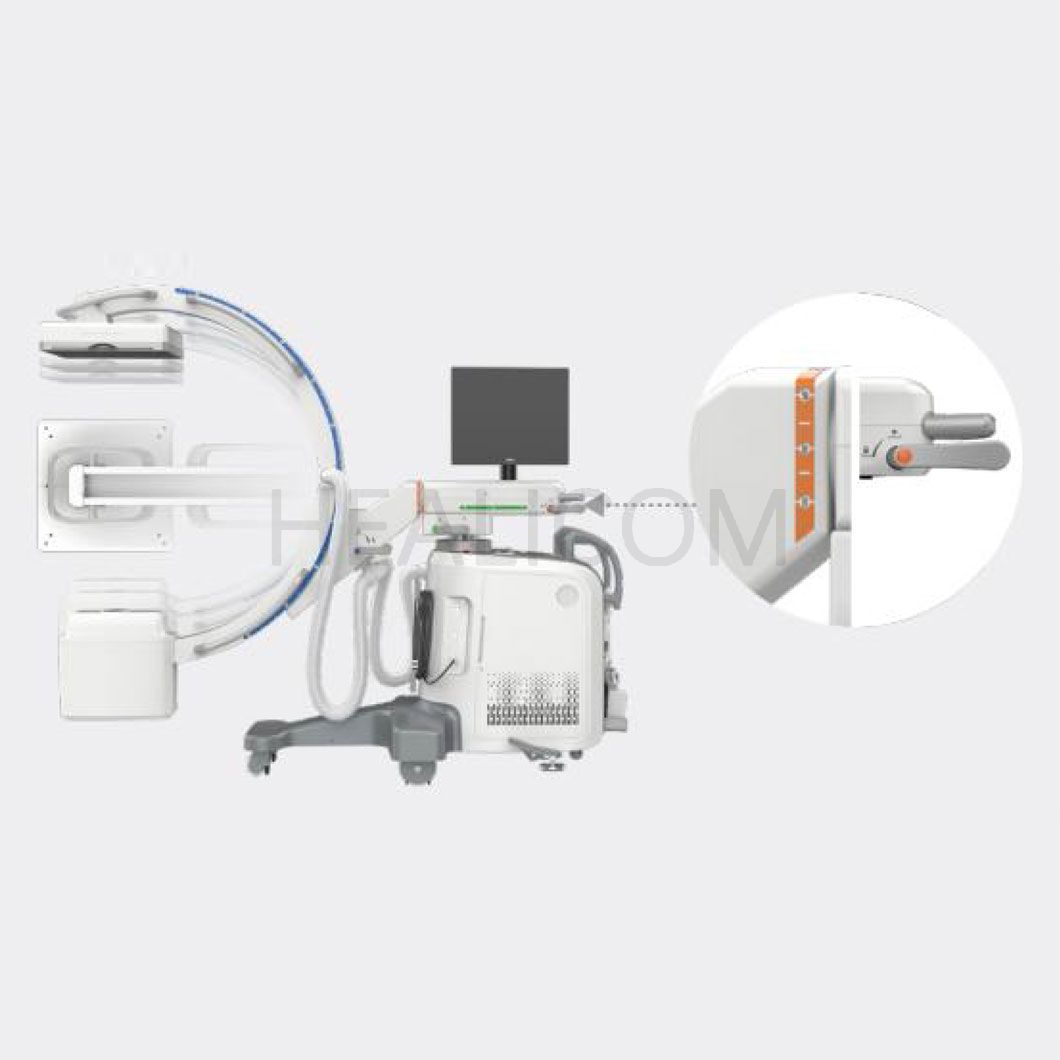

Move back and forth dexterously Get to the desired location quickly
Technical Parameters | |
Model | HCX-50A |
System Requirements | |
Electric source (V) | AC 220 |
Power (kW) | 15 |
Flat Panel Detector | |
Type | Mercu1212X |
Spatial Resolution(lp/mm ) | 3.3 |
Pixel Matrix ( pixels ) | 2048 x2048 |
Pixel Pitch(ym) | 150 |
Removable grid | yes |
Active area(mm ) | 307.2 x 307.2 |
Data Interface | 10G Ethernet |
Generator | |
KV range ( kV) | 40~125 / step length : 1 |
<5% rise time within 1ms | |
mA range(mA) | 0.2 ~150 |
+(5%+1)mA | |
Digital spot:100 | |
ms range ( ms ) | 2~60000 |
Mas range (mAs) | 0.2-100 |
X-ray Tube | |
Tyрe | Rotating |
Focal spots(mm ) | 0.3/0.6 |
C-arm | |
SID(mm) | 1080 |
Free space in arc ( mm ) | 884 |
Depth in arc ( mm) | 708 |
Orbital rotation (°) | 150(117/-33) |
Lateral rotation (°) | 450(±225) |
Wig/wag(°) | ±15 |
Horizontal travel(mm) | 200 |
Vertical travel( mm) | 400 |
